Unified World Models: Coupling Video and Action Diffusion for Pretraining on Large Robotic Datasets
1. Paper overview
In one sentence: Independent action and image noise levels let one transformer share dynamics and policy learning, improving selected robot-control results while leaving reliable visual planning unproven. identityproblemcoupled-diffusionreal-resultsliberoobjective-ablationinternet-video
| At a glance | What to know |
|---|---|
| Research problem | Source description Behavior cloning discards temporal information in demonstrations and cannot directly supervise actions from unlabelled video. UWM asks whether a shared generative model can extract action and dynamics supervision. The formulation assumes Markovian observations for exposition; implementation uses short frame histories. problemarchitecture |
| Core mechanism | Source description Independent action and image diffusion timesteps allow several conditional or marginal models to share one denoiser. coupled-diffusion |
| A key reported result | Stack-Bowls real-robot control: UWM pretrain: ID 0.86, OOD 0.76; cotrain: ID 0.92, OOD 0.84. Reported success rate. DROID pretraining/cotraining; 50 task demonstrations, 10K finetuning steps; 50 configurations, ID and visual-distractor OOD. DP: ID/OOD 0.48/0.36; pretrained GR1: 0.66/0.48. Pretrained UWM gains 20 percentage points over the strongest pretrained ID baseline. Cotraining adds 6 ID and 8 OOD points. No uncertainty is reported; three attempts per initialization preclude assuming single-trial success. robot-datarobot-protocolreal-results |
| Reading caution | Source description Forward-dynamics evidence is qualitative; the authors acknowledge reconstruction artifacts that may hinder planning and suggest denser predictions. Limited visibility and unstable object placement also cause failures. forward-visuallimitsfailures |
Core contributions
- Source description
Independent action and image diffusion timesteps allow several conditional or marginal models to share one denoiser. coupled-diffusion
- Reader analysis
The authors explain stronger transfer through shared representations and action–observation causal understanding. The experiments support useful temporal supervision, but do not independently identify causal understanding. real-resultsobjective-ablationbaselines
Figure 2. Noise levels choose the inference problem solved by the same network. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each panel from the bottom inputs through the yellow UWM block to the outputs above it. The current-image encoder stays available in all three panels. On the left, robot data provides actions and future observations with independently sampled noise levels; video data fixes the action timestep at T. In the middle, the grey future-image path is held at full noise, so the blue action path samples a policy. On the right, a clean future image provides inverse-dynamics conditioning at image timestep zero. The blue arrows indicate action sampling; Eqs. (2) and (5) specify the reverse diffusion sequence. coupled-diffusioninverse-notation
What it supports. The difference between policy and inverse dynamics is the information supplied to one model, rather than a replacement network. Full image noise approximately removes future-image information; a clean future image gives an additional condition for action generation. This directly explains the paper’s flexible inference claim.
Where the evidence stops. Figure 2 and Eq. (5) agree on clean future-image conditioning, but the nearby prose prints o_0=o inconsistently. Follow the verified equation and figure. These modes do not establish an autonomous planner.
2. Motivation
2.1 The problem and the proposed response
Behavior cloning discards temporal information in demonstrations and cannot directly supervise actions from unlabelled video. UWM asks whether a shared generative model can extract action and dynamics supervision. The formulation assumes Markovian observations for exposition; implementation uses short frame histories. problemarchitecture
2.2 What this reading follows
A demonstration contains both an action and evidence of what happened afterward. UWM tries to learn from both, using one transformer to denoise actions and future images. Its distinguishing choice is to give the two modalities separate diffusion timesteps. Depending on what is kept clean or replaced by noise, the same network can act as a policy, a video predictor, or a forward or inverse dynamics model. This reading follows that information flow into real-robot and simulation results, then asks which ablations support temporal learning. The reviewed source is the verified May 2025 v3 artifact, including its Internet-video appendix. identityproblemcoupled-diffusionreal-resultsliberoobjective-ablationinternet-video
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | One Model |
| Prediction paradigm | Joint prediction |
| Quadrant | Q1 · One Model × Joint prediction |
3.1 Evidence-based assessment
Supports the recorded classification
The recorded Q1 classification is supported architecturally: action and future-image tokens interact in one self-attention backbone with two noise outputs. Separate encoders and a frozen VAE do not constitute separate world/action models. Independent schedules support joint video–action modeling even when deployment samples only actions; inverse dynamics is one inference mode. architecturecoupled-diffusion
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Use noise as a control over available information
Begin with the paper’s transition tuple: current observations o, action chunk a and future observations o′. Training does not always present both predicted modalities at the same noise level. One may be nearly clean while the other is heavily corrupted, teaching the shared denoiser to operate with different available information. At inference, a modality held at T is approximately isotropic Gaussian noise, so the other prediction marginalizes over its missing content. A modality held clean at zero supplies a condition instead. Thus action denoising becomes either policy sampling or inverse dynamics depending on the future-image input. Swapping the roles yields video prediction or forward dynamics. The model shares representations across these problems, but its ordinary policy mode can execute without constructing a video plan. problemcoupled-diffusionimplementation

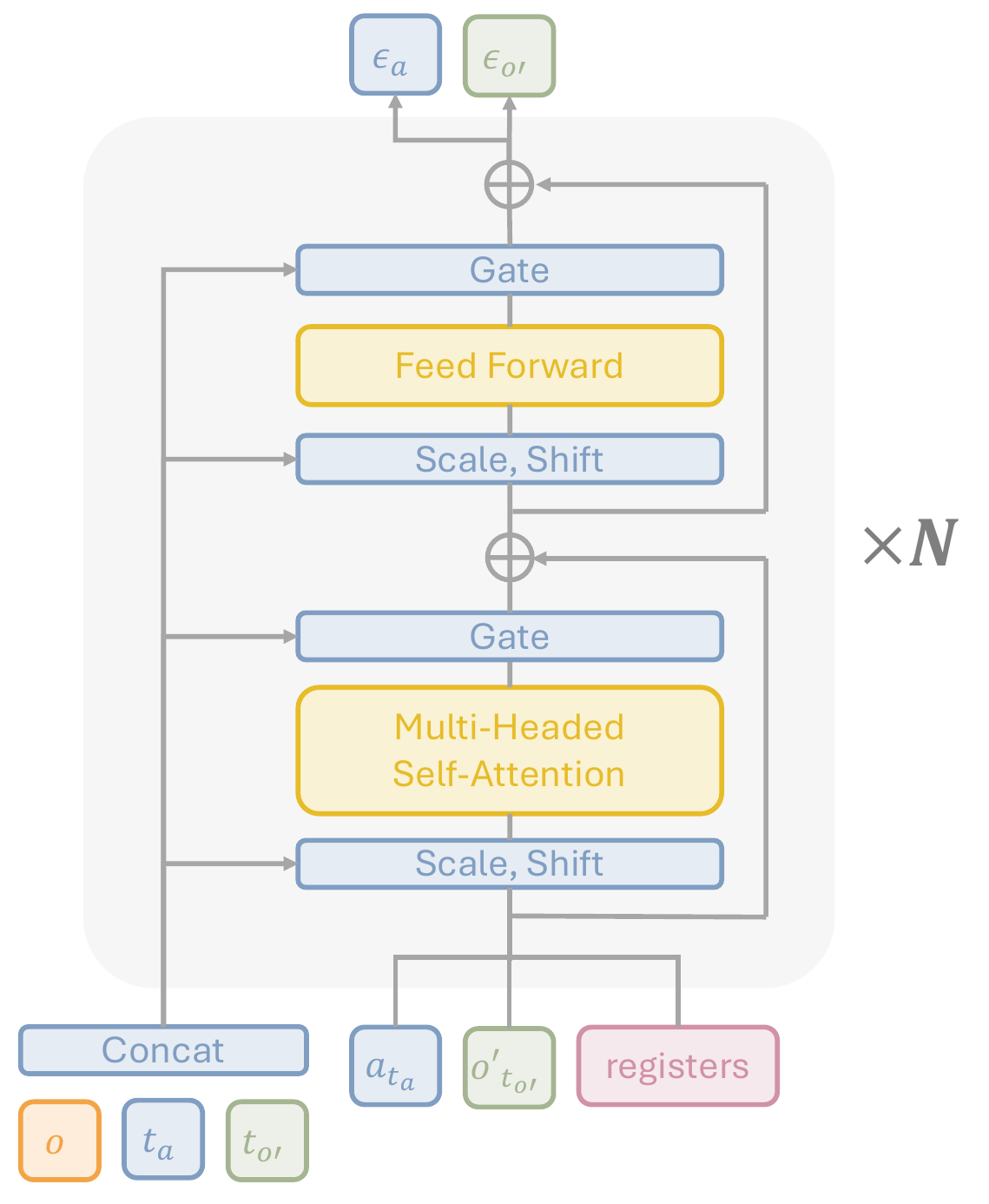

Figure 3. Shared self-attention connects action and image representations. Original paper, p. 5 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the three token groups along the bottom: noisy actions, noisy future observations and registers. They enter the same central path through self-attention and the feed-forward network. Separately, the lower-left concatenation combines current-observation information with both timestep embeddings and feeds the scale, shift and gate branches. The circled additions show residual connections. The repeated block produces modality-specific noise predictions at the top; Appendix A explains that the register outputs are discarded. Current images are encoded with a trainable ResNet-18, whereas future-image diffusion uses latents from a frozen SDXL VAE. architecturedesign-ablationcoupled-diffusion
What it supports. This is architectural evidence for one shared world–action model: both predicted modalities interact within the same transformer. Registers provide additional learnable tokens without requiring corresponding output targets. The authors propose that these tokens support information exchange, and Table VII reports higher success means when registers are included.
Where the evidence stops. The diagram does not measure what registers store or prove the proposed information-exchange explanation. Shared parameters also do not by themselves establish causal understanding; the relevant ablations test task performance.
5.2 Understand what video contributes to action learning
The video pathway contributes two distinguishable training signals. Even labelled robot trajectories provide future-image reconstruction targets, which add supervision beyond fitting demonstrated actions. Action-free videos add more visual transitions without supplying demonstrated control commands. UWM handles those missing actions by setting their diffusion timestep to T and inserting Gaussian noise; Appendix A explicitly computes action loss for video samples as well. This should not be described as recovering ground-truth action labels from video. My interpretation of Table VIII is that appearance learning explains part of the gain, because current-image reconstruction helps, while future prediction adds a further temporal benefit. Appendix D’s Internet-video experiment extends the evidence beyond robot recordings, but reports weaker transfer than robot-video cotraining and leaves its mixture scale unspecified. video-trainingobjective-ablationinternet-video
5.3 Separate control transfer, conditional prediction and planning
Evaluate each inference role using the information actually available to it. Table I measures physical task completion after pretraining and task finetuning; Table II measures simulated control under deliberately changed initializations and backgrounds. Figure 8 instead predicts images given true actions. Table III supplies a reference trajectory’s true future images and resets the simulator to its exact initial state, giving inverse dynamics privileged guidance. Its success advantage over policy sampling is meaningful under the matched reference horizon, but the policy largely recovers with a longer allowance. My assessment is that these experiments jointly support flexible conditional modeling and useful policy pretraining. They do not demonstrate autonomous planning from imagined futures or isolate causal understanding. Baseline conditioning differences and acknowledged image artifacts make those stronger interpretations premature. real-resultsrobot-protocolliberoforward-visualinverse-resultsbaselineslimits
5.4 Training and inference
During training
Real-robot pretraining uses 2,000 DROID trajectories for 100K steps; cotraining adds 2,000 other trajectories stripped of actions. Task finetuning uses 50–150 demonstrations and 10K–50K steps. Mixed batches are sampled uniformly; augmentations are temporally consistent within each camera. robot-datavideo-training
Defaults use AdamW, learning rate 1e-4, weight decay 1e-6 and equal loss weights. The transformer has 12 layers, 12 heads and width 768. Learning rate is constant in pretraining and cosine-decayed after 1,000 warmup steps in finetuning. implementation
During inference
For policy sampling, fix future images at Gaussian noise and timestep T, then denoise actions. Inverse dynamics instead supplies clean future images at timestep zero. Conversely, video prediction masks actions at T; forward dynamics supplies clean actions at zero and denoises images. coupled-diffusion
Deployment uses 10 DDIM steps, predicts 16 actions, executes eight and replans from observations. Delta end-effector pose and gripper commands run at 10 Hz. Ordinary policy execution requires neither a generated future video nor search over imagined trajectories. implementationrobot-protocolcoupled-diffusion
Figure 2 and Eq. (5) condition inverse dynamics on clean future observations; adjacent prose prints o_0=o instead. This apparent notation error is disclosed, and the equation/figure define the interpretation used here. inverse-notation
5.5 Implementation flow
- Encode both modalities
A trainable ImageNet-initialized ResNet-18 encodes current frames. A frozen SDXL VAE maps 224×224×3 future images to 28×28×4 latents, patchified with a 4×4×2 spatiotemporal kernel. A shallow MLP embeds actions. architecture
- Share the transformer
Action tokens, image patches and eight learnable registers share self-attention. Current-image and timestep features condition blocks through AdaLN. Modality decoders predict noise; register outputs are discarded. architectureimplementation
- Train across noise combinations
Independently sampled timesteps expose the network to different modality noise levels. Action-free samples fix the action timestep at full noise and impute Gaussian actions; the appendix explicitly retains their action loss. coupled-diffusionvideo-training
6. Experiments & results
Unified World Models (UWM) couples action and future-image denoising in one transformer, with independent noise levels for each modality. Dynamics supervision and action-free video improve finetuned robot policies. The same network supports policy, video, forward-dynamics and inverse-dynamics inference, but the experiments do not establish reliable model-based planning.
6.1 Read the original evidence

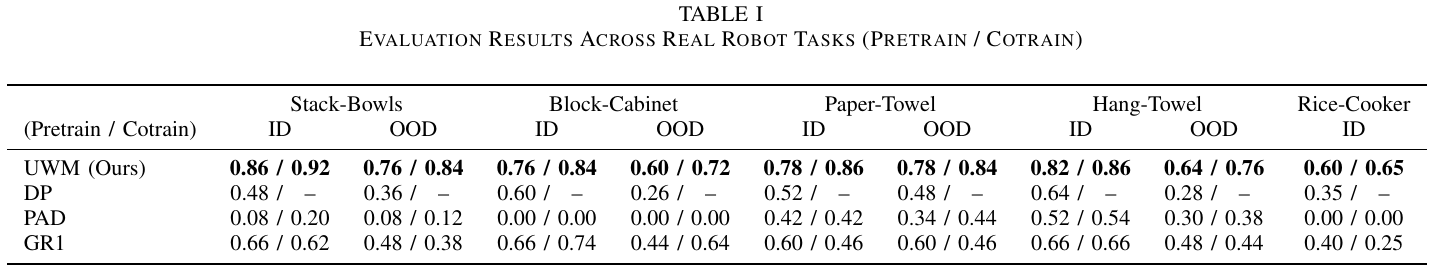

Table I. The main physical-control table separates task, distribution shift and video cotraining. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. First select a task and then its in-distribution or out-of-distribution column. Each cell contains pretraining before the slash and cotraining after it; the slash does not separate ID from OOD. Compare methods vertically within that same setting. Dashes indicate that DP has no cotraining entry, not zero success. UWM’s pretraining uses 2,000 DROID trajectories, while cotraining adds 2,000 other trajectories without action labels. All models are then finetuned on task demonstrations. Rice-Cooker has only an ID column, and its smaller evaluation set should remain separate from the four tasks with 50 initialization configurations. robot-datarobot-protocolreal-results
What it supports. Stack-Bowls rises from 0.86 to 0.92 ID success and from 0.76 to 0.84 OOD success after video cotraining. Pretrained DP records 0.48 ID and 0.36 OOD. The positive cotraining change appears in every reported UWM task/setting cell, supporting transfer from these additional robot videos.
Where the evidence stops. Table I gives no uncertainty. Appendix C allows three attempts per initialization but leaves aggregation unclear. These values therefore should not be labelled single-attempt success rates, and Rice-Cooker supplies no OOD result.

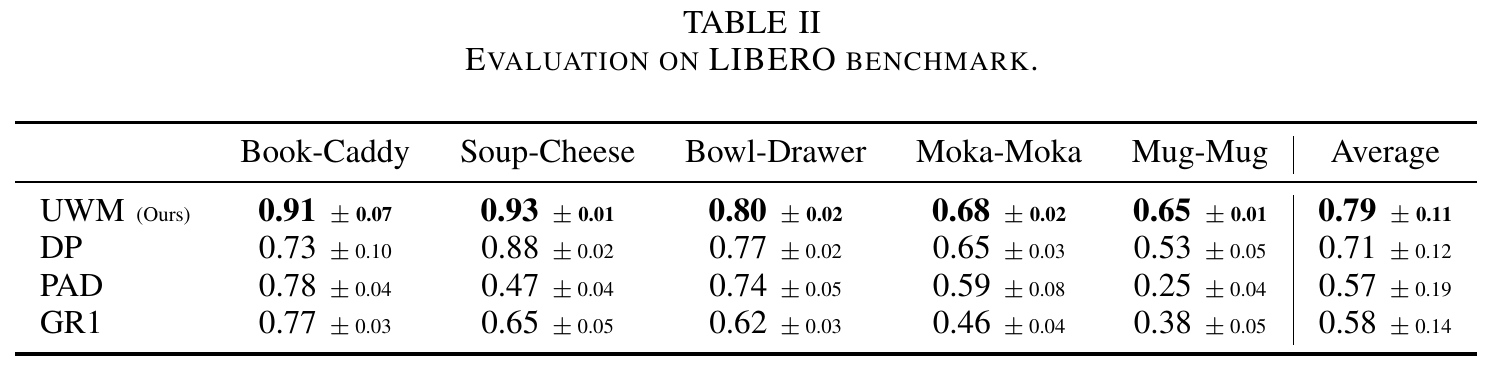

Table II. Simulation provides a separate test under modified initializations and backgrounds. Original paper, p. 8 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read vertically within each named task before considering the final Average column. The evaluation uses five selected tasks from LIBERO-10 after pretraining on the 90-task split and finetuning each task with demonstrations. It changes object initialization ranges and removes background objects, so the figures belong to the paper’s modified evaluation setup. Three finetuning seeds and 50 initializations are used. The printed plus-minus values are retained exactly; the prose describes confidence intervals across seeds, without providing the confidence level or construction method. The caption’s broader benchmark name should not obscure the five-task scope. liberobaselines
What it supports. UWM has the highest reported task means and averages 0.79, compared with DP’s 0.71, PAD’s 0.57 and GR1’s 0.58. The eight-percentage-point average advantage over DP extends the positive control evidence to simulation, while the task columns show that the size of the gain varies.
Where the evidence stops. This is not an all-task standard LIBERO leaderboard result. Missing interval definitions limit statistical interpretation, and the simulation averages must not be pooled with Table I’s real-robot rates.

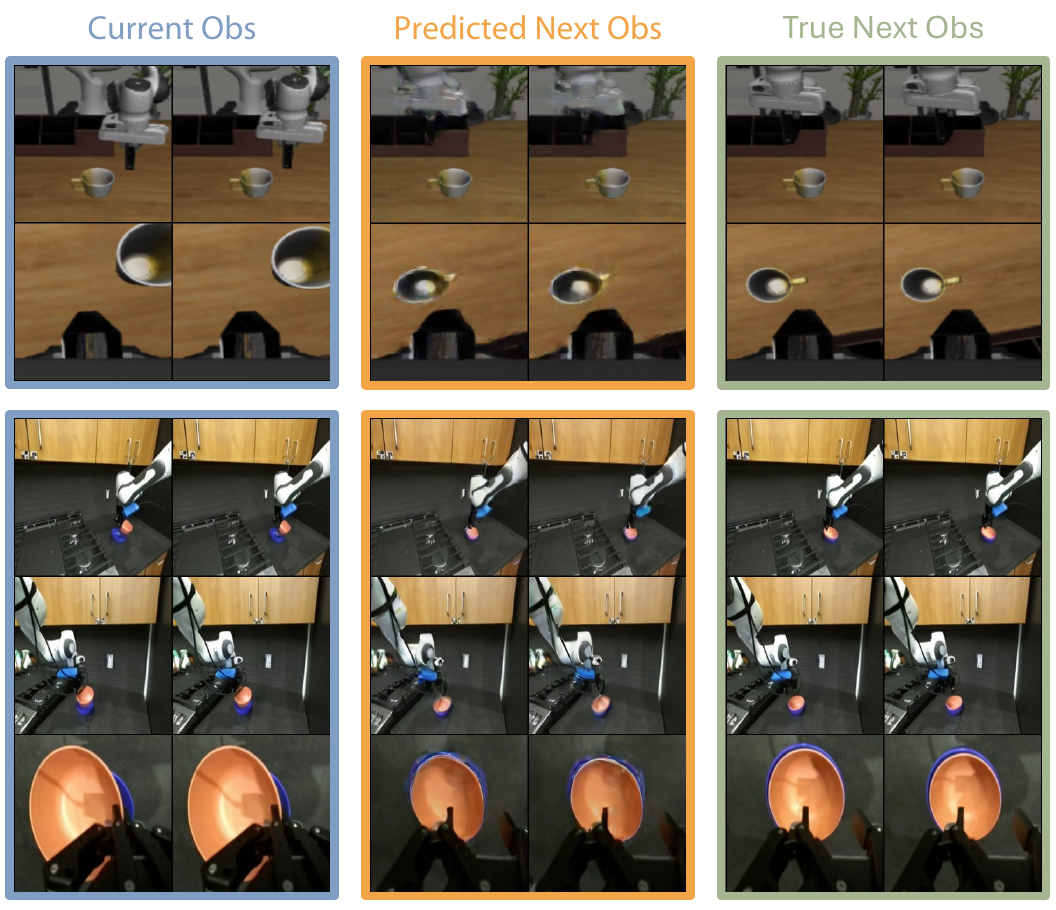

Figure 8. Future-image examples expose what the dynamics branch actually predicts. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow each example horizontally: blue-bordered current observations, orange-bordered predicted next observations, then green-bordered true next observations. The upper group is simulated manipulation; the lower group contains real-robot camera views, including a close wrist view. Compare robot and object positions in the middle column with the corresponding right column, rather than treating an attractive reconstruction as a success score. Section IV-D.1 explains the hidden conditioning variable: the model receives ground-truth actions with the action timestep fixed to zero. Only future observations undergo reverse diffusion. The adjacent views and frames are components of the observation representation, not independent experimental trials. forward-visualarchitecturelimits
What it supports. The displayed predictions reproduce broad changes in robot and object configuration across both domains, while visible reconstruction differences remain. This supports the feasibility of using the shared network in forward-dynamics mode. It supplies qualitative examples of conditional image prediction, rather than a measured distribution-wide accuracy result.
Where the evidence stops. Ground-truth action conditioning makes this a different test from autonomous action selection. No quantitative dynamics metric or planning-success comparison accompanies the figure; Section VII explicitly acknowledges artifacts that may hinder planning.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Stack-Bowls real-robot control DROID pretraining/cotraining; 50 task demonstrations, 10K finetuning steps; 50 configurations, ID and visual-distractor OOD. | UWM pretrain: ID 0.86, OOD 0.76; cotrain: ID 0.92, OOD 0.84. Reported success rate | DP: ID/OOD 0.48/0.36; pretrained GR1: 0.66/0.48. Pretrained UWM gains 20 percentage points over the strongest pretrained ID baseline. Cotraining adds 6 ID and 8 OOD points. No uncertainty is reported; three attempts per initialization preclude assuming single-trial success. robot-datarobot-protocolreal-results |
| LIBERO control under distribution shifts 4,500 LIBERO-90 trajectories; five selected LIBERO-10 tasks with 50 finetuning demonstrations each; 100K/10K steps, three seeds, 50 initializations. | UWM 0.79 ± 0.11. Average success rate; reported ± interval | DP 0.71 ± 0.12; PAD 0.57 ± 0.19; GR1 0.58 ± 0.14. The mean gain over DP is 8 percentage points in this modified five-task setting. Confidence-interval level and construction are unspecified. libero |
| Inverse-dynamics reference-trajectory tracking Book-Caddy / Soup-Cheese; 50 expert trajectories, exact initial-state reset and true future images; reference-trajectory time limit. | Inverse dynamics: 0.65 ± 0.01 / 0.55 ± 0.02. Task success rate; reported ± values | Policy at matched horizon: 0.47 ± 0.02 / 0.26 ± 0.02; at 1,000 steps: 1.00 ± 0.00 / 0.97 ± 0.01. Reference conditioning helps within a tight horizon. This privileged-information setup is not autonomous planning, and success is not a trajectory-distance metric. inverse-results |
| Future versus current observation reconstruction Pretraining objective ablation, Stack-Bowls / Block-Cabinet; Appendix D.2. | Future reconstruction: 0.86 / 0.76. Reported success rate | Current reconstruction: 0.70 / 0.66; DP without reconstruction: 0.48 / 0.60. Future targets add 16/10 percentage points over current reconstruction, supporting temporal supervision. No uncertainty or separately detailed protocol accompanies this table. objective-ablation |
| Register-token ablation Single-task Book-Caddy / Soup-Cheese, trained from scratch; three seeds, 50 initializations. | Eight registers: 0.88 ± 0.04 / 0.90 ± 0.02. Reported success rate; reported ± values | No registers: 0.81 ± 0.07 / 0.85 ± 0.03; cross-attention: 0.78 ± 0.05 / 0.86 ± 0.04. Registers and AdaLN have higher means here. The information-exchange explanation remains a hypothesis; these are not pretrained Table II models. design-ablation |
| Cotraining with Internet videos Stack-Bowls / Block-Cabinet; Kinetics-400 and Something-Something-v2 mixture; random crops impute camera views. | Internet-video cotraining: 0.88 / 0.80. Reported success rate | Robot-only: 0.86 / 0.76; robot-video cotraining: 0.92 / 0.84. Transfer is modest and weaker than robot-video transfer. Mixture size and uncertainty are unspecified; broad cross-embodiment scaling is unestablished. internet-video |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

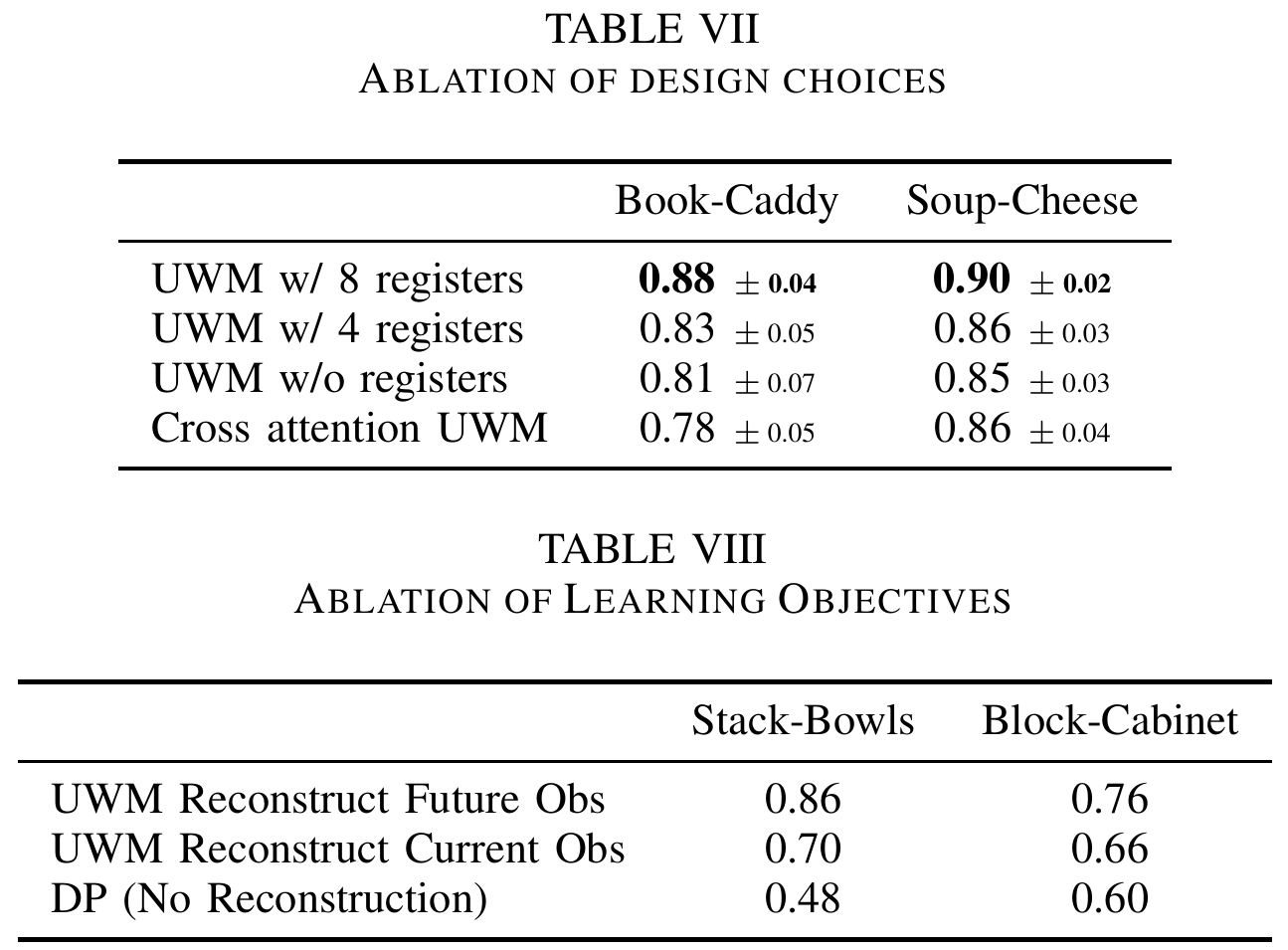

Tables VII and VIII. Separate architectural ablations from the test of temporal supervision. Original paper, p. 17 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Treat these as two experiments. In Table VII, the columns are Book-Caddy and Soup-Cheese, and models are trained from scratch on single-task datasets, with three seeds and 50 initializations. Compare register counts first, then the cross-attention conditioning variant. In Table VIII, the columns switch to real-robot Stack-Bowls and Block-Cabinet. Here the intervention is the pretraining reconstruction target: future observations, current observations, or no image reconstruction in DP. Read the row names carefully before comparing values. The two tables use different tasks and training contexts, so similarly sized success rates do not describe equivalent evaluations. design-ablationobjective-ablationarchitecturebaselines
What it supports. Future reconstruction outperforms current reconstruction by 16 percentage points on Stack-Bowls and 10 on Block-Cabinet. Current reconstruction itself improves on DP, separating an appearance-learning benefit from the additional temporal benefit. Table VII separately reports higher means with eight registers than with none.
Where the evidence stops. Neither table directly isolates independent diffusion timesteps. Register changes alter token capacity, and Table VIII provides no uncertainty or separate detailed protocol. Performance gains support these design choices within the reported settings, without proving a unique causal mechanism.
7. Analysis & limitations
7.1 What the evidence leaves open
Forward-dynamics evidence is qualitative; the authors acknowledge reconstruction artifacts that may hinder planning and suggest denser predictions. Limited visibility and unstable object placement also cause failures. forward-visuallimitsfailures
Section VII leaves large-scale human-video learning to future work, while Appendix D.3 reports a limited Internet-video experiment. Both statements occur in v3; the appendix does not establish that the embodiment gap is solved. limitsinternet-video
Adapted baselines differ in conditioning, tokens and objectives, so comparison cannot isolate independent timesteps. Rice-Cooker has no OOD evaluation despite the Figure 5 OOD illustration. Generalization remains bounded by selected tasks and shifts. baselinesrobot-protocolreal-results
7.2 Questions for discussion
- Does independent noising improve control when conditioning, tokens and training exposure are fixed?
- How much video transfer survives temporal shuffling with image appearance preserved?
- Do forward predictions remain useful when supplied actions differ deliberately from expert actions?
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction requires curated DROID subsets, task demonstrations, image components and the camera/control setup. Reported pretraining takes 24 hours on four NVIDIA A100 GPUs with PyTorch DDP; distributed batches are 36×4 for pretraining and 36×2 for finetuning. robot-dataarchitecturerobot-protocolimplementation
Resolve unspecified trajectory selections, augmentation ranges, software versions, attempt aggregation and interval construction before exact comparison. Appendix C.5 increases initialization ranges by 0.03 without stating units. Internet-video mixture details are incomplete. robot-datavideo-trainingimplementationrobot-protocolliberointernet-video
Proposed checks: fix the architecture while tying only diffusion timesteps; separately compare correctly ordered future targets against temporally shuffled targets and current-image reconstruction. Share evaluation initializations and repeat training seeds. coupled-diffusionbaselinesobjective-ablation
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Isolate independent diffusion timesteps
Reader-proposed experiment: pretrain two UWM variants on exactly the same LIBERO-90 data, preserving AdaLN, encoders, registers, loss weights, token counts and update budget. Sample independent timesteps in one variant and force equal action/image timesteps in the other. Finetune Book-Caddy and Soup-Cheese using shared demonstrations and at least three paired seeds. Compare both under the same policy-sampling schedule, initialization list and horizon; additionally let the tied model use joint sampling to check inference mismatch. Report each seed, task success and inference cost. If the independent model loses its advantage once these controls are matched, timestep decoupling alone does not explain the original baseline gap. coupled-diffusionarchitectureimplementationliberobaselines
Check 2: Test temporal supervision beyond image appearance
Reader-proposed experiment: repeat the Stack-Bowls and Block-Cabinet reconstruction ablation with identical DROID trajectories, updates, action losses and model capacity. Compare correct future-image targets, current-image targets and future targets shuffled within each trajectory while retaining camera identity. Finetune on the same demonstrations and evaluate matched ID/OOD configurations across repeated seeds. Record all three attempts separately, reporting first-attempt and any-success outcomes explicitly. The temporal-learning hypothesis predicts better control from correct future targets than from appearance-matched shuffled targets. Similar performance after shuffling would weaken that explanation; a persistent gap would strengthen it without proving general causal understanding. objective-ablationrobot-datavideo-trainingrobot-protocolreal-results
8.3 Reading coverage
Visual audit: The title/authors, revision stamp and affiliations were inspected on page 1. Figures 1–14 and Tables I–IX were visually read on the declared pages. Every final crop was separately opened and inspected: Figure 2, Figure 3, Table I, Table II, Figure 8 and Tables VII–VIII. The conditioning markers in Figures 2–3 were checked against Section III, Eqs. (1)–(5) and Appendix A; the inverse-dynamics prose typo is disclosed. Pages 14–17 supply implementation, compute, protocol and ablation evidence, including facts motivating proposed checks. Pages 11–13 contain references/acknowledgements read in the complete text pass and were not visually inspected. Separate videos, repositories and supplemental material remain outside this reading.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 14, 15, 16, 17. Appendix coverage: reviewed.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract and I. Introduction
- II. Preliminaries, diffusion and conditional generation
- III. Method, A–D
- IV. Experiments, A–D
- V. Related Work
- VI. Discussion
- VII. Limitations
- Acknowledgements and References
- Appendix A. Additional Implementation Details
- Appendix B. Baseline Details
- Appendix C. Setup, tasks, evaluation, failures and simulated environments
- Appendix D. Additional Experiments
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- All seven supplied chunks were read individually, including appendices and references. Original figures and tables were subsequently inspected in the PDF, resolving the extraction-only visual limitation.
- Identity/version: the title page matches the catalog title and six authors but identifies arXiv:2504.02792v3, 23 May 2025. The catalog submission date is 3 April 2025. Earlier versions were not supplied; their contents and revision differences were not compared.
- No external project, repository, video or separate supplement was inspected; no experiment was reproduced. PDF pages 11–13 were read as extracted references and acknowledgements; visual inspection covered pages 1–10 and 14–17.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
identityPDF p. 1, title block and arXiv stamp
Title and six authors match the catalog. This artifact is arXiv:2504.02792v3 [cs.RO], dated 23 May 2025. Affiliations are the Paul G. Allen School of Computer Science and Engineering, University of Washington, and Toyota Research Institute.
Go to primary source ↓problemPDF pp. 1–3, Introduction and Section III-A
The work seeks temporal supervision from demonstrations and action-free video for imitation learning. The exposition assumes Markovian observations and distinguishes expert observation/action/future-observation tuples from action-free pairs.
Go to primary source ↓coupled-diffusionPDF pp. 3–4, Section III-B, Figure 2 and Eqs. (1)–(5)
One predictor takes current observations, noisy actions, noisy future observations and independent diffusion timesteps. Full noise approximates marginalization; clean supplied variables provide conditioning. Eq. (1) combines weighted action and future-observation noise errors.
Go to primary source ↓inverse-notationPDF p. 4, Figure 2, inverse-dynamics paragraph and Eq. (5)
Figure 2 and Eq. (5) condition action denoising on the supplied future observation at timestep zero. The adjacent prose instead prints o_0=o, an inconsistent notation.
Go to primary source ↓architecturePDF p. 5, Section III-C and Figure 3; p. 14, Appendix A.1 and Table V
Current-image ResNet-18 and sinusoidal timestep features condition a shared transformer through AdaLN. ImageNet-initialized ResNet weights are trained; the SDXL VAE is frozen. Action tokens, latent image patches and learnable registers share self-attention; registers are discarded before decoding. Image/latent/patch shapes are 224×224×3, 28×28×4 and 4×4×2.
Go to primary source ↓video-trainingPDF p. 5, Section III-D; p. 14, Appendix A.2
Action-free samples fix the action timestep at T and replace missing actions with unit Gaussian noise. Batches uniformly mix robot and video samples; action loss is computed on both. Image augmentations are temporally consistent but differ by camera.
Go to primary source ↓robot-dataPDF pp. 6–7, Section IV-B.1; p. 15, Table VI
Pretraining uses 2,000 DROID trajectories selected by location; cotraining adds 2,000 other trajectories stripped of actions. All methods receive 100K pretraining steps. Stack-Bowls, Block-Cabinet and Hang-Towel use 50 demonstrations/10K finetuning steps; Paper-Towel uses 100/20K and Rice-Cooker 150/50K.
Go to primary source ↓implementationPDF p. 14, Appendix A.1–A.3 and Table V
Defaults include two observation frames, 16 predicted/eight executed actions, eight registers, width 768, depth 12, 12 heads, 100 training diffusion steps and 10 DDIM inference steps. AdamW uses learning rate 1e-4, weight decay 1e-6 and equal loss weights of 1. Pretraining batch size is 36×4; finetuning is 36×2. Learning rate is constant during pretraining, cosine with 1,000 warmup steps during finetuning. A 100K-step DROID run takes 24 hours on four NVIDIA A100 GPUs with PyTorch DDP.
Go to primary source ↓robot-protocolPDF pp. 15–16, Appendix C.1–C.3, Figures 11–12 and Table VI; p. 6, Figure 5
Franka Panda observations use two scene cameras and one wrist camera; delta end-effector pose and continuous gripper commands run at 10 Hz. An extra camera helps match initializations. Four tasks use 50 configurations; Rice-Cooker uses 20 near-distribution configurations, without OOD evaluation despite the illustrated OOD row in Figure 5. Each method receives three attempts per initialization, with no explicit aggregation rule.
Go to primary source ↓real-resultsPDF p. 7, Table I, all rows and ID/OOD columns
UWM leads the reported pretraining and cotraining cells. Stack-Bowls ID/OOD changes from 0.86/0.76 to 0.92/0.84 with cotraining; DP is 0.48/0.36 and pretrained GR1 is 0.66/0.48. Block-Cabinet changes from 0.76/0.60 to 0.84/0.72; Rice-Cooker ID changes from 0.60 to 0.65. No uncertainty is tabulated.
Go to primary source ↓liberoPDF p. 8, Section IV-C, Table II and Figure 7; p. 16, Appendix C.5
LIBERO-90 provides 4,500 trajectories; five selected LIBERO-10 tasks each provide 50 finetuning demonstrations. Training uses 100K pretraining/10K finetuning steps, three seeds and 50 evaluation initializations. Object initialization ranges increase by 0.03 and background objects are removed. Average success is UWM 0.79±0.11, DP 0.71±0.12, PAD 0.57±0.19 and GR1 0.58±0.14. Intervals are called confidence intervals across seeds, with no stated level or construction.
Go to primary source ↓forward-visualPDF pp. 8–9, Section IV-D.1 and Figure 8
Forward prediction fixes ground-truth actions at timestep zero and denoises future observations. Figure 8 compares current, predicted future and true future images in simulated and real scenes. No quantitative dynamics metric accompanies these examples.
Go to primary source ↓inverse-resultsPDF pp. 8–9, Section IV-D.2 and Table III
Tracking starts at each expert trajectory's exact initial state and supplies true future observations. Across 50 reference trajectories, inverse-mode success at the reference horizon is 0.65±0.01 on Book-Caddy and 0.55±0.02 on Soup-Cheese; policy success is 0.47±0.02 and 0.26±0.02. At 1,000 steps, policy reaches 1.00±0.00 and 0.97±0.01.
Go to primary source ↓categorized-oodPDF p. 9, Section IV-D.3, Figure 9 and Table IV; p. 16, Figure 13
Six lighting, background and clutter conditions use five initializations each. Stack-Bowls totals are 21/30 for cotrained UWM, 15/30 for pretrained UWM and 12/30 for DP; Block-Cabinet printed totals are 15/30, 8/30 and 6/30. The displayed Block-Cabinet DP entries for L1, L2, B1, B2, C1 and C2 are 3/5, 0/5, 2/5, 0/5, 0/5 and 0/5: their counts reconstruct 5/30 rather than the printed 6/30. The paper does not explain this difference; 6/30 is retained as a paper-reported aggregate, not an independently reconstructed count. All methods score 0/5 for Block-Cabinet large-item clutter.
Go to primary source ↓scratchPDF pp. 9–10, Section IV-D.4 and Figure 10
Scratch training uses the number of steps allocated to task finetuning. UWM and DP show similar scratch performance on Stack-Bowls and Block-Cabinet; UWM benefits more from pretraining.
Go to primary source ↓design-ablationPDF p. 17, Appendix D.1 and Table VII
Single-task LIBERO models are trained from scratch, with 50 initializations across three seeds. Book-Caddy/Soup-Cheese success is 0.88±0.04/0.90±0.02 with eight registers, 0.83±0.05/0.86±0.03 with four, 0.81±0.07/0.85±0.03 without registers, and 0.78±0.05/0.86±0.04 with cross-attention conditioning.
Go to primary source ↓objective-ablationPDF p. 17, Appendix D.2 and Table VIII
Changing pretraining from future- to current-observation reconstruction reduces Stack-Bowls/Block-Cabinet success from 0.86/0.76 to 0.70/0.66. DP without reconstruction scores 0.48/0.60. No intervals or separately detailed evaluation protocol accompany Table VIII.
Go to primary source ↓internet-videoPDF p. 17, Appendix D.3, Table IX and Figure 14
Kinetics-400 and Something-Something-v2 provide human-activity videos; random crops impute three camera views. Stack-Bowls/Block-Cabinet success is 0.88/0.80 with Internet video, 0.92/0.84 with robot video and 0.86/0.76 with robot data alone. Mixture size and detailed sampling proportions are not specified.
Go to primary source ↓limitsPDF p. 10, Section VII
Limitations discuss the human-video embodiment gap, forward-reconstruction artifacts that may harm planning, and possible benefits from denser future prediction. The claim that the model does not yet learn from large-scale human videos must be qualified by Appendix D.3.
Go to primary source ↓baselinesPDF p. 6, Section IV-A; p. 15, Appendix B.1–B.3
Adapted baselines use UWM-aligned input/output sequences. DP removes image tokens, image timestep and registers. PAD uses joint timesteps and concatenated image conditioning. GR1 uses regression and ViT/Perceiver conditioning. These comparisons change more than timestep coupling.
Go to primary source ↓failuresPDF p. 16, Appendix C.4
Reported real-robot failures include limited camera visibility and unstable object placement, such as paper-towel rolls toppling. Baselines also confuse bowls with distractors.
Go to primary source ↓8.5 Primary sources
