MoVieDrive: Urban Scene Synthesis with Multi-Modal Multi-View Video Diffusion Transformer
1. Paper overview
In one sentence: MoVieDrive couples shared geometric video modeling with modality-specific attention to generate RGB, depth, and semantics together, improving auxiliary outputs at a measurable RGB-fidelity cost. e-identitye-overviewe-conditionse-modality-ablatione-limitations
| At a glance | What to know |
|---|---|
| Research problem | Source description Urban video synthesis needs consistent geometry across cameras and time, plus depth and semantic outputs useful for perception. Cascading separate predictors adds models and cannot exchange latent cues during generation. The paper proposes a unified conditional generator; its evaluated outputs are scene videos, not vehicle commands. e-probleme-overview |
| Core mechanism | Source description A shared video diffusion backbone is combined with geometry-aware multi-view blocks and modality-specific cross-attention. A common pretrained VAE represents all three output modalities. e-sharede-interactione-conditions |
| A key reported result | Multi-view driving video generation on nuScenes: 46.8 FVD ↓. Official validation split; default six-view, 49-frame, 512×256 setup; comparison conditions vary. CogVideoX + SyntheOcc: 60.4. Reported fidelity improvement; Table 1 mixes implementations and cited results, without uncertainty estimates. e-datae-traininge-main-results |
| Reading caution | Reader analysis Closed-loop simulation, LiDAR derivation, and improved long-video quality remain future work. The authors report noisy distant regions in long outputs. Selected still frames cannot establish continuous temporal reliability. e-limitationse-long-style |
Core contributions
- Source description
A shared video diffusion backbone is combined with geometry-aware multi-view blocks and modality-specific cross-attention. A common pretrained VAE represents all three output modalities. e-sharede-interactione-conditions
- Source description
A unified causal layout encoder fuses projected boxes, road structure, and sparse occupancy; experiments compare RGB fidelity, layout controllability, auxiliary modalities, and architectural variants. e-conditionse-main-resultse-components
Figure 2. One conditional diffusion pipeline connects scene controls to three kinds of video. Original paper, p. 3 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read from the three input groups on the left. Layout maps enter the unified layout encoder, optional reference frames enter the 3D VAE encoder, and camera/text prompts enter their encoders. The joining symbol before the temporal layers corresponds to concatenation in Eqs. (1)–(3), not a learned action. Follow the upper occupancy route as well: 3D information also reaches embedding layers in the multi-view block. The middle brackets distinguish shared temporal/spatial processing from modality-specific interaction and projection. Finally, the VAE decoder turns denoised latents into the three displayed output modalities. The repeated blocks operate during denoising; the diagram is not an executed driving loop. e-overviewe-conditionse-sharede-interactione-modality-ablatione-limitations
What it supports. The architectural contribution is the combination of shared scene reasoning and specialized modality processing. Depth and semantics participate inside generation rather than being estimated only after an RGB video is finished. This establishes a mechanism for exchanging complementary cues, whose empirical benefit must still be checked against the modality ablation.
Where the evidence stops. Reference frames are optional. The “More modalities” labels express intended extensibility; the reported experiments concern RGB, depth, and semantics. Neither the output branch nor the supplementary discussion establishes a learned vehicle-action policy.
2. Motivation
2.1 The problem and the proposed response
Urban video synthesis needs consistent geometry across cameras and time, plus depth and semantic outputs useful for perception. Cascading separate predictors adds models and cannot exchange latent cues during generation. The paper proposes a unified conditional generator; its evaluated outputs are scene videos, not vehicle commands. e-probleme-overview
2.2 What this reading follows
A driving scene can look plausible in one camera while disagreeing with another camera or with its own depth and semantic maps. MoVieDrive addresses these linked consistency problems inside a conditional video generator. Scene layouts, camera information, captions, and optional initial frames guide a diffusion transformer whose shared layers model space and time and whose specialized layers exchange information between modalities. This edition reads the supplied March 2026 v2, including its embedded supplement. The strongest evidence is for controllable video synthesis; the modality ablation reveals a tradeoff, and closed-loop driving remains future work. e-identitye-overviewe-conditionse-modality-ablatione-limitations
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Foundational work |
| Architecture | Not applicable |
| Prediction paradigm | Not applicable |
| Quadrant | Not applicable |
This table preserves the labels recorded at reading time. The current major category is Benchmarks & simulators. View the current classification.
3.1 Evidence-based assessment
Insufficient evidence to decide
The foundational neural-simulator placement and non-applicable action quadrant fit: a unified generator predicts modalities, with no joint action output or inverse-dynamics controller. The dataset/data-collection tag is ambiguous. Experiments reuse nuScenes/Waymo with generated targets rather than establish a new collection; whether the catalog intends this tag to include synthetic data preparation is unspecified. e-overviewe-datae-limitations
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 1. Distinguish the scene description from a learned world state
Begin with what the generator is told. Camera parameters describe the views, captions describe broad content or style, and projected boxes, road maps, and sparse occupancy maps provide detailed structure. The unified layout encoder first gives each layout type its own causal ResNet branch and then fuses their features. Optional initial frames enter through the shared VAE for future-scene prediction. The sparse semantic occupancy input and the dense semantic video output are different objects: the latter is a generated modality, not simply the former copied through. Figure 7 supports the usefulness of the learned layout encoder and added geometric controls, although it prints no exact bar values. These inputs make the task conditional synthesis; the source provides no mechanism that turns generated frames into executed steering or acceleration. e-conditionse-overviewe-layout-ablatione-limitations

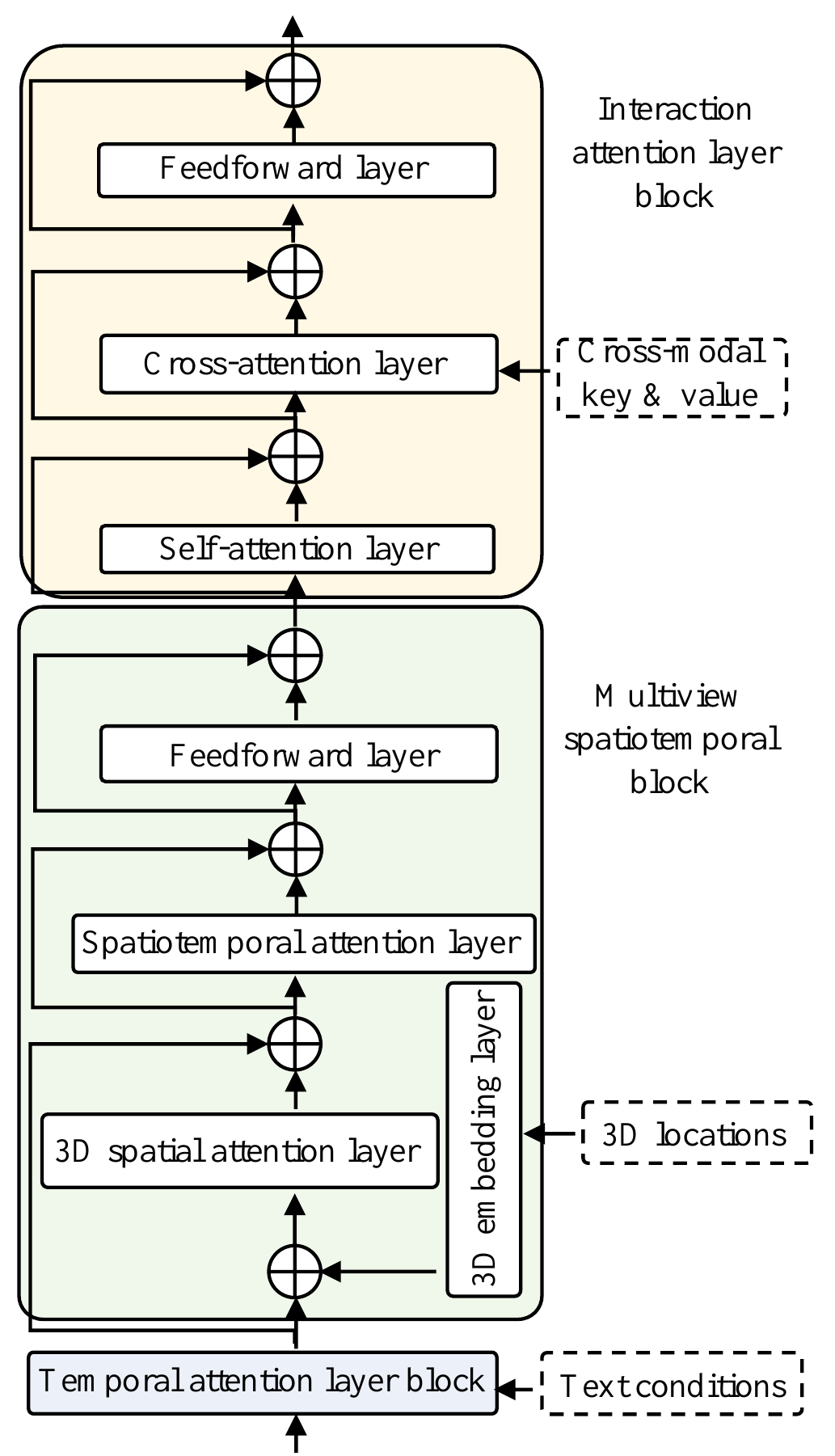

Figure 3. Geometry enters the shared block; other modalities enter the specialized block. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow the arrows upward, starting at the temporal attention block. Text conditions enter there. In the green multi-view block, the 3D-location side input passes through an embedding layer and joins the latent stream before spatial attention. Spatial attention mixes surrounding camera views; the next attention layer handles full spatiotemporal information. In the yellow interaction block, self-attention precedes cross-attention and a feedforward layer. The dashed key/value input comes from concatenated other-modality latents, whereas queries come from the current modality, as specified in Section 3.3. The circular plus signs indicate additions along residual paths. These directions agree with Eqs. (4)–(5). e-sharede-interactione-conditionse-componentse-reproduction-gaps
What it supports. The figure separates two distinct consistency mechanisms: geometry-conditioned communication across views and information exchange across modalities. Their roles should not be collapsed into a generic claim about “more attention.” Table 3 specifically supports adding the multi-view block when temporal and modality-specific layers are already present.
Where the evidence stops. The block drawing does not specify a complete implementation schedule. The text denotes insertion intervals by alpha_1 and alpha_2 but supplies no numerical values. The common-latent-space motivation is an architectural conjecture, not an independently measured guarantee.
5.2 2. Follow one modality through training and denoising
Consider the depth branch alongside RGB and semantics. During training, the frozen shared VAE encodes target videos, and the DDPM scheduler adds noise. Shared temporal layers receive text conditions; the geometry-aware blocks combine information across views and time. The depth branch then forms its own attention queries and uses the other modalities’ concatenated latents as keys and values. A depth-specific projection head predicts its added noise, contributing a weighted term to Eq. (6). The VAE and T5 stay frozen while the remaining components train jointly. At inference, Gaussian latents replace the noised training targets, and DDIM with classifier-free guidance performs reverse diffusion before VAE decoding. This makes auxiliary-modal information part of synthesis rather than merely an annotation step applied to a completed RGB sample. e-objectivee-traininge-sharede-interactione-overview
5.3 3. Read the evidence as a tradeoff across different questions
Reader analysis: the tables answer related but distinct questions. Table 1 asks whether this complete system compares favorably with available driving-video generators, while warning that conditions differ and some scores are cited. Table 2 more directly asks what changes when MoVieDrive itself generates additional modalities: auxiliary metrics improve, but RGB FVD worsens. Table 3 supports the multi-view block in a partially ablated system, without completing the factorial comparison needed to isolate interactions among all components. The supplementary teacher swap produces similar RGB FVD but supplies no corresponding auxiliary-quality comparison. Taken together, the evidence supports a useful joint synthesis design. It leaves independent physical depth accuracy, the precise source of cross-modal gains, deployment efficiency, and closed-loop driving utility unresolved. e-main-resultse-modality-ablatione-componentse-teacherse-metricse-limitations
5.4 Training and inference
During training
The backbone uses CogVideoX v1.1-2B and SyntheOcc. VAE and T5 remain frozen. Temporal layers and projection heads receive pretrained weights; other layers start randomly. Remaining components train jointly with AdamW, learning rate 2×10⁻⁴, using DDPM noise prediction and conditioning dropout. e-traininge-objective
nuScenes uses official train/validation splits, random training sequences, and defaults of six cameras, 49 frames, and 512×256 resolution. Captions come from CogVLM2-Caption. Auxiliary training targets come from Depth-Anything-V2 and Mask2Former rather than ground-truth dense modality videos. e-datae-training
During inference
Sample Gaussian latents, denoise with DDIM and classifier-free guidance, then decode all modalities. First-frame references are optional and used for future-scene prediction. Layout controls remain external inputs. Prompt edits and longer reference-free examples are demonstrated, but no closed-loop simulator integration is evaluated. e-objectivee-conditionse-long-stylee-limitations
5.5 Implementation flow
- Encode scene controls
Fourier-embedded camera parameters pass through an MLP and concatenate with frozen text-encoder features. Separate causal ResNet branches process box, road, and occupancy maps before shared fusion. Occupancy’s sparse semantic layout is distinct from the dense semantic output. e-conditions
- Build conditioned latents
The shared 3D VAE encodes training targets and optional initial-frame references. Layout/reference features are channel-modulated and concatenated with noisy latents; text/camera embeddings enter temporal-layer cross-attention. e-overviewe-conditions
- Share geometry and temporal reasoning
Temporal layers are followed periodically by multi-view blocks. Occupancy locations become hash-grid embeddings added to latents; spatial attention mixes views, and full spatiotemporal attention mixes views and frames. e-shared
- Exchange modalities and decode
Each modality queries concatenated other-modality latents through cross-attention. Modality-specific heads predict noise; reverse diffusion recovers clean latents for the shared VAE decoder. This supplies no action extraction or feedback controller. e-interactione-overviewe-limitations
6. Experiments & results
MoVieDrive jointly synthesizes RGB, depth, and semantic videos across driving cameras using shared diffusion layers and modality-specific interaction. Layouts and optional initial frames condition generation. Its experiments support video synthesis and auxiliary-modality quality, with an RGB-quality tradeoff; they do not demonstrate executed driving control (e-overview, e-modality-ablation, e-limitations).
6.1 Read the original evidence

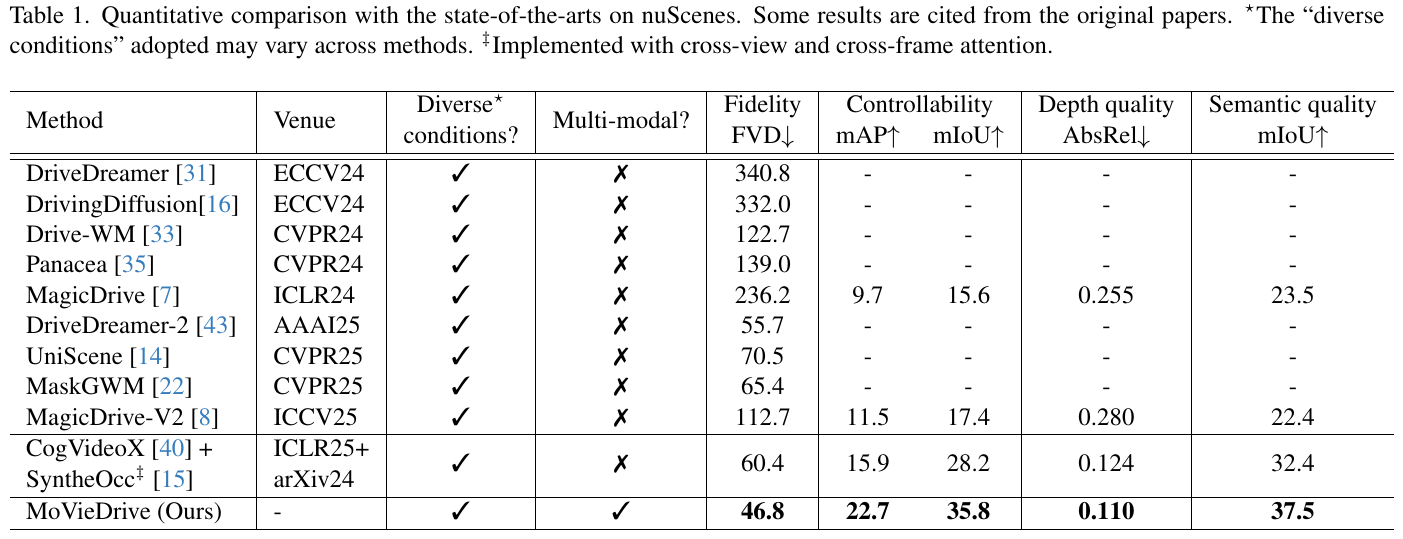

Table 1. Read the metric groups separately before interpreting the best-looking row. Original paper, p. 6 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the grouped headers rather than comparing every number directly. FVD measures video fidelity and is lower-is-better. The two controllability columns use pretrained BEVFormer for detection mAP and BEV segmentation mIoU. The final columns describe depth error and semantic-map quality; semantic mIoU is a different evaluation from BEV mIoU. Compare MoVieDrive with the adjacent CogVideoX + SyntheOcc row, the paper’s direct competitor. Keep the notes above the table in view: some scores come from original papers, conditioning differs across methods, and the adapted competitor includes cross-view and cross-frame attention. Dashes represent unreported entries, not zero scores. e-main-resultse-metricse-datae-traininge-reproduction-gaps
What it supports. MoVieDrive reports FVD 46.8 versus 60.4 for the direct competitor, alongside detection mAP 22.7 versus 15.9 and BEV mIoU 35.8 versus 28.2. Its depth AbsRel is 0.110 versus 0.124, and semantic mIoU is 37.5 versus 32.4. These are complementary synthesis and perception-proxy results.
Where the evidence stops. This is not a uniformly controlled leaderboard or a driving-safety evaluation. Uncertainty estimates are absent. Auxiliary training targets are teacher-generated, and the paper does not fully specify depth alignment or semantic label mapping for reproducing the scores.

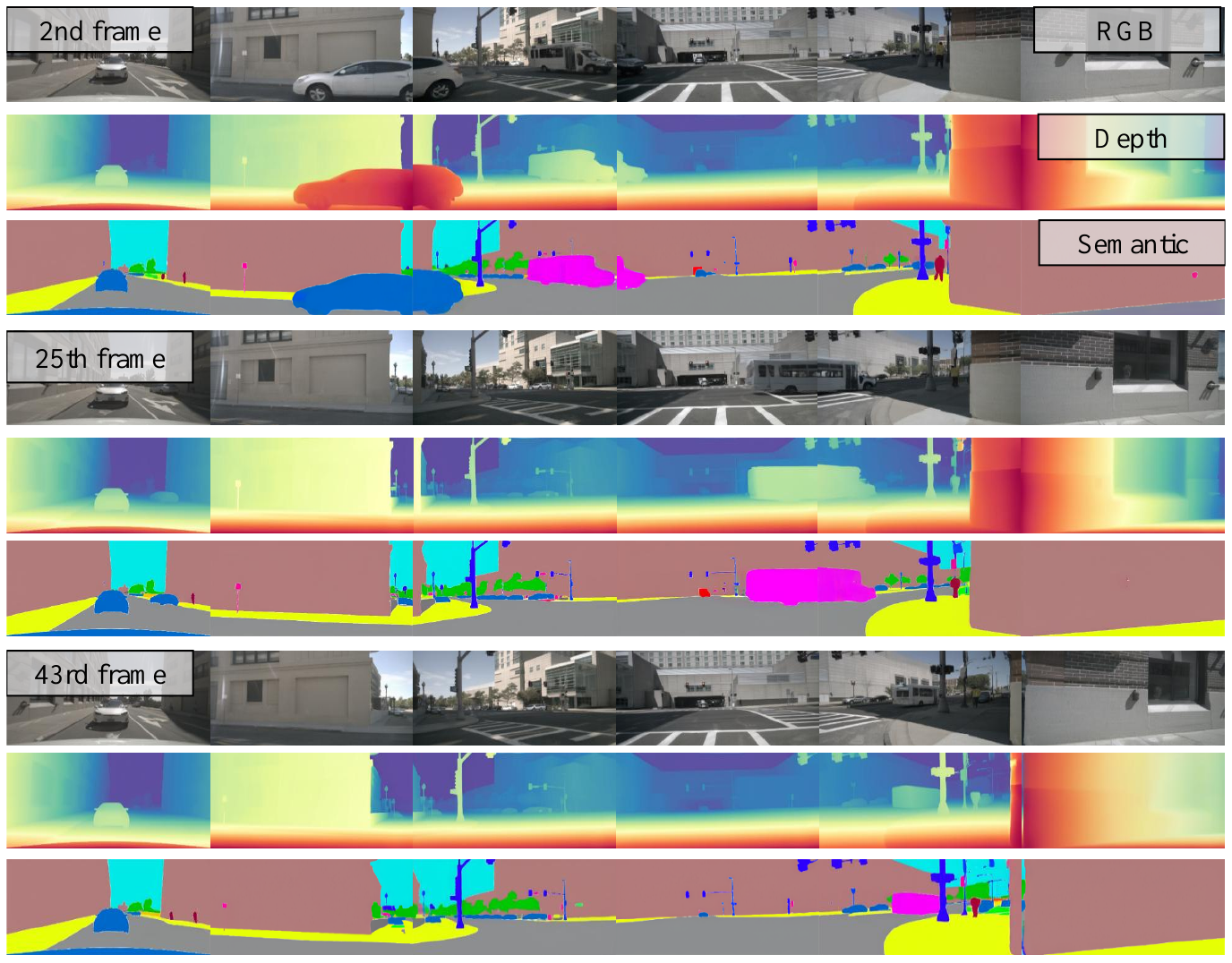

Figure 12. Inspect correspondence across modalities before judging temporal consistency. Original paper, p. 14 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each three-row group vertically: RGB first, then depth, then semantics. The groups correspond to frames 2, 25, and 43. Within a group, select a recognizable object, such as the car crossing the first group’s middle-left views or the larger vehicle visible near the middle in the second group. Compare its footprint with the structures directly below it. Then follow static buildings, sidewalks, and poles across the three frame groups. Each strip juxtaposes different cameras, so a seam is not automatically a geometric error. The figure provides examples of correspondence; it does not supply pixelwise ground truth or a calibrated legend. e-qualitativee-datae-metricse-teachers
What it supports. Visible vehicle and building boundaries broadly correspond across the generated modalities in these examples. This makes the intended benefit of shared generation concrete: an RGB scene comes with structurally related auxiliary maps. The examples complement the reported quality metrics, but do not independently validate them.
Where the evidence stops. The caption identifies arbitrarily selected frames. No metric depth scale or semantic color key is provided, so colors cannot establish physical distance or class identity by themselves. Three stills cannot verify every intervening frame or the frequency of failures.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Multi-view driving video generation on nuScenes Official validation split; default six-view, 49-frame, 512×256 setup; comparison conditions vary. | 46.8 FVD ↓ | CogVideoX + SyntheOcc: 60.4. Reported fidelity improvement; Table 1 mixes implementations and cited results, without uncertainty estimates. e-datae-traininge-main-results |
| Layout controllability on nuScenes Generated videos assessed by pretrained BEVFormer on the validation setting. | 22.7; 35.8 3D detection mAP ↑; BEV segmentation mIoU ↑ | Direct competitor: 15.9; 28.2. Perception-based consistency proxies, not driving success rates. e-metricse-main-results |
| Depth and semantic quality on nuScenes Jointly generated modalities versus RGB generation followed by off-the-shelf predictors. | 0.110; 37.5 Depth AbsRel ↓; semantic mIoU ↑ | CogVideoX + SyntheOcc pipeline: 0.124; 32.4. Supports the reported auxiliary metrics; target construction and evaluation calibration limit physical interpretation. e-datae-metricse-main-resultse-reproduction-gaps |
| Number of jointly generated modalities nuScenes Table 2; omitted generator branches are replaced by external predictors. | Joint RGB/depth/semantic: 46.8 / 0.110 / 37.5 RGB FVD ↓; depth AbsRel ↓; semantic mIoU ↑ | RGB-only: 42.0 / 0.121 / 36.4; RGB-depth: 43.4 / 0.111 / 36.0. Joint generation improves auxiliary outputs but worsens RGB FVD relative to RGB-only generation. e-modality-ablation |
| Diffusion block ablation nuScenes Table 3; temporal L1, multi-view L2, modality-specific L3. | L1+L2+L3: 46.8 RGB FVD ↓ | L1: 153.7; L1+L3: 78.8. Adding L2 to L1+L3 helps; the missing L1+L2 row prevents a full factorial attribution. e-components |
| Three-view driving video generation on Waymo Official Waymo training/validation splits; three front camera views. | 61.6 FVD ↓ | CogVideoX + cross-view attention + authors’ conditions: 120.6; CogVideoX + SyntheOcc: 82.3. A second-dataset result, not evidence of zero-shot transfer from nuScenes. e-datae-waymo |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

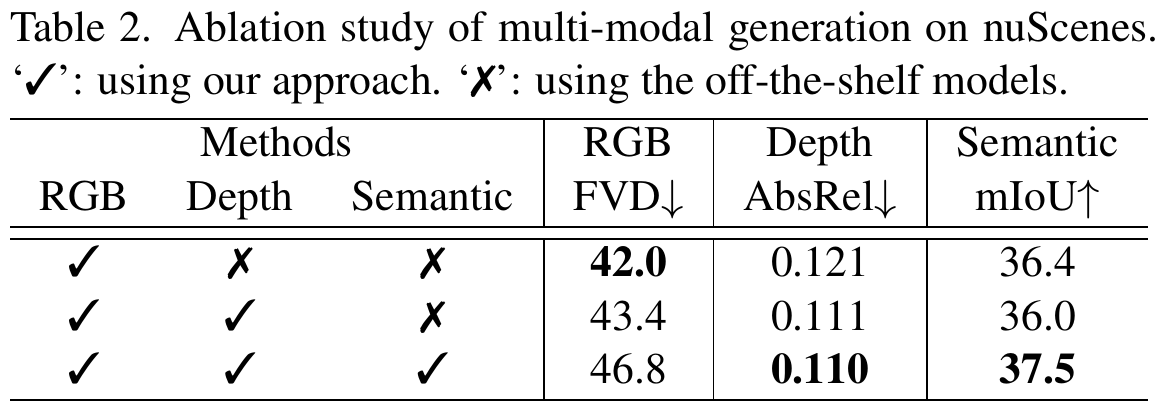

Table 2. Joint generation improves auxiliary modalities while RGB FVD rises. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. The checkmark legend is essential: a cross means that an off-the-shelf model predicts that modality after RGB generation. It does not mean the output disappears from evaluation. The first row therefore compares an RGB-only MoVieDrive generator followed by depth and semantic predictors with the fully joint last row. The middle row generates RGB and depth together but still predicts semantics externally. Read horizontally to see each configuration’s three metrics, then vertically to identify the tradeoff. FVD and AbsRel should decrease; semantic mIoU should increase. The source’s bold entries already show that the best RGB score and best auxiliary scores occur in different rows. e-modality-ablatione-metricse-interactione-reproduction-gaps
What it supports. Moving from RGB-only to fully joint generation changes FVD from 42.0 to 46.8, depth AbsRel from 0.121 to 0.110, and semantic mIoU from 36.4 to 37.5. The joint model improves auxiliary outputs, but its RGB fidelity is worse under FVD. This qualifies the authors’ overall-performance claim.
Where the evidence stops. The table does not report matched inference latency, memory, or repeated-run uncertainty. Fewer separately deployed predictors therefore does not establish a measured speedup. It also does not isolate cross-attention from all other effects of jointly training additional modalities.

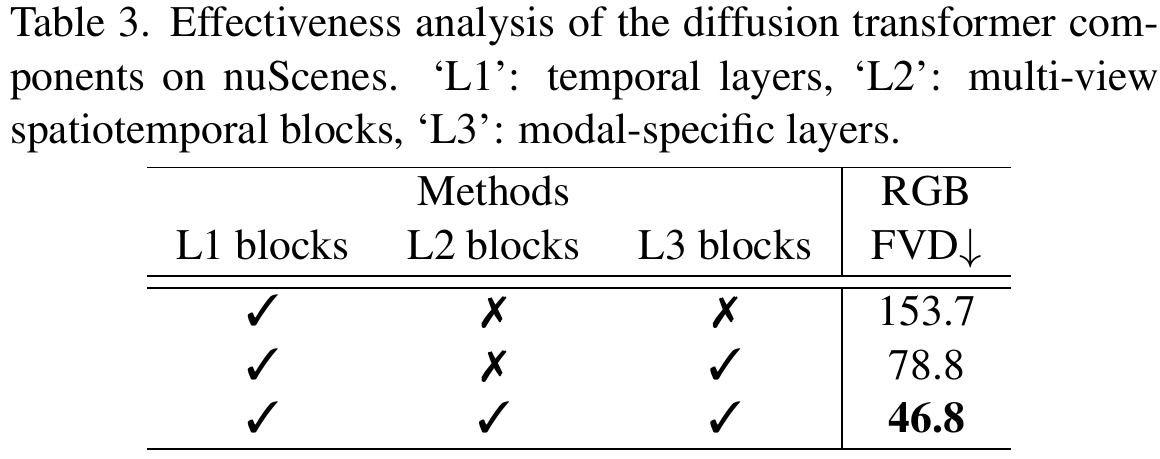

Table 3. The tested additions help, but one factorial comparison is missing. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Decode the component names using the retained header: L1 is the temporal stack, L2 the multi-view spatiotemporal blocks, and L3 the modality-specific layers. Start at the top row, where only L1 is present, then add L3 in the middle row. The bottom row adds L2 while preserving both other components. This order matters because the last comparison tests the contribution of L2 within an already modality-specific generator. Figure 6 on the same source page supplies a qualitative cross-view comparison, but the table itself reports only RGB FVD. It contains no L1+L2 configuration with L3 absent. e-componentse-sharede-interactione-reproduction-gaps
What it supports. FVD falls from 153.7 with temporal layers alone to 78.8 with modality-specific layers, then to 46.8 with all components. The final comparison supports the usefulness of the multi-view block in the tested architecture. It does not quantify an independent cross-modal-consistency score.
Where the evidence stops. The missing L1+L2 row leaves the interaction between L2 and L3 unresolved. Parameter counts, matched compute, and uncertainty are not supplied for these rows, so the table does not fully separate architectural specialization from additional modeling capacity.
7. Analysis & limitations
7.1 What the evidence leaves open
Closed-loop simulation, LiDAR derivation, and improved long-video quality remain future work. The authors report noisy distant regions in long outputs. Selected still frames cannot establish continuous temporal reliability. e-limitationse-long-style
Cross-method conditions differ and some scores are borrowed. Auxiliary targets are teacher-generated; the source does not fully document depth normalization/alignment or semantic label mapping. No confidence intervals or repeated-run uncertainty accompany the main tables. e-main-resultse-datae-metricse-reproduction-gaps
7.2 Questions for discussion
- Does cross-modal attention improve independent geometric accuracy, or primarily agreement with pseudo-labeling models?
- How much of the multi-view gain remains after controlling parameter count, conditions, and training compute?
- Can a closed-loop simulator expose failures that FVD and perception proxies miss?
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction needs the named backbone/VAE/T5 weights, camera calibration and layout projections, occupancy preparation, captioning, auxiliary target generators, and BEVFormer evaluation. Training duration, batch size, GPU model/count, block intervals, loss weights, dropout probability, DDIM steps, and guidance scale remain unspecified. e-conditionse-traininge-datae-objectivee-reproduction-gaps
Supplementary controls matter: the cross-view CogVideoX variant scores 118.4 FVD, the fixed-backbone learnable-head variant 364.1, and a modality-head variant 109.4, versus 46.8. These variants change more than a single interaction, so they do not isolate cross-modal information exchange. e-variants
Proposed checks: disable or shuffle other-modality keys/values while holding architecture and budget fixed; separately repeat the teacher swap with independent auxiliary evaluation. VDA/DVIS++ gives RGB FVD 47.4 versus 46.8, but the supplement supplies no matching auxiliary-quality scores. e-interactione-componentse-teachers
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Test whether other-modality content, rather than added capacity, supplies the gain
Reader-proposed check; not executed. Train matched variants on the same nuScenes split, six-camera clips, target preparation, initialization, and declared training budget. Keep the shared blocks and projection heads fixed in design. Compare aligned cross-modal keys/values with a same-modality attention control of matched width, then evaluate sensitivity to shuffling other-modality keys/values between scenes. Report RGB FVD, depth AbsRel, semantic mIoU, and a predefined cross-modal boundary-agreement diagnostic over repeated seeds. The information-sharing hypothesis predicts that aligned cross-modal attention improves auxiliary quality and that scene shuffling disrupts correspondence. If matched same-modality attention performs equally well and shuffling has little effect, the claimed role of complementary cues would be weakened. Document the unspecified hyperparameters as reproduction choices. e-interactione-componentse-modality-ablatione-datae-traininge-reproduction-gaps
Check 2: Separate robustness to the pseudo-labeling model from physical auxiliary accuracy
Reader-proposed check; not executed. Repeat the supplement’s target-generator comparison: Depth-Anything-V2 plus Mask2Former versus VDA plus DVIS++, with identical RGB training clips, layouts, sampler settings, and model budget. Evaluate both models and their RGB-plus-predictor cascades on a held-out subset with independently checked depth and semantic references. Predeclare depth units, scale alignment, valid-pixel masks, and class/palette mapping. Report auxiliary errors and uncertainty as well as RGB FVD. A robust joint-generation benefit should persist under independent evaluation and across target generators. If gains appear only against the model that supplied training targets, the evidence would favor teacher agreement over improved physical scene understanding. Similar RGB FVD alone would not pass this check. e-datae-modality-ablatione-teacherse-metricse-reproduction-gaps
8.3 Reading coverage
Visual audit: Visually inspected the title/version/author page, every scientific figure (1–19), all six tables, all method and numerical-evidence pages, and the embedded supplement’s discussion and qualitative pages. Pages 9–10 contain references and were read as text. Figure 2 routing and Figure 3 bottom-to-top attention, location-embedding, residual, and cross-modal key/value arrows were checked against Sections 3.1–3.3 and Eqs. (1)–(5); no claim-relevant directional conflict was found. All six final crops were individually viewed. Table captions were retained where they contain comparison caveats or define symbols. Scientific graphics were not recreated or upscaled. No separately hosted videos or separate supplement were inspected.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21. Appendix coverage: reviewed.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract
- 1. Introduction
- 2. Related Work
- 3. Methodology, including 3.1–3.4
- 4. Experiments, including 4.1–4.5
- 5. Conclusion
- References
- Supplementary 6. Limitation and Future Work
- Supplementary 7. More Discussions
- Supplementary 8. More Visualization Results, Figures 10–19
Outside the original text pass
- Identity/version: the inspected title and four authors match the catalog. The supplied artifact is arXiv:2508.14327v2, dated 13 March 2026; the catalog records submission on 20 August 2025. This report reviews v2. No earlier version was supplied, so changes from v1 cannot be compared.
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- The extraction’s figure-image omission was addressed by inspecting the retained PDF: all scientific figure/table pages and the title page were viewed. Reference-only pages 9–10 were read as text.
- No code, external repositories, separately hosted videos, or experiments were inspected or executed. The embedded supplement on PDF pages 11–21 was read; this does not establish availability of separate supplements.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e-identityPDF p. 1, title block, author affiliations, and arXiv margin stamp
The title matches the catalog. Authors are Guile Wu, David Huang, Dongfeng Bai, and Bingbing Liu; affiliations are Huawei Noah’s Ark Lab and University of Toronto. The PDF identifies arXiv:2508.14327v2, 13 March 2026.
Go to primary source ↓e-problemPDF pp. 1–3, Abstract, Section 1, and Section 3.1 Problem Statement
The task is controllable multi-modal multi-view urban video synthesis. Outputs comprise M modalities with K frames and V camera views; RGB, depth, and semantics are the evaluated modalities.
Go to primary source ↓e-overviewPDF p. 3, Figure 2 and Section 3.1 Pipeline Overview
Layout and optional reference embeddings are concatenated with noisy latents; text embeddings enter cross-attention. Shared and modality-specific diffusion layers predict noise, followed by VAE decoding into videos.
Go to primary source ↓e-conditionsPDF pp. 3–4, Section 3.2, Eqs. (1)–(3)
Fourier-embedded camera parameters and caption embeddings form text conditions. Projected boxes, roads, and sparse occupancy maps have separate causal ResNet blocks followed by a shared block. Optional first-frame references use a shared 3D VAE; sparse layout semantics differ from dense output semantics.
Go to primary source ↓e-sharedPDF pp. 4–5, Figure 3, Section 3.3 Modal-Shared Components, Eq. (4)
Temporal layers receive text conditions. Occupancy locations enter a multi-resolution hash-grid embedding; spatial attention mixes camera views and full spatiotemporal attention mixes views and frames. Multi-view blocks are inserted at an interval denoted alpha_1.
Go to primary source ↓e-interactionPDF p. 5, Section 3.3 Modal-Specific Components, Eq. (5); PDF p. 4, Figure 3
A modality’s own latents supply cross-attention queries; concatenated other-modality latents supply keys and values. The block has self-attention, cross-attention, and feedforward layers, with adaptive normalization and modulation. Modality-specific projection heads predict noise; interaction insertion frequency is denoted alpha_2.
Go to primary source ↓e-objectivePDF p. 5, Section 3.4, Eq. (6)
Training uses a weighted sum of modality-wise squared noise-prediction errors with a DDPM scheduler and conditioning dropout. Inference begins from Gaussian noise and uses DDIM sampling and classifier-free guidance.
Go to primary source ↓e-dataPDF pp. 5–6, Section 4.1 Dataset
nuScenes uses official training and validation splits and random sequence selection during training. First frames provide context; CogVLM2-Caption provides captions. Depth-Anything-V2 and Mask2Former produce auxiliary modality targets. Waymo also uses official splits, with three front views.
Go to primary source ↓e-trainingPDF p. 6, Section 4.1 Implementation Details
The backbone is CogVideoX v1.1-2B with SyntheOcc. VAE and T5 are frozen; temporal layers and projection heads use pretrained initialization, other layers random initialization. Remaining modules train jointly with AdamW at 2e-4. Defaults are six cameras, 49 frames, and 512 by 256 resolution.
Go to primary source ↓e-metricsPDF pp. 6–7, Sections 4.2 and 4.3 Evaluation Metrics and Compared Methods
FVD evaluates video fidelity. Pretrained BEVFormer supplies 3D detection mAP and BEV segmentation mIoU as controllability proxies. Auxiliary outputs use depth AbsRel and semantic mIoU for traffic-related classes, buildings, trees, and sky. RGB-only competitors are followed by off-the-shelf depth and semantic estimation.
Go to primary source ↓e-main-resultsPDF p. 6, Table 1, MoVieDrive and CogVideoX + SyntheOcc rows, all metric columns and table notes
MoVieDrive reports FVD 46.8, detection mAP 22.7, BEV mIoU 35.8, depth AbsRel 0.110, and semantic mIoU 37.5. The direct competitor reports 60.4, 15.9, 28.2, 0.124, and 32.4 respectively. Some results are cited; conditions vary across methods. The double-dagger note specifies cross-view and cross-frame attention.
Go to primary source ↓e-modality-ablationPDF p. 7, Table 2 and Section 4.4 Effectiveness of Multi-Modal Generation
RGB-only generation plus external predictors gives FVD/AbsRel/mIoU 42.0/0.121/36.4; joint RGB-depth plus external semantics gives 43.4/0.111/36.0; fully joint generation gives 46.8/0.110/37.5. A cross means external prediction, not absence of the modality.
Go to primary source ↓e-componentsPDF p. 7, Table 3 and Figure 6; PDF p. 8, Section 4.4 continuation
Temporal-only L1 gives FVD 153.7; L1 plus modality-specific L3 gives 78.8; L1 plus multi-view L2 plus L3 gives 46.8. Figure 6 contrasts cross-view appearance with and without L2. No L1+L2-only row is reported.
Go to primary source ↓e-layout-ablationPDF p. 8, Figure 7 and Section 4.5, first two analyses
The unified layout encoder outperforms using a pretrained 3D VAE encoder. Adding box and road maps to text improves FVD; adding occupancy improves it further. The plots do not print exact bar values.
Go to primary source ↓e-waymoPDF p. 8, Table 4 and Evaluation on the Waymo dataset
Waymo FVD is 61.6 for MoVieDrive, 120.6 for CogVideoX plus cross-view attention and the authors’ conditions, and 82.3 for CogVideoX plus SyntheOcc.
Go to primary source ↓e-long-stylePDF p. 8, Section 4.5, Figures 8–9; PDF pp. 17–20, Figures 15–18
Examples illustrate prompt-based weather/time editing and longer generation without reference frames, including a displayed 18-second sample. The authors observe noisy distant regions; these examples do not supply a quantitative long-horizon benchmark.
Go to primary source ↓e-limitationsPDF p. 11, supplementary Section 6 Limitation and Future Work
Closed-loop simulator integration, deriving LiDAR point clouds, and improving long-video quality are future work.
Go to primary source ↓e-variantsPDF p. 11, supplementary Section 7, Tables 5–6 and accompanying variant descriptions
Table 5 reports FVD 46.8 for the full method, 118.4 for a CogVideoX cross-view variant with the authors’ conditions, 364.1 for fixed CogVideoX with a learnable head, and 60.4 for CogVideoX plus SyntheOcc. Table 6 reports 109.4 for a modality-specific-head variant. More comprehensive adaptations of other multi-modal methods remain future work.
Go to primary source ↓e-teachersPDF p. 12, supplementary Section 7 continuation and Figure 10
Replacing Depth-Anything-V2/Mask2Former target preparation with VDA/DVIS++ yields reported RGB FVD 47.4 versus 46.8. Qualitative auxiliary outputs are shown, but no corresponding AbsRel or semantic mIoU comparison is supplied. Map colors depend on predictor palettes.
Go to primary source ↓e-qualitativePDF p. 14, Figure 12; PDF p. 7, Figure 5 and Section 4.3
Figure 12 displays generated RGB, depth, and semantic views at frames 2, 25, and 43, with visible correspondence of vehicles, buildings, and roads across modalities. The caption describes arbitrarily selected frames; no depth scale or semantic color legend is supplied.
Go to primary source ↓e-reproduction-gapsPDF pp. 5–7, Sections 3.3–4.3; PDF pp. 11–12, supplementary Section 7
The method names block intervals, loss weights, conditioning dropout, and sampling mechanisms without numerical settings for all of them. The implementation text supplies optimizer, learning rate, backbone, and dimensions but not training duration, batch size, GPU model/count, or sampling-step/guidance values. Metric descriptions do not fully specify sample counts, depth alignment, or label mapping.
