World4RL: Diffusion World Models for Policy Refinement with Reinforcement Learning for Robotic Manipulation
1. Paper overview
In one sentence: World4RL refines a separate robot policy inside a frozen diffusion simulator, gaining practice without further robot interaction while remaining vulnerable to errors in learned dynamics and rewards. e01e02e03e08e10e11e15e20
| At a glance | What to know |
|---|---|
| Research problem | Source description Demonstrations cover a narrow behavior distribution. Further robot interaction is expensive, while conventional simulation can introduce transfer errors. The paper asks whether an offline-trained visual dynamics model can provide sufficiently reliable feedback to improve an existing policy without collecting additional environment transitions during refinement. e02e03 |
| Core mechanism | |
| A key reported result | Six-task Meta-World policy refinement: 67.5 Average task success rate (%). Sparse success rewards; fixed offline datasets with family-specific budgets; Table II reports three seeds. BC 51.5; DP 45.0; TD3+BC 57.7; IQL 42.0; IRASim 57.0; DiWA 59.8; offline-adapted TD-MPC2 60.0. The displayed averages imply a 16-percentage-point gain over BC and 7.5 points over the strongest listed baseline average. One task annotation conflicts with its means: door-lock-v2 prints BC 74 ± 5 and World4RL 92 ± 5 with ↑14, although reader arithmetic gives 92 − 74 = 18 points. The source does not resolve that discrepancy. Per-task ± values are printed, but their statistical definition and evaluation episode count are not stated. e11e20 |
| Reading caution | Reader analysis Figure 5 shows declining test success when random rollouts or action-standard-deviation clipping are removed on door-lock and lever-pull. Shaded bands are not defined, and removing data also changes data quantity; the plot does not fully isolate coverage from dataset size. e18 |
Core contributions
Figure 1. A learned simulator supplies practice; policy and value networks remain the components updated during refinement. Original paper, p. 3 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow the three training paths on the left. Expert observations train the policy to output actions; expert and rollout images train success classification; multi-task observation/action histories train next-image prediction. The right panel closes the loop: the agent supplies an action, diffusion generates the next image, and the classifier returns a reward. The buffer D_wm stores those transitions for PPO. Snowflakes on transition and reward modules indicate freezing; flames on policy and value networks indicate optimization. The figure uses D_rollout for policy/random data, whereas the method prose distinguishes random data as D_rand. These symbols describe data sources, not extra trainable action heads. e03e05e06e08
What it supports. The figure supports a dual-system reading: a separate policy learns from an image-generating simulator and a success classifier. The simulator's role is to provide training transitions. The paper does not specify a deployment-time search over generated futures or a joint network that emits both robot actions and future images.
Where the evidence stops. Figure 1 and the classifier prose use expert plus rollout data, but Algorithm 1 lists only expert data for classifier pre-training. The probability-to-binary reward conversion is also unspecified. The diagram cannot resolve either implementation ambiguity.
2. Motivation
2.1 The problem and the proposed response
Demonstrations cover a narrow behavior distribution. Further robot interaction is expensive, while conventional simulation can introduce transfer errors. The paper asks whether an offline-trained visual dynamics model can provide sufficiently reliable feedback to improve an existing policy without collecting additional environment transitions during refinement. e02e03
2.2 What this reading follows
An imitation policy learns from actions someone already demonstrated. World4RL gives that policy another place to practice: a diffusion model that predicts what the robot would see after an action, paired with a classifier that judges success. PPO then improves the policy using these imagined transitions. The key question is whether better pictures provide reliable feedback for action learning. Read the architecture first, then separate video quality from simulation success and physical execution. The supplied v2 reports gains in both control settings, but its door-lock gain annotation and real-robot BC average contain unresolved arithmetic inconsistencies, and its video table does not support superiority on every metric. e01e02e03e08e10e11e15e20
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | Dual-system |
| Prediction paradigm | Other mechanisms |
| Quadrant | Outside quadrants |
3.1 Evidence-based assessment
Supports the recorded classification
The recorded Dual-system and Policy post-training & WM-RL labels fit separate policy and diffusion-simulator networks. Actions condition future-image prediction; PPO trains a separate action policy. This is neither joint future/action prediction in one model nor inverse-dynamics action extraction, supporting Other mechanisms and Outside quadrants. e03e06e08
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Trace one imagined transition before thinking about deployment
Begin with the behavior-cloned Gaussian policy and a current observation. The policy proposes an action; its two-hot encoding joins the observation/action history conditioning the diffusion transition model. Iterative denoising produces the next image, and the reward classifier judges that image. Store the observation, action, reward and predicted next observation in the imagined buffer, then use PPO to update the policy and value networks. Figure 1 freezes both simulator components during this stage. The source's phrase end-to-end policy optimization should therefore be read alongside Algorithm 1: the documented procedure collects samples for PPO, without specifying gradients through diffusion sampling. At physical evaluation the learned policy executes on the robot. This makes the world model a training environment, while real observations provide feedback during actual execution. e03e04e05e06e08e14
5.2 Understand why preserving action values does not guarantee reliable dynamics
Equation (5) assigns complementary weights to the bins bracketing each action component. Within that interval, interpolation preserves the continuous value rather than replacing it with one discrete center. This explains the authors' lossless-representation argument, but it does not make the learned transition model lossless. Table IV evaluates the latter empirically and finds lower video errors with two-hot conditioning. The next vulnerability appears when PPO proposes actions unlike the offline data. Random rollouts broaden training exposure, and the standard-deviation cap restricts exploration. My interpretation is that these mechanisms address different sides of the same distribution mismatch: what the model has seen and what the policy will ask it to simulate. Figure 5 supports their practical value, but does not prove correct dynamics everywhere within an action bin. e07e08e09e17e18
5.3 Keep prediction fidelity, learned control and physical success separate
The paper builds an evidence chain across three distinct tests. Table I measures generated imagery; Figure 2 adds an illustrative failed coffee-pull trajectory that the authors say World4RL preserves. Table II evaluates policy success in Meta-World, and Table III records executed physical trials. Each step answers a different question, so a good FVD score cannot substitute for the later control tests. My reading is that the simulated success table provides the cleanest aggregate headline: its 67.5% average and 16-point BC improvement are internally consistent. Its door-lock row still requires qualification: the printed ↑14 disagrees with the 18-point difference between displayed means. The physical results show a smaller advantage over DP, with one losing task and fixed starts. BC's aggregate conflicts with its counts, and random FID favors iVideoGPT. Those exceptions narrow the claims without erasing the reported successes. e10e11e12e14e15e20
5.4 Training and inference
During training
Meta-World dynamics training uses six tasks, each with 50 expert, 150 BC-policy and 30 random trajectories of 50 timesteps. Training conditions on four consecutive frames and actions. Imitation baselines receive 50 expert trajectories; offline RL receives 50 expert plus 150 policy trajectories; world-model baselines receive all 230. These are different data budgets across method families. e09e11
The diffusion objective is a squared denoising residual with EDM preconditioning. The classifier uses binary cross-entropy on demonstrations and policy rollouts according to the prose and Figure 1. Algorithm 1 lists only demonstrations for classifier training; its rollout notation also groups policy/random data that the prose distinguishes. e05e06
During PPO, predicted action standard deviation is capped at σ ≤ e⁰ rather than the discussed σ ≤ e² default. This limits exploration into poorly modeled actions, but does not guarantee that every sampled action stays within dataset support. e08
During inference
Imagined training feeds generated observations back into the policy. Physical evaluation executes the refined policy on the robot; no test-time world-model search is described. The reported absence of extra robot interaction applies to refinement after data collection, not to collecting demonstrations, policy rollouts or random rollouts. e08e14
Video evaluation is described as autoregressive generation starting from one initial frame and action, despite four-frame training context. How initial history is filled and subsequent evaluation actions are supplied is not specified. e09
5.5 Implementation flow
- Initialize a usable policy
Behavior cloning maximizes demonstration action likelihood under a Gaussian policy. Its observation-conditioned mean and covariance define the initial action distribution; this policy also supplies pre-collected rollout data. e04e09
- Learn the simulator
An EDM-style, preconditioned 2D U-Net denoises the next image conditioned on historical observations and two-hot actions. A separately trained ResNet18 reward classifier estimates success from the next image. Images remain the rollout observations; the method does not extract actions with inverse dynamics. e05e06e07
- Refine with synthetic feedback
Freeze the transition model and reward classifier. Sample a policy action, encode it, generate the next observation, classify success and collect the transition for PPO. Update policy and value networks from this buffer. The algorithm uses sampled PPO transitions; it does not specify differentiating the policy loss through diffusion sampling. e03e08
6. Experiments & results
World4RL improves an imitation-initialized manipulation policy with PPO inside a frozen diffusion simulator. A separate image-based reward classifier scores predicted states. Two-hot actions, random training rollouts and constrained exploration help keep imagined transitions useful. Simulation gains are clear in the reported table; physical results are promising under fixed initial conditions, but the printed BC aggregate conflicts with its trial counts.
6.1 Read the original evidence

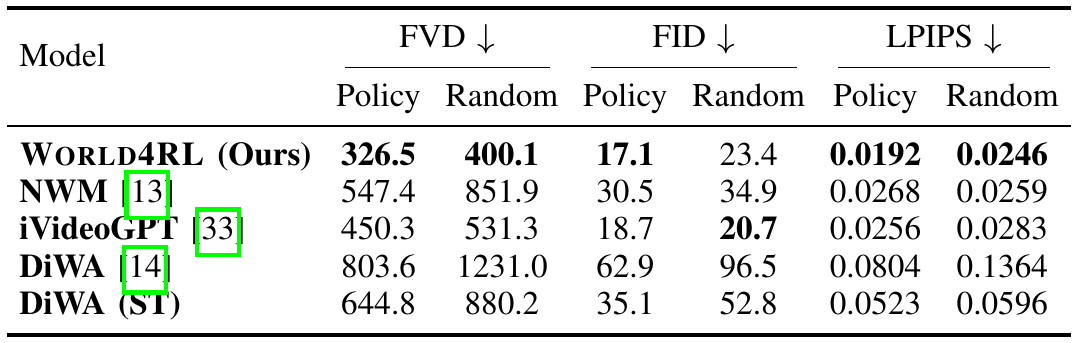

Table I. Video fidelity improves in most reported comparisons, with an explicit random-FID exception. Original paper, p. 5 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Each metric has two columns: rollouts from a policy and rollouts with random actions. Lower values are preferred throughout. FVD evaluates generated video, FID evaluates image distributions, and LPIPS compares perceptual appearance. Read vertically within the same metric and action regime; values across metrics are not interchangeable. DiWA (ST) is the separately trained and evaluated single-task variant, while the other comparison is multi-task. World4RL's policy-rollout FVD is 326.5 and random-rollout FVD is 400.1. Then inspect the random FID column: the bold 20.7 belongs to iVideoGPT, below World4RL's 23.4. e09e10
What it supports. World4RL leads both FVD columns, both LPIPS columns and policy FID. This is substantial image-prediction evidence, but it directly contradicts the surrounding prose's claim of lowest scores under every setting. The table itself supports a narrower and more precise conclusion: five of six metric columns favor World4RL.
Where the evidence stops. No uncertainty or exact held-out split is reported here. The described evaluation starts from one frame despite four-frame training history. Visual similarity is not a calibrated measure of successful physical execution or correct reward classification.

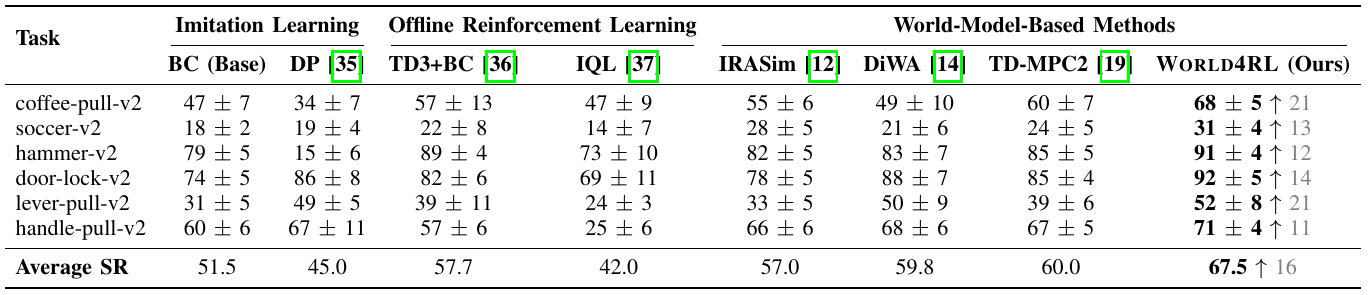

Table II. The strongest aggregate control result is 67.5% success across six simulated tasks. Original paper, p. 6 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with Average SR, then compare task means. The caption defines arrows as absolute percentage-point gains over BC, but one annotation disagrees with its row: door-lock-v2 shows BC 74 ± 5 and World4RL 92 ± 5 with ↑14. Reader arithmetic gives 92 − 74 = 18 points; the source leaves the mismatch unresolved. Coffee-pull's 47 to 68 and soccer's 18 to 31 agree with their arrows. The table reports three seeds without defining its ± terms. Training budgets differ: imitation uses expert data, offline RL adds policy rollouts, and world-model methods also use random rollouts. TD-MPC2 is adapted to offline world-model learning. The average gain, 67.5 − 51.5 = 16 points, remains consistent. e09e11e20
What it supports. The 67.5% average exceeds BC by 16 percentage points and the strongest listed baseline average, TD-MPC2 at 60.0%, by 7.5 points. All six printed task means favor World4RL over BC. The results establish useful policy refinement within these simulated tasks rather than merely sharper predicted images.
Where the evidence stops. The door-lock ↑14 annotation conflicts with the displayed 18-point mean difference; neither the annotation nor the means can be silently corrected. Different data budgets prevent isolating PPO or diffusion architecture in the BC comparison. Undefined ± terms and missing evaluation episode counts also preclude a statistical-significance claim.

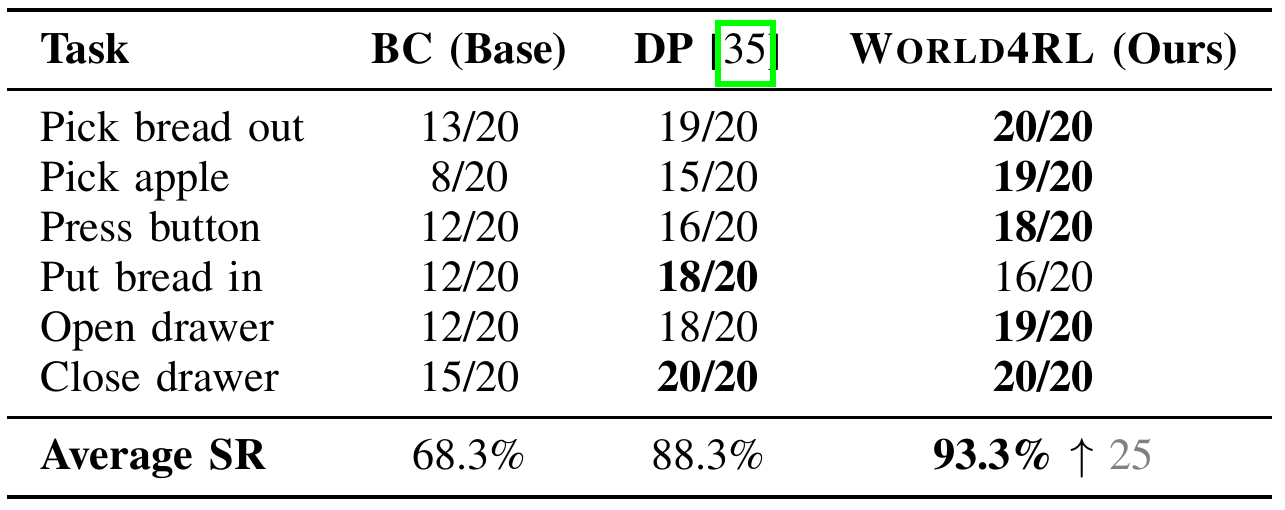

Table III. Physical execution supports improvement, but the printed BC average disagrees with the trial counts. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each cell as successes out of twenty physical trials, not a training score. Evaluation uses a Franka Emika Panda with fixed initial scene and robot pose. World4RL's six counts add to 112/120, consistent with 93.3%; DP adds to 106/120, consistent with 88.3%. Now audit BC: 13 + 8 + 12 + 12 + 12 + 15 gives 72/120, or 60%, although the source prints 68.3%. Preserve both the printed row and this labeled reader calculation. The source's +25-point annotation follows its printed averages, so its BC-relative aggregate gain remains unresolved. e14e15
What it supports. World4RL has more recorded successes than DP overall and reaches 20/20 on bread-out and drawer-close. Its advantage is not uniform: DP performs better on bread-in, 18/20 versus 16/20, and ties drawer-close. The source's World4RL and DP aggregates are internally consistent even though BC's aggregate is not.
Where the evidence stops. Twenty fixed-start trials per task give limited evidence about robustness to scene variation. The unresolved BC discrepancy prevents treating the stated +25-point gain as a verified aggregate comparison. No confidence intervals or randomized-start evaluation are provided.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Six-task Meta-World policy refinement Sparse success rewards; fixed offline datasets with family-specific budgets; Table II reports three seeds. | 67.5 Average task success rate (%) | BC 51.5; DP 45.0; TD3+BC 57.7; IQL 42.0; IRASim 57.0; DiWA 59.8; offline-adapted TD-MPC2 60.0. The displayed averages imply a 16-percentage-point gain over BC and 7.5 points over the strongest listed baseline average. One task annotation conflicts with its means: door-lock-v2 prints BC 74 ± 5 and World4RL 92 ± 5 with ↑14, although reader arithmetic gives 92 − 74 = 18 points. The source does not resolve that discrepancy. Per-task ± values are printed, but their statistical definition and evaluation episode count are not stated. e11e20 |
| Meta-World autoregressive video prediction Policy and random rollouts, respectively; multi-task models, with a separate single-task DiWA row. | FVD 326.5 / 400.1; FID 17.1 / 23.4; LPIPS 0.0192 / 0.0246. FVD / FID / LPIPS, all lower is better | iVideoGPT: FVD 450.3 / 531.3, FID 18.7 / 20.7, LPIPS 0.0256 / 0.0283. World4RL leads five of six metric columns. iVideoGPT has better random-rollout FID, contradicting the prose's all-metrics claim. These measure generated imagery, not executed task success. e09e10 |
| Six-task physical Franka Panda evaluation Twenty physical trials per task with fixed initial scene and robot pose; 50 expert, 50 policy and 50 random training trajectories per task. | World4RL: 20, 19, 18, 16, 19, 20 successes out of 20 for bread-out, apple, button, bread-in, drawer-open, drawer-close; printed average 93.3%. Task success counts and average success rate | DP average 88.3%; BC printed average 68.3%; printed World4RL gain +25 percentage points. Reader arithmetic: World4RL totals 112/120 and DP 106/120, consistent with their averages. BC's printed counts total 72/120 = 60%, inconsistent with 68.3%; the claimed +25-point gain is unresolved. DP beats World4RL on bread-in, 18/20 versus 16/20. e14e15 |
| Action-encoding ablation Table IV, Meta-World video prediction; policy and random rollouts. | Two-hot 326.5 / 400.1. FVD, lower is better | One-hot 350.3 / 471.5; linear 353.4 / 514.0; FAST 407.0 / 748.0; VQ-VAE 525.6 / 860.0. Two-hot leads all Table IV metric columns, but this table supplies no downstream success comparison or uncertainty. e17 |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

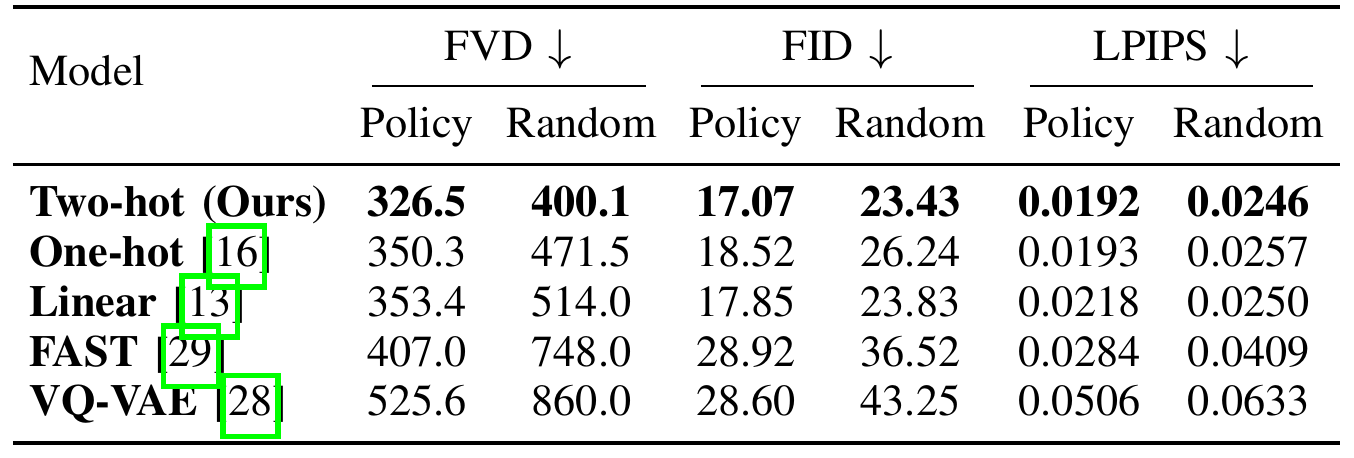

Table IV. Two-hot conditioning improves video metrics relative to four alternative action representations. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Keep the prediction task fixed and compare rows that change the representation of actions passed to the world model. Two-hot interpolation places weight on two bracketing bins, preserving an in-range continuous value; one-hot discretization selects a bin, and the other rows use linear, tokenized or latent representations. All columns favor smaller values. The clearest gap against one-hot is in random-rollout FVD, 400.1 versus 471.5, while policy LPIPS differs only slightly, 0.0192 versus 0.0193. Table IV prints FID more precisely than Table I: 17.07 and 23.43 for two-hot. These are compatible with the earlier rounded values. e07e17e10
What it supports. Two-hot wins every reported encoding-ablation column, supporting its usefulness as action conditioning for this video model. The improvement varies by metric and action regime. It provides evidence for prediction quality, while the claim that encoding itself causes better downstream control would require a matched policy-success experiment.
Where the evidence stops. There are no uncertainty estimates or policy-success columns here. Encoding-specific model size, tuning and bin boundaries are not fully specified. The example K = 21 in the method should not be mistaken for a complete reproducible action configuration.

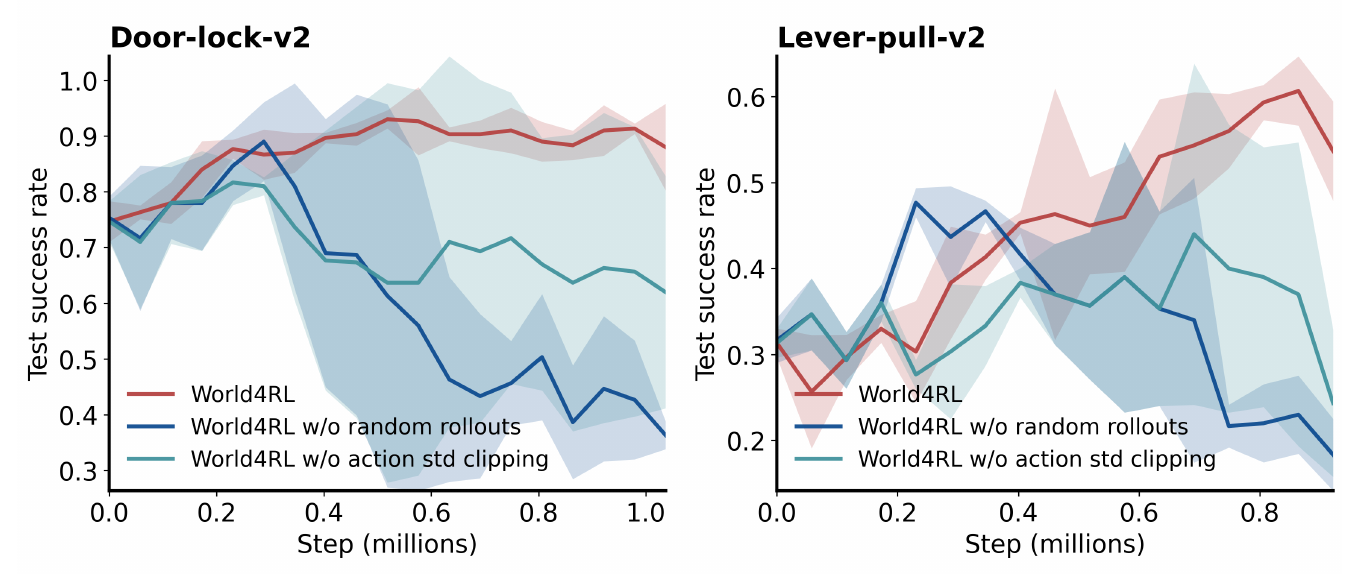

Figure 5. Broad offline action coverage and restricted policy exploration both matter for sustained refinement. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the panels separately because their success-rate scales differ. The horizontal axes count training steps in millions, and the vertical axes show test success. Red is the full method, blue removes random rollouts from dynamics training, and teal removes the policy's action-standard-deviation cap. Follow each curve beyond the early overlap: the full method sustains stronger performance while both ablations deteriorate. Section III-C motivates the clipping by tightening the Gaussian standard-deviation bound to e⁰, and Section V links random rollouts to broader action coverage. The shaded areas are visible, but the source does not define their statistical construction. e08e09e18
What it supports. These curves support the practical need to constrain exploration while training on broader transitions. More PPO updates do not necessarily help an agent using an inadequate learned simulator: both ablations lose test performance later in training. This is direct downstream control evidence, complementing the image-only encoding ablation.
Where the evidence stops. The figure does not tabulate exact endpoints or define the shaded bands. Removing random rollouts also reduces training-data quantity, so coverage and quantity are confounded. The two tasks cannot establish that the same settings are optimal across robots or action scales.
7. Analysis & limitations
7.1 What the evidence leaves open
Figure 5 shows declining test success when random rollouts or action-standard-deviation clipping are removed on door-lock and lever-pull. Shaded bands are not defined, and removing data also changes data quantity; the plot does not fully isolate coverage from dataset size. e18
Figure 3 reports RLPD and Uni-O4 needing 346k and 470k additional online steps. Its World4RL bar counts 10k expert-plus-policy steps, omitting the 30 random trajectories per task specified for full training. The online comparison should not be read as complete acquisition-cost accounting. e13e09
Held-out video splits, reward-classifier accuracy and confidence intervals for physical success are absent. Fixed physical initial conditions limit generalization evidence. Better image metrics alone cannot rule out policy exploitation of simulator or classifier errors. e05e09e14e15
The authors identify computational constraints on visual resolution and model capacity, and propose richer representations and RL robust to imperfect dynamics as future work. e19
7.2 Questions for discussion
- Does lower video error predict improved real success once data quantity and reward-classifier errors are controlled?
- Would the refined policy retain its advantage under randomized physical starts and objects?
8. Reproducibility audit
8.1 Requirements and known gaps
Reported compute is 20 hours for world-model pre-training on four NVIDIA A800 40GB GPUs and about six hours per task for refinement on one A800. Reproduction also requires labeled successes and the distinct simulation/physical data mixtures. e16e09e14
Missing implementation details include image resolution, exact denoising sampler/step count, action-bin limits, policy/value architecture, PPO settings, software versions and reward threshold. The classifier is described as a probability on p. 3 but as binary in Algorithm 1; its conversion rule needs resolution. e05e06e07e08e16
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Separate action coverage from data quantity and exploration
Reader-proposed check, not performed: on door-lock and lever-pull, cross the stated standard-deviation cap with presence/absence of random-rollout training data. Keep expert data, BC initialization, model architecture, PPO updates and evaluation starts identical. Add a quantity-matched control replacing the 30 random trajectories with 30 extra BC-policy trajectories, documenting their acquisition. Across repeated seeds, report actual-environment success, imagined return and held-out transition error. If random coverage matters beyond dataset size, it should outperform the equally sized policy-only control; if clipping mainly limits model exploitation, it should reduce the gap between imagined return and actual success. e08e09e11e18
Check 2: Audit the success signal against executed outcomes
Reader-proposed check, not performed: first retain per-trial success records and regenerate every Table III average to resolve the BC discrepancy. Then evaluate the BC, DP and refined policies on the same fixed starts and on a separately declared randomized-start set, preserving the twenty-trial task blocks for comparison. For matched imagined and executed transitions, compare classifier outputs with independent task-success labels and predeclare the probability-to-binary threshold. Report false positives separately for failures and unfamiliar starts. A rise in imagined reward without corresponding executed success would challenge reward reliability; disappearance of the policy advantage under randomized starts would narrow the transfer claim. e05e08e14e15
8.3 Reading coverage
Visual audit: All nine pages of the supplied v2 PDF were rendered and visually inspected, including title/authors/affiliations; all method equations and Algorithm 1; Figures 1–5; Tables I–IV; the p. 7 hardware paragraph; conclusion and references. Six faithful crops were inspected individually at final resolution. Architecture arrows and freeze/train markers were cross-checked with the caption and algorithm. All pages supporting retained method, numerical, evaluation and reproduction claims are included. Table II's caption and door-lock-v2 row were checked on p. 6 and in the final crop: ↑14 conflicts with the displayed means 92 and 74, which imply 18 points; the average gain of 16 points is consistent. The review also preserves the classifier-data/reward ambiguity, Table I's random-FID exception, Figure 3's omitted random-data accounting and Table III's BC arithmetic discrepancy. No appendix is present and separate supplemental availability remains unverified.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Title, author credits, affiliations and abstract (p. 1)
- I. Introduction (pp. 1–2)
- II. Related Work, A–B (p. 2)
- III. Method, A–C; Equations (1)–(9); Algorithm 1 (pp. 2–4)
- IV. Experiments, A–C (pp. 4–7)
- V. Ablation Study (p. 7)
- VI. Conclusion and Future Work (p. 8)
- References [1]–[40] (pp. 8–9)
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- The extraction limitation above was addressed by visually inspecting all nine PDF pages, all five figures, all four tables, and six final original crops.
- Separate supplemental material availability has not been fully verified.
- No separate supplement or appendix was supplied; no appendix is present in this nine-page PDF.
- Identity: the observed title and all nine authors match the catalog. The supplied PDF is arXiv:2509.19080v2 [cs.RO], dated 19 March 2026; the catalog records submission on 23 September 2025. The earlier revision was not supplied, so revision-to-revision scientific changes cannot be assessed.
- No external sources or code were inspected, and no experiments were reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e01PDF p. 1, title block, affiliation footnotes and arXiv margin stamp
The exact catalog title and nine-author sequence are printed. The artifact identifies arXiv:2509.19080v2 [cs.RO], 19 March 2026; five affiliation groups and equal-contribution/corresponding-author markers are present.
Go to primary source ↓e02PDF p. 1, Abstract and I. Introduction
Motivates policy improvement beyond scarce demonstrations while avoiding further costly robot interaction and conventional simulator transfer errors.
Go to primary source ↓e03PDF p. 2, III-A; PDF p. 3, Figure 1 and caption
Separates diffusion transition, success classifier and policy; stage 2 snowflakes mark transition/classifier frozen, while flames mark trainable policy/value networks and PPO consumes imagined transitions.
Go to primary source ↓e04PDF p. 2, III-B.1, Equations (1)–(2)
Defines an observation-conditioned Gaussian policy and behavior-cloning negative log-likelihood on expert demonstrations.
Go to primary source ↓e05PDF p. 3, III-B.2, Equation (3), Figure 1; PDF p. 4, Algorithm 1, pre-training lines 12–14 and optimization line 5
Prose and figure use expert plus policy data for ResNet18 success classification; the algorithm samples expert data only. Prose calls output a probability; the algorithm requires a binary reward without specifying a threshold.
Go to primary source ↓e06PDF pp. 3–4, III-B.3, Equations (4), (6), (7); Algorithm 1, input and pre-training lines 6–10
EDM-preconditioned diffusion predicts the next image from observation/action history using U-Net 2D. Prose names expert, policy and random datasets; figure/algorithm group policy and random rollouts under one symbol.
Go to primary source ↓e07PDF p. 3, III-B.3, Equation (5) and following paragraph
Two-hot weights interpolate bracketing bin values, sum to one, and replace raw actions with encoded z; K = 21 is illustrative. Bin endpoints and handling outside the interval are not supplied.
Go to primary source ↓e08PDF p. 4, III-C, Equations (8)–(9), interaction bullets and Algorithm 1 policy optimization
Frozen diffusion and classifier produce PPO transitions; policy/value update separately. Standard-deviation cap is tightened from e² to e⁰ to control exploration.
Go to primary source ↓e09PDF p. 5, IV introductory metric definitions and IV-A
Six Meta-World tasks use 50 expert, 150 policy and 30 random trajectories per task, each 50 steps; four-frame training history and initial-frame/action autoregressive evaluation are described. A precise held-out split and history bootstrapping are not given.
Go to primary source ↓e10PDF p. 5, Table I, all metric columns; adjacent IV-A prose
World4RL reports FVD 326.5/400.1, FID 17.1/23.4 and LPIPS 0.0192/0.0246 for policy/random. iVideoGPT random FID is 20.7, lower than World4RL despite the prose's blanket claim. ST means single-task training/evaluation.
Go to primary source ↓e11PDF p. 5, IV-B data/baseline protocol; PDF p. 6, Table II and caption
Imitation/offline-RL/world-model families receive 50/200/230 trajectories per task respectively; TD-MPC2 is adapted to offline training. Three-seed average success is World4RL 67.5, BC 51.5, DP 45.0, TD3+BC 57.7, IQL 42.0, IRASim 57.0, DiWA 59.8, TD-MPC2 60.0.
Go to primary source ↓e12PDF p. 6, Figure 2 and caption; PDF p. 5, IV-A qualitative discussion
Coffee-pull sequence displays ground-truth failure and predicted frames through t = 50; the caption claims World4RL preserves failure while baselines generate successful executions. This is an illustrative sequence, not aggregate failure statistics.
Go to primary source ↓e13PDF p. 6, Figure 3 and IV-B sample-efficiency paragraph; PDF p. 5, IV-A data composition
Figure 3 labels World4RL 2.5k expert plus 7.5k policy steps, RLPD 346k additional online steps and Uni-O4 470k. The World4RL bar does not include the random trajectories specified in the training protocol.
Go to primary source ↓e14PDF p. 6, IV-C evaluation protocol; PDF p. 7, Figure 4
Franka Emika Panda data are teleoperated with a space mouse following the cited protocol; each task has 50 expert, 50 pre-trained-policy and 50 random trajectories. Twenty physical evaluations per task use fixed scene and initial robot pose.
Go to primary source ↓e15PDF p. 7, Table III, six task rows and Average SR row
BC counts are 13,8,12,12,12,15; DP 19,15,16,18,18,20; World4RL 20,19,18,16,19,20, each out of 20. Printed averages are 68.3%, 88.3%, 93.3% and +25 points. BC's counts and average are inconsistent.
Go to primary source ↓e16PDF p. 7, paragraph immediately before V. Ablation Study
Reports A800 40GB GPUs, world-model pre-training for 20 hours on four GPUs, and single-task refinement for about six hours on one GPU; supplies no software versions or full configuration.
Go to primary source ↓e17PDF p. 7, V(a) and Table IV, all rows/columns
Two-hot leads all six encoding-ablation columns. FVD policy/random pairs are 326.5/400.1, 350.3/471.5, 353.4/514.0, 407.0/748.0, 525.6/860.0 for two-hot, one-hot, linear, FAST and VQ-VAE. Two-hot FID is printed more precisely here as 17.07/23.43.
Go to primary source ↓e18PDF p. 7, V(b), Figure 5, both panels, legends and caption
Red denotes full World4RL, blue no random rollouts, teal no action-standard-deviation clipping. Test-success curves favor the full method later in training for door-lock and lever-pull; shaded-band statistics and exact endpoint values are not specified.
Go to primary source ↓e19PDF p. 8, VI. Conclusion and Future Work
Authors frame the work as feasibility evidence, cite compute constraints on visual resolution/capacity, and propose richer visuals and learning under imperfect dynamics.
Go to primary source ↓e20PDF p. 6, Table II caption, door-lock-v2 row (BC and World4RL columns), and Average SR row
The caption defines ↑n as absolute improvement over the pre-trained policy. The door-lock-v2 row prints BC 74 ± 5 and World4RL 92 ± 5 with ↑14; subtracting the displayed means gives an 18-percentage-point gain, not the printed 14. The average row is internally consistent: 67.5 − 51.5 = 16 points. The source supplies no resolution of the task-row discrepancy.
Go to primary source ↓8.5 Primary sources
World4RL: Diffusion World Models for Policy Refinement with Reinforcement Learning for Robotic Manipulation ↗
PDF · 6,269 extracted words
Source fingerprint
939ff5ea644eb768d6822e864ebc5f3c57df959a5e515137215da4319515530a
