MimicDreamer: Aligning Human and Robot Demonstrations for Scalable VLA Training
1. Paper overview
In one sentence: MimicDreamer turns human demonstrations into robot-domain training pairs through stabilization, IK and conditional video synthesis, improving a separate VLA while retaining dependence on robot data and calibration. e-pipelinee-actione-alignere-policy-resultse-experiment-scope
| At a glance | What to know |
|---|---|
| Research problem | Source description Cheap egocentric demonstrations differ from robot observations in camera motion, hand appearance and executable motion. The paper asks whether correcting these three gaps can make human videos useful supervision for manipulation policies. e-identitye-pipeline |
| Core mechanism | Source description EgoStabilizer, constrained inverse kinematics and H2R Aligner form a conversion pipeline that pairs synthesized observations with robot-space action labels. e-pipelinee-actione-aligner |
| A key reported result | Six-task real-robot policy evaluation: Equal Data: 85.8% SR and 91.0% PSR, calculated from the six table columns. Minimal Robot: 69.2% SR and 81.0% PSR, similarly calculated. Mean task SR and PSR; higher is better. Table 1: Robot Only uses 20 robot demonstrations; Minimal Robot uses 20 transferred human demonstrations plus 3 robot demonstrations; Equal Data uses 20 transferred plus 20 robot demonstrations. Tasks resemble EgoDex scenarios; evaluation trial counts and uncertainty are not given. Robot Only: 65.8% SR and 76.3% PSR. Equal Data therefore adds 20.0 percentage points SR and approximately 14.7 points PSR. These are reader-calculated table means, not the prose's 85.0% and 70.0% SR averages. SR measures complete tasks; PSR measures completed-subtask fractions. The comparison adds data and does not isolate synthesis quality at equal total demonstration count. e-policy-resultse-evaluatione-tasks |
| Reading caution | Reader analysis The abstract's 'purely' synthesized-data wording is broader than the evaluated setups, which include real demonstrations; the aligner itself also learns from real robot videos. Its 14.7% success-rate claim numerically matches the table-derived PSR point gain, not the SR gain. Section 4.1.2 likewise labels PSR differences as success-rate gains. e-identitye-policy-resultse-scalinge-aligner-training |
Core contributions
- Source description
EgoStabilizer, constrained inverse kinematics and H2R Aligner form a conversion pipeline that pairs synthesized observations with robot-space action labels. e-pipelinee-actione-aligner
- Author claim
The authors claim scalable, economical policy training; the evidence consists of six physical manipulation tasks, increasing synthetic-data counts and a separate video-stabilization diagnostic. e-policy-resultse-scalinge-stability
Figure 1. Alignment creates the training pairs consumed by a separate policy. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow the arrows from the two human inputs. Video enters the upper viewpoint branch, where warping and background inpainting produce stable frames. Hand trajectories enter the lower action branch, where IK produces robot commands. Those commands drive simulation rendering under calibrated camera parameters. The stable video and rendered arm stream then enter H2R Aligner. At the right, the resulting images are paired with action labels as Mimic Robot Data and combined with Real Robot Data for VLA training. The diagram's separated training block is central: video generation prepares supervision, while the policy learns the observation-to-action mapping. e-pipelinee-actione-alignere-policy-training
What it supports. The pipeline explicitly connects generated images to independently derived robot actions. This explains how a visual transfer model can help action learning without itself predicting control labels. It also exposes the dependencies: hand trajectories, robot geometry, camera calibration and real demonstrations remain part of the system.
Where the evidence stops. The generator's frozen symbol belongs to its use for data synthesis; Figure 2 shows its separate training stage. Figure 1 does not establish a jointly trained world/action model or a deployed video-planning loop.
2. Motivation
2.1 The problem and the proposed response
Cheap egocentric demonstrations differ from robot observations in camera motion, hand appearance and executable motion. The paper asks whether correcting these three gaps can make human videos useful supervision for manipulation policies. e-identitye-pipeline
2.2 What this reading follows
A human can demonstrate a task quickly, but the resulting video has the wrong camera motion, the wrong visible manipulator and no directly executable robot commands. MimicDreamer addresses those mismatches before policy learning. Its key move is to derive action labels through geometry and inverse kinematics, then make the accompanying images resemble robot observations using a conditioned video diffusion model. This edition follows that data flow through the original diagrams and tests its claims against the physical-task tables. The results support useful synthetic supervision, while inconsistent averages, incomplete evaluation details and the absence of policy component ablations limit stronger conclusions. e-pipelinee-actione-alignere-policy-resultse-experiment-scope
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Not assigned |
| Architecture | Not assigned |
| Prediction paradigm | Not assigned |
| Quadrant | Not assigned |
This table preserves the labels recorded at reading time. The current major category is Datasets. View the current classification.
3.1 Evidence-based assessment
Classification assessment not applicable
The recorded catalog fields are all unassigned, leaving no quadrant assertion to affirm or contradict. Architecturally this is an offline data-generation pipeline plus a separate VLA. A video diffusion generator and deterministic IK do not establish one network jointly predicting future observations and actions, a learned inverse-dynamics policy, or inference-time world-model planning. e-pipelinee-actione-alignere-policy-training
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 First align the command labels with the images
Begin with the two things a demonstration must supply: what the policy sees and what it should do. MimicDreamer obtains these through different routes. The video is stabilized by compensating a smoothed homography path and filling newly exposed holes. Independently, body-frame human wrist poses are mapped into the robot workspace. The IK objective then trades position error against a weighted orientation error and changes from the preceding configuration. Downweighting tool-axis roll accommodates an embodiment mismatch, while clipping constrains joint positions. A hand-state classifier supplies gripper labels. Replaying the resulting trajectory in simulation creates the foreground condition used by the video generator. Finally, the generated frames are synchronized with the same action sequence, forming the observation/action pairs that supervise the policy. e-stabilizere-actione-ike-pipelinee-aligner

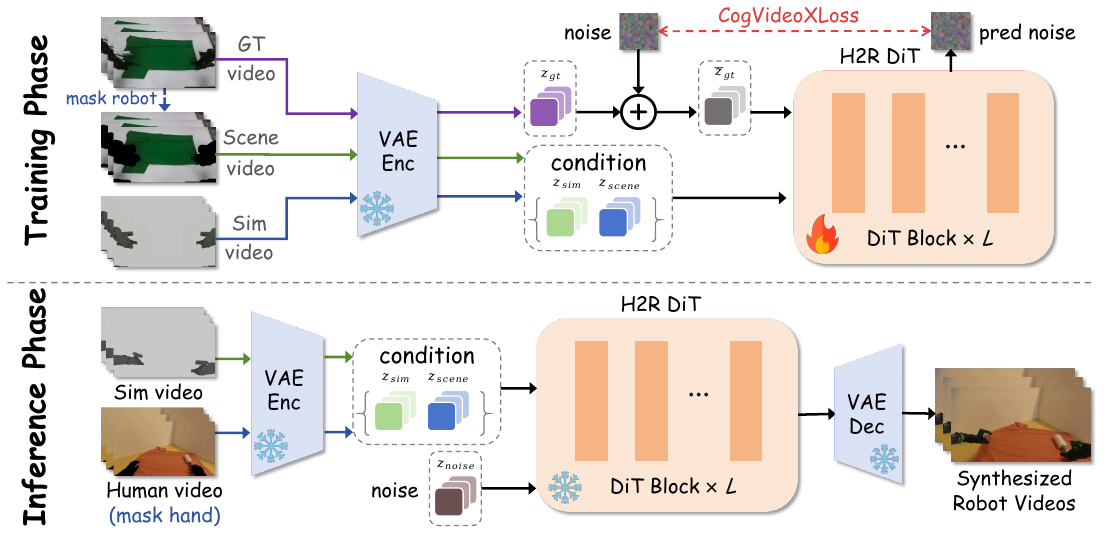

Figure 2. The target is denoised while scene and robot geometry stay available as conditions. Original paper, p. 6 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the upper and lower halves separately. During training, GT robot video is encoded and noised, while masked scene video and simulation video provide clean conditions. Snowflakes mark the frozen VAE; the flame marks the trainable DiT. The lower half replaces the training background with a hand-masked human video and initializes the target from noise, then decodes the generated latent. There is a source discrepancy in the upper half: the green Scene path reaches the condition labeled z_sim, while the blue Sim path corresponds to z_scene. Use Equation (8), the caption and Appendix B.1 for the verified target–scene–simulation channel ordering. e-alignere-aligner-training
What it supports. This is conditional reconstruction learned from robot footage, then applied to human-background/IK-replay conditions. Ground-truth robot video is unnecessary at synthesis time, but real robot training data was necessary for the aligner. The graphics therefore explain transfer of appearance under a supplied motion prior, rather than discovery of actions from pixels.
Where the evidence stops. The original training-row colors and latent labels are preserved despite their mismatch. The instruction embedding specified in the text is not explicitly drawn, and the figure leaves denoising-step counts and guidance settings unspecified.
5.2 Separate learning the renderer from learning the policy
H2R Aligner is trained before its outputs become policy data. Its training examples contain real robot video, a robot-removed version of that scene, and a simulated replay of the recorded robot trajectory. A shared frozen VAE maps all three into latent space. Only the target is noised; the two clean conditions preserve scene and geometric information while the DiT learns the denoising objective. At synthesis time, a stabilized hand-masked human background replaces the robot-derived background and an IK replay supplies the arm stream. No target robot recording is then needed. The resulting pseudo-robot samples enter a dataloader together with real demonstrations for π0 post-training. The policy's conditional flow-matching objective learns action generation; it is distinct from the aligner's video-denoising objective. e-alignere-aligner-traininge-policy-training
5.3 Read the empirical chain without assigning untested causes
The experiments address three different links: static generated frames illustrate visual transfer, stabilization metrics quantify camera-path changes, and the policy tables report physical-task outcomes. Reader analysis: agreement across these links makes the data-conversion idea plausible, but does not isolate why it works. For example, the authors attribute partial-success improvements to visual/viewpoint alignment and completion gains to smooth IK, yet the source lacks policy ablations that independently remove those components. The strongest arithmetic check uses Table 1 directly: its Equal Data row improves average SR by 20.0 percentage points, while the approximately 14.7-point gain belongs to PSR. Table 3 strengthens the evidence for added-data utility by holding robot demonstrations fixed, but a matched-total-data baseline is still needed to test comparative collection efficiency. e-qualitativee-stabilitye-policy-resultse-scalinge-experiment-scope
5.4 Training and inference
During training
H2R Aligner starts from CogVideoX-5b-I2V. Real robot footage is the denoising target; silhouette-masked real backgrounds and simulation replays provide clean conditions. A frozen VAE encodes all streams, while the DiT learns latent noise/residual prediction. Human backgrounds and Grounded-SAM2 enter only during synthesis, not aligner training. e-alignere-aligner-training
Appendix B.1 reports 24 categories, 1,245 samples expanded to 3,735 through cropping, 64 frames at 30 fps, 672×384 resolution and a 9:1 train/validation split. H2R training uses AdamW, learning rate 2×10^{-5}, weight decay 10^{-4}, bf16, ZeRO-2, four GPUs, batch two per GPU, eight accumulation steps and up to 100 epochs. e-aligner-training
π0 is post-trained on mixed real and pseudo-robot samples with instructions and time-aligned actions. Section 3.4 specifies conditional flow matching and validation-loss checkpoint selection; Appendix B.1 describes built-in behaviour cloning, configurable parameter freezing and Optax optimization without providing the complete configuration. e-policy-training
During inference
For data synthesis, Grounded-SAM2 removes human hands, IK replay supplies the simulated arm stream, and the target starts from noise. The trained DiT denoises and the frozen VAE decodes; no ground-truth robot target is used at this stage. e-alignere-aligner-training
For physical execution, the separately trained VLA maps visual/instruction context to controls projected into joint commands. The source does not describe diffusion-video rollouts, candidate-action search or replanning inside the deployed controller; exact deployment horizon and control frequency remain unspecified. e-pipelinee-policy-training
5.5 Implementation flow
- Stabilize the scene
Estimate frame homographies with feature matching and RANSAC, smooth the camera path, compensate each frame, and crop to common visibility. A video inpainter fills masked holes and disocclusions created by warping. e-stabilizer
- Retarget the motion
Express keypoints relative to the spine-base body frame, estimate wrist poses, and rigidly register them to the robot base. Per-arm IK balances positional tracking, pitch/yaw orientation and temporal smoothness under joint bounds; tool-axis roll is downweighted. A VGG-based hand-state classifier supplies gripper commands, with manual spot-check correction and optional median filtering. e-actione-ik
- Generate aligned visual supervision
Replay the retargeted trajectory in simulation with the robot URDF and calibrated camera. H2R Aligner conditions on this foreground and a stabilized, hand-masked background. Pair its generated video with the same retargeted actions; the generator does not infer the action labels. e-pipelinee-alignere-aligner-training
6. Experiments & results
MimicDreamer converts human demonstrations into robot-looking videos paired with retargeted actions, then post-trains a separate π0 policy. The contribution is training-data alignment across viewpoint, embodiment and appearance. Physical-task results improve with added synthetic demonstrations, but real-robot supervision remains part of the evaluated pipeline and several headline summaries conflict with the tables.
The source supplies six suitable crops here, including architecture diagrams, policy tables, generated examples and a stabilization diagnostic. It supplies no full-policy component-removal ablation or quantitative H2R generation-quality benchmark. Table 2 occupies the diagnostic/ablation section as a before/after preprocessing comparison; it does not establish each component's causal effect on policy success. e-experiment-scopee-stabilitye-qualitative
6.1 Read the original evidence

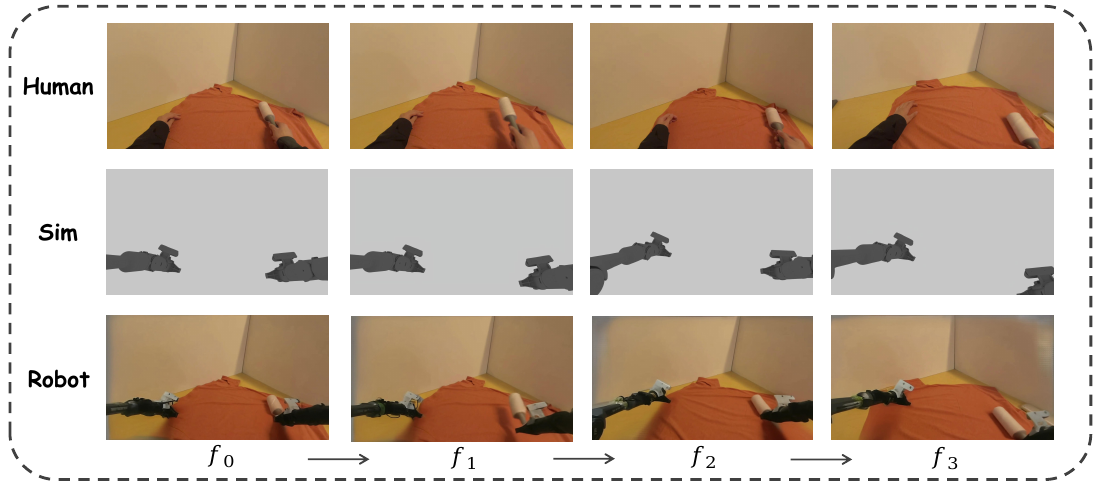

Figure 4. Generated robot appearance is shown against both the human scene and the motion prior. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read downward within each time column before reading across time. The Human row supplies the manipulation scene and demonstration; the Sim row shows the retargeted robot motion with a plain background; the Robot row is the generated output. The four columns labeled f_0 through f_3 let the reader compare arm placement and the garment/roller context at corresponding moments. The output retains the warm-colored scene while depicting robot arms, illustrating why simulation provides only part of the desired training observation. The surrounding method text identifies the final row as synthesized imagery, so its photorealistic appearance should not change that interpretation. e-qualitativee-aligner
What it supports. The example visibly combines a scene resembling the human demonstration with robot-arm appearance guided by replayed motion. It supports the paper's qualitative transfer claim for this illustrated sequence. Figures 6 and 8 extend the static examples to other tasks, but do not supply a quantitative generation-quality score.
Where the evidence stops. Four selected frames do not establish continuous temporal coherence, accurate forces, valid contact or successful robot execution. The Robot label denotes generated video; physical-task success is evaluated separately in Tables 1 and 3.

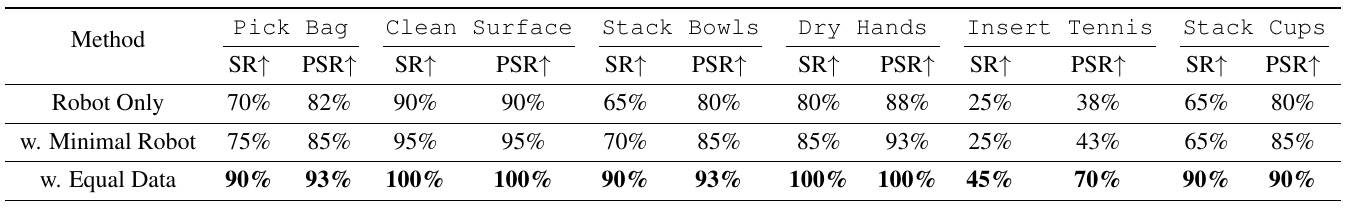

Table 1. The strongest mixture improves every task, with inconsistent prose averages disclosed. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Each task has an SR column for full completion and a PSR column for average subtask progress. Read the training counts from the source caption: Robot Only uses 20 robot demonstrations; Minimal Robot uses 20 transferred human demonstrations plus 3 robot demonstrations; Equal Data uses 20 of each. These counts are essential because Equal Data does not mean equal total examples to the baseline. Compare rows within each task, then average the six corresponding metric cells. The inspected task descriptions and Figure 7 show the physical procedures, but the paper does not provide evaluation trial counts or resolve the Pick Bag subtask-count discrepancy. e-policy-resultse-evaluatione-taskse-identity
What it supports. Calculated from the displayed cells, Equal Data reaches 85.8% mean SR versus 65.8%, a 20.0-point increase; PSR rises from 76.3% to 91.0%, approximately 14.7 points. Minimal Robot averages 69.2% SR. These are reader calculations: Section 4.1.1 instead reports 85.0% and 70.0% for those two SR means.
Where the evidence stops. The abstract's 14.7% success-rate statement numerically matches the PSR point gain, not the SR gain. None of these rows tests a policy trained without real robot demonstrations, and uncertainty is unreported.

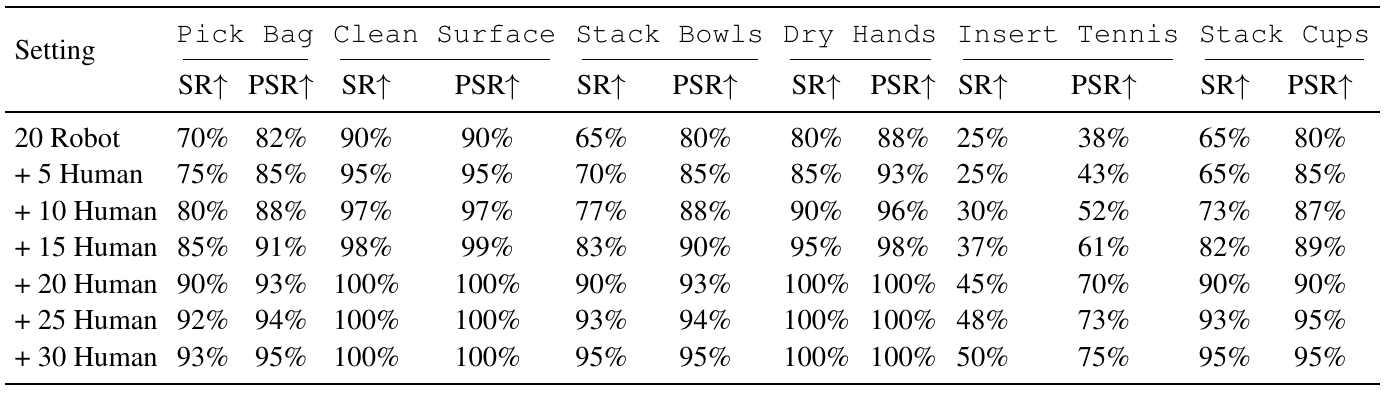

Table 3. The scaling trend is clearest when the real-data count is held fixed. Original paper, p. 21 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the 20 Robot row and move downward within one task's two columns. Every added-data row retains those robot demonstrations; the Human count identifies additional transferred demonstrations. This is a training-data count, not the number of evaluation attempts. Clean Surface and Dry Hands reach ceilings by +20, whereas Insert Tennis retains substantial headroom. Figure 3 on page 8 plots the same trend, but this table makes exact values easier to inspect. Read SR and PSR separately: a larger progress score can coexist with a relatively low full-task success rate, particularly for Insert Tennis. e-scalinge-policy-results
What it supports. Insert Tennis increases from 25% SR/38% PSR to 45%/70% at +20 and 50%/75% at +30. The SR doubling at +30 is a 25-point absolute gain. Across the table the values are nondecreasing, with several plateaus, supporting an empirical benefit from adding transferred demonstrations over this tested range.
Where the evidence stops. The +5 row exactly duplicates Table 1's Minimal Robot row, although that caption specifies 20 human plus 3 robot demonstrations. The source gives no explanation. These data also lack matched-total-count real-only controls or repeated-run uncertainty.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Six-task real-robot policy evaluation Table 1: Robot Only uses 20 robot demonstrations; Minimal Robot uses 20 transferred human demonstrations plus 3 robot demonstrations; Equal Data uses 20 transferred plus 20 robot demonstrations. Tasks resemble EgoDex scenarios; evaluation trial counts and uncertainty are not given. | Equal Data: 85.8% SR and 91.0% PSR, calculated from the six table columns. Minimal Robot: 69.2% SR and 81.0% PSR, similarly calculated. Mean task SR and PSR; higher is better | Robot Only: 65.8% SR and 76.3% PSR. Equal Data therefore adds 20.0 percentage points SR and approximately 14.7 points PSR. These are reader-calculated table means, not the prose's 85.0% and 70.0% SR averages. SR measures complete tasks; PSR measures completed-subtask fractions. The comparison adds data and does not isolate synthesis quality at equal total demonstration count. e-policy-resultse-evaluatione-tasks |
| Insert Tennis with increasing human-to-robot data Table 3 holds 20 real-robot training demonstrations fixed and adds 5–30 transferred human demonstrations. | +20 human: 45% / 70%; +30 human: 50% / 75%. Physical-task SR / PSR | 20 Robot baseline: 25% / 38%. At +30, SR doubles, a 25-percentage-point increase. Values are nondecreasing with plateaus. Table 1's Minimal Robot row exactly repeats Table 3's +5 Human row despite different declared training counts; the source does not explain this. e-scalinge-policy-results |
| EgoStabilizer viewpoint diagnostic Table 2 covers 8,940 videos across six categories and reports per-category frame-weighted before/after means. | Reported aggregate relative reductions: 21.9%, 13.1% and 3.3%, respectively. Stability, Jitter RMS and H-RMSE; lower is better as tabulated | Dry Hands Stability changes from 0.4347 to 0.2952, a reported 32.1% reduction. This supports reduced camera-motion diagnostics. It neither measures policy success nor isolates which alignment component causes the policy gains. H-RMSE normalization and the exact mapping of 'Stability' to appendix statistics remain unclear. e-stabilitye-metrics |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

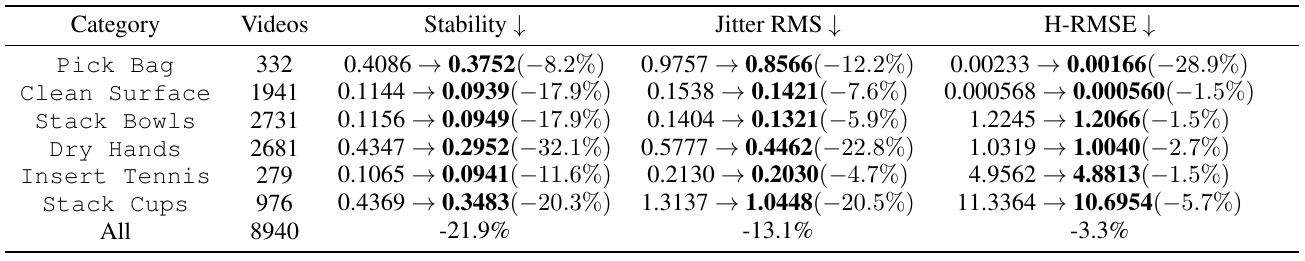

Table 2. The stabilization diagnostic measures image motion, independently of task success. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Within each metric cell, the left value precedes stabilization, the bold right value follows it, and parentheses give the reported relative change. Down arrows mean lower values are preferred. The Videos column totals 8,940 across categories; the caption describes frame-weighted means, so these values should not be averaged by simply treating each category equally. Appendix B.4 defines jitter as residual energy after low-pass filtering the angular path and H-RMSE as homography reprojection error, with an optional normalized form. Figure 5 on page 10 provides a complementary static-background comparison using alignment lines and feature intersections. e-stabilitye-metricse-experiment-scope
What it supports. The aggregate row reports reductions of 21.9% in Stability, 13.1% in Jitter RMS and 3.3% in H-RMSE. Dry Hands shows the largest listed relative Stability reduction, 32.1%. These findings support viewpoint regularization on the measured videos; they do not directly measure whether the downstream robot completes more tasks.
Where the evidence stops. This is a preprocessing diagnostic, not a policy module-removal ablation. Table 2 leaves H-RMSE units/normalization and the exact correspondence between Stability and the appendix's view-consistency statistics ambiguous; lower errors do not certify contact fidelity.
7. Analysis & limitations
7.1 What the evidence leaves open
The abstract's 'purely' synthesized-data wording is broader than the evaluated setups, which include real demonstrations; the aligner itself also learns from real robot videos. Its 14.7% success-rate claim numerically matches the table-derived PSR point gain, not the SR gain. Section 4.1.2 likewise labels PSR differences as success-rate gains. e-identitye-policy-resultse-scalinge-aligner-training
No policy component-removal ablation, matched-total-data real-only control, uncertainty estimates or quantitative generator-quality benchmark is supplied. Qualitative transferred frames establish appearance examples, not physical contact correctness. The paper's causal assignment of partial/full success gains to particular modules remains unisolated. e-experiment-scopee-qualitativee-scaling
Implementation ambiguities matter: Figure 2 reverses the training-row scene/simulation color-to-label mapping; Appendix A's positive DLS update needs its residual/Jacobian sign convention checked. Numerical IK weights, damping, stopping thresholds and explicit velocity limits are absent. Pick Bag is called three subtasks but only two are described/shown; PSR also changes expansion from 'Progress' to 'Partial'. e-alignere-ike-taskse-evaluatione-scaling
The conclusion leaves force/contact cues, richer dexterity and deformable manipulation, longer temporal coherence, cross-robot/cross-scene generalization and cost-aware data scheduling to future work. e-conclusion
7.2 Questions for discussion
- Would the gains persist against 40 real demonstrations under matched optimization and evaluation budgets?
- How much policy improvement survives removing stabilization or replacing generated videos with simulation-only observations?
- Can the printed IK update and ambiguous subtask scoring be resolved sufficiently for independent replication?
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction needs robot videos/joint logs, EgoDex pose/video samples, calibrated URDF rendering in RobotWin, segmentation/inpainting, CogVideoX and π0 weights. Appendix B.1 provides a useful H2R recipe, but GPU models, wall-clock cost, exact VLA trainable filters, learning-rate schedule values and software versions are unspecified. e-aligner-traininge-policy-traininge-evaluation
Before training, establish whether the 9:1 split separates original episodes before augmentation; the text does not say. Record exact IK/gripper settings and per-task evaluation trials, resolve the Pick Bag scoring denominator, and verify the printed DLS direction on a known reachable pose. e-aligner-traininge-ike-taskse-policy-results
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Separate extra-data benefit from alignment benefit
Reader-proposed check, not performed: use the same 20 real demonstrations per task and the same 20 human trajectories to compare the full pipeline with stabilization disabled and with simulated-only images replacing H2R outputs. Keep labels, sample counts, policy initialization, optimization budget and evaluation starts matched. Include 20-real and 40-real controls, recording collection effort separately. Report per-task SR/PSR, trial counts and uncertainty across seeds. A reproducible drop after each removal would support a component contribution; equal performance across alignment variants would weaken that attribution. Resolve the Pick Bag scoring denominator before collecting outcomes. e-pipelinee-policy-resultse-scalinge-experiment-scopee-tasks
Check 2: Check the IK update before trusting generated labels
Reader-proposed check, not performed: choose a reachable target near a known robot configuration and compare one small step of the printed Appendix A update with a residual-sign-consistent descent step under the same Jacobian and damping. Measure whether the stated position/orientation objective decreases. Then replay identical human trajectories with roll weighting and temporal regularization individually removed, logging end-effector error, joint-limit violations and frame-to-frame command changes. The printed residual/update signs must be reconciled if the first step increases error; only a controlled tracking–smoothness tradeoff would support the claimed role of those penalties. e-actione-ike-experiment-scope
8.3 Reading coverage
Visual audit: The title/byline and v2 stamp, all eight original figures, all three quantitative tables, method equations, IK appendix, training configuration, task descriptions and metric definitions were visually inspected on these pages. All six final original crops were separately viewed and retain their scientific labels and table cells. Figure 2's upper-row scene/simulation label mismatch was checked against its caption, Equation (8) and Appendix B.1. Figure 3 was cross-checked with Table 3; Figures 5–8 provide supporting diagnostic/task/transfer context. All six source chunks, including references, were read. Bibliography pages and remaining introduction/related-work pages were read as text; no claims requiring their images are retained. Linked supplementary material and continuous video playback remain outside this pass.
PDF pages inspected for this edition: 1, 4, 5, 6, 7, 8, 9, 10, 16, 17, 18, 19, 20, 21. Appendix coverage: reviewed.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract; Sections 1–2: Introduction and Related Work
- Sections 3.1–3.4: viewpoint stabilization, action alignment, visual alignment, VLA training
- Sections 4.1–4.3: policy, scaling, H2R Aligner and EgoStabilizer experiments
- Section 5: Conclusion
- References
- Appendix A: unified action space
- Appendix B.1–B.6: hyperparameters, transferred visuals, tasks, metric formulas, additional qualitative and scaling results
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- The supplied artifact is arXiv:2509.22199v2 [cs.RO], dated 29 September 2025, marked 'Preprint. Under review.' Its title and all 15 authors match the catalog. The catalog submission date is 26 September 2025; v1 was not supplied, so revision differences beyond the observed version/date cannot be established.
- Text extraction does not reconstruct figure images; the retained PDF was separately inspected for all eight figures, all three tables, equations and supporting appendix details.
- Separate supplemental material availability has not been fully verified; linked supplementary examples and continuous videos were not supplied or inspected.
- Code, project website and external references were not inspected, and no experiments were reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e-identityPDF p. 1, title/byline, arXiv margin stamp and Abstract
Title and 15-author byline match the catalog; affiliations are GigaAI, CASIA, NJUST and Tsinghua University. Stamp identifies 2509.22199v2, 29 Sep 2025. Abstract claims purely synthesized training and a 14.7% average success-rate gain.
Go to primary source ↓e-pipelinePDF p. 4, Figure 1 and Section 3 overview
Stabilized human videos and IK-replayed robot simulation feed H2R Aligner; synthesized videos pair with robot actions, then mix with real data for separate VLA training.
Go to primary source ↓e-stabilizerPDF pp. 4–5, Section 3.1, Equation (1) and Video Inpainting
RANSAC homography estimation, camera-path smoothing, inverse compensation warp, common-visible-region cropping and mask-guided video inpainting define the stabilization procedure.
Go to primary source ↓e-actionPDF p. 5, Section 3.2, Equations (2–5)
Bimanual actions have seven entries per arm including gripper. Body-frame wrist poses are rigidly registered; weighted orientation and temporal penalties accompany position tracking and joint bounds.
Go to primary source ↓e-ikPDF pp. 16–17, Appendix A, Equations (11–18) and Gripper paragraph
Spine-base normalization, downweighted roll, warm-started DLS and clipping are specified. Equation (16) uses current-minus-target position error; Equation (17) adds a positive Jacobian pseudoinverse term in Equation (18). Numerical solver parameters and a sign-convention clarification are not supplied. Gripper classification includes manual spot checking and optional filtering.
Go to primary source ↓e-alignerPDF pp. 5–6, Section 3.3, Figure 2 and Equations (6–9)
Real robot targets and masked background/simulated foreground conditions train a frozen-VAE/trainable-DiT generator. Equations fix channel order as target, scene, simulation. In Figure 2's upper row, the green scene path is labeled z_sim and the blue simulation path z_scene; lower-row identities and prose differ. Synthesis uses hand-masked human backgrounds, IK replay and noise.
Go to primary source ↓e-aligner-trainingPDF p. 17, Appendix B.1, H2R Aligner paragraph
Specifies CogVideoX-5b-I2V, RobotWin, T5, frozen VAE, 48 input channels, 24 categories, 1,245-to-3,735 augmentation, 64-frame/30-fps/672×384 samples, 9:1 split, dilation kernel 5 for 3 iterations, AdamW 2e-5/1e-4, bf16, ZeRO-2, four GPUs, per-GPU batch 2, accumulation 8, up to 100 epochs. Human backgrounds are inference-only; split grouping, hardware models and runtime are not supplied.
Go to primary source ↓e-policy-trainingPDF p. 7, Section 3.4 and Equation (10); p. 17, Appendix B.1, VLA Training
π0 post-training uses video/instruction context and time-aligned actions. Main text specifies CFM, AdamW and validation CFM checkpoint selection. Appendix describes a mixed dataloader, configurable freezing, built-in compute_loss, Optax, bf16 and sharding, leaving numerical VLA configuration and deployed control frequency unspecified.
Go to primary source ↓e-evaluationPDF p. 7, Section 4.1, Experiment Setup, Evaluation Tasks and Evaluation Metrics
EgoDex is described as 829 hours, 1080p videos, 194 tasks with 3D poses. Six analogous robot scenarios are used. SR is full-task success; Progress Success Rate averages completed fractions of subtasks.
Go to primary source ↓e-policy-resultsPDF p. 7, Table 1, all six task columns, caption and Section 4.1.1
Rows specify 20 robot; 20 transferred+3 robot; and 20 transferred+20 robot demonstrations. Table-derived SR means are 65.833%, 69.167% and 85.833%; PSR means are 76.333%, 81% and 91%. Prose instead gives 70% and 85% for the latter SR means. Trial counts and uncertainty are not reported.
Go to primary source ↓e-scalingPDF p. 8, Section 4.1.2 and Figure 3; p. 21, Table 3 and Appendix B.6
Fixed 20 robot demonstrations are augmented with 5–30 human-to-robot demonstrations. Insert Tennis goes from 25/38 SR/PSR to 45/70 at +20 and 50/75 at +30. +20 per-task PSR differences are 11,10,13,12,32,10 points, labeled success-rate gains in main text. +5 row matches Table 1 Minimal Robot despite different setup labels. Appendix calls PSR Partial Success Rate.
Go to primary source ↓e-qualitativePDF p. 9, Figure 4; pp. 17–18, Appendix B.2 and Figure 6; pp. 20–21, Appendix B.5 and Figure 8
Static examples compare human demonstrations, simulation replays and generated robot-domain images, including cloth and bag manipulation. These are synthesized observations, not recordings of those generated sequences being physically executed.
Go to primary source ↓e-stabilityPDF p. 9, Table 2 and Section 4.3; p. 10, Figure 5
Table reports 8,940 videos, before/after frame-weighted means and aggregate relative reductions of 21.9% Stability, 13.1% Jitter RMS and 3.3% H-RMSE. Dry Hands Stability is 0.4347 to 0.2952. Figure 5 compares static-background features before/after stabilization.
Go to primary source ↓e-metricsPDF pp. 19–20, Appendix B.4, Equations (19–28)
Defines affine-angle view consistency in degrees, residual-to-low-pass Jitter RMS, homography reprojection RMSE and optional diagonal normalization, occlusion-aware MSE and frame-weighted aggregation. Table 2 does not identify whether its H-RMSE is normalized or which view-consistency statistic corresponds to Stability.
Go to primary source ↓e-tasksPDF p. 18, Appendix B.3; p. 19, Figure 7
Lists six task procedures: bag lifting, lint rolling, bowl stacking, towel wiping, tennis-ball placement and cup stacking. Pick Bag is described as three subtasks but enumerates only Steps 1 and 2; Figure 7 likewise shows two steps.
Go to primary source ↓e-conclusionPDF p. 10, Section 5
Future directions include dexterity/deformable manipulation, force/contact cues, long-horizon coherence, cross-robot/cross-scene generalization and cost-aware human/robot data scheduling.
Go to primary source ↓e-experiment-scopePDF pp. 7–10, Sections 4.1–4.3 and Tables 1–2; pp. 16–21, Appendices A–B and Table 3
Supplied experiments comprise policy data-mixture/scaling comparisons, generated-video examples and stabilization diagnostics. Despite Section 3.2's appendix pointer, Appendix A contains solver equations but no numerical IK ablation. No full policy component-removal study or quantitative H2R generator benchmark appears.
