DreamerAD: Efficient Reinforcement Learning via Latent World Model for Autonomous Driving
1. Paper overview
In one sentence: DreamerAD trains a driving policy with fast latent rollouts and learned prefix rewards, gaining NAVSIM planning score while constraining exploration and accepting lower ego progress. e-framinge-backbonee-shortcute-rewarde-policye-v2e-qualitative
| At a glance | What to know |
|---|---|
| Research problem | Source description Video world models offer a setting for driving-policy trial and error, but repeated diffusion sampling makes interaction expensive. Predictions can also hallucinate when candidate actions depart from expert demonstrations. DreamerAD addresses both rollout cost and the reliability of reward-guided exploration. e-framinge-labels |
| Core mechanism | Source description Shortcut forcing distills longer flow trajectories into one-step latent predictions while retaining optional RGB visualization. e-shortcute-backbone |
| A key reported result | NAVSIM v2 planning: 87.7 EPDMS, higher is better. Paper-described closed-loop simulation; Section 4.1 reports 1,192 training and 136 testing scenes. Epona 85.1; WorldRFT 86.7. Versus Epona: NC 98.0 vs 97.1, DAC 97.2 vs 95.7, TTC 97.4 vs 96.3; EP 87.8 vs 88.6. Highest aggregate score among Table 1 entries, a 2.6-point gain over Epona. Safety-component gains accompany lower progress; the authors interpret this as a safety-first tradeoff. e-datae-v2 |
| Reading caution | Reader analysis Evaluation covers NAVSIM and selected qualitative scenes, with no physical driving experiment or statistical uncertainty reported. Figure 4 shows visual sharpness, not calibrated dynamics accuracy; Figure 5 illustrates behavior changes without establishing their frequency. e-datae-componentse-rolloutse-qualitative |
Core contributions
- Source description
Shortcut forcing distills longer flow trajectories into one-step latent predictions while retaining optional RGB visualization. e-shortcute-backbone
- Source description
Gaussian-weighted vocabulary sampling and regularized GRPO combine structured exploration with group-relative policy updates. e-policy
Figure 3. Candidate trajectories become imagined latent futures, then rewards for the policy update. Original paper, p. 5 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start in the yellow region: DCAE encodes historical frames, while historical actions become embeddings. Traj DiT proposes a trajectory that guides vocabulary filtering and sampling; the lower arrows show sampled trajectories being relativized before use as controls. In the green region, the upper and lower dashed boxes represent different candidates, each rolled forward through latent states. Arrows from those states lead to rewards at successive horizons, and temporal weighting produces a candidate score. The blue column then computes group rewards, group advantages, and the policy update. Dotted links to RGB images illustrate visualization; the caption explicitly says decoding is bypassed during training. e-backbonee-rewarde-fusione-policy
What it supports. The architecture makes the world model an evaluator for policy learning. A candidate that appears acceptable early can receive poor later-prefix rewards when an imagined hazard emerges. This motivates temporal reward aggregation and comparisons within a candidate group. The diagram describes RL training, not a demonstrated physical control loop.
Where the evidence stops. The displayed scores 1 and 0.5 are schematic: no conversion to the logarithmic rewards in Eqs. (16)–(19) is supplied. Equation (18) also drops Eq. (16)’s sigmoid, so these labels cannot resolve the reward implementation.
2. Motivation
2.1 The problem and the proposed response
Video world models offer a setting for driving-policy trial and error, but repeated diffusion sampling makes interaction expensive. Predictions can also hallucinate when candidate actions depart from expert demonstrations. DreamerAD addresses both rollout cost and the reliability of reward-guided exploration. e-framinge-labels
2.2 What this reading follows
A driving policy can learn from imagined mistakes only if those mistakes are cheap to simulate and their consequences are scored reliably. DreamerAD tackles both requirements by adapting Epona into a one-step latent world model, attaching an autoregressive reward evaluator, and sampling candidate trajectories near a structured vocabulary. The policy learns from comparisons among those candidates through GRPO. Read the figures as a chain from simulation cost to reward quality to planning behavior. The strongest quantitative evidence is the improvement over Epona on NAVSIM; image sharpness and selected avoidance examples help explain the mechanism but do not establish real-world safety. e-framinge-backbonee-shortcute-rewarde-policye-v2e-qualitative
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | Dual-system |
| Prediction paradigm | Other mechanisms |
| Quadrant | Outside quadrants |
3.1 Evidence-based assessment
Supports the recorded classification
The recorded Dual-system / Other mechanisms / Outside quadrants classification fits DreamerAD’s policy post-training mechanism: an action-conditioned simulator and learned reward evaluator guide a distinct actor update. Epona itself jointly predicts video latents and trajectories, so its shared backbone should be acknowledged, but that fact does not collapse the whole RL pipeline into one joint future/action predictor. No inverse-dynamics action extraction is described. e-backbonee-rewarde-policy
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Make a large latent step learnable before shortening the sampler
Start with Epona’s separation between observations, latent representations and predicted futures. The DCAE and action encoder turn history into conditioning information; a flow model then produces a next-frame latent and future trajectory. DreamerAD first adapts this backbone to NAVSIM’s slower frame interval. Shortcut forcing subsequently teaches the generator to accept a requested step size. At the minimum step, the target is the ordinary noise-to-data velocity. At larger steps, two sequential half-step predictions form a stopped-gradient target for a single longer step. My interpretation is that this trains consistency across sampling resolutions instead of assuming that an ordinary sampler remains accurate when truncated. Figure 4 illustrates why that distinction matters, while Table 4 tests whether the shortened generator still supports downstream planning. e-backbonee-shortcute-rolloutse-latency
5.2 Turn imagined prefixes into structured training feedback
A cheap generator alone supplies no reliable instruction about which trajectory to prefer. DreamerAD constructs reward supervision by evaluating nearby vocabulary trajectories in PDM. It filters endpoints near the human trajectory and samples across lateral offsets, then labels multiple horizons rather than only the full plan. AD-RM reads observed history together with imagined future latents. Eight reward queries combine criterion identity with trajectory and horizon information before attending to the compressed history. Consequently, its outputs are assessments of trajectory prefixes, not necessarily instantaneous transition rewards. The safety terms and task terms are fused, then weighted over time. My interpretation is that this can expose when a plan begins to deteriorate. The source’s sigmoid and horizon-index inconsistencies still require clarification before an implementation can reproduce that exact feedback. e-labelse-rewarde-fusione-components
5.3 Use the actor’s neighborhood to compare structured alternatives
The actor first generates a baseline trajectory from historical and environmental representations. Gaussian likelihood, expressed through Mahalanobis distance, places vocabulary trajectories relative to that proposal. The sampling scheme mixes candidates selected by softmax probabilities with candidates drawn from a Gaussian neighborhood. Their latent rollouts yield group rewards, which are normalized into relative advantages. A clipped GRPO actor loss encourages better candidates while behavioral cloning anchors the plan to demonstrations and KL regularization limits departure from a reference policy. My interpretation is that the vocabulary acts as a prior on where reward-guided exploration is trustworthy. Table 3 is consistent with that design, but changing the sampling method also changes the candidate distribution. It does not by itself show that smoother trajectories or fewer hallucinations caused the improvement. e-policye-labelse-components
5.4 Training and inference
During training
Epona is pretrained on nuPlan and nuScenes; images are resized to 512×1024. All stages use 32 NVIDIA H20 GPUs. NAVSIM adaptation uses AdamW, batch 128, learning rate 3×10⁻⁵ and weight decay 0.05 for five epochs (about one day); shortcut training uses identical parameters for 12 epochs (three days). e-implementation
Reward supervision uses weighted BCEWithLogits, batch 320 and learning rate 3×10⁻⁴ for 12 epochs (about one week). RL uses batch 196 and learning rate 10⁻⁴ for two epochs (about eight hours). Reward-type and temporal weights are introduced without numerical settings in the supplied body. e-rewarde-implementation
During inference
For candidate evaluation, the frozen world model rolls forward autoregressively under trajectory controls, and AD-RM scores the resulting latents. RGB decoding is bypassed during RL; illustrative video decoding is optional. Gaussian distances to the actor trajectory guide mixed vocabulary sampling. e-backbonee-rewarde-policy
The default configuration uses one VisDiT step and 20 TrajDiT steps. The paper does not fully specify a deployed feedback controller or test-time candidate-selection loop; its per-frame world-model latency must not be read as total planning or vehicle-control latency. e-implementatione-latency
5.5 Implementation flow
- Encode and predict
Epona uses a DCAE visual encoder and an MLP action encoder. Temporally projected visual tokens join action tokens; the final contextual representation conditions a flow generator predicting the next-frame latent and future trajectory. NAVSIM fine-tuning adapts the original 10 Hz model to 2 Hz. e-backbone
- Distill latent rollouts
SF-WM conditions velocity prediction on signal level and requested step size. The smallest step uses a flow-matching target; larger steps match the stopped-gradient average of two teacher half-steps. The weighted squared-error objective uses the paper’s time-dependent weight. e-shortcut
- Label plausible alternatives
Reward-data construction filters 8,192 vocabulary trajectories by endpoint differences from the human trajectory: longitudinal distance at most 10 m, lateral distance at most 5 m, and wrapped heading difference at most 20 degrees. Lateral-offset sampling selects the stated K=256 representatives. PDM labels eight reward dimensions over eight prefixes, with 0.5-second spacing through 4 seconds. e-labels
- Decode rewards and refine the actor
AD-RM combines four historical latents with imagined prefix latents. Learnable queries compress 512 latent positions to 32; eight reward queries add trajectory and time embeddings, then cross-attend to history. Safety and task rewards are fused and temporally aggregated. Candidate rewards determine normalized group advantages for a clipped actor objective with behavioral-cloning and KL penalties. e-rewarde-fusione-policy
6. Experiments & results
DreamerAD makes Epona-based driving imagination cheaper, learns rewards directly from predicted latents, and uses those rewards to refine a trajectory policy with GRPO. Shortcut forcing enables one-step visual generation; vocabulary sampling limits exploration to structured trajectories. NAVSIM v2 EPDMS rises from 85.1 to 87.7, while ego progress falls. These are simulation planning results, with unresolved reward-implementation details.
6.1 Read the original evidence

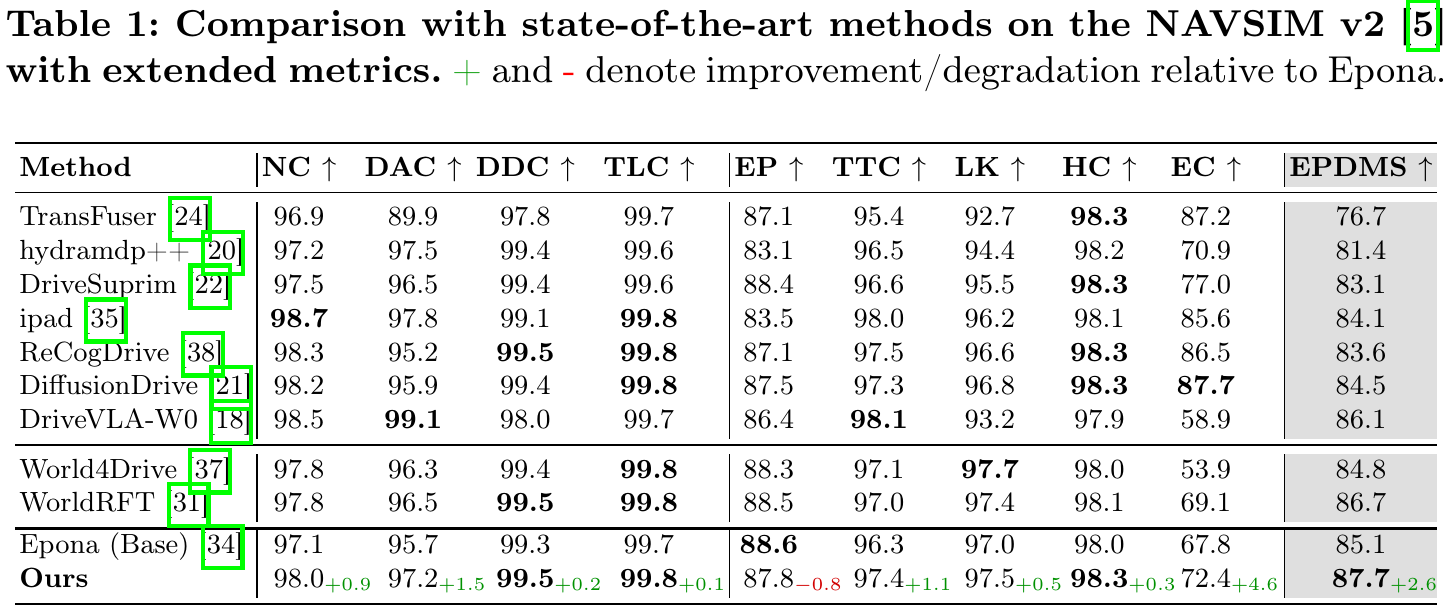

Table 1. The aggregate gain includes a measurable safety/progress tradeoff. Original paper, p. 12 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Begin with the shaded EPDMS column, then compare the final two rows component by component. Green and red annotations report changes relative to Epona, not statistical significance. NC means no collisions; DAC, DDC and TLC mean drivable-area, driving-direction and traffic-light compliance. EP is ego progress, TTC time-to-collision, LK lane keeping, HC history comfort and EC extended comfort. All arrows point upward because higher scores are preferred. In this paper’s evaluation description, these are NAVSIM v2 simulation scores; the dataset split is stated on page 10 and the component definitions are introduced on page 11. e-datae-v2e-v1
What it supports. DreamerAD reports 87.7 EPDMS versus Epona’s 85.1, a 2.6-point increase and the highest aggregate value among the listed methods. NC rises by 0.9, DAC by 1.5 and TTC by 1.1 points, while EP drops by 0.8. The source interprets that decrease as reduced aggressiveness in exchange for safety.
Where the evidence stops. The table does not establish matched encoders, compute or training data across every method, and provides no confidence intervals. NAVSIM v1 uses a different score: Table 2 reports 88.7 PDMS for DreamerAD, below AutoVLA and ReCogDrive.

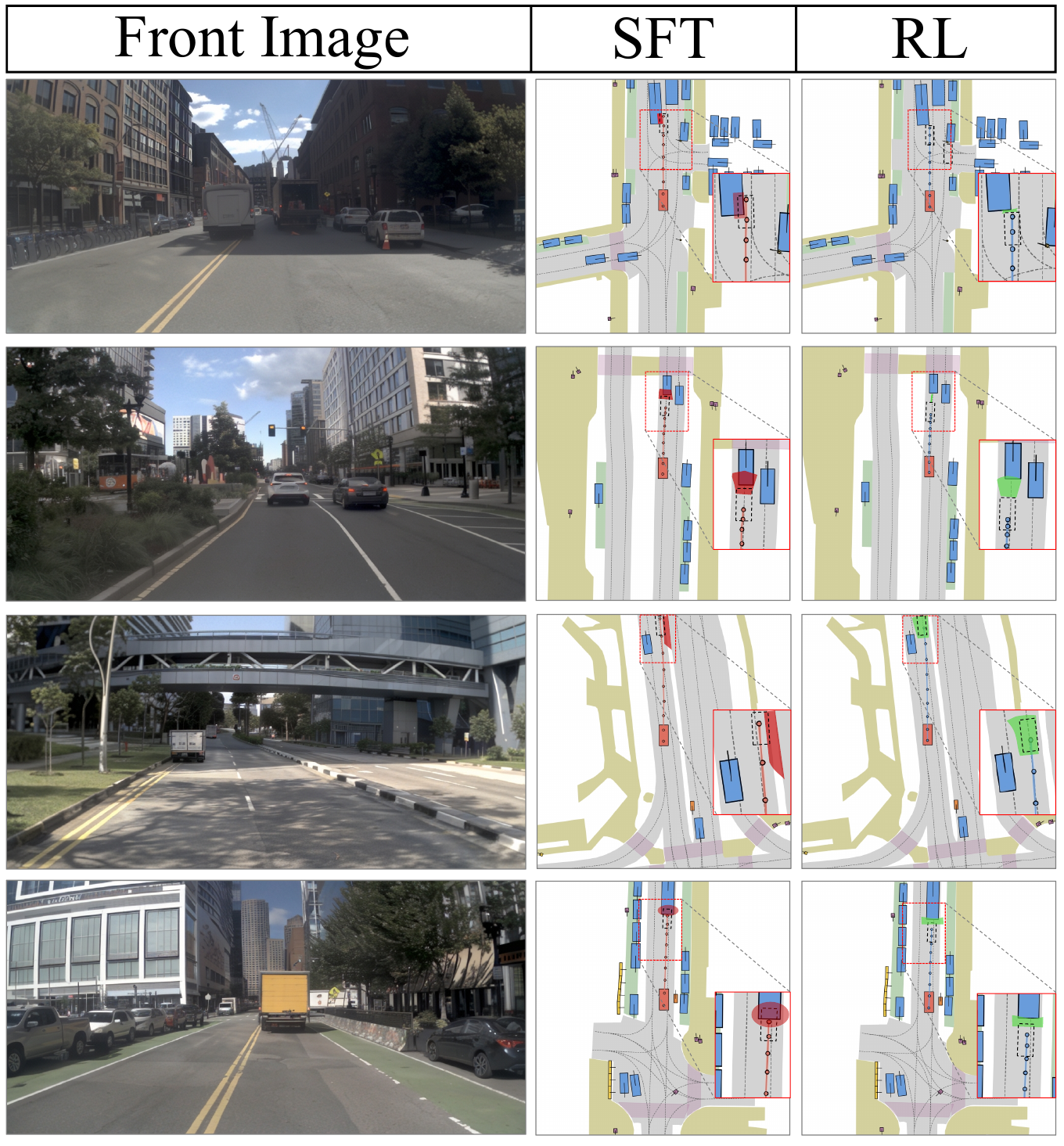

Figure 5. Selected scenes show how the learned trajectory changes after RL. Original paper, p. 15 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each scene row from the current front-camera view through the SFT plan to the RL plan in bird’s-eye view. The Figure 5 caption identifies red trajectories as SFT and blue trajectories as RL; red collision highlights and green safe-passage highlights mark the compared outcomes. Counting scene rows from the top, the insets show vehicle contact in rows 1, 2 and 4. Row 3 instead highlights the SFT path at the road boundary, with the paired RL path remaining clear. Section 4.5 gives conflicting third- and fourth-row hazard assignments. Compare the displayed spatial plans directly; that paragraph cannot reliably supply their row-specific speed or heading interpretation. e-qualitativee-qualitative-conflicte-v2
What it supports. These selected pairs depict RL plans that avoid the highlighted SFT vehicle-contact and road-boundary conflicts. They provide concrete qualitative examples consistent with the benchmark’s safety-component gains. The static maps support this spatial comparison, while the claimed deceleration, stopping and heading-adjustment mechanisms require more than the conflicting row descriptions.
Where the evidence stops. Section 4.5 (p. 14) assigns vehicle collisions to rows 1–3 and a curb collision to row 4; Figure 5 (p. 15) places the boundary case in row 3 and vehicle contact in row 4. This discrepancy is unresolved. Selected static examples establish neither collision frequency nor physical execution.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| NAVSIM v2 planning Paper-described closed-loop simulation; Section 4.1 reports 1,192 training and 136 testing scenes. | 87.7 EPDMS, higher is better | Epona 85.1; WorldRFT 86.7. Versus Epona: NC 98.0 vs 97.1, DAC 97.2 vs 95.7, TTC 97.4 vs 96.3; EP 87.8 vs 88.6. Highest aggregate score among Table 1 entries, a 2.6-point gain over Epona. Safety-component gains accompany lower progress; the authors interpret this as a safety-first tradeoff. e-datae-v2 |
| NAVSIM v1 planning NAVSIM v1 simulation; camera-only DreamerAD and Epona rows. | 88.7 PDMS, higher is better | Epona 86.2; AutoVLA 89.1; ReCogDrive 90.8. A 2.5-point gain over Epona, but not the best overall table entry. V1 PDMS and v2 EPDMS are different metrics; encoder/training setups differ across methods. e-v1e-data |
| Component ablation NAVSIM v2; Table 3 defaults to one-step inference during training. | Full system 87.7 EPDMS, higher is better | Without SF-WM: 86.4; without AD-RM: 87.0; WorldRFT sampling: 86.6; Flow-GRPO: 87.0. The reported comparisons support each component, but no seed variation or confidence intervals are supplied; the score alone does not measure hallucination rates. e-components |
| World-model sampling efficiency SF-WM step ablation; speed measured on one NVIDIA H20. | 1 step: 0.03 s / 87.7 Latency per frame (seconds), lower is better; EPDMS, higher is better | 4 steps: 0.10 s / 87.8; 16 steps: 0.40 s / 87.7. Near-equal reported planning scores across these settings. The abstract’s 80× claim lacks a matched 100-step timing row here; this table measures world-model frame latency. e-latencye-implementatione-framing |
| Reward-training data scale Table 5 varies reward-model training data under the stated identical configurations. | 20%: 87.5; 40%: 87.5; 100%: 87.7 EPDMS, higher is better | Epona baseline 85.1. Small performance differences within this benchmark do not establish out-of-distribution reward generalization. e-data-scale |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

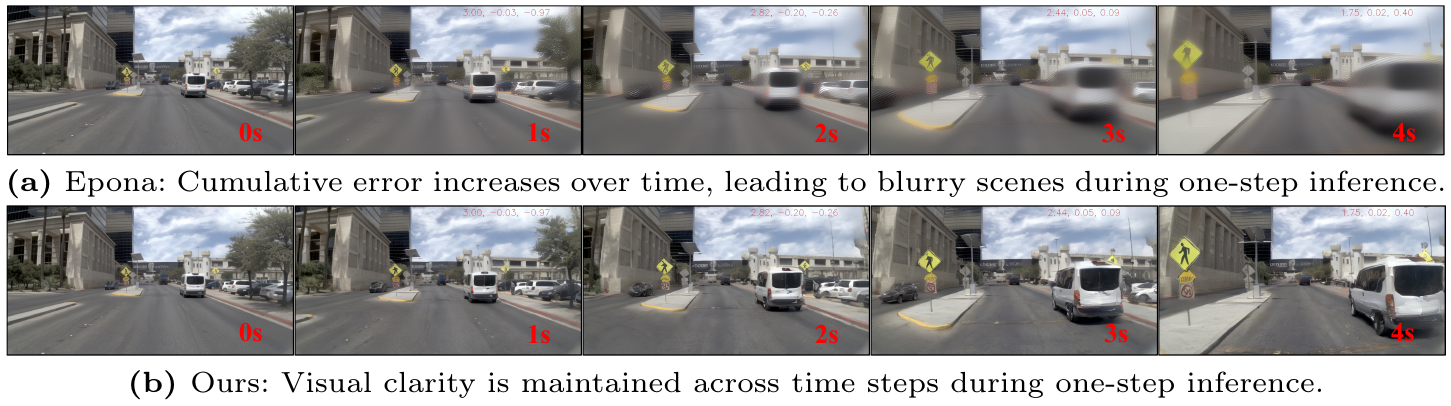

Figure 4. Shortcut training changes what one-step autoregressive generation looks like. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each row left to right from the initial scene to the four-second frame, then compare the two rows at matching timestamps. Both are labeled as one-step inference. In the upper row, the van, road boundaries and nearby structures progressively lose detail. The lower row preserves more distinct shapes as the scene advances. Connect this display to the shortcut equations on page 6: the model is trained to predict a requested larger flow step using two teacher half-steps as its target. Simply reducing the original model’s sampler to one step is therefore a different intervention from training it for that step size. e-shortcute-rolloutse-componentse-latency
What it supports. The example supports the authors’ narrower visual claim that shortcut forcing can preserve sharper one-step rollouts than unadapted one-step Epona. It supplies a plausible route to more usable reward inputs, but the downstream planning comparisons in Tables 3 and 4 are needed to connect this visual behavior to policy performance.
Where the evidence stops. Sharp images do not prove accurate counterfactual dynamics or calibrated collision rewards. This is one illustrated sequence, without an aggregate visual-quality metric or uncertainty estimate. Treat the caption’s causal interpretation as the authors’ reading of the example.

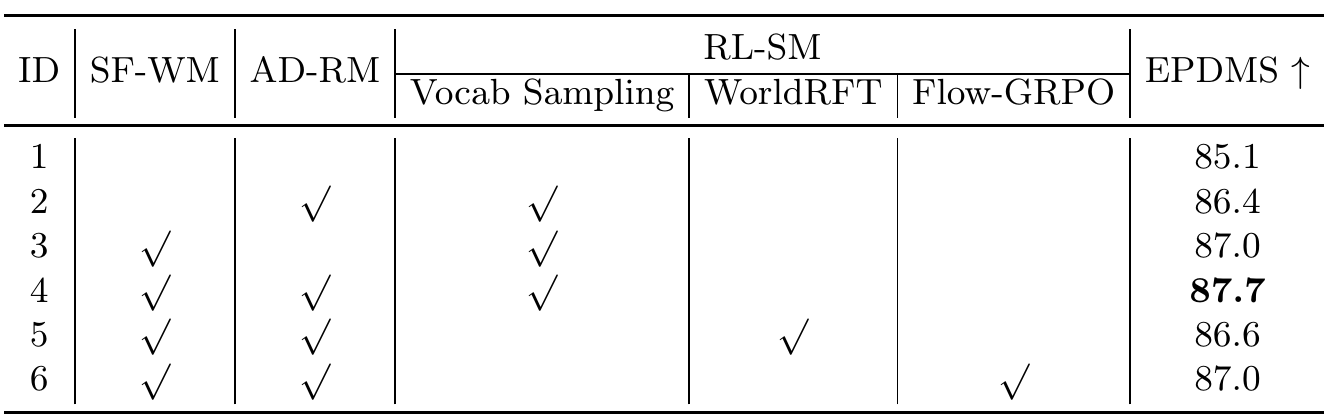

Table 3. Read paired rows to identify which component changes. Original paper, p. 13 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Use row 4 as the reference: it includes SF-WM, AD-RM and vocabulary sampling. Row 2 removes shortcut forcing while retaining the other two checkmarks; row 3 omits AD-RM. Rows 5 and 6 retain both modeling components and substitute WorldRFT or Flow-GRPO for vocabulary sampling. Row 1 is the Epona baseline. The source caption, outside this table-body crop, specifies one-step inference during training unless otherwise stated. These distinctions matter because the table is not a simple sequence of cumulative additions: it combines component-removal comparisons with alternative RL sampling methods. e-componentse-reward
What it supports. The full system scores 87.7. Removing SF-WM gives 86.4; omitting AD-RM gives 87.0. With both modeling components, WorldRFT sampling gives 86.6 and Flow-GRPO gives 87.0. The reported ordering supports the proposed combination within this setup, with the largest listed component-removal drop attached to shortcut forcing.
Where the evidence stops. The missing-AD-RM row does not fully specify the replacement reward implementation. The authors attribute sampling differences to trajectory discontinuities and hallucinations, but this table measures planning score rather than either mechanism directly; seed-level variation is also absent.

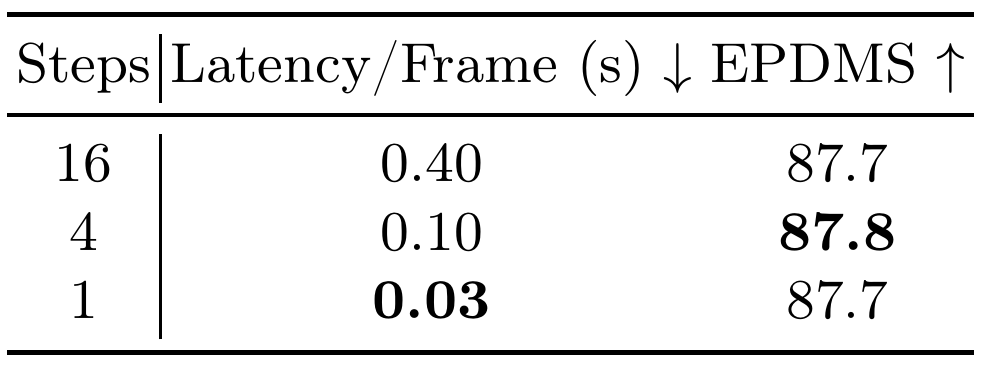

Table 4. Reducing world-model sampling steps changes cost much more than the reported score. Original paper, p. 13 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the left column as the shortcut world model’s sampling budget, not the trajectory planner’s budget. The middle column is latency per generated frame in seconds, where lower is better; the right column is downstream EPDMS, where higher is better. Section 4.2 says speed is measured on one NVIDIA H20 and gives the default planner configuration as one VisDiT step and 20 TrajDiT steps. Table 4 deliberately varies the visual sampler around that default. Compare the 16-step and one-step rows first, then inspect the small score difference at four steps. e-latencye-implementatione-framing
What it supports. One-step SF-WM reports 0.03 seconds per frame and 87.7 EPDMS, compared with 0.40 seconds and the same rounded score at 16 steps. Four steps report 0.10 seconds and 87.8. These measurements support using a much smaller sampling budget for the evaluated planning setting.
Where the evidence stops. The table lacks the matched 100-step baseline needed to verify the abstract’s 80× claim. Its latency is per world-model frame, excluding any unspecified full-planner accounting. Differences of 0.1 EPDMS lack uncertainty estimates.
7. Analysis & limitations
7.1 What the evidence leaves open
Evaluation covers NAVSIM and selected qualitative scenes, with no physical driving experiment or statistical uncertainty reported. Figure 4 shows visual sharpness, not calibrated dynamics accuracy; Figure 5 illustrates behavior changes without establishing their frequency. e-datae-componentse-rolloutse-qualitative
Structured exploration targets the source’s acknowledged out-of-distribution hallucination problem, but endpoint proximity alone does not guarantee feasible intermediate dynamics or cover rare maneuvers. e-labelse-components
Source notation needs implementation clarification: Eq. (18) omits Eq. (16)’s sigmoid; horizon indexing alternates between 0–7 and 1–8, while labeling prose states eight scores from 0 to 4 seconds in 0.5-second increments; the stated K representatives are enumerated from τ⁰ through τᴷ. These inconsistencies are preserved rather than silently resolved. e-labelse-fusione-reward
Figure 5 and Section 4.5 disagree on the third and fourth examples. The displayed third-row inset highlights a road-boundary collision; the fourth highlights contact with a vehicle’s rear. The prose instead assigns stationary-vehicle collisions to rows 1–3 and a curb collision to row 4. This unresolved source discrepancy prevents using that prose to establish row-specific braking or heading changes. e-qualitativee-qualitative-conflict
7.2 Questions for discussion
- Does one-step distillation preserve candidate reward rankings when image sharpness remains high?
- How much of the gain comes from temporal supervision versus restricting exploration to the vocabulary?
- Would the safety/progress tradeoff persist under reactive traffic and unseen maneuvers?
8. Reproducibility audit
8.1 Requirements and known gaps
Required ingredients include the Epona initialization, NAVSIM formatting, PDM prefix labels, filtered trajectory vocabulary and staged training schedule. The supplied body leaves K_max, Gaussian variance, group sampling counts, reward/temporal weights, clipping threshold, software versions and complete metric calculations unspecified. e-backbonee-shortcute-labelse-rewarde-policye-implementatione-supplement
Proposed checks: measure candidate-ranking fidelity against PDM as shortcut steps vary, then compare dense-prefix and terminal-only reward supervision under matched vocabulary candidates and training budgets. These test reward reliability and temporal credit separately from visual appearance. e-latencye-labelse-rewarde-components
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Does shortcut compression preserve reward rankings?
Reader-proposed check: fix held-out NAVSIM histories, the same filtered candidate trajectories and a frozen reward evaluator. Generate each candidate’s latent rollout with 1, 4 and 16 SF-WM steps, then compare predicted candidate rankings and collision classifications against PDM labels at each prefix. Record rank correlation, false-safe classifications and measured frame latency with identical hardware and batching. Include unadapted one-step Epona as a control for the effect of shortcut training itself. A systematic increase in false-safe candidates or ranking reversals at one step would weaken the claim that near-equal aggregate EPDMS implies equally useful imagined feedback. This check has not been run. e-labelse-rewarde-shortcute-rolloutse-latencye-implementation
Check 2: Separate temporal credit from the candidate distribution
Reader-proposed check: compare AD-RM prefix supervision with a matched terminal-only reward head, using the same world-model checkpoint, label budget, optimizer schedule and pre-generated vocabulary candidate groups. First compare reward rankings against PDM; then run policy refinement with matched actor initialization, updates and multiple seeds. Report EPDMS, NC, DAC and EP together, so stopping more often cannot hide a progress loss. Repeat both reward variants with the same controlled Gaussian perturbation baseline to expose interaction with exploration. If dense supervision improves only under changed candidate sets, or only reduces progress without safer PDM outcomes, the claimed temporal-credit mechanism would need a narrower interpretation. This check has not been run. e-labelse-rewarde-policye-componentse-v2e-implementation
8.3 Reading coverage
Visual audit: The title, all 14 authors, affiliations and v2 date were visually checked on page 1. Pages 2–4 supplied the qualitative/PCA examples and method motivation; pages 5–10 supplied Figure 3, Figure 4 and all retained encoding, shortcut, reward and GRPO equations. Page 11 supplied training hardware, schedules and evaluation definitions. Page 12 supplied both main result tables; page 13 supplied all three ablation tables; pages 14–15 supplied sampling discussion and the paired planning examples. All six final crops were individually viewed and retain their original pixels. Figure 3’s arrows were checked against its caption and Sections 3.2–3.3; its schematic scores do not resolve the log-reward ambiguity. Figure 5’s third-row boundary collision and fourth-row vehicle contact were checked against Section 4.5’s conflicting assignments; both supporting pages are included and the disagreement is explicitly preserved. Pages 16–17 were read as reference text, not visually inspected. No appendix is present, and no separate supplement was supplied.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Title, author block and abstract (PDF p. 1)
- 1 Introduction (pp. 1–3)
- 2 Related Works, including 2.1–2.2 (pp. 3–4)
- 3 Method: 3.1 Overall, 3.2 World Model with Latent Reward Modeling, 3.3 Reinforcement Learning with Vocabulary Sampling (pp. 4–10)
- 4 Experiment: 4.1 Dataset, 4.2 Implementation Details, 4.3 Main Results, 4.4 Ablation Studies, 4.5 Qualitative Results (pp. 10–15)
- 5 Conclusion (p. 14)
- References (pp. 15–17)
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- Some PDF font mappings yielded unpaired Unicode surrogates; replacement characters are recorded by page in extractionNotes and require PDF visual verification.
- The complete supplied 17-page PDF text was read in all four chunks. Original PDF pages 1–15, all five figures and all five tables were visually inspected; six final original crops were inspected. Page-5 extraction damage was resolved for retained architectural claims by reading the original image; the extracted text remains damaged.
- The PDF contains no appendix. Sections 3.3 and 4.1 refer to supplementary Flow-GRPO discussion and metric calculations, but no supplement was supplied. Its availability remains unverified.
- Identity/revision note: the title page identifies arXiv:2603.24587v2, 1 April 2026. The exact title and all 14 catalog authors match. The PDF places Zebin Xing and Qichao Zhang before Deheng Qian, whom the catalog lists third. This report uses PDF byline order and does not claim to review v1 or compare its scientific contents.
- The acquisition manifest identifies the earlier retained HTML as the same v2 revision; that HTML was not separately read in this session. This report cites only the supplied PDF artifact and preserves its raw-byte hash and supplied acquisition timestamp.
- Code and external links were not inspected; no experiments were run.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e-identityPDF p. 1, title, byline, affiliations and arXiv margin
Exact catalog title; 14 authors in the observed PDF order; four numbered affiliations; arXiv:2603.24587v2 dated 1 April 2026.
Go to primary source ↓e-framingPDF p. 1, Abstract; p. 3, Section 1
Authors motivate cheaper latent imagination, claim 100-to-one sampling and 80× acceleration, and identify diffusion latency as a bottleneck.
Go to primary source ↓e-backbonePDF p. 4, Section 3.1; p. 5, Figure 3 and Section 3.2, Eq. (1); p. 6, opening paragraphs
Epona encodes history and actions, predicts next-frame latents and future trajectories, adapts 10 Hz to 2 Hz, and supplies latent rollouts for reward-driven policy optimization. Figure 3 bypasses RGB decoding during training.
Go to primary source ↓e-shortcutPDF p. 6, Section 3.2, Eqs. (2)–(8); p. 7, text immediately after Figure 4
Noise-to-data interpolation; step-conditioned velocity; minimal-step flow target and larger-step stopped-gradient teacher half-step average; weighted squared error with ω(t)=0.9t+0.1.
Go to primary source ↓e-labelsPDF p. 7, Reward Annotation and Labeling, Eq. (9)
8,192 trajectories are filtered by 10 m longitudinal, 5 m lateral and 20-degree heading tolerances; K=256 is stated, with inconsistent zero-through-K enumeration. PDM supplies eight reward dimensions and eight temporal prefixes through four seconds.
Go to primary source ↓e-rewardPDF p. 8, Reward Model Training, Eqs. (10)–(15)
Frozen world-model inference produces future latents; history includes z_-3 through z_0; query compression reduces L=512 to l=32. Eight dynamic reward queries cross-attend to history and use weighted BCEWithLogits supervision.
Go to primary source ↓e-fusionPDF p. 9, Reward Design for RL, Eqs. (16)–(19)
Safety criteria use a log-sigmoid sum, task criteria a log weighted sum, and horizons a weighted sum. The product form drops sigmoid and the stated horizon indices differ between equations.
Go to primary source ↓e-policyPDF p. 9, Vocabulary Sampling, Eq. (20); p. 10, Eqs. (21)–(25)
Gaussian Mahalanobis distances rank vocabulary candidates; g1 softmax samples and g2 neighborhood samples form G. GRPO uses normalized group rewards, clipped likelihood ratios, L1 cloning and reference-policy KL.
Go to primary source ↓e-dataPDF p. 10, Section 4.1; p. 11, Section 4.1 continuation
NAVSIM provides eight cameras and LiDAR; paper states 1,192 training and 136 test scenes and excludes static/constant-speed scenarios. PDMS and EPDMS component names are listed; detailed calculations are deferred.
Go to primary source ↓e-implementationPDF p. 11, Section 4.2
Epona initialization, 512×1024 images, 32 H20 GPUs, four training stages with batch sizes, learning rates, epochs and approximate durations; speed on one H20; default VisDiT=1 and TrajDiT=20.
Go to primary source ↓e-v2PDF p. 12, Table 1, Ours/Epona/WorldRFT rows; p. 11, Section 4.3
Ours EPDMS 87.7 versus Epona 85.1 and WorldRFT 86.7; NC 98.0/97.1, DAC 97.2/95.7, TTC 97.4/96.3, EP 87.8/88.6. Authors interpret lower progress as a safety tradeoff.
Go to primary source ↓e-v1PDF p. 12, Table 2 and following discussion
Camera-only Ours PDMS 88.7, Epona 86.2; AutoVLA 89.1 and ReCogDrive 90.8. Discussion acknowledges stronger encoders and differing training setups.
Go to primary source ↓e-componentsPDF p. 13, Table 3 and Section 4.4; p. 14, Effectiveness of Vocab Sampling Method
Rows 1–6: 85.1, 86.4, 87.0, 87.7, 86.6, 87.0. Checkmarks distinguish SF-WM, AD-RM and the three sampling methods; caption states default one-step inference during training. No uncertainty columns are supplied.
Go to primary source ↓e-latencyPDF p. 13, Table 4 and following shortcut-forcing discussion
16/4/1 steps yield 0.40/0.10/0.03 seconds per frame and EPDMS 87.7/87.8/87.7; table has no 100-step baseline row.
Go to primary source ↓e-data-scalePDF p. 13, Table 5 and following reward-model discussion
20%, 40% and 100% reward-training data yield EPDMS 87.5, 87.5 and 87.7, versus Epona 85.1; authors claim broad reward-model generalization.
Go to primary source ↓e-rolloutsPDF p. 7, Figure 4 and adjacent inference discussion
One-step Epona and SF-WM sequences run from 0 to 4 seconds; Epona becomes blurry while the displayed SF-WM sequence remains sharper.
Go to primary source ↓e-qualitativePDF p. 14, Section 4.5; p. 15, Figure 5 and caption
Figure 5 presents four front-image/SFT/RL pairs. Its caption identifies red SFT trajectories, blue RL trajectories, red collision highlights and green safe-passage highlights. Section 4.5 attributes the changes to deceleration/stopping and heading adjustment, but its third/fourth hazard assignments conflict with the figure.
Go to primary source ↓e-qualitative-conflictPDF p. 14, Section 4.5, row-specific descriptions; p. 15, Figure 5, third- and fourth-row SFT/RL BEV insets
Counting scene rows from top to bottom, Figure 5 highlights the road boundary in the third SFT inset and a vehicle’s rear in the fourth; corresponding RL insets carry green safe-passage highlights. Section 4.5 instead describes stationary-vehicle collisions in rows 1–3 and a curb collision in row 4. The supplied source does not reconcile these assignments.
Go to primary source ↓e-latent-visualsPDF p. 2, Figures 1–2 and captions
Figure 1 pairs imagined risky/safe trajectories and reward annotations for curb, billboard and street-lamp hazards. Figure 2 shows PCA color projections of denoised latents beneath RGB examples.
Go to primary source ↓e-supplementPDF p. 10, Section 3.3 final paragraph; p. 11, Section 4.1 final sentence
The source explicitly defers Flow-GRPO details and metric definitions/calculations to supplementary material.
