Motubrain: An Advanced World Action Model for Robot Control
1. Paper overview
In one sentence: Motubrain learns aligned video and robot actions, then limits repeated visual computation to make chunked control practical, although its autoregressive mask specification is inconsistent. e03-architecturee06-action-losse07-posttraininge08-inferencee10-executione15-worldarena-resultse16-realworlde19-mask-discrepancy
| At a glance | What to know |
|---|---|
| Research problem | Author claim The authors argue that static image–text pretraining underserves temporal dynamics, while generating video before a separate inverse-dynamics model can propagate prediction errors into actions. Motubrain seeks aligned future-video/action learning from heterogeneous data, with deployment latency low enough for closed-loop manipulation. e02-motivatione03-architecturee08-inference |
| Core mechanism | Source description A three-stream Mixture-of-Transformers combines text conditioning with flow-matched video and action prediction; one formulation supports five conditional prediction modes. e03-architecturee04-modes |
| A key reported result | RoboTwin 2.0 multitask manipulation: Motubrain: 95.8 clean, 96.1 randomized; Table 4 gives 95.80 and 96.08 at higher precision. Average task success rate (%). Official clean plus randomized training data; evaluation across 50 tasks in clean and randomized scenes. LingBot-VA: 92.9/91.5; Fast-WAM: 91.9/91.8; Motus: 88.7/87.0 in Table 3. Strongest aggregate in the listed comparison, but Hanging Mug remains 55/43 versus Fast-WAM's 58/62. No confidence intervals accompany these scores. e11-robotwine12-task-breakdown |
| Reading caution | Reader analysis Figure 2(d) visibly enables Vn1→A1, Vn2→A2 and Vn3→A3 query-to-key access. Section 2.3 instead prohibits video attending to action in both modes. The AR implementation cannot be uniquely recovered from these inconsistent specifications. e19-mask-discrepancy |
Core contributions
- Source description
A three-stream Mixture-of-Transformers combines text conditioning with flow-matched video and action prediction; one formulation supports five conditional prediction modes. e03-architecturee04-modes
- Source description
Spatial positional offsets accommodate multiple camera views, while relative end-effector targets align dual-arm trajectories across embodiments. e04-modese06-action-loss
- Source description
Separate autoregressive and non-autoregressive adaptation, cached action-only denoising, and delay-aware chunk fusion connect the generative model to robot execution. e07-posttraininge08-inferencee10-execution
Figure 1. Language conditions a coupled video/action generator through a shared middle attention bridge. Original paper, p. 3 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read upward from the instruction, video and action encoders. Each modality first enters its own blocks, then contributes queries, keys and values to the middle multimodal self-attention region. The arrows from the two timestep inputs belong to video and action separately. Section 2.1 specifies that full video–action interaction occupies the middle 50% of layers, with decoupled bottom and top quarters. Language remains a conditioning stream without an output head. The video input combines an observed first latent frame with noisy future latents; the action stream receives noisy action tokens. Their learned outputs are flow velocities used during denoising. e03-architecturee04-modese07-posttraininge19-mask-discrepancy
What it supports. The architecture supports a unified-model reading because modalities exchange representations inside the backbone. It can select policy, forward world prediction, video generation, inverse dynamics or joint prediction by conditioning different variables. The presence of separate modality blocks therefore does not imply a sequential video-generator/IDM pipeline.
Where the evidence stops. This is an architectural overview, not the exact mask for every operating mode. Figure 2 and Section 2.3 must also be consulted; their AR dependency discrepancy is described in the next visual.
2. Motivation
2.1 The problem and the proposed response
The authors argue that static image–text pretraining underserves temporal dynamics, while generating video before a separate inverse-dynamics model can propagate prediction errors into actions. Motubrain seeks aligned future-video/action learning from heterogeneous data, with deployment latency low enough for closed-loop manipulation. e02-motivatione03-architecturee08-inference
2.2 What this reading follows
Motubrain asks how a video-generation prior can become a usable robot controller. Its answer combines language, video and action streams, an end-effector representation shared across embodiments, and separate adaptation for whole-window or autoregressive prediction. Deployment then changes the computational schedule: actions continue denoising after the video state is frozen, while a controller executes overlapping chunks. This reading follows that information flow before comparing simulation success, world-prediction quality and household-task scores. The results are promising within their reported settings, but neither a high video score nor a retry-weighted task score alone proves reliable autonomous execution. One attention-mask discrepancy also matters directly for reproduction. e03-architecturee06-action-losse07-posttraininge08-inferencee10-executione15-worldarena-resultse16-realworlde19-mask-discrepancy
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Not assigned |
| Architecture | Not assigned |
| Prediction paradigm | Not assigned |
| Quadrant | Not assigned |
This table preserves the labels recorded at reading time. The current major category is WAMs. View the current classification.
3.1 Evidence-based assessment
Insufficient evidence to decide
The recorded taxonomy is entirely unassigned, so there is no substantive catalog judgment to confirm. Architecture evidence supports a unified One Model interpretation with joint future-video/action prediction, plus selectable policy, world-model and inverse-dynamics modes. It is not a mandatory separate video-generator/IDM pipeline. This is a reader assessment; the snapshot is preserved. e03-architecturee04-modese07-posttraining
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Make the action target portable before learning control
Motubrain's shared action space begins with a reference frame, not a universal joint vector. For each conditioned image, the current end-effector state anchors the predicted chunk. Equation (4) subtracts the reference position, composes target rotation with the inverse reference rotation, and leaves the gripper state unchanged. Raw quaternion poses become targets with 6D rotations, producing ten dimensions per end effector. Only the gripper is normalized, so reproducing the physical coordinate scales matters. This representation is paired with a visual interface that independently encodes camera views and offsets their spatial positions before token concatenation. The two choices address different heterogeneity: action coordinates align control targets, while positional offsets distinguish views. Neither alone guarantees transfer; the paper still adapts the pretrained model using target-embodiment trajectories. e04-modese05-pretraininge06-action-losse16-realworld

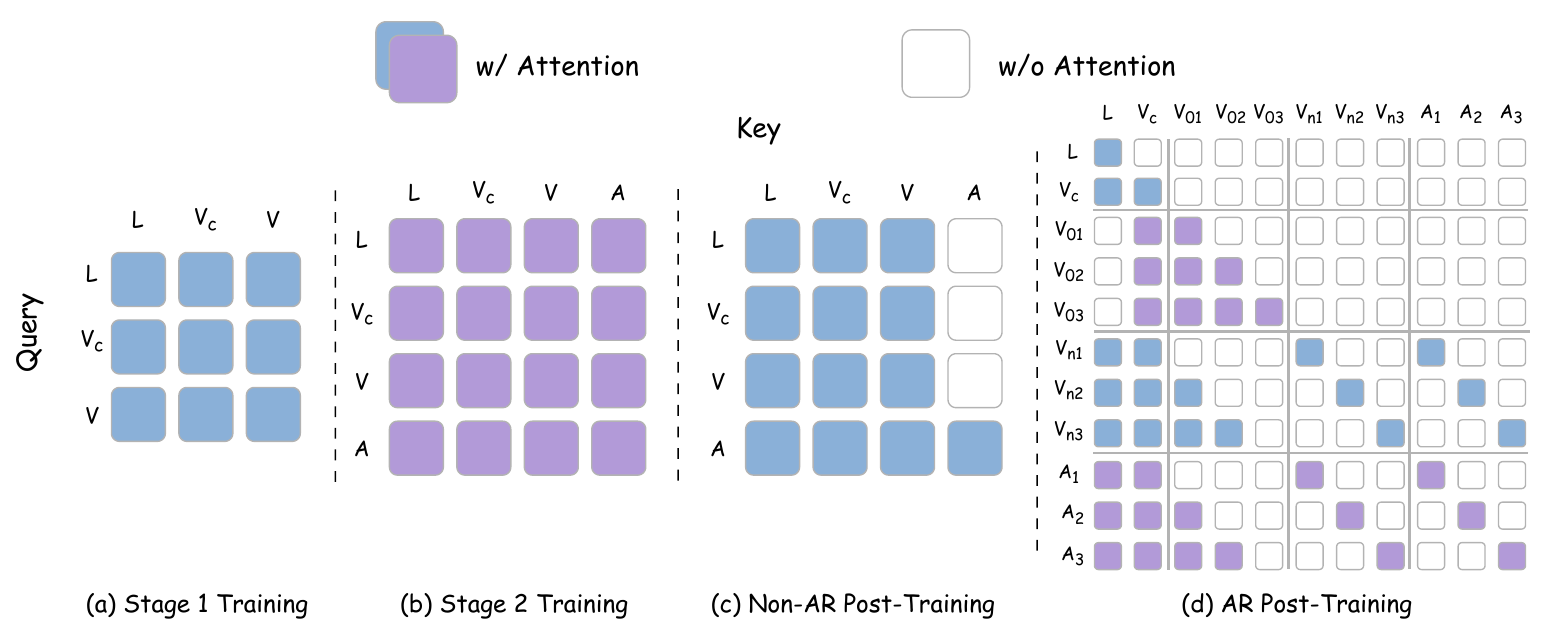

Figure 2. Query–key orientation reveals both the intended V2A shortcut and an unresolved AR inconsistency. Original paper, p. 5 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Rows are queries and columns are keys. Colored cells allow access; white cells prohibit it. L denotes language, Vc conditioned video, V video, and A action; the AR panel separates clean V0 from noisy Vn tokens by chunk. Panel (b) allows every displayed modality pair. In panel (c), action queries read video and language, while video queries cannot read action keys. This agrees with the prose's V2A description. However, panel (d) colors the Vn1/A1, Vn2/A2 and Vn3/A3 intersections: noisy-video queries can read same-chunk action keys. That directly conflicts with Section 2.3's prohibition in both modes. e06-action-losse07-posttraininge08-inferencee19-mask-discrepancy
What it supports. The Non-AR mask explains why fixed visual-language context can be cached while actions continue to change. AR temporal ordering supplies past observed visual context without clean past actions. The crop supports these distinctions, but does not resolve which AR mask produced the reported policy results.
Where the evidence stops. The figure is preserved unchanged. Its caption describes causal AR attention, while Section 2.3 also claims V2A in AR. Those statements do not repair the visible same-chunk video-to-action access; the implementation remains unverified.
5.2 Separate learned coupling from the inference schedule
The two pretraining stages do not update the same parameters. First the video branch adapts to embodied observations; then the action branch learns while video weights remain frozen. Yet stage 2 still includes both video and action losses, because cross-modal attention couples predictions. At deployment, the intended V2A dependency creates a different opportunity: if visual-language states no longer depend on evolving action tokens, they can be computed once after a joint denoising prefix and reused. This is the causal rationale for the cached suffix, rather than evidence that future visual learning was unnecessary. That inference is secure for the displayed Non-AR mask. The AR panel permits reciprocal same-chunk access, however, so the same rationale cannot be transferred to AR without resolving the conflict with the prose. e05-pretraininge06-action-losse07-posttraininge08-inferencee19-mask-discrepancy
5.3 Close the loop, then choose the right success measure
A fast action generator still needs a rule for replacing actions already in flight. Motubrain estimates how many controller steps will elapse during remote inference, freezes that prefix of the next chunk to the old remaining actions, and progressively releases the overlap. The maximum recent delay provides a conservative estimate when latency varies. My interpretation is that this trades immediate replanning freedom for boundary continuity; the paper does not isolate that tradeoff experimentally. Evaluation must then distinguish the model's several roles. RoboTwin reports task success, WorldArena summarizes video prediction metrics, and the real-world tables score individual subtasks with retry penalties. Flower Arrangement's 83.30 therefore has a different meaning from randomized RoboTwin's 96.1%. A reproduction should keep these definitions separate and record both corrections and complete episode outcomes. e10-executione11-robotwine14-worldarenae15-worldarena-resultse16-realworlde17-realworld-tables
5.4 Training and inference
During training
Vidu supplies Internet-video pretraining. Stage 1 updates only the video branch on egocentric and heterogeneous dual-arm data; the random action branch remains unchanged. Stage 2 freezes video weights and updates only the action branch, while retaining both video and action losses. Target-embodiment post-training follows. e05-pretraininge06-action-losse07-posttraining
Pretraining drops auxiliary views with probability 0.1. With probability 0.5, condition latents mix with Gaussian noise using a clean coefficient sampled uniformly from [0.3,0.7]. This augmentation continues in Non-AR post-training, but is excluded from AR. Video/action timestep shifts are 6/1. e05-pretraininge06-action-losse07-posttraining
RoboTwin training uses 2,500 clean plus 25,000 randomized demonstrations across 50 tasks, downsampled to 5 Hz video and 10 Hz actions. Figure 4's full-data configuration uses 50,000 optimization steps; task-scaling runs instead train until approximately stable success. e11-robotwine13-scaling
During inference
A short joint denoising prefix precedes a frozen video latent and cached video/text keys and values; remaining steps update actions. Acceleration also combines 50-to-30 step reduction, compilation, FP8 and velocity-similarity DiT caching. The cache resets per inference call or chunk. e07-posttraininge08-inferencee09-speed
Remote cloud inference runs asynchronously with execution. Actions undergo Savitzky–Golay smoothing and frequency-aware interpolation. Chunk fusion freezes the latency-affected prefix, then gradually relaxes old-action constraints. A queue's maximum recent delay sets the next conservative prefix estimate; inference frequency is distinct from controller frequency. e07-posttraininge08-inferencee10-execution
5.5 Implementation flow
- Exchange information in the middle layers
Text hidden states participate in attention without a text output head. The H-bridge restricts full video–action attention to the middle 50% of layers; the bottom and top 25% decouple these modalities. The condition image occupies the first video latent frame. e03-architecture
- Represent views and actions
Each view is independently VAE-encoded, then concatenated as tokens. View offsets affect spatial 3D-RoPE coordinates, leaving temporal coordinates unchanged. Each end effector uses 10 target dimensions: position, 6D rotation and gripper; only gripper values are normalized to [−1,1]. e04-modese06-action-loss
- Adapt temporal context
Non-AR predicts a full window together. AR training processes chunks in parallel under block-causal attention, using clean past visual context without clean action tokens. Deployment advances sequentially with newly observed frames. Section 2.3 specifies V2A attention for both modes, but Figure 2(d) conflicts with that statement. e07-posttraininge19-mask-discrepancy
6. Experiments & results
Motubrain combines language, video and action streams in a unified generative robot policy. It transfers video priors into relative end-effector control, then uses asymmetric attention and asynchronous action chunks for deployment. Simulation, world-prediction and real-robot evaluations support different capabilities; the autoregressive attention specification remains internally inconsistent.
6.1 Read the original evidence

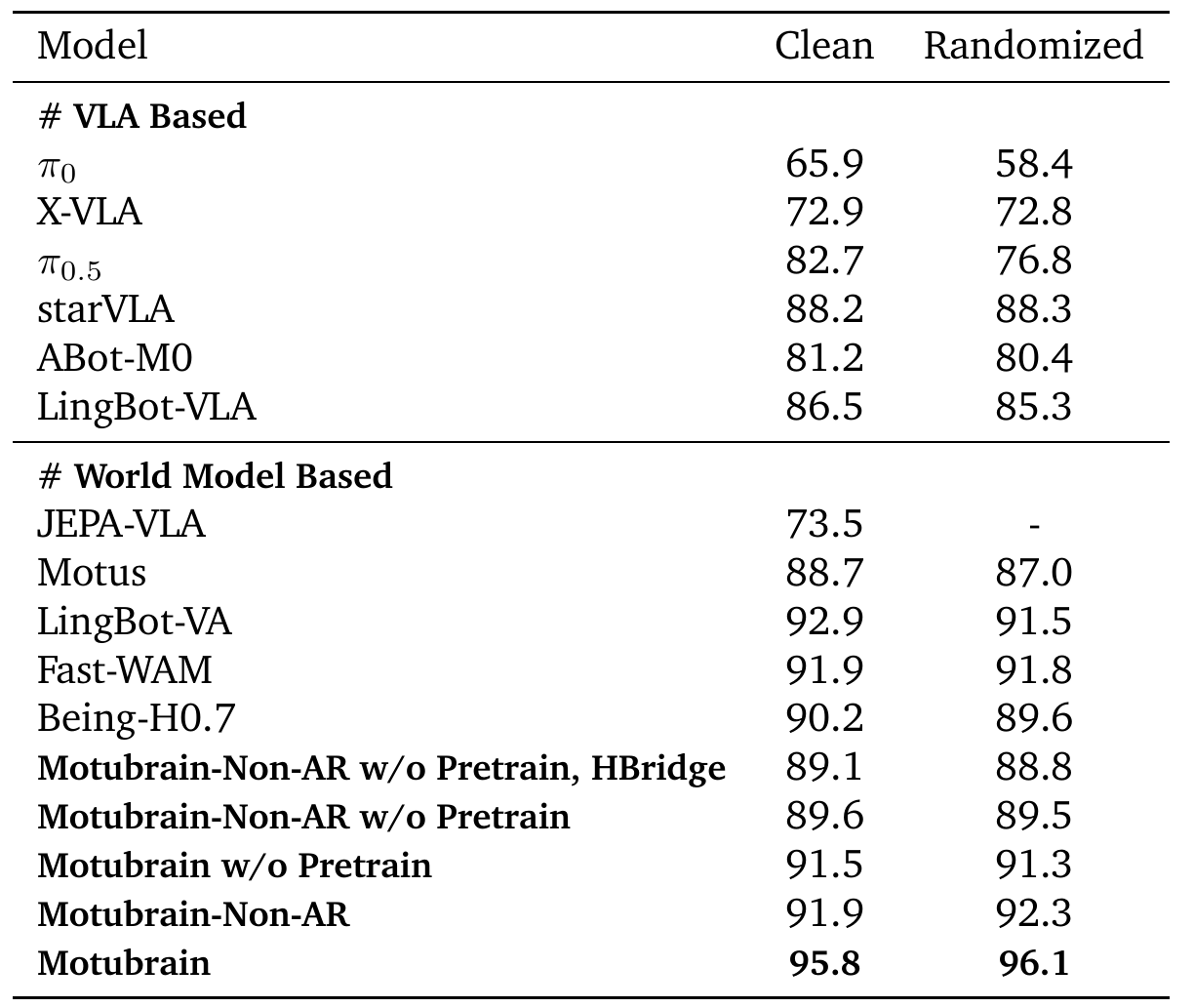

Table 3. The aggregate benchmark result and the most informative method ablations share one table. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. First compare the Clean and Randomized columns within each row: they describe evaluation settings, not two independent training datasets. Section 3.1 reports training with both clean and randomized demonstrations. Then inspect the bottom variants before attributing the final score to a mechanism. Full Motubrain reaches 95.8/96.1; removing pretraining gives 91.5/91.3, while pretrained Non-AR gives 91.9/92.3. The row labeled 'w/o Pretrain, HBridge' is a restricted variant, so it cannot establish the H-bridge contribution in the full pretrained model. Section 2.3 also changes temporal context and masking between AR and Non-AR. e05-pretraininge07-posttraininge11-robotwine12-task-breakdown
What it supports. Using displayed values, pretraining accompanies gains of 4.3 clean and 4.8 randomized percentage points over the corresponding full-model no-pretraining row. The full configuration also exceeds pretrained Non-AR by 3.9/3.8 points. These are useful package-level ablations, alongside the highest aggregate scores in this comparison.
Where the evidence stops. Prior pretraining and compute are not equalized across all named baselines, and uncertainty is absent. The aggregate hides failures: Table 4 reports Hanging Mug at 55/43, below Fast-WAM's 58/62.

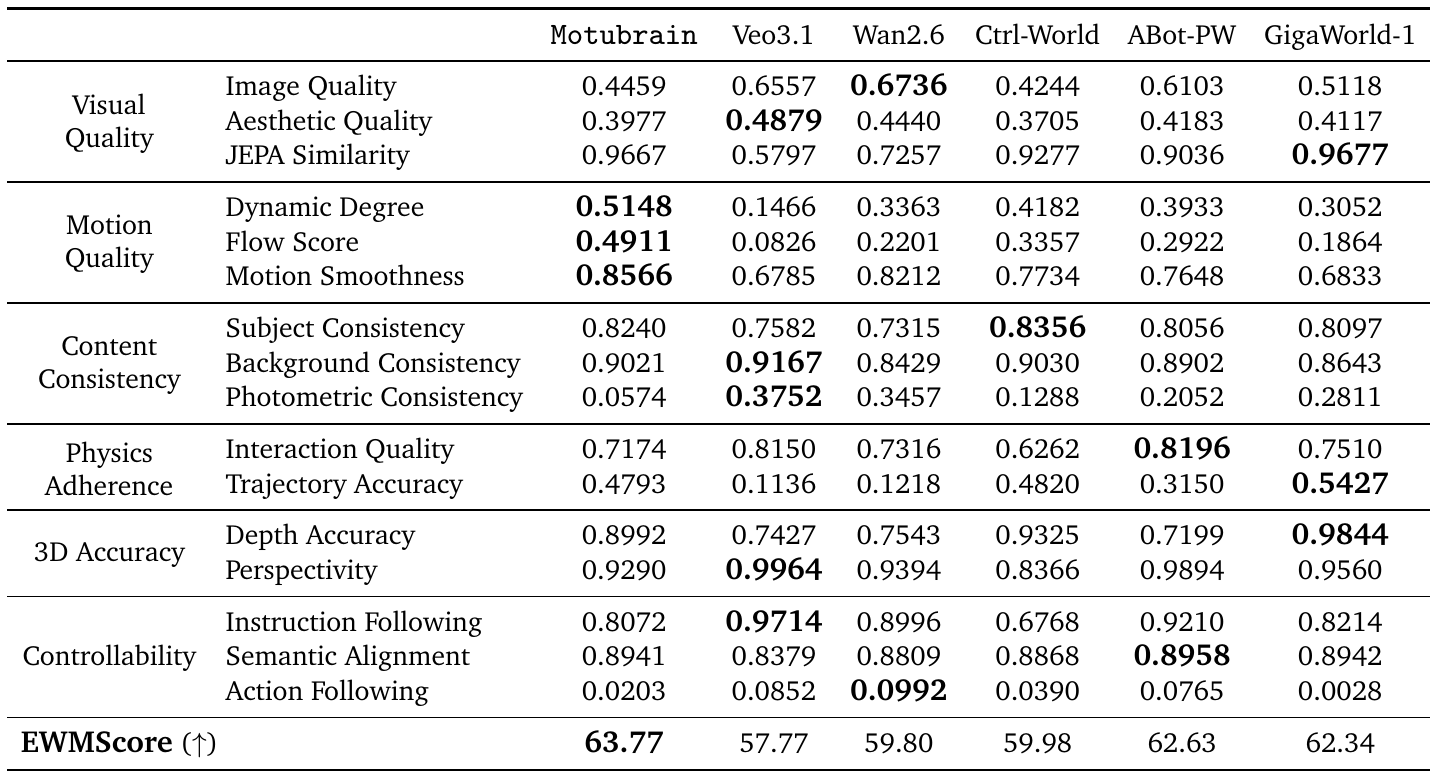

Table 5. A strong motion profile coexists with weaker action-following and photometric scores. Original paper, p. 13 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start at the bottom EWMScore row, then inspect the component rows instead of treating the average as uniform superiority. The caption defines EWMScore as the arithmetic mean of 16 normalized metrics, scaled to 100; individual rows remain on their normalized scale. Motubrain leads all three displayed Motion Quality rows, but other models lead Image Quality, Photometric Consistency, Interaction Quality and Action Following. For this evaluation, the source uses action-conditioned forward dynamics, high-resolution training on the entire 2,500-trajectory release, and benchmark submission results. This table is a selected comparison, not the complete leaderboard screenshot shown in Figure 5. e14-worldarenae15-worldarena-resultse11-robotwin
What it supports. Motubrain scores 63.77 versus ABot-PW's 62.63 in this table. Its Dynamic Degree, Flow Score and Motion Smoothness are 0.5148, 0.4911 and 0.8566. Figure 5 separately shows FlowWAM-FiveAges at 63.71, so the nearest depicted leaderboard margin is only 0.06 points.
Where the evidence stops. Action Following is 0.0203 versus Wan2.6's 0.0992. A favorable aggregate therefore does not establish uniformly stronger controllability, nor does a cross-benchmark policy result prove that these video metrics cause better robot execution.

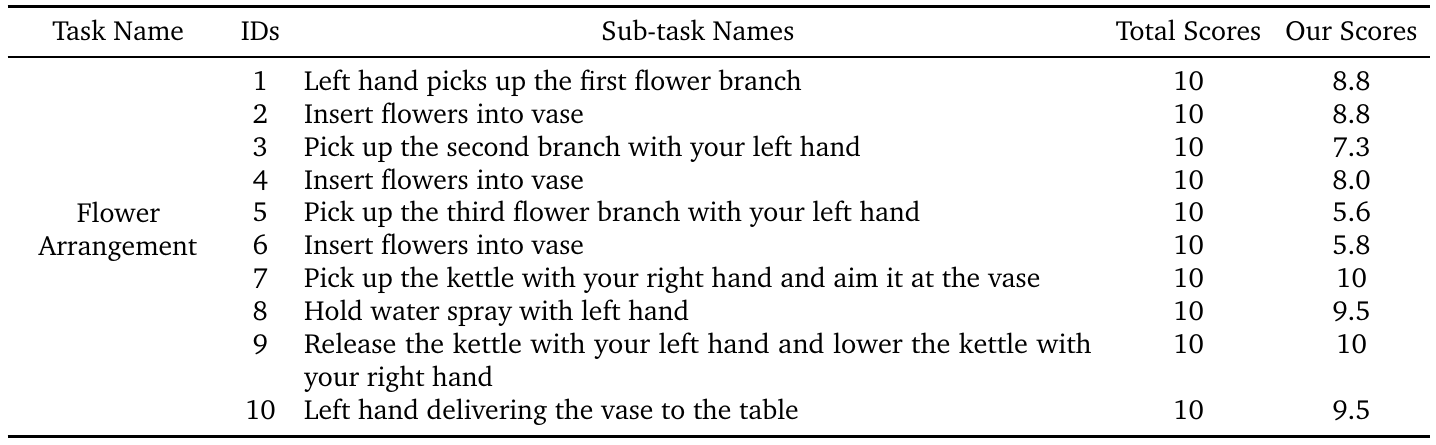

Table 8. Per-step scores identify where long-horizon flower manipulation remains fragile. Original paper, p. 15 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read 'Total Scores' as the maximum contribution of a step and 'Our Scores' as its achieved contribution under the retry-weighted metric. Every flower-task step has ten possible points. Section 3.3.1 assigns full credit to first-attempt completion, then 80%, 50% or zero after one, two, or at least three retries. The evaluation uses ten consecutive trials after training on 100 successful task-specific trajectories, with mean execution time 138 seconds. Compare the repeated grasp/insertion sequence: the third branch's grasp and insertion receive 5.6 and 5.8 points, while the later watering and placement steps fare better. e16-realworlde17-realworld-tablese18-generalization
What it supports. The ten displayed contributions sum to the reported 83.30 out of 100. This supports a detailed partial-completion account: later flower grasping and insertion are weaker than several subsequent subtasks. It does not mean that 83.30% of episodes completed perfectly, or that every scored step succeeded without retries.
Where the evidence stops. Tables 6–8 contain no matched baseline or confidence intervals. The crop preserves row 9's original hand wording; the paper does not clarify it. Printed demonstration stills do not supply the missing trial-level execution record.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| RoboTwin 2.0 multitask manipulation Official clean plus randomized training data; evaluation across 50 tasks in clean and randomized scenes. | Motubrain: 95.8 clean, 96.1 randomized; Table 4 gives 95.80 and 96.08 at higher precision. Average task success rate (%) | LingBot-VA: 92.9/91.5; Fast-WAM: 91.9/91.8; Motus: 88.7/87.0 in Table 3. Strongest aggregate in the listed comparison, but Hanging Mug remains 55/43 versus Fast-WAM's 58/62. No confidence intervals accompany these scores. e11-robotwine12-task-breakdown |
| RoboTwin pretraining and temporal-mode ablation Table 3's Motubrain variants under the stated common downstream data and evaluation protocol. | Full: 95.8/96.1; without pretraining: 91.5/91.3; pretrained Non-AR: 91.9/92.3; Non-AR without pretraining: 89.6/89.5. Clean/randomized success rate (%) | Full minus no-pretraining is 4.3/4.8 percentage points; full minus pretrained Non-AR is 3.9/3.8 points, calculated from displayed values. Supports benefits of pretraining and the AR configuration as packages. Temporal context and masks change together; HBridge removal is not isolated for the full pretrained model. e07-posttraininge11-robotwin |
| Non-autoregressive inference acceleration Cumulative end-to-end latency measurements; remote deployment described, GPU model unspecified. | 4.90 s/0.20 Hz baseline to 0.09 s/11.11 Hz; reported 54.4× speedup. Latency, inference frequency and cumulative speedup | Compilation stage: 0.98 s; FP8: 0.88 s; DiT cache: 0.20 s before V2A-style inference. These are cumulative system gains. Sub-percent success changes are an author claim without accompanying per-configuration success tables; 11.11 Hz is not a measured low-level control rate. e07-posttraininge08-inferencee09-speed |
| WorldArena action-conditioned world prediction Training on the full 2,500-trajectory release; high-resolution forward dynamics, 5 Hz video/10 Hz actions, classifier-free guidance; benchmark submission. | 63.77. EWMScore, mean of 16 normalized metrics scaled to 100 | Table 5: ABot-PW 62.63, Wan2.6 59.80. Figure 5 additionally shows FlowWAM-FiveAges at 63.71, only 0.06 points behind. Leads the depicted snapshot, particularly its motion metrics. Action Following is only 0.0203 versus Wan2.6's 0.0992; the aggregate does not establish control reliability or equal training budgets. e14-worldarenae15-worldarena-results |
| Real-world household compound tasks 100 successful task-specific trajectories per task, without atomic annotations. Making Oden: 5 trials/7 steps/33 s mean; Mixing Cocktails: 7 trials/15 steps/124 s; Flower Arrangement: 10 trials/10 steps/138 s. | Making Oden 98.54; Mixing Cocktails 97.34; Flower Arrangement 83.30. Normalized subtask score out of 100 | First-attempt steps earn full credit; success after 1/2/3+ retries earns 80%/50%/0 credit. No matched baseline appears in Tables 6–8. Measures partial completion with retry penalties, not episode success. Flower scores expose weaker later grasp/insertion steps despite strong aggregate household-task scores. e16-realworlde17-realworld-tables |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

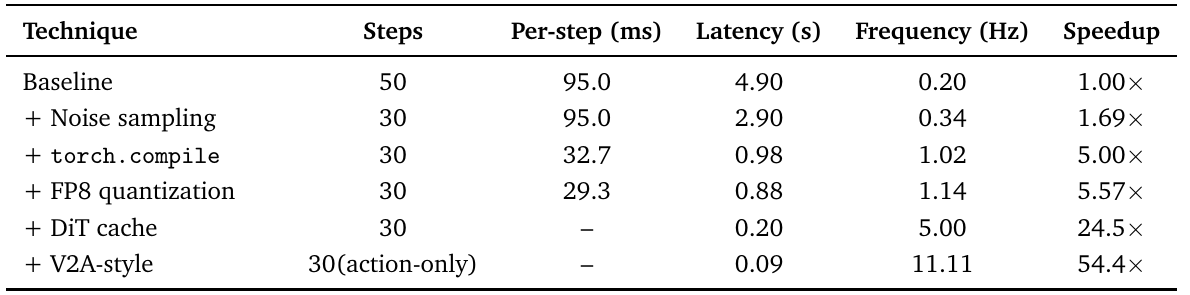

Table 2. Latency falls cumulatively from 4.90 seconds to 0.09 seconds. Original paper, p. 8 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read this table from top to bottom as an accumulating stack: each row retains all preceding optimizations. Noise sampling reduces denoising steps from 50 to 30, compilation reduces repeated-forward overhead, and FP8 reduces eligible linear-layer cost. DiT caching then skips sufficiently redundant velocity evaluations. The last row adds V2A-style inference. Its step cell says '30(action-only)', but Equation (9) describes a joint prefix followed by an action-only suffix; the table does not specify the prefix length. Compare the end-to-end latency column for the complete call, and avoid multiplying the already cumulative speedup values together. e07-posttraininge08-inferencee09-speede10-execution
What it supports. The final configuration reports 0.09 seconds, 11.11 inference calls per second and 54.4× speedup over the baseline. Most of the displayed late-stage latency reduction comes after caching and V2A are added. These measurements support a deployment-efficiency claim for this Non-AR setup, rather than a universal hardware-independent speed.
Where the evidence stops. The paper does not name the timing GPU or provide per-row success results and uncertainty. Its essentially lossless claim is prose evidence. Inference frequency also differs from the separately timed robot control loop.
7. Analysis & limitations
7.1 What the evidence leaves open
Figure 2(d) visibly enables Vn1→A1, Vn2→A2 and Vn3→A3 query-to-key access. Section 2.3 instead prohibits video attending to action in both modes. The AR implementation cannot be uniquely recovered from these inconsistent specifications. e19-mask-discrepancy
Task-scaling and data-scaling curves use different optimization schedules and horizontal variables. Their slopes do not isolate task diversity from total data or compute. Benchmark fine-tuning also does not equalize foundation pretraining. e05-pretraininge11-robotwine13-scaling
Reported recovery and unseen-object generalization lack a detailed matched VLA comparison. Printed demonstrations cannot establish continuous autonomous execution. The authors identify mobile manipulation, tactile interaction and dynamic human environments as future tests. e18-generalizatione20-future
7.2 Questions for discussion
- Which AR attention mask was actually used for the reported best policy?
- How much visual denoising remains necessary once actions can use cached context?
- Would matched real-world trials preserve the gains when scored by first-attempt episode completion?
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction needs Vidu weights/VAE, embodiment data, target-pose conversion and exact masks. The PDF omits model scale, complete data volumes, optimizer settings, loss weights and training hardware. Its method preview mentions sparse adaptation and step distillation without a corresponding operational recipe in Section 2.3. e02-motivatione03-architecturee05-pretraininge06-action-losse07-posttraining
Latency replication needs the GPU model, resolution, chunk horizon, joint-prefix length, cache threshold/length and controller/communication configuration; these are not fully specified. FP8 format and alignment constraints are given, but exact numerical settings needed to reproduce the 0.09-second result remain incomplete. e08-inferencee09-speede10-execution
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Test the V2A dependency before measuring the cached suffix
Reader-proposed check, not performed: hold language, observations, video latents and noise seeds fixed, then perturb only action tokens and compare video outputs under the Non-AR and AR masks. The specified V2A model should have no video dependence on that perturbation; Figure 2(d)'s mask may violate this. Resolve and document the mask first. For a verified V2A checkpoint, compare cached versus freshly recomputed fixed-context keys/values with identical prefix and action steps, then sweep prefix length against full joint denoising. Report output error, latency and paired RoboTwin success intervals with hardware and resolution fixed. Dependence on action tokens or substantial success loss would challenge the stated caching or essentially lossless-acceleration rationale. e07-posttraininge08-inferencee09-speede11-robotwine19-mask-discrepancy
Check 2: Isolate chunk fusion under a replayed latency schedule
Reader-proposed check, not performed: use the same checkpoint, initial scenes, observation rate, smoothing and controller rate in three execution conditions: direct chunk switching, frozen-prefix-only constraints, and the full frozen-prefix plus decaying-overlap rule. Replay identical fixed and variable inference/communication delays, using the same recent-delay queue policy in the constrained conditions. Measure boundary velocity jumps, command discontinuities, episode success and time to respond to a scene perturbation. The proposed mechanism predicts smoother boundaries with maintained success, but excessive stale-action commitment could delay recovery. Record that tradeoff instead of evaluating only mean latency; begin in simulation before attempting equivalent robot trials. e08-inferencee10-executione11-robotwine18-generalization
8.3 Reading coverage
Visual audit: Visually inspected the title/version and contributor pages, all method/equation and deployment pages, Figures 1–6, and Tables 1–8. Every page supporting retained method, numerical, evaluation or reproduction claims is included. Figures 3–4 were read as Non-AR scaling plots, Figure 5 as the PDF's historical leaderboard snapshot, and Figure 6 only as printed still sequences. The six final original crops were individually viewed with headers, legends and relevant cells intact. Figure 2(d)'s AR query/key discrepancy and Table 2's unspecified joint-prefix length are explicitly preserved. Reference-only pp. 19–21 were read in the complete text; external references, repository and linked videos were not inspected.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Title and version, p. 1
- 1 Introduction, pp. 1–2
- 2 Method and 2.1 Model Architecture, pp. 2–4
- 2.2 Pre-training, pp. 4–5
- 2.3 Post-training, pp. 5–6
- 2.4.1 Inference Optimization, pp. 6–8
- 2.4.2 Real-time Inference and Execution, pp. 8–9
- 3.1 Evaluation on Simulation Environment, pp. 9–11
- 3.2 Evaluation on World Models, pp. 11–13
- 3.3.1 Real-World Performance, pp. 14–16
- 3.3.2 Real-World Demonstrations, pp. 16–17
- 4 Conclusion and Future Work, pp. 17–18
- 5 Contributors, p. 18
- References [1]–[41], pp. 18–21
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- Identity: the title matches exactly. The inspected artifact is arXiv:2604.27792v5 [cs.RO], 15 July 2026, later than the catalog's 30 April 2026 submission date. Earlier revisions were not supplied, so their content differences are unknown.
- The title-page byline is Motubrain Team. All 19 individual names in the catalog appear in the role-based contributor credits on p. 18; they are not a separate title-page byline. No explicit institutional affiliation is stated; logos and linked domains are not treated as affiliations.
- Text extraction does not reconstruct figure images; this was addressed by inspecting the supplied PDF pages and original crops. The full six-chunk text was read without sampling; PDF pp. 1–18 were visually inspected, while reference-only pp. 19–21 were read as text.
- Separate supplemental material availability has not been fully verified. No separate supplement was supplied.
- The linked project, repository, external benchmark site and videos were not opened. Figure 6 was inspected as printed still sequences, not continuous video. No code was inspected and no experiments were reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e01-identityPDF p. 1, title/byline and arXiv margin; p. 18, Section 5 Contributors
Exact title and Motubrain Team byline; arXiv:2604.27792v5 [cs.RO], 15 July 2026. Contributor roles contain all 19 catalog individual names; no explicit affiliation statement.
Go to primary source ↓e02-motivationPDF pp. 1–2, Section 1 and Section 2 opening paragraph
Motivates dynamics-aware unified video/action learning over VLA and sequential VGM+IDM; method preview names sparse adaptation and step distillation.
Go to primary source ↓e03-architecturePDF p. 3, Figure 1 and Section 2.1
Three streams; no text output head; Vidu-VAE condition frame; video/action velocity prediction; middle 50% joint attention and outer 25% decoupled layers.
Go to primary source ↓e04-modesPDF p. 4, Table 1 and Section 2.1 continuation
Five non-AR conditional modes; independently encoded camera views concatenate as tokens with spatial-only positional offsets.
Go to primary source ↓e05-pretrainingPDF p. 4, Section 2.2 and Eqs. (1)–(2)
Four-level data pyramid; dual-arm heterogeneous data; video-only stage 1 then action-only stage 2 with frozen video. Auxiliary-view dropout 0.1; condition-noise probability 0.5 and clean coefficient U[0.3,0.7].
Go to primary source ↓e06-action-lossPDF p. 5, Section 2.2, Eqs. (3)–(6)
Relative translation and rotation, unchanged gripper; 10D targets per end effector with 6D rotation; gripper-only normalization. Stage 2 retains weighted video/action MSE losses while updating only action; timestep shifts 6 and 1.
Go to primary source ↓e07-posttrainingPDF pp. 5–6, Figure 2 caption, Section 2.3; p. 6, Section 2.4.1
Separate Non-AR/AR training; Sa=fva τ actions per latent; AR clean past video but no clean actions, new observations at deployment, no AR noisy conditioning. Prose specifies asymmetric V2A in both modes; remote GPUs and sub-percent success-change claims.
Go to primary source ↓e08-inferencePDF pp. 6–7, Section 2.4.1, Eqs. (7)–(9)
50-to-30 steps, compilation, cosine-similarity cache reset per call/chunk; FP8 float8_e4m3fn with dimensions divisible by 16. Joint prefix then frozen video and cached video/text KV; smoothing and frequency-aware interpolation.
Go to primary source ↓e09-speedPDF p. 8, Table 2, all rows and caption
Cumulative Non-AR latency sequence 4.90, 2.90, 0.98, 0.88, 0.20, 0.09 seconds; final 11.11 Hz and 54.4×. Table's final step cell reads 30(action-only); no GPU model or per-row success scores given.
Go to primary source ↓e10-executionPDF pp. 8–9, Section 2.4.2, Eqs. (10)–(15)
Asynchronous inference/execution; delay d=ceil(δ/Δt); old-action prefix fully constrained then decaying overlap; recent-delay queue maximum determines conservative next delay.
Go to primary source ↓e11-robotwinPDF p. 9, Section 3.1 and Table 3, Clean/Randomized columns
2,500 clean and 25,000 randomized demos; 5 Hz video/10 Hz action. Full 95.8/96.1; no-pretrain 91.5/91.3; Non-AR 91.9/92.3; Non-AR no-pretrain 89.6/89.5; row labeled 'w/o Pretrain, HBridge' 89.1/88.8. LingBot-VA 92.9/91.5; Fast-WAM 91.9/91.8; Motus 88.7/87.0.
Go to primary source ↓e12-task-breakdownPDF p. 10, Table 4, Hanging Mug and Average rows
Motubrain Hanging Mug 55 clean/43 randomized versus Fast-WAM 58/62. Motubrain averages 95.80/96.08; Table 3 rounds to one decimal.
Go to primary source ↓e13-scalingPDF p. 11, Figures 3–4, legends, captions and Section 3.1 discussion
Plots label Motubrain-Non-AR, Motus and Pi0.5. Task-count runs train to stable success; data-count runs uniformly subsample tasks with proportional training steps, 50,000 steps for 27,500 trajectories.
Go to primary source ↓e14-worldarenaPDF pp. 11–12, Section 3.2
WorldArena evaluates 16 metrics over six dimensions. Entire 2,500-trajectory release used for high-resolution training; action-conditioned FDM with 5 Hz video, 10 Hz action and classifier-free guidance; reports benchmark submissions.
Go to primary source ↓e15-worldarena-resultsPDF p. 13, Table 5, caption and EWMScore/Motion Quality/Action Following rows; Figure 5, first two entries
EWMScore 63.77; ABot-PW 62.63, Wan2.6 59.80. Figure 5 shows FlowWAM-FiveAges 63.71. Motubrain Dynamic Degree/Flow Score/Motion Smoothness 0.5148/0.4911/0.8566; Action Following 0.0203 versus Wan2.6 0.0992. Caption defines normalized 16-metric mean.
Go to primary source ↓e16-realworldPDF p. 14, Sections 3.3–3.3.1 and Table 6
General adaptation claim 50–100 same-embodiment trajectories; quantitative tasks use 100 each, no atomic labels. Retry credits 100/80/50/0%. Oden 5 trials, 7 actions, 33 s, score 98.54; cocktails 7 trials, 15 actions, 124 s, 97.34; flowers 10 trials, 10 actions, 138 s, 83.30.
Go to primary source ↓e17-realworld-tablesPDF p. 15, Tables 7–8, complete tables; Table 8 rows 5–10
Per-step household scores, with no comparator columns. Flower Arrangement rows 5/6 score 5.6/5.8 out of 10; rows 7/9 score 10; rows 8/10 score 9.5. Row 9's original hand wording is retained.
Go to primary source ↓e18-generalizationPDF pp. 16–17, Section 3.3.1 subsections, Section 3.3.2 and Figure 6
Authors describe one initial instruction, visual-feedback correction, asynchronous bimanual completion and transfer to four unseen flower-vase combinations with above-80% success; no detailed matched VLA trial table. Figure 6 contains printed household manipulation sequences.
Go to primary source ↓e19-mask-discrepancyPDF p. 5, Figure 2(c)–(d), query rows and key columns; p. 6, Section 2.3 final paragraph; p. 7, Eq. (9) and V2A description
Panel (c) blocks video-query/action-key cells. Panel (d) colors the Vn1/A1, Vn2/A2 and Vn3/A3 cells as attended. This conflicts with the prose's claim that video never attends to action in both modes and leaves the AR mask unresolved.
Go to primary source ↓e20-futurePDF pp. 17–18, Section 4 Conclusion and Future Work
Acknowledges continuing same-embodiment data needs and proposes longer-horizon mobile manipulation, tactile interaction, dynamic human environments, uncertainty estimation, explicit memory and online adaptation.
Go to primary source ↓8.5 Primary sources
Motubrain: An Advanced World Action Model for Robot Control ↗
PDF · 10,473 extracted words
Source fingerprint
2cb24d1e54d43ab7fe63de2fbd50d3db0f3a8fa72c643a379abcb4d4e1d68edf
