The DAWN of World-Action Interactive Models
1. Paper overview
In one sentence: DAWN repeatedly couples action-conditioned latent prediction with world-conditioned trajectory denoising, gaining planning quality at an inference cost that depends on rollout horizon and interaction count. e-formulatione-architecturee-inferencee-settingse-roundse-horizone-nuscenese-navsim-v1e-navsim-v2
| At a glance | What to know |
|---|---|
| Research problem | Author claim A maneuver changes the future relevant to planning: gap feasibility and other agents’ behavior depend on the ego action. The authors argue that parallel prediction heads and fixed predict-then-plan pipelines cannot revise world and action hypotheses reciprocally during generation. e-formulation |
| Core mechanism | Source description WAIM formalizes coupled inference of future world representations and action chunks; DAWN instantiates it with separate interacting latent prediction and action-denoising modules. e-formulatione-architecture |
| A key reported result | nuScenes trajectory planning: L2: 0.17/0.31/0.52, average 0.33 m. Collision: 0.00/0.10/0.23, average 0.11%. L2 error (m) and collision rate (%), lower is better. Reported standard end-to-end planning protocol; 1/2/3-second horizons. Exact split/sample count is not specified. WorldRFT: average 0.47 m and 0.15%; its 3-second collision rate also equals 0.23%. Best reported averages among listed methods; trajectory evaluation is not evidence of deployed driving safety. e-nuscenese-metricse-limitations |
| Reading caution | Source description Appendix A disclaims convergence and safety guarantees, notes limited long-range anticipation and latent interpretability, and stresses dataset dependence. Benchmark gains do not establish deployment readiness. e-limitations |
Core contributions
- Source description
WAIM formalizes coupled inference of future world representations and action chunks; DAWN instantiates it with separate interacting latent prediction and action-denoising modules. e-formulatione-architecture
- Reader analysis
The experiments distinguish compression, future rollout, interaction direction, iteration count and horizon. They support this particular driving implementation rather than universal superiority of interactive world models. e-componentse-couplinge-roundse-horizon
Figure 2. Compact world tokens provide an inference-time feedback signal for trajectory refinement. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the upper half from both ends: current observations pass through the student and resampler, while future frames enter the teacher branch and provide latent targets. The world and planning losses supervise different outputs; the dashed EMA links identify teacher updates. In the lower half, follow the red dashed sequence and the trajectory, state and action token legend. The selective connection matters: despite a predictor box appearing first, the caption, Equation (11) and Algorithm 2 explicitly initialize actions directly from current resampler latents. Subsequent predictor calls receive the current action hypothesis, and their future latents condition the next denoiser call. e-architecturee-inferencee-algorithms
What it supports. The interaction is a computation inside the planner. Separate predictor and denoiser modules exchange hypotheses before the Action Head returns a trajectory. This supports the catalog's Dual-system and Joint prediction labels; teacher future observations supervise training and are absent at inference.
Where the evidence stops. The schematic does not specify exact attention masks, diffusion schedules or a vehicle controller. Its training trajectory input should not be interpreted as access to the ground-truth future trajectory at test time; the inference algorithm uses its own proposal.
2. Motivation
2.1 The problem and the proposed response
A maneuver changes the future relevant to planning: gap feasibility and other agents’ behavior depend on the ego action. The authors argue that parallel prediction heads and fixed predict-then-plan pipelines cannot revise world and action hypotheses reciprocally during generation. e-formulation
2.2 What this reading follows
A driving plan changes the future against which that plan should be judged. DAWN turns this reciprocity into an iterative computation: propose an action, predict a latent future under it, and revise the action using that future. The useful distinction is between the world horizon and the trajectory horizon, and between diffusion sampling steps and world–action interaction rounds. This reading follows those distinctions through the architecture and ablations, then checks the benchmark claims against the original tables. The evidence is promising on nuScenes and NAVSIM v1, while NAVSIM v2 and several reporting ambiguities limit broader conclusions. e-formulatione-architecturee-inferencee-settingse-roundse-horizone-nuscenese-navsim-v1e-navsim-v2
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | Dual-system |
| Prediction paradigm | Joint prediction |
| Quadrant | Q3 · Dual-system × Joint prediction |
3.1 Evidence-based assessment
Supports the recorded classification
Distinct causal-Transformer world prediction and DiT action generation modules support Dual-system. Reciprocal inference of future latents and actions supports Joint prediction, rather than an inverse-dynamics action extractor. Latent prediction is explicit at inference. The catalog's video-action wording should be read as latent future/action modeling: the planning algorithm does not render video. e-architecturee-inferencee-algorithms
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Separate the latent world from the trajectory being proposed
The encoder first turns visual observations into dense tokens, and the resampler compresses them into a 16-token context. This compact representation is the input to planning, not a rendered future video. During training, a separate teacher path encodes future observations into targets for the World Predictor. The Action Denoiser initially sees current context and nonvisual conditions, including ego state and high-level action or route tokens. Role-specific query embeddings distinguish this proposal from later refinement while reusing denoiser weights. Appendix C.2 adds an auxiliary planner during resampler training to encourage action-relevant compression. That training aid should be distinguished from the predictor's actual inference-time role: predicted future latents continue to condition the final planner after the teacher has been removed. e-architecturee-settingse-inference
5.2 Follow one refinement round before counting diffusion steps
Algorithm 2 initializes an action hypothesis directly from the current resampler context. It then calls the World Predictor with that hypothesis to obtain a candidate-dependent latent future. The denoiser receives this predicted future and the previous action state, producing the next action hypothesis. Only after the interaction loop does the Action Head decode a trajectory. A world–action round is therefore different from a diffusion sampling step inside the denoiser: the reported defaults are four rounds and five DPM-Solver++ steps, with six modes or samples. The round sweep improves through four rounds and then declines, so repeated interaction is an empirical design choice rather than a convergence guarantee. The separate trajectory-prompt mode performs another forward pass; it does not itself demonstrate closed-loop physical execution. e-inferencee-settingse-roundse-algorithmse-limitations
5.3 Use the ablations to interpret the benchmark claims
Reader analysis: the causal story is strongest when several comparisons agree. Resampling alone leaves PDMS essentially unchanged, adding prediction improves it, and enabling interaction improves it again. Direction-removal ablations then show that either one-way variant loses ground. This pattern supports the value of coupled future/action inference within the reported setup, but does not separate that value from every training or compute difference. The horizon sweep supplies a second distinction: a short world forecast can support a longer action chunk, even though the best headline configuration uses matching four-second horizons. Finally, the favorable nuScenes averages should be read alongside the NAVSIM v2 shortfall. Consistency across some metrics is encouraging; the stricter benchmark and missing uncertainty leave generalization and safety claims open. e-componentse-couplinge-horizone-nuscenese-navsim-v2e-limitations
5.4 Training and inference
During training
Four stages pretrain vision on the named OpenScene, DrivingDojo and CoVLA corpora, train the token autoencoder, train the predictor on downstream data, then jointly optimize predictor, denoiser and Action Head. Appendix C.2 adds an auxiliary diffusion planner during resampler training; the precise later freezing policy is not specified. e-traininge-settingse-algorithms
Algorithm 1 writes the world objective as a distance between predicted and teacher latents without defining that distance. Planning combines classification, regression, velocity and yaw losses; the latter two have weight 0.5. Full formulas and the relative world/planning weight are absent. e-settingse-algorithms
The reported recipe uses 150 epochs, bfloat16, peak/initial learning rates 1e-4/5e-5, eight warmup epochs, weight decay 0.04 and EMA momentum 0.996→0.999. Full-scale training uses 80 NVIDIA A100 GPUs; the RTX 4090 statement concerns debugging and small-scale launch only. e-optimization
During inference
Remove the teacher, encode current context, initialize actions directly, then alternate predictor and denoiser before decoding. Four interactive rounds are the stated default. The denoiser separately uses five DPM-Solver++ sampling steps and six modes/samples, with per-pose tokens spaced 0.5 seconds apart. e-inferencee-roundse-settings
World rollout is active at test time. Section 3.4.2 explicitly says main experiments use 4 seconds; shorter 2–3-second world horizons are ablations with a fixed 4-second action horizon. e-horizon
5.5 Implementation flow
- Compress observations and form training targets
V-JEPA 2 Large produces dense visual tokens; an Auto-Encoder Resampler compresses them to 16 latent tokens. A teacher encoder/resampler processes future observations for latent supervision during training. e-architecturee-settings
- Generate a proposal, then exchange hypotheses
The shared DiT denoiser first uses current resampler latents. A causal Transformer predicts future latents conditioned on the current action hypothesis; the denoiser then refines that hypothesis using the prediction. Proposal/refinement queries distinguish roles while sharing denoiser weights. e-architecturee-inference
- Decode trajectory states
A lightweight Action Head decodes the last action state. This is trajectory prediction; the algorithms specify neither a low-level actuator controller nor physical execution. Another forward pass can accept a predicted trajectory as a prompt. e-inferencee-algorithms
6. Experiments & results
DAWN plans driving trajectories by repeatedly exchanging information between an action-conditioned latent World Predictor and a world-conditioned diffusion Action Denoiser. Its strongest evidence combines improved nuScenes trajectory metrics with NAVSIM coupling ablations. Shorter rollouts offer a measured quality–latency tradeoff, but the headline configuration uses a full 4-second rollout and NAVSIM v2 exposes weaker rule compliance.
6.1 Read the original evidence
Table 1. DAWN leads the listed perception-free PDMS results, while stronger scores appear elsewhere in the table. Original paper, p. 6 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the left-hand groups and Inputs column before comparing the rightmost PDMS scores. The paper places DAWN in the perception-free group even though it takes camera images: the architecture uses learned visual features without an explicit perception stack. NC is no-at-fault collisions, DAC drivable-area compliance, EP ego progress, C comfort and TTC the time-to-collision score; higher is better. DAWN* denotes 256×256 input, whereas the main DAWN uses 512×256. The caption describes perception-based methods as the main comparison and perception-free methods as references, so the group-specific headline should remain explicitly scoped. e-navsim-v1e-protocole-metricse-architecture
What it supports. DAWN's PDMS is 89.1 versus Drive-JEPA's 89.0; its TTC score is 96.0 versus 95.5. However, DriveSuprim reaches 93.5 PDMS and iPad reaches 96.3 TTC. The table supports a narrow group lead and a resolution benefit over DAWN*, not an overall benchmark win.
Where the evidence stops. The 0.1-point PDMS lead has no reported uncertainty or repeated-seed distribution. Input modalities and perception arrangements differ across rows; these scores cannot isolate the contribution of world–action interaction, which requires the ablations.

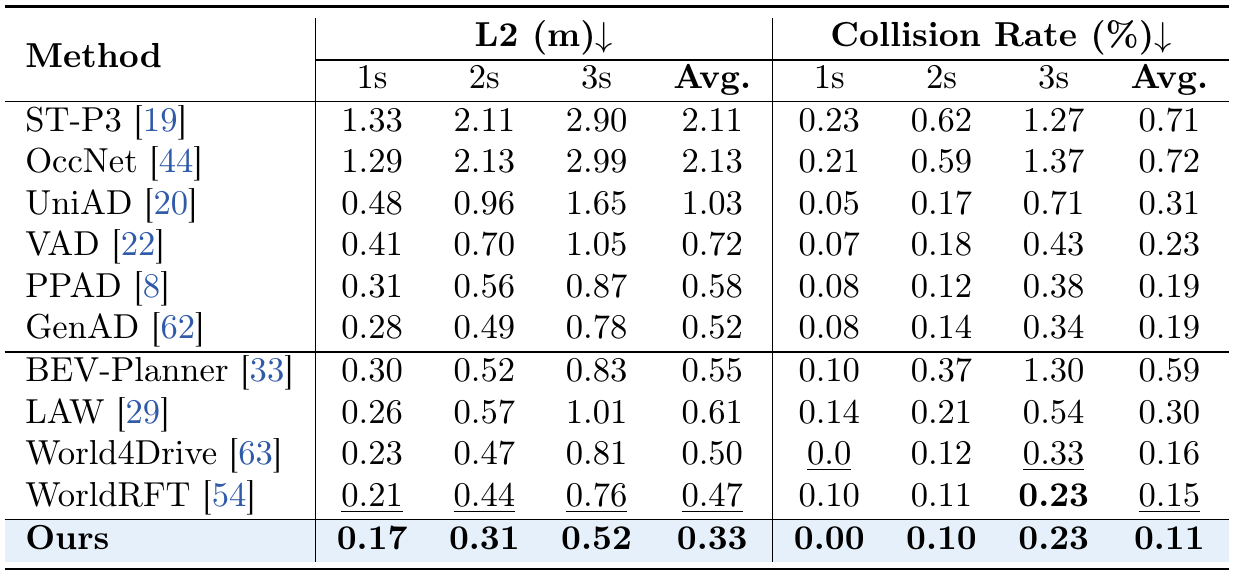

Table 2. Trajectory accuracy and average collision rate both improve within the reported nuScenes comparison. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Treat the two column blocks separately. L2 measures trajectory discrepancy in meters, while collision entries are percentages; every arrow points downward because lower is better. Compare the highlighted Ours row with WorldRFT near the bottom, first at each horizon and then in the Avg. columns. DAWN's advantage in L2 grows from the one-second to the three-second comparison. Collision metrics require more care: the three-second value ties WorldRFT, and the one-second zero is shared with World4Drive. The table reports the paper's standard planning protocol but does not identify exact split names or sample counts. e-nuscenese-metricse-limitations
What it supports. DAWN reports average L2 of 0.33 m versus WorldRFT's 0.47 m, with average collision rate 0.11% versus 0.15%. At three seconds, L2 falls from 0.76 to 0.52 m while collision remains tied at 0.23%. The averages favor DAWN, but the horizon-specific collision gains are uneven.
Where the evidence stops. These are trajectory-evaluation results, with no confidence intervals shown. The table does not establish reactive road-agent behavior, control-system reliability or deployment safety, and should not be read as a physical driving success rate.

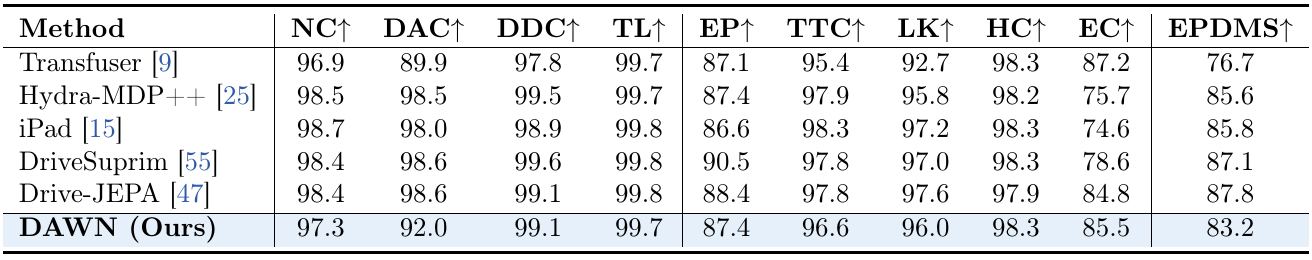

Table 7. The extended benchmark reveals a rule-compliance gap that limits the broader safety narrative. Original paper, p. 16 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Begin at EPDMS, the v2 aggregate, rather than comparing its number directly with v1 PDMS. Then trace the highlighted DAWN row leftward to identify which scores accompany its lower aggregate. Alongside NC, DAC, EP and TTC, v2 reports driving-direction compliance (DDC), traffic-light compliance (TL), lane keeping (LK), history comfort (HC) and extended comfort (EC). All columns favor larger values. Compare DAWN with Drive-JEPA to see that a higher EC entry can coexist with weaker road and collision-related scores. Finally, check the entire EC column against the paragraph below the source table. e-navsim-v2e-metrics
What it supports. DAWN obtains EPDMS 83.2 against Drive-JEPA's 87.8, with DAC 92.0 against 98.6. Its EC is 85.5, above Drive-JEPA's 84.8 but below Transfuser's 87.2. The table therefore contradicts the accompanying claim that DAWN has the best extended-comfort score.
Where the evidence stops. The authors attribute the weaker aggregate mainly to road compliance and collision-related scores, but no v2 mechanism ablation isolates the cause. This benchmark cannot establish whether more rounds, longer rollout or better representations would close the gap.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| nuScenes trajectory planning Reported standard end-to-end planning protocol; 1/2/3-second horizons. Exact split/sample count is not specified. | L2: 0.17/0.31/0.52, average 0.33 m. Collision: 0.00/0.10/0.23, average 0.11%. L2 error (m) and collision rate (%), lower is better | WorldRFT: average 0.47 m and 0.15%; its 3-second collision rate also equals 0.23%. Best reported averages among listed methods; trajectory evaluation is not evidence of deployed driving safety. e-nuscenese-metricse-limitations |
| NAVSIM v1 planning Camera-input DAWN at 512×256; simulator-based rule evaluation. DAWN* uses 256×256. | PDMS 89.1; TTC 96.0. PDMS and TTC score, higher is better | Drive-JEPA 89.0/95.5; DAWN* 87.9/95.8. Perception-based DriveSuprim reaches PDMS 93.5 and iPad TTC 96.3. DAWN leads the listed perception-free PDMS group by 0.1 point, not the whole table. No uncertainty establishes significance. e-navsim-v1e-protocol |
| NAVSIM v2 planning Official NAVSIM v2 protocol as reported; a distinct aggregate from v1. | EPDMS 83.2; DAC 92.0; EC 85.5. EPDMS; DAC; EC, higher is better | Drive-JEPA: 87.8/98.6/84.8. Transfuser EC is 87.2. Aggregate and drivable-area compliance trail strong baselines. The prose claim of best extended comfort conflicts with Transfuser's higher table entry. e-navsim-v2e-metrics |
| NAVSIM component and iteration ablations 256×256 ablation setting; progressively added components and separate round sweep. | Backbone 82.9; resampler 82.8; plus predictor 85.2; plus interaction 87.9. Rounds 1–6: 85.2/86.4/86.9/87.9/87.2/86.9. PDMS, higher is better | Compression alone does not improve PDMS; interaction adds 2.7 points over predictor-only. Four rounds peak in this sweep; extra iterations do not ensure monotonic improvement. e-protocole-componentse-rounds |
| NAVSIM bidirectional coupling ablation 256×256 component-removal comparison. | Full 87.9; without World→Action 81.6; without Action→World 84.9. PDMS, higher is better | Drops are 6.3 and 3.0 PDMS points respectively. Both conditioning directions matter in the reported variants; matched compute and repeated-seed uncertainty are not established. e-protocole-coupling |
| NAVSIM latent rollout tradeoff 256×256 ablations; action horizon fixed at 4 seconds. | World horizons 0/2/4 s: 82.8/87.3/87.9 PDMS and 331.253/690.540/1067.975 ms. PDMS / reported latency (ms) | Without interaction, the 2/4-second rows reach 84.3/85.2 PDMS. Two seconds retains much of the full-rollout score at lower reported cost; unspecified timing hardware/batch scope prevents a deployment-speed claim. e-protocole-horizon |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

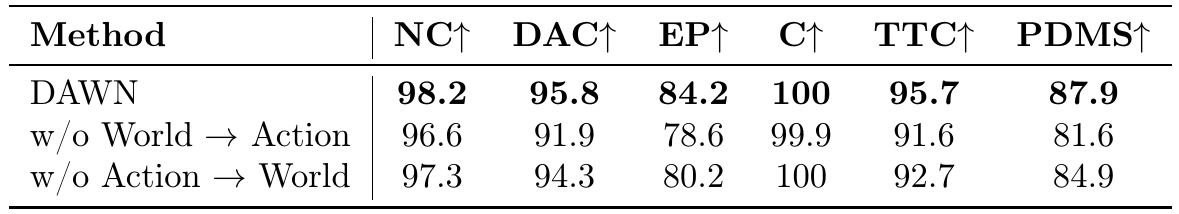

Table 5. Removing either conditioning direction weakens the reported planner. Original paper, p. 8 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each removal label as the information flow being disabled, not the component being deleted wholesale. Section 3.4.1 says World→Action removal prevents predicted world hypotheses from conditioning action denoising. Action→World removal makes world rollout independent of the current action hypothesis. Compare each row with the full DAWN row in the same table, especially the final PDMS column, then inspect DAC and TTC for the accompanying changes. These are the paper's 256×256 ablations, so their 87.9 baseline should not be mixed with the 89.1 main-resolution result in Table 1. e-couplinge-protocole-rounds
What it supports. PDMS falls from 87.9 to 81.6 without World→Action, and to 84.9 without Action→World. Both links contribute in these reported variants, with the larger drop occurring when action denoising loses predicted-world conditioning. This is more direct mechanism evidence than a cross-paper benchmark ranking.
Where the evidence stops. The paper does not establish matched runtime or repeated-seed uncertainty for these removals. Full DAWN's TTC is 95.7 in this table but 95.8 in Table 9; the original discrepancy is retained, not silently corrected.

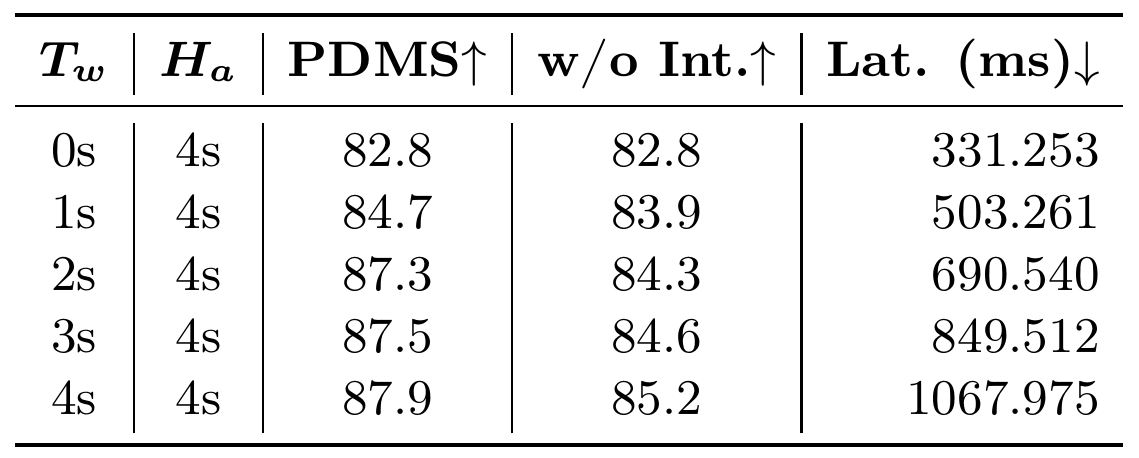

Table 6. Shorter latent futures retain much of the planning benefit, with a measurable reported latency tradeoff. Original paper, p. 8 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read T_w as the latent world rollout horizon and H_a as the action horizon. H_a stays at four seconds in every row, so moving down the table varies future-world computation while keeping the planned trajectory horizon fixed. PDMS is the interactive configuration; w/o Int. is the corresponding score without interactive refinement, not a second latency measurement. The last column reports milliseconds, with lower preferred. At zero seconds, the two planning columns coincide. Compare the two-second row with both zero and four seconds to see why the authors argue that world rollout can be shorter than the planned action. e-horizone-settingse-protocol
What it supports. At two seconds, DAWN reaches 87.3 PDMS at 690.540 ms, compared with 87.9 at 1067.975 ms for four seconds. The no-interaction two-second score is 84.3. Thus short rollout plus refinement approaches the strongest row, although Section 3.4.2 explicitly says the main results use four-second rollout.
Where the evidence stops. Timing hardware, batch size and the components included in latency are not specified here. Appendix C.2 also gives twelve target frames at 2 Hz without reconciling that configuration with this horizon sweep; temporal indexing remains a reproduction question.
7. Analysis & limitations
7.1 What the evidence leaves open
Appendix A disclaims convergence and safety guarantees, notes limited long-range anticipation and latent interpretability, and stresses dataset dependence. Benchmark gains do not establish deployment readiness. e-limitations
Reported tables lack uncertainty. Appendix C.1 says four benchmarks but names three; Table 8's TTC/C headers conflict with corresponding values elsewhere. Table 5 gives full-model TTC 95.7 versus 95.8 in Table 9. These discrepancies remain unresolved. e-metricse-componentse-couplinge-rounds
The token sweep is a lower-scoring configuration: 16→64 tokens gives 82.8→83.2 PDMS and 331.253→963.645 ms. Appendix D calls this more than 3×, but the listed ratio is about 2.91×; it does not establish a full-model token optimum. e-tokens
Appendix prediction grids and feature maps are qualitative. Their brief captions do not explain the pixel-visualization decoder or quantify prediction accuracy; they cannot establish accurate counterfactual dynamics or vehicle execution. e-qualitative
7.2 Questions for discussion
- Would bidirectional coupling still help at matched denoiser-call and latency budgets?
- Which NAVSIM v2 failures persist when increasing rollout horizon or latent capacity?
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction needs the pretrained backbone, stage-specific data and checkpoints, official evaluation configuration, and the Appendix C.2 architecture. Predictor and denoiser each have 12 layers, dimension 384 and 12 heads; the resampler has a four-layer encoder and two-layer decoder. e-traininge-settings
Resolve dataset identity first: Stage 1 cites OpenScene [39], whose bibliography title concerns open-vocabulary 3D scene understanding. The numeric sliding-window stride, dataset mixture/counts, exact splits, batch size, loss distance, freezing schedule and final mode selection remain unspecified. e-traininge-data-citatione-settingse-algorithmse-metrics
Reconcile the appendix's four observed/twelve target frames at 2 Hz with the main 4-second rollout before implementing temporal indexing. Specify timing device, batch size and measured components before comparing latency. The illustrated edition proposes controlled coupling and horizon checks; neither has been run. e-settingse-horizone-coupling
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Test action-dependent feedback at a matched inference budget
Reader-proposed check, not performed: reproduce the 256×256 full model and both Table 5 direction removals with the same training data, initialization policy, number of denoiser calls and sampling steps. Add a control that recomputes the world while holding its action input at the initial proposal. Evaluate identical held-out scenes with paired per-scene PDMS, DAC and TTC differences across several seeds, and report latency. If updated action conditioning is the mechanism, full DAWN should outperform this stale-action control especially on interactive scenes. If that gap disappears under matched calls and training, the specific feedback explanation is weakened even if iterative denoising still helps. e-couplinge-protocole-inferencee-settings
Check 2: Verify the short-rollout tradeoff and transfer its failure analysis to v2
Reader-proposed check, not performed: first resolve the mapping from four observed/twelve target frames at 2 Hz to the Table 6 horizons. Then hold the action horizon at four seconds and compare world horizons 0, 2 and 4 seconds, both with and without refinement. Keep resolution, data, latent-token count and denoiser settings fixed; report device, batch size, warmup, end-to-end latency and repeated-run intervals. Replicate the v1 PDMS tradeoff, then inspect the same variants' v2 DAC, NC and EPDMS. If two seconds is sufficient, its paired score deficit to four seconds should stay small while latency falls; a larger v2 compliance deficit would limit the claimed short-horizon sufficiency. e-horizone-settingse-protocole-navsim-v2
8.3 Reading coverage
Visual audit: The title/byline, all method and evaluation pages, Figures 1–11, Tables 1–10, Appendix C implementation details, Appendix F algorithms and the OpenScene bibliography entry were visually inspected. Every final crop was inspected at its native rendered resolution. The architecture's selective initial path was checked against Figure 2's caption, Eqs. (9)–(13) and Algorithm 2. Table 8's TTC/C header inconsistency, Table 5 versus Table 9 TTC discrepancy, the NAVSIM v2 EC claim and the token-latency ratio mismatch remain explicit in the report. Reference-only pages 11, 12 and 14 were read in the complete text pass and are not used for scientific claims here. Prediction grids and low-text feature-map pages 23–24 were inspected as qualitative evidence; they do not establish quantitative dynamics accuracy.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 13, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25. Appendix coverage: reviewed.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract and title/byline (p. 1)
- 1 Introduction (pp. 1–3)
- 2.1–2.4 Formulation, architecture, training and inference (pp. 3–5)
- 3.1–3.4 Setup, results, ablations and analysis (pp. 5–9)
- 4 Related Work; 5 Conclusion; 6 Acknowledgments (pp. 9–10)
- References (pp. 11–14)
- Appendix A–B Limitations and Broader Impact (p. 15)
- Appendix C Experimental Details (pp. 15–16)
- Appendix D Quantitative Results (pp. 16–18)
- Appendix E Qualitative Results (pp. 19–24)
- Appendix F Algorithms 1–2 (p. 25)
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- Pages with little extracted text require visual inspection: 23, 24
- Identity: exact title and all nine byline authors match the catalog after name-order normalization. The title page identifies arXiv:2605.11550v1, 12 May 2026, while its internal Date is May 13, 2026. These are two dates on the same artifact, not evidence of a later revision. The supplied provenance identifies the previously retained HTML as the same v1; that HTML was not supplied for comparison.
- All six supplied text chunks were read individually. Text extraction does not reconstruct figure images; original PDF pages and all figures/tables were visually inspected, including low-text feature-map pages 23–24. Reference-only pages 11, 12 and 14 were read as text.
- Separate supplemental material availability has not been fully verified; none was supplied.
- Code, project pages and external cited works were not inspected. No installation, experiment or vehicle deployment was performed.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e-identityPDF p. 1, title, byline, affiliations, left-margin arXiv stamp and Date line
The title is The DAWN of World-Action Interactive Models. Authors in byline order: Hongbo Lu, Liang Yao, Chenghao He, Haoyu Wang, Xiang Gu, Xianfei Li, Wenlong Liao, Tao He, Pai Peng. Affiliations: COWARobot Co. Ltd; Shanghai Jiao Tong University; Hohai University. The arXiv stamp is 2605.11550v1, 12 May 2026; the internal date is May 13, 2026.
Go to primary source ↓e-formulationPDF pp. 1–3, Section 1 and Figure 1; Section 2.1, Eqs. (1)–(5)
WAIM seeks mutually conditioned future-world and action hypotheses and realizes this through iterative interaction. The motivation is action-contingent driving futures.
Go to primary source ↓e-architecturePDF pp. 3–4, Section 2.2, Figure 2 and Eqs. (6)–(9)
Student V-JEPA 2 Large features are compressed by a resampler. Teacher future latents supervise the world branch during training. A causal Transformer World Predictor and shared DiT Action Denoiser exchange hypotheses, with proposal/refinement query embeddings and ego-state/action/route conditions.
Go to primary source ↓e-trainingPDF pp. 4–5, Section 2.3, Stages 1–4
Four stages cover driving-video vision pretraining, resampler training, downstream predictor training, then joint world/action optimization. Stage 1 names OpenScene [39], DrivingDojo and CoVLA; videos use 2 Hz, 256×512 resolution and an unspecified sliding window_stride.
Go to primary source ↓e-inferencePDF p. 5, Section 2.4, Eqs. (10)–(13)
Teacher is removed. The initial action is generated directly from current resampler latents; subsequent predictor rollouts condition action refinement. The Action Head decodes the last state. An initial predicted trajectory can also prompt another forward pass.
Go to primary source ↓e-settingsPDF p. 16, Appendix C.2, first four paragraphs
Inputs are 2 Hz, 512×256, with four observed and twelve target frames. V-JEPA 2 ViT-Large uses patch size 16 and tubelet size 2. The 16-token resampler has 16 heads and four encoder/two decoder layers, with an auxiliary diffusion planner during training. Predictor and denoiser use 12 layers, dimension 384 and 12 heads. The denoiser modulates self-attention, cross-attention and MLP branches, predicts six modes/samples, uses five DPM-Solver++ steps and 0.5-second pose spacing. Planning losses include classification, regression, velocity and yaw; velocity/yaw weights are 0.5.
Go to primary source ↓e-optimizationPDF p. 6, Section 3.1.2; p. 16, Appendix C.2, final paragraph
Reported optimization uses 150 epochs, bfloat16, peak learning rate 1e-4, initial rate 5e-5, weight decay 0.04 and eight warmup epochs. EMA increases 0.996 to 0.999. Full-scale experiments use 80 NVIDIA A100 GPUs; RTX 4090 is described only for debugging/small-scale launch.
Go to primary source ↓e-protocolPDF pp. 5–6, Sections 3.1.1–3.1.2 and Table 1 caption
NAVSIM uses simulator-based rule scores and nuScenes trajectory L2/collision metrics. Main images use 512×256 and ablations 256×256. DAWN* is the lower-resolution variant. Table 1 calls perception-based methods its main comparison and perception-free methods reference results.
Go to primary source ↓e-navsim-v1PDF p. 6, Table 1, DAWN, DAWN*, Drive-JEPA, DriveSuprim and iPad rows
DAWN reports NC 98.7, DAC 95.9, EP 84.3, C 100, TTC 96.0, PDMS 89.1; Drive-JEPA PDMS/TTC are 89.0/95.5 and DAWN* 87.9/95.8. DriveSuprim PDMS is 93.5 and iPad TTC 96.3. Thus DAWN's best-PDMS claim is restricted to the listed perception-free rows.
Go to primary source ↓e-nuscenesPDF p. 7, Table 2, Ours, WorldRFT and World4Drive rows
DAWN L2 is 0.17/0.31/0.52 m at 1/2/3 s, average 0.33; collision is 0.00/0.10/0.23%, average 0.11%. WorldRFT averages 0.47 m and 0.15%, with 3-second collision also 0.23%; World4Drive also reports zero at 1 second.
Go to primary source ↓e-componentsPDF p. 7, Table 3 and Section 3.3.1; p. 17, Table 8
PDMS progresses 82.9, 82.8, 85.2, 87.9 from backbone through resampler, predictor and interaction. Table 8 prints TTC before C, yet places 100 in TTC and values around 91.5–95.8 in C, conflicting with corresponding rows in Tables 1 and 9.
Go to primary source ↓e-couplingPDF p. 8, Table 5 and Section 3.4.1
Full DAWN PDMS is 87.9; removing World→Action gives 81.6 and removing Action→World 84.9. The text defines the removals as disabling world conditioning for actions or action conditioning for world rollout. Full-model TTC is printed as 95.7 here.
Go to primary source ↓e-horizonPDF p. 8, Table 6 and Section 3.4.2
For action horizon 4 s and world horizons 0/1/2/3/4 s, PDMS is 82.8/84.7/87.3/87.5/87.9; without interaction 82.8/83.9/84.3/84.6/85.2; latency 331.253/503.261/690.540/849.512/1067.975 ms. Main experiments explicitly use a 4-second rollout. Timing hardware, batch size and component scope are not identified in this discussion.
Go to primary source ↓e-roundsPDF p. 7, Figure 3 and Section 3.3.2; p. 17, Table 9 and following paragraph
One through six rounds give PDMS 85.2/86.4/86.9/87.9/87.2/86.9. Four rounds are the stated default. The four-round TTC entry is 95.8.
Go to primary source ↓e-tokensPDF p. 8, Table 4; p. 17, Table 10; p. 18, continuation of Appendix D.2
The 16/64-token comparison gives PDMS 82.8/83.2 and latency 331.253/963.645 ms. The subsequent prose describes an increase greater than threefold, which disagrees with the listed values.
Go to primary source ↓e-navsim-v2PDF p. 16, Appendix D.1, Table 7 and following paragraph
DAWN EPDMS/DAC/EC are 83.2/92.0/85.5, versus Drive-JEPA 87.8/98.6/84.8. Transfuser EC is 87.2. The prose acknowledges aggregate/rule-compliance weaknesses but calls DAWN's EC best, contradicting the Transfuser entry.
Go to primary source ↓e-metricsPDF p. 15, Appendix C.1
NAVSIM v1 reports NC, DAC, EP, comfort and TTC with PDMS. V2 adds driving-direction, traffic-light, lane-keeping, history-comfort and extended-comfort measures and EPDMS. nuScenes reports L2 and collision at 1/2/3 s. The opening sentence says four benchmarks but lists NAVSIM v1, NAVSIM v2 and nuScenes; exact split names/sample counts are not supplied.
Go to primary source ↓e-limitationsPDF p. 15, Appendix A and B
The authors disclaim convergence/safety guarantees and deployment readiness, identify limited long-range anticipation, compact-latent interpretability and dataset coverage as concerns, and acknowledge intensive training and possible over-trust.
Go to primary source ↓e-algorithmsPDF p. 25, Appendix F, Algorithm 1 lines 1–20 and Algorithm 2 lines 1–15
Algorithm 1 specifies teacher EMA, token-autoencoder training, predictor loss as an unspecified distance d, and joint world/planning updates. Stage 3 calls the predictor without an action hypothesis; Stage 4 adds action conditioning. Algorithm 2 initializes actions before alternating predictor and denoiser K times, then returns a trajectory.
Go to primary source ↓e-data-citationPDF p. 4, Section 2.3 Stage 1; p. 13, Reference [39]
Stage 1 names OpenScene as driving-video pretraining data and cites [39]. The bibliography identifies [39] as OpenScene: 3D scene understanding with open vocabularies. The supplied paper does not resolve this dataset/citation ambiguity.
Go to primary source ↓e-qualitativePDF p. 9, Figure 4; pp. 19–24, Appendix E, Figures 6–11
The source supplies front-view/BEV trajectory overlays, observation/future-frame/prediction grids, and feature maps. Figures 7–11 have brief qualitative captions without quantitative prediction scores or an explained pixel-visualization decoder. These images do not demonstrate executed vehicle control.
Go to primary source ↓e-continuumPDF p. 18, Figure 5 and accompanying Appendix D.2 paragraph
The rollout continuum schematic places zero rollout, short latent rollout and long predict-then-plan rollout on a conceptual diminishing-returns curve. It is an illustration, not a calibrated empirical plot.
Go to primary source ↓8.5 Primary sources
The DAWN of World-Action Interactive Models ↗
PDF · 9,700 extracted words
Source fingerprint
bee71fb071532bd2f63b13d9cf4c568b11de89444285e12953a06c9c2f972d93
