ABot-M0.5: Unified Mobility-and-Manipulation World Action Model
1. Paper overview
In one sentence: ABot-M0.5 uses a shared, specialized video-to-motion-to-control architecture and dreamed-future training to improve robot success, with unresolved sampling details and uneven generalization. e-probleme-cascadee-mote-dreame-targete-latent-ablatione-df-ablatione-libero-pluse-ambiguities
| At a glance | What to know |
|---|---|
| Research problem | Author claim The authors attribute mobile-manipulation failures to three mismatches: temporally compressed video versus contact-sensitive control, shared action representations for base and arm dynamics, and training on perfect futures when deployment requires predicted futures. Their proposed remedy aligns representation, action specialization and conditioning context. e-problem |
| Core mechanism | Source description A visual-transition latent action provides intermediate motion supervision without requiring robot-control labels. e-latent |
| A key reported result | RoboCasa365 Target 100% mobile manipulation: 54.2 average; 70.6 atomic-seen, 44.3 composite-seen, 45.6 composite-unseen. Task success rate (%). Simulation; Table 3 Target 100%, official protocol asserted. Lingbot-VA: 45.1 average; Fast-WAM: 43.5; GR00T-N1.5: 43.7. Best listed average; 9.1 percentage points above Lingbot-VA. Table 3, rather than the inconsistent overview graphic, supplies these values. e-targete-overview |
| Reading caution | Reader analysis Reported benchmark tables lack seeds, trial counts and confidence intervals. The action-decoupling comparison uses an unspecified Composite-Seen subset (0.48 versus 0.34); loss curves alone do not directly measure gradient interference. e-setupe-targete-robotwine-liberoe-libero-pluse-latent-ablatione-df-ablatione-mot-ablation |
Core contributions
- Source description
A visual-transition latent action provides intermediate motion supervision without requiring robot-control labels. e-latent
Figure 2. Three prediction streams connect future video to coordinated robot control. Original paper, p. 8 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the left column: a video feature summarizes several frames, while orange motion tokens and blue/green control tokens retain finer temporal structure. Follow the arrows through the middle attention block. Modality interfaces remain distinct, and the action stream separates manipulation from mobility. The right column introduces Dream Forcing for the later supervised stage. These are training configurations within a unified framework; they do not establish two independent deployed models. Cross-check the clean-variable cascade in Equations (4)/(7): future video precedes latent motion, which conditions executable actions. Section 3.3 specifies shared attention but separate action FFNs and heads, so specialization still permits coordination. e-cascadee-latente-mote-dreame-sfte-ambiguities
What it supports. The mechanism creates two useful separations: visual motion supervision need not share robot-control coordinates, and mobility/manipulation need not share all prediction parameters. At the same time, shared attention allows those streams to exchange permitted context. The diagram establishes architectural organization; the later ablations supply the behavioral evidence.
Where the evidence stops. The predicted-feature arrow is marked '+noise', but Figure 5 and Equation (15) describe clean dreamed action conditions. This schematic does not fully reconcile that noise path. Use the explicit action-conditioning equation, and do not infer unrestricted attention or a new sampling schedule from these arrows.
2. Motivation
2.1 The problem and the proposed response
The authors attribute mobile-manipulation failures to three mismatches: temporally compressed video versus contact-sensitive control, shared action representations for base and arm dynamics, and training on perfect futures when deployment requires predicted futures. Their proposed remedy aligns representation, action specialization and conditioning context. e-problem
2.2 What this reading follows
A mobile robot must connect scene changes to precise arm and base controls. ABot-M0.5 inserts a learned visual-motion representation between those two scales, then trains the action predictor to work with imperfect futures generated by its own world model. This reading follows the information flow before assessing the experiments: what is predicted, what becomes executable, and which training conditions are available during deployment. The most informative evidence combines RoboCasa365 target-task results with controlled continuation training and latent-action ablations. The reported gains are substantial in some settings, but benchmark protocols differ, several VLAs outperform it on LIBERO-Plus, and the paper leaves important implementation inconsistencies unresolved. e-probleme-cascadee-mote-dreame-targete-latent-ablatione-df-ablatione-libero-pluse-ambiguities
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | Dual-system |
| Prediction paradigm | IDM |
| Quadrant | Q4 · Dual-system × IDM |
3.1 Evidence-based assessment
Conflicts with the recorded classification
WAM and IDM are supported: predicted future representations condition executable action generation at inference. The recorded Dual-system architecture conflicts with Section 3.3's explicit shared Transformer trunk and joint attention across three streams. Separate modality interfaces and action FFNs form internal specialization, supporting a One Model × IDM reading rather than two independent systems. This is an architectural assessment, not an inference from joint training; the recorded snapshot is preserved. e-cascadee-mote-dream
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Learn visual motion before translating it into robot coordinates
The intermediate representation is learned from what changes between frames. In ALAM pretraining, transitions across an ordered observation triplet are encouraged to compose additively, and a reversed transition should approximately negate the forward one. Reconstruction, perceptual and quantization losses keep these codes informative. Section 4.3 then retains the encoder as a frozen label extractor; the ABot latent-action stream learns to predict those labels from visual context, and the action branch learns their embodiment-specific meaning. This separates a motion description from the robot's command coordinates. Reader interpretation: such a bridge can make coarse video more useful for control, but the ablation tests several architectural choices together and does not establish that the learned codes are universally embodiment-invariant. Section 5.1's conflicting encoder fine-tuning statement must be resolved before reproducing this pipeline. e-alame-latente-latent-ablatione-ambiguities

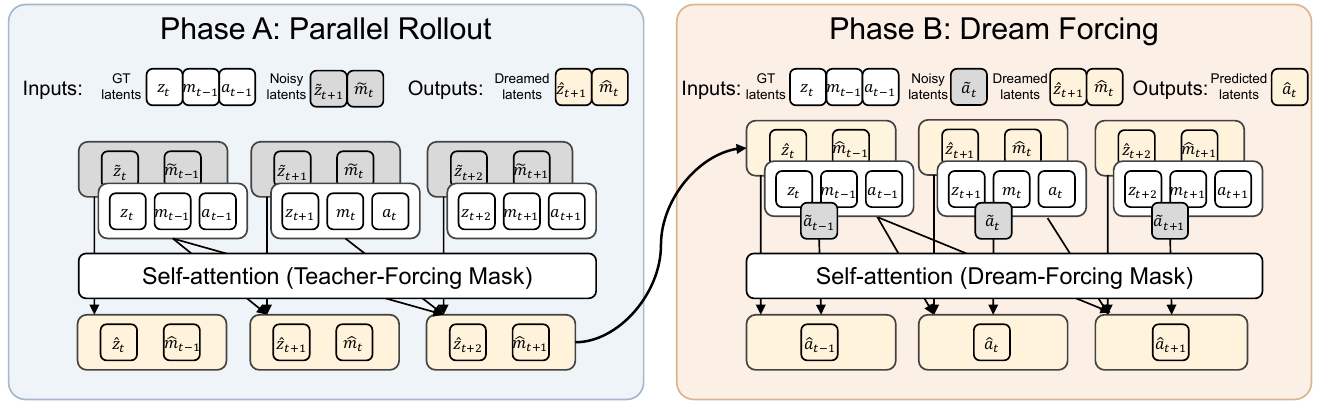

Figure 5. Dreamed conditioning is produced before the action-learning pass. Original paper, p. 12 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the left panel as a producer of conditioning representations and the right panel as their consumer. White boxes denote ground truth, gray boxes noisy inputs, and pale-yellow boxes dreamed outputs. The teacher-forcing mask in Phase A and Dream-Forcing mask in Phase B determine which displayed boxes are visible to each query; merely drawing a ground-truth box does not authorize every dependency. The connecting arrow transfers predicted video and motion representations into action prediction. Equation (15) supplies the clearest boundary: only the latest future video and latent action are replaced by dreams, while history remains grounded. The paper motivates parallel batch generation because closed-loop observations continually refresh that history. e-dreame-sfte-ambiguities
What it supports. This design targets a specific exposure problem: the action learner otherwise sees perfect future observations during training and imperfect predictions during execution. Training it on model-produced conditioning makes those inputs more representative. It is a change to the action-learning context, rather than evidence that a predicted video is a physically executed trajectory.
Where the evidence stops. Figure 7(c) gives dreamed motion queries ground-truth future-video access, despite prose describing generated-future motion conditioning. The source also mentions both single-pass and few-step generation. The action-conditioning change is clear; the complete upstream sampler and its gradient handling remain unspecified.
5.2 Separate base and arm parameters while retaining coordination
Mobility changes the viewpoint and the geometry available to the arm; manipulation demands precise local interactions. The source assigns these controls to separate action sub-towers with dedicated FFNs and heads, while joint attention lets each branch use the other branch's noisy action during denoising. Both branches share the same flow timestep, so their refinement is coordinated. At the modality level, video, latent motion and executable action have distinct interfaces but share the Transformer trunk. Reader interpretation: parameter specialization can reduce competition without removing necessary coordination, although the reported loss curves do not directly measure gradient interference. This architecture is also why the catalog's Dual-system label deserves review: an inverse-dynamics cascade is present, but architectural evidence describes specialized streams inside a shared model. e-mote-cascadee-mot-ablation
5.3 Train against the future the action predictor will actually receive
SFT1 first adapts video and action prediction using clean upstream supervision. Once that warm start is usable, Dream Forcing generates future conditioning and trains the action predictor on it. Equation (24) replaces the latest future video and latent action with dreamed versions while retaining grounded history. This matters because the robot receives new observations after execution; its entire past need not remain a chain of imagined frames. Reader interpretation: the intervention targets the action learner's exposure to model errors, rather than proving perfect world modeling. The shared-checkpoint ablation supports the change on atomic-seen tasks, but it does not measure equality of rollout distributions or wall-clock efficiency. Figure 7 and the surrounding prose disagree about some upstream motion conditioning, so the executable-action equation is the firmest tutorial anchor. e-sfte-dreame-df-ablatione-ambiguities
5.4 Training and inference
During training
World pretraining fully adapts Wan2.2 5B as an action-unconditioned autoregressive predictor. Data include OXE, OXE-AugE, Agibot-Beta, RoboCOIN, RoboMind, Galaxea, InternData-A1, RoboNet, BridgeData V2 and DROID. Four semantic camera slots reserve two third-person and two wrist views; missing views are zero-padded and excluded from attention and loss. e-pretrain
ALAM pretraining combines additive/reversal consistency with reconstruction, perceptual and vector-quantization losses. Section 4.3 then discards the decoder/quantizer and freezes the encoder for offline labels. SFT1 jointly optimizes video, latent-action and action flow losses under ground-truth upstream conditioning. e-alame-sft
SFT2 supplies dreamed future video and latent actions to the action loss while retaining video and latent-action losses. Phase A generates conditioning latents under a teacher-forcing mask; Phase B predicts actions from them. The description mentions both a single forward pass and few-step denoising without a complete sampling specification. e-dreame-sft
Structured attention is packed into variable-length FlashAttention subproblems. Temporal offsets diversify cached latent segments. The reported approximately 5× forward/backward speedup over a FlexAttention-style baseline lacks a hardware/configuration table and is not an inference-latency measurement. e-efficiency
During inference
The stated cascade predicts video, then latent motion, then executable controls; the two action subspaces denoise jointly. Closed-loop execution refreshes historical observations from the environment, so only the latest future chunk must be dreamed. This is inference-time world-model conditioning, not merely an auxiliary training loss or proof that a dreamed interaction physically occurred. e-cascadee-mote-dream
The executable-action distribution is clear, but the source does not fully reconcile upstream latent-action generation across its masks and prose. No planning search, numerical control frequency or edge-device latency is specified. e-ambiguitiese-future
5.5 Implementation flow
- Encode observations and predict a future
A 3D VAE compresses video; a text encoder, exemplified by UMT5, encodes language. The Wan2.2-based model predicts future video from history. The paper abbreviates a full prediction horizon as z(t+1) and its corresponding action chunk as a(t). e-probleme-cascade
- Bridge coarse video and control
The pretrained encoder extracts latent-action labels from adjacent frames, separately by camera. Their tensor spans H control steps, Nc views and feature dimension dm. A separate generative stream predicts these motion representations from visual context. e-latent
- Specialize while coordinating
The three modalities share a Transformer trunk and attention, with distinct projections, timestep embeddings and heads. Mobility and manipulation additionally receive separate FFNs and prediction heads. Their noisy actions are mutually visible and share a denoising timestep. Video prediction cannot attend to current latent actions. e-cascadee-mot
6. Experiments & results
ABot-M0.5 turns predicted video into frame-level motion representations and then robot controls, with separate mobility and manipulation branches. Dream Forcing trains the action predictor on its own model's imperfect futures. RoboCasa365 Target 100% success reaches 54.2%, but unseen-composition performance depends strongly on the protocol, and several training details remain inconsistent or unspecified.
6.1 Read the original evidence

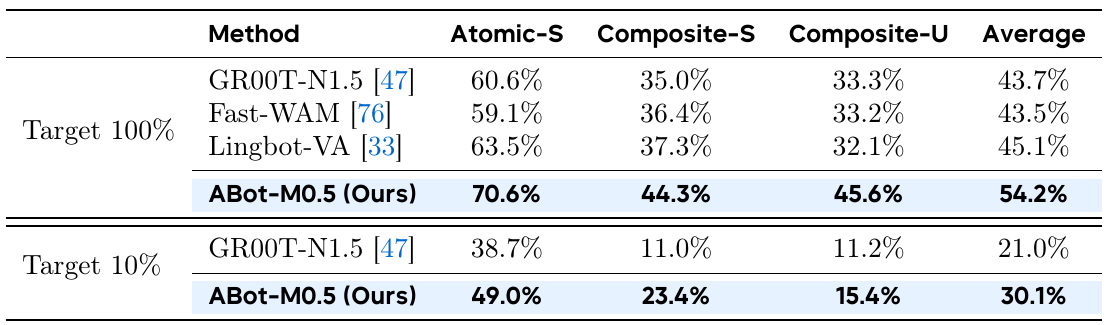

Table 3. Target-task results improve across the listed mobile-manipulation categories. Original paper, p. 20 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. First choose a block: Target 100% and Target 10% are separate evaluation settings. Within a block, read Atomic-S, Composite-S and Composite-U as atomic seen, composite seen and composite unseen, then inspect Average. Compare ABot-M0.5 only with rows in the same block. The upper block contains three baselines, whereas the lower block contains only GR00T-N1.5. Section 5.2 frames composite tasks as longer mobile-manipulation chains. Keep this table separate from Table 2's pretraining-setting results: its much stronger unseen-composition numbers do not describe that other protocol. The limited-data pretraining ablation on page 24 further specifies the atomic-seen sample, rather than all categories here. e-targete-pretraining-resultse-setupe-pretrain-ablatione-overview
What it supports. At Target 100%, ABot-M0.5 reports 54.2% average success versus Lingbot-VA's 45.1%, with 45.6% on composite-unseen tasks. At Target 10%, its average is 30.1% versus GR00T-N1.5's 21.0%. These support improvements in the table's specified settings, including its unseen category.
Where the evidence stops. Figure 1 instead labels the Target 100% result 53.0; this edition uses Table 3's detailed value and preserves the discrepancy. Trial counts, confidence intervals and matched baseline training-compute details are not supplied, so the table alone cannot establish statistical significance or equal-resource superiority.

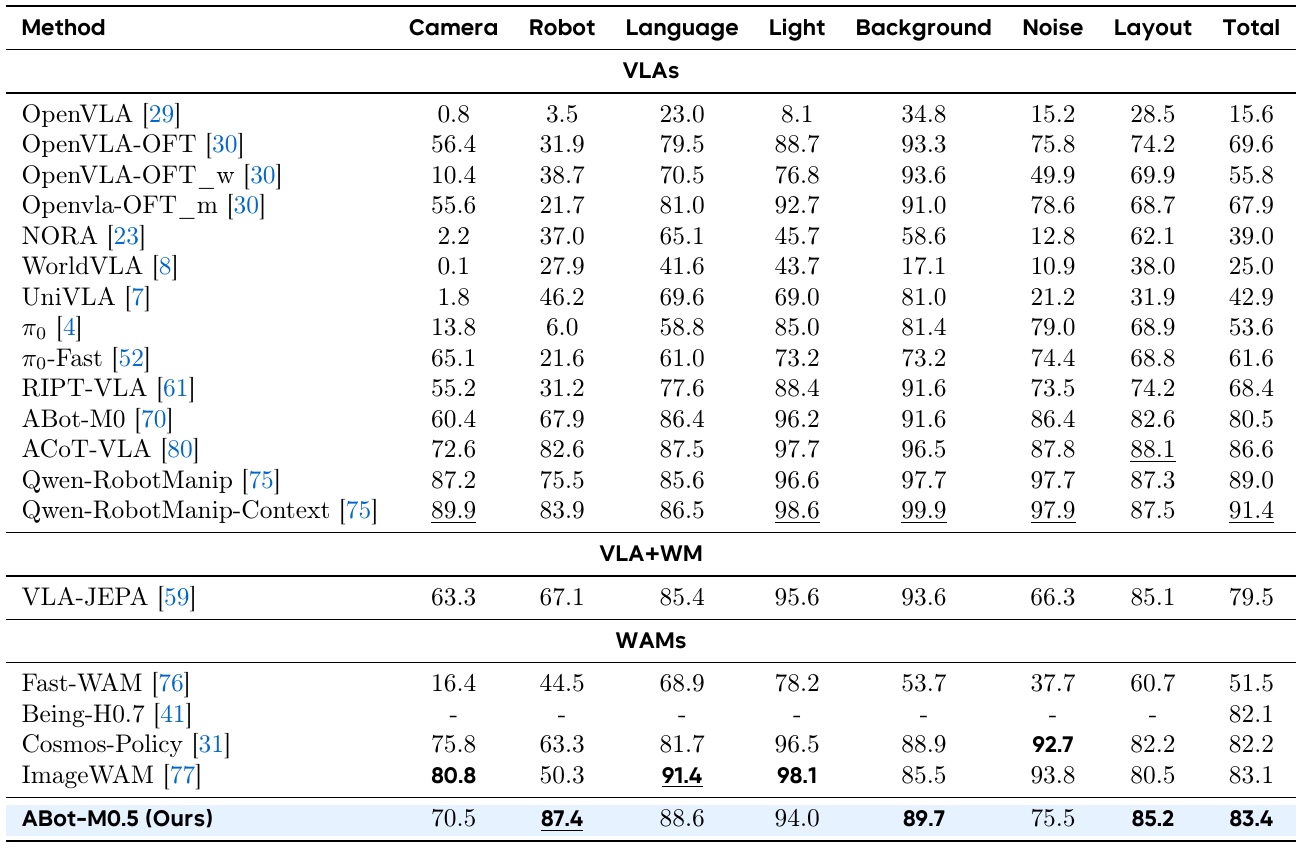

Table 6. Zero-shot robustness leads the listed WAM totals, with stronger VLA baselines still present. Original paper, p. 23 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read Total before examining which perturbations explain it. All methods are described as trained on standard LIBERO without LIBERO-Plus fine-tuning. The table separates VLAs, VLA+WM and WAMs, so the scope of any ranking matters. Within the WAM block, compare ABot-M0.5 with ImageWAM and Cosmos-Policy, then move upward to the VLA totals. Category columns expose a less uniform picture than the overall score: ABot's Robot value is strong, while Camera and Noise remain weaker. Preserve dashes as unreported values. Do not rely on boldface alone: ImageWAM's Noise entry is 93.8, exceeding the bolded 92.7 for Cosmos-Policy. e-libero-pluse-setup
What it supports. ABot-M0.5 reaches 83.4% total against ImageWAM's 83.1%, the highest total among listed WAMs. However, Qwen-RobotManip-Context reports 91.4% and ACoT-VLA 86.6%. The evidence supports a WAM-specific lead and useful robustness, while ruling out an unqualified claim of best performance across all listed architectures.
Where the evidence stops. The table's typography is inconsistent, and its 0.3-point WAM lead has no reported uncertainty. Category scores also differ substantially: successful robot perturbations do not imply comparable camera or noise robustness. Shared benchmark evaluation does not by itself establish identical pretraining data or compute.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| RoboCasa365 Target 100% mobile manipulation Simulation; Table 3 Target 100%, official protocol asserted. | 54.2 average; 70.6 atomic-seen, 44.3 composite-seen, 45.6 composite-unseen. Task success rate (%) | Lingbot-VA: 45.1 average; Fast-WAM: 43.5; GR00T-N1.5: 43.7. Best listed average; 9.1 percentage points above Lingbot-VA. Table 3, rather than the inconsistent overview graphic, supplies these values. e-targete-overview |
| RoboCasa365 pretraining-setting evaluation Simulation; Table 2's distinct pretraining setting. | Base: 40.4 average and 2.7 composite-unseen; +Condensed Memory: 46.6 and 7.9. Task success rate (%) | Qwen-RobotManip: 35.9 average and 14.9 composite-unseen. The average lead does not establish unseen-composition superiority. Memory is a separately reported extension whose mechanism is deferred. e-pretraining-results |
| RoboTwin 2.0 bimanual manipulation Official clean/randomized evaluation across 50 tasks. | 94.00 clean; 94.20 randomized; 94.10 average. Task success rate (%) | Qwen-RobotManip: 93.85 average; Fast-WAM: 91.85. Strong across both settings; uncertainty is unreported for the small lead over Qwen-RobotManip. e-setupe-robotwin |
| LIBERO compositional manipulation Standard LIBERO evaluation; suite averages. | 99.4 average; Spatial 100.0, Object 99.8, Goal 99.4, Long 98.4. Task success rate (%) | CORAL: 99.3 average and 98.8 Long. Best listed rounded average, but not every suite; no significance test is provided. e-setupe-libero |
| LIBERO-Plus zero-shot robustness Trained on standard LIBERO without LIBERO-Plus fine-tuning. | 83.4 total; Camera 70.5, Robot 87.4, Language 88.6, Light 94.0, Background 89.7, Noise 75.5, Layout 85.2. Task success rate (%) | ImageWAM: 83.1 total; Qwen-RobotManip-Context VLA: 91.4. Highest total among listed WAMs; several VLAs score higher. Table typography is inconsistent: ImageWAM's noise value 93.8 exceeds the bolded Cosmos-Policy 92.7. e-libero-plus |
| Latent-action structure ablation RoboTwin 2.0 Clean; Table 7. | 3-Stage Separate, dropout 0: 94.00. Success rate (%) | Direct baseline 87.60; 2-Stage Separate 90.86; channel concatenation 91.06; 3-Stage with dropout 0.2: 91.06. Supports the structured conditioning package; tokenization, masking and scheduling change together. e-latent-ablation |
| Dream Forcing continuation ablation RoboCasa365 Target 100% atomic-seen; shared 50k-step SFT1 checkpoint. | 70.56 after 5k Dream Forcing steps. Success rate (%) | 67.55 at warm start; continued SFT1: 66.78 after 5k or 68.90 after 10k. Gain is 3.01 points over warm start, 3.78 over equal-step continuation. Equal steps do not establish equal wall-clock compute. e-df-ablatione-dream |
| Pretraining for limited-data adaptation RoboCasa365 Target 10% atomic-seen; 16 training tasks, 50 sampled trajectories each. | 49.0 with robotic pretraining. Success rate (%) | 17.8 from Wan2.2 followed directly by the same downstream SFT. A 31.2-point gap supports robotic pretraining under this limited-data setting. e-pretrain-ablation |
| Physical Peg Cylinder insertion Agilex Piper 6-DoF single arm; 50 real demonstrations per task; evaluation trial count unspecified. | 70 / 96. Success rate / process score (%) | π0.5: 50 / 90; FastWAM: 30 / 77. Physical manipulation evidence; the process-score rubric is unspecified and this setup does not establish real mobile-base performance. e-real |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

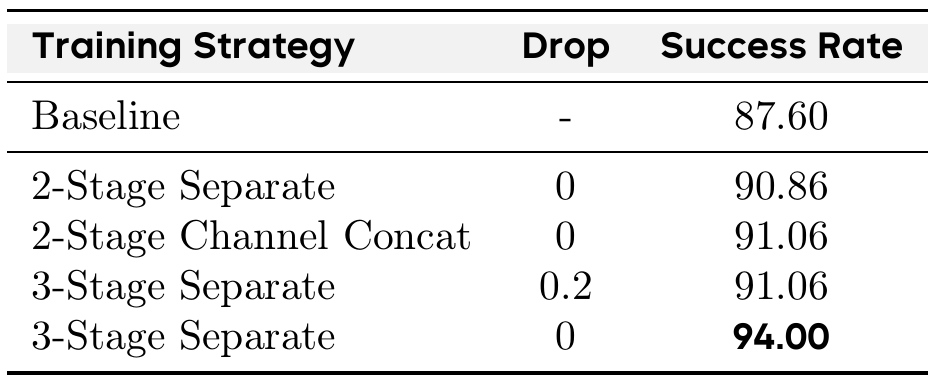

Table 7. Structured latent-action conditioning outperforms the tested alternatives. Original paper, p. 24 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read Training Strategy together with Drop; the last two rows share the three-stage strategy but differ in latent-action conditioning dropout. The direct baseline omits the intermediate representation, while the two-stage alternatives either separate the streams or concatenate their channels. Section 5.4 and Figure 9 explain that the three-stage version also uses distinct temporal/modal indicators and a causal mask that blocks video access to latent-action tokens. It is therefore a package of representation and information-flow choices. Compare the two final rows for the narrower dropout question: inference always has predicted latent actions, so training occasionally without them changes the conditioning regime. e-latent-ablatione-cascade
What it supports. The full three-stage setup with zero dropout reaches 94.00% success, versus 87.60% for the direct baseline. Introducing dropout 0.2 lowers the three-stage result to 91.06%. These comparisons support the benefit of consistent, structured motion conditioning on RoboTwin Clean and motivate testing temporal alignment more directly.
Where the evidence stops. The 6.40-point baseline difference does not isolate temporal resolution alone: tokenization, modal separation, masking and scheduling differ. The paper supplies no seed variability or matched-capacity accounting for these variants, and this table does not measure mobile navigation.

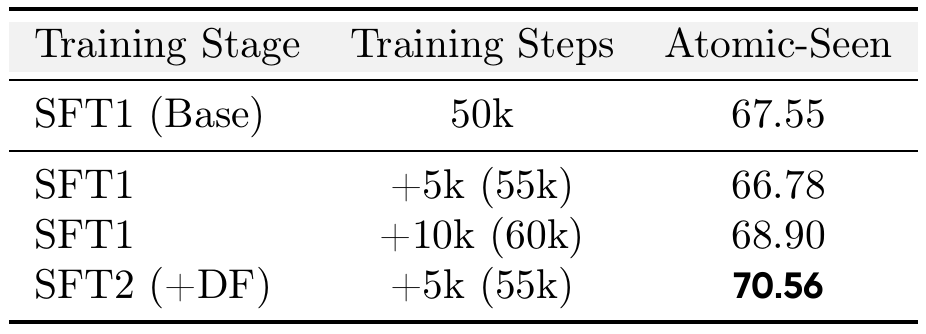

Table 8. A shared warm start makes the conditioning change more informative than an unmatched final-model comparison. Original paper, p. 24 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Begin at the first row: every continuation starts from the same SFT1 checkpoint after 50k training steps. Compare the second and fourth rows to hold the additional step count at 5k; their difference is whether training continues with teacher forcing or switches to Dream Forcing. Then compare the third row to see whether longer teacher-forcing continuation catches up in the reported run. The rightmost column is atomic-seen success on RoboCasa365 Target 100%, not the full benchmark average or composite-unseen performance. Read this together with the two-phase mechanism: Dream Forcing changes the conditioning distribution and also changes the work performed during training. e-df-ablatione-dream
What it supports. After 5k additional steps, Dream Forcing gives 70.56% against 66.78% for continued SFT1, a 3.78-point advantage. It also exceeds the 68.90% obtained after 10k SFT1 steps. This is direct evidence that the changed training regime helps this checkpoint and evaluation subset.
Where the evidence stops. Equal steps need not cost equal time because Dream Forcing adds conditioning generation and a second pass. The paper's claim about half the computational budget is not established by this step-count table; wall-clock timings, uncertainty and composite-task confirmation remain absent.
7. Analysis & limitations
7.1 What the evidence leaves open
Reported benchmark tables lack seeds, trial counts and confidence intervals. The action-decoupling comparison uses an unspecified Composite-Seen subset (0.48 versus 0.34); loss curves alone do not directly measure gradient interference. e-setupe-targete-robotwine-liberoe-libero-pluse-latent-ablatione-df-ablatione-mot-ablation
Section 4.3 freezes the encoder, whereas Section 5.1 says it is jointly fine-tuned. Figure 7(c) lets dreamed latent-action queries attend to ground-truth future video, whereas Section 4.4 describes generated-future conditioning. Equations (25)–(26) also put hats on histories retained as ground truth in Equation (24). These implementation ambiguities remain unresolved. e-ambiguities
Figure 1 reports 53.0 for RoboCasa365 Target 100%, versus Table 3's 54.2, and labels real results as mobile manipulation without matching detailed mobile hardware/protocol. Section 5.5 initially lists three long tasks but later includes Cup Stacking. Figure 12 gives Arrange Flower a process score of exactly 88%, despite prose saying above 88%. e-overviewe-reale-future
The authors leave unstructured real-world mobile generalization, improved long-term memory and edge inference acceleration to future work. Conditioning on dreamed futures reduces one mismatch; it does not prove all rollout distribution shift is eliminated. e-dreame-future
7.2 Questions for discussion
- Would Dream Forcing still help with matched wall-clock compute and a fixed upstream model? [e-df-ablation, e-dream]
- Does latent-action timing itself explain the gain once token count, masks and capacity are controlled? [e-latent-ablation]
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction requires the robotic pretraining mixture, Wan2.2 5B initialization, ALAM labels, semantic camera allocation, branch routing and staged attention masks. Missing details include mixture sizes/weights, optimizer settings, batch sizes, loss weights, numeric horizons, denoising schedules, gradient handling between Dream Forcing phases, GPU models/counts and software versions. e-pretraine-alame-sfte-dreame-efficiencye-setup
Reader-proposed checks: repeat the shared-checkpoint Dream Forcing comparison at matched steps and wall-clock budget, and test latent-action temporal alignment with controlled label shifts while holding capacity and masks fixed. These would separate conditioning robustness from additional compute and motion alignment from architectural changes. e-df-ablatione-latent-ablation
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Separate Dream Forcing's context benefit from its training cost
Reader-proposed, not performed: start from the same 50k SFT1 checkpoint and compare continued SFT1 with Dream Forcing on the same atomic-seen split and paired evaluation seeds. Run matched-additional-step and matched-wall-clock comparisons, logging conditioning-generation cost, success counts and inference settings. Separately, on held-out recorded trajectories, measure action-prediction error with ground-truth versus dreamed future contexts. A smaller error gap together with improved executed success would support conditioning robustness. If gains disappear after compute matching, the efficiency interpretation would weaken. Record the sampler and gradient handling; the ground-truth-future diagnostic is offline and is not a deployable control setting. e-df-ablatione-dreame-ambiguities
Check 2: Test whether latent-action timing carries the useful information
Reader-proposed, not performed: on RoboTwin Clean, keep the three-stage architecture, token counts, causal masks, zero dropout, training budget and split fixed. Compare correctly aligned motion-label conditioning, labels shifted by one control step within each trajectory, and temporally shuffled labels. Use held-out recorded trajectories for an offline oracle-label action-error diagnostic, applying the same transformations and excluding boundary transitions consistently. Separately measure closed-loop success using predicted latent actions, with corresponding conditioning transformations and no observed future frames. Compare success and contact-sensitive failures across repeated seeds. An advantage for aligned conditioning would support the temporal-bridge explanation; similar results after shuffling would weaken attribution of Table 7's gain to timing. e-latente-latent-ablatione-cascade
8.3 Reading coverage
Visual audit: Actually inspected all 33 rendered PDF pages: title and version (p. 1), contents (p. 2), introduction and problem setting (pp. 3–6), architecture and inference formulations (pp. 7–12), pretraining and supervised training (pp. 13–17), benchmark protocols and all experimental results (pp. 18–27), author contributions (p. 28), and the complete reference section (pp. 29–33). This includes Figures 1–13 and Tables 1–8. All six final original crops were individually viewed; Tables 7 and 8 use 300 DPI, and the other crops use 200 DPI. All nine text chunks were read individually. The reference pages verify the document ending, without treating cited works as separately inspected sources. No appendix is present; separate supplements remain unverified. The diagram/equation conditioning discrepancies, encoder-freezing inconsistency, Figure 1/Table 3 mismatch, Table 6 boldface discrepancy and real-world reporting inconsistencies remain explicit. No code was inspected and no experiments were reproduced.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract and title metadata (p. 1)
- Contents (p. 2)
- 1 Introduction (pp. 3–4)
- 2.1 Problem Setting and 2.2 Core Bottlenecks (pp. 4–6)
- 3.1 Architecture, 3.2 Latent Actions, 3.3 Dual-Level MoT, 3.4 Dream Forcing (pp. 7–12)
- 4.1 Data, 4.2 World Pretraining, 4.3 Latent Action Pretraining, 4.4 Progressive SFT, 4.5 Attention and Augmentation (pp. 13–17)
- 5.1 Setup, 5.2 Mobile Manipulation, 5.3 Manipulation, 5.4 Ablations, 5.5 Real-World Experiments (pp. 18–27)
- 6 Conclusion and Future Work (p. 27)
- 7 Contributions and acknowledgments (p. 28)
- References [1]–[82] (pp. 29–33)
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout. This acquisition limitation was addressed by visually inspecting all 33 PDF pages and all six final crops.
- Separate supplemental material availability has not been fully verified.
- Only the supplied PDF was reviewed. Linked code, project pages, cited works and external benchmark implementations were not inspected; no experiments were reproduced.
- Identity/version note: the exact title and identifier match. The PDF is arXiv:2607.00678v2, marked 6 July 2026, with a separate cover date of July 1, 2026. No earlier version was supplied, so revision changes cannot be established.
- The cover credits AMAP CV Lab and directs readers to Section 7. All 21 catalog author names occur among its author contributions; that section groups names by role rather than supplying an ordered byline. Metadata retains the group credit and lists verified individuals in order of first appearance across those roles.
- All nine supplied text chunks were read individually, including References [1]–[82]. All 33 PDF pages were also visually inspected. The PDF ends with references and contains no appendix.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e-identityPDF p. 1, title block and arXiv margin; p. 28, Section 7 Contributions
Exact title and identifier match; the artifact is v2 dated 6 July 2026 with July 1 cover date. The cover credits AMAP CV Lab / Alibaba Group. Section 7 provides all 21 catalog individuals as author contributors, separately from acknowledgments.
Go to primary source ↓e-problemPDF pp. 4–6, Sections 2.1–2.2, Equations (1)–(3)
Inputs are language, multi-view observations and histories. Horizon notation is subsequently abbreviated. The authors motivate temporal granularity, action heterogeneity and rollout-conditioning mismatches.
Go to primary source ↓e-cascadePDF p. 7, Section 3.1, Table 1 and Equations (4)–(6); p. 8, Figure 2 and Equation (7)
The Wan2.2-based model uses a 3D VAE and text conditioning, and factorizes clean generation into video, latent action and executable action. CFM trains velocity fields. Asymmetric masking prevents video prediction from attending to latent actions.
Go to primary source ↓e-latentPDF pp. 8–9, Section 3.2, Equations (8)–(9)
Frozen Em extracts frame-pair motion labels of dimension dm; multi-view tensors have shape H × Nc × dm. A CFM stream predicts latent actions using expanded visual conditioning.
Go to primary source ↓e-motPDF pp. 9–10, Section 3.3, Figure 3 and Equations (10)–(13)
Modalities explicitly share a Transformer trunk with distinct interfaces. Mobility/manipulation have dedicated FFNs and heads, coordinate through attention, share flow time and condition on each other's noisy actions. Figure 3 omits video and latent-action experts.
Go to primary source ↓e-dreamPDF pp. 11–12, Section 3.4, Figures 4–5 and Equations (14)–(15)
Dream Forcing replaces only the latest future conditioning with model predictions while history is grounded in observations. Phase A uses a teacher-forcing mask and Phase B consumes dreamed latents. The source mentions parallel single-pass generation and few-step denoising without exact schedules.
Go to primary source ↓e-pretrainPDF pp. 13–14, Sections 4.1–4.2, Equation (16)
Ten named data sources support robotic adaptation of Wan2.2 5B with full-parameter training. Four camera slots distinguish third-person/wrist views; missing views are zero-padded, attention-masked and excluded from loss.
Go to primary source ↓e-alamPDF pp. 14–15, Section 4.3, Figure 6 and Equations (17)–(19)
ALAM imposes additive and reversal consistency with reconstruction, perceptual and VQ losses. The retained encoder is explicitly frozen for offline labels after decoder and quantizer removal.
Go to primary source ↓e-sftPDF pp. 15–16, Section 4.4, Figure 7 and Equations (20)–(28)
SFT1 conditions downstream prediction on ground truth and sums three losses. SFT2 changes action conditioning to dreamed futures while retaining video and motion losses. Figure 7 specifies query/key visibility.
Go to primary source ↓e-efficiencyPDF p. 17, Section 4.5, Equation (29)
Sparse attention is packed into variable-length FlashAttention subproblems. The authors report approximately 5× combined forward/backward speedup over a FlexAttention-style baseline and describe offset-based latent augmentation, without hardware timings or numerical stride.
Go to primary source ↓e-setupPDF pp. 18–19, Section 5.1; p. 20, Section 5.3
Official benchmark protocols are asserted. RoboTwin covers 50 tasks in clean/randomized settings; success rates are standard metrics. Real evaluation covers five tasks and adds process score. The supplied setup lacks detailed uncertainty and implementation configurations.
Go to primary source ↓e-pretraining-resultsPDF p. 20, Table 2, ABot-M0.5, +Condensed Memory and Qwen-RobotManip rows; caption
Base average/atomic/composite-seen/composite-unseen are 40.4/75.9/38.3/2.7%; memory gives 46.6/79.4/48.3/7.9%. Qwen-RobotManip has 35.9% average and 14.9% composite-unseen. Memory details are deferred.
Go to primary source ↓e-targetPDF p. 20, Table 3, Target 100% and Target 10% blocks
Target 100% ABot has 70.6/44.3/45.6% by category, 54.2% average; Lingbot-VA 45.1%, Fast-WAM 43.5%, GR00T 43.7% average. Target 10% gives ABot 49.0/23.4/15.4%, 30.1% average, versus GR00T 21.0% average.
Go to primary source ↓e-robotwinPDF p. 21, Table 4, ABot-M0.5, Qwen-RobotManip and Fast-WAM rows
ABot clean/randomized/average: 94.00/94.20/94.10; Qwen-RobotManip average 93.85; Fast-WAM average 91.85. No uncertainty accompanies these rows.
Go to primary source ↓e-liberoPDF p. 22, Table 5, ABot-M0.5 and CORAL rows
ABot reports 100.0/99.8/99.4/98.4 and 99.4 average. CORAL reports 98.8 Long and 99.3 average. Missing baseline suite values remain dashes.
Go to primary source ↓e-libero-plusPDF p. 23, Table 6, caption, WAM and VLA blocks
Evaluation is zero-shot from LIBERO. ABot's seven categories are 70.5/87.4/88.6/94.0/89.7/75.5/85.2, total 83.4; ImageWAM total 83.1. VLA totals include ACoT-VLA 86.6, Qwen-RobotManip 89.0 and Qwen-RobotManip-Context 91.4. Noise boldface marks Cosmos-Policy 92.7 although ImageWAM reports 93.8.
Go to primary source ↓e-latent-ablationPDF pp. 21–22, Section 5.4 and Figure 9; p. 24, Table 7
RoboTwin Clean baseline is 87.60; 2-Stage Separate 90.86; channel concat 91.06; 3-Stage Separate with dropout 0.2 gives 91.06, with dropout 0 gives 94.00. The text attributes gains to independent tokenization and structured conditioning.
Go to primary source ↓e-mot-ablationPDF p. 22, Figure 10; p. 23, Effect of Action-Decoupled MoT
On a selected Composite-Seen subset, action-decoupled MoT scores 0.48 versus 0.34 for modal-level MoT. Video/action loss curves decrease faster; no direct gradient-conflict measurement or subset roster is supplied.
Go to primary source ↓e-df-ablationPDF p. 23, Effect of Dream Forcing; p. 24, Table 8
A shared 50k SFT1 warm start gives 67.55 atomic-seen success. Another 5k SFT1 gives 66.78, 10k gives 68.90, while 5k Dream Forcing gives 70.56. The text's compute interpretation is not supported by wall-clock measurements.
Go to primary source ↓e-pretrain-ablationPDF pp. 23–24, Effect of Pretraining and SFT; p. 24, Figure 11
Target 10% atomic-seen uses 16 training tasks and 50 sampled trajectories each. Robotic pretraining plus SFT scores 49.0 versus 17.8 for direct Wan2.2 SFT. Attention maps illustrate differing focus but are not causal interventions.
Go to primary source ↓e-realPDF pp. 25–26, Section 5.5 and Figures 12–13; p. 27, real-world results continuation
Piper single-arm setup uses 50 demonstrations per task. Peg Cylinder success/process: ABot 70/96, π0.5 50/90, FastWAM 30/77. Figure 12 includes Cup Stacking and shows Arrange Flower process score 88. No evaluation trial count or process-score rubric is given.
Go to primary source ↓e-overviewPDF p. 3, Figure 1 and caption; p. 20, Table 3; p. 25, Section 5.5
Overview radar gives Target 100% 53.0, while Table 3 gives 54.2. Overview caption calls the real tasks mobile manipulation, whereas the detailed physical experiment specifies a single arm without a mobile-base protocol.
Go to primary source ↓e-ambiguitiesPDF p. 8, Figure 2 and Section 3.2; p. 12, Figure 5/Equation (15); p. 15, Section 4.3; p. 16, Figure 7(c)/Equations (24)–(26); p. 19, Implementation Details
Encoder freezing conflicts with joint-fine-tuning wording. Figure 2 marks a predicted-feature path '+noise', whereas Figure 5 explicitly describes clean dreamed action conditions. Figure 7(c)'s dreamed motion queries attend to GT future video despite prose describing generated-future motion conditioning. Equation (24) retains GT histories while (25)–(26) place hats on them.
Go to primary source ↓e-futurePDF p. 25, Figure 12, Arrange Flower process-score bar; p. 27, Section 5.5 continuation and Section 6 Conclusion and Future Work
Real-result prose says process scores exceed 88%, although Figure 12 includes exactly 88%. Broader unstructured real-world mobile evaluation, scaling laws, long-term memory and edge inference optimization are future work.
Go to primary source ↓e-document-scopePDF p. 2, Contents; p. 28, Section 7; pp. 29–33, References [1]–[82] and end of document
The supplied PDF runs through model, training, experiments, conclusion and author contributions, followed by references through entry [82] on the final page. It contains no appendix; this does not establish the availability of separate supplements.
Go to primary source ↓8.5 Primary sources
ABot-M0.5: Unified Mobility-and-Manipulation World Action Model ↗
PDF · 15,253 extracted words
Source fingerprint
d55a02f731c97b1f8410389f627b49ccd7ad3aa7a12b535e46b2f2f3d6bd6fc8
