Hydra: A Navigation World Action Model with Discrete Latent Planning and Continuous Flow-Matching Execution

1. Paper overview

In one sentence: Hydra searches learned discrete visual, pose and action intents before continuous execution, trading expensive candidate rendering for latent costs whose uncertainty signals can miss semantic hazards. e02e03e07e08e09e12e16e18e21

Core contributions

• Source description

  A shared early-fusion transformer predicts visual, pose, and action intents through separate codebooks, with modality-specific continuous generative heads. e03e04

• Source description

  Discrete Latent Planning combines perturbed intent queries, restricted code sampling, and a cost incorporating goal progress, demonstration likelihood, visual uncertainty, and quantization error. e07e08

• Source description

  Physical deployment compares search-based navigation and externally guided path following. These are distinct inference modes with different guidance and computation requirements. e10e12e13

↗ Enlarge figure

How to read it. Read the four panels as differences in model interfaces, not as an experimental ranking. The teal blocks represent visual observations, green blocks poses, and yellow blocks actions. ViNT maps visual history and a goal toward future poses; NWM predicts an observation conditioned on context and pose. VertiFormer and Hydra both combine aligned action, pose and visual history into a shared state representation. Hydra’s distinguishing blocks are the three purple-bordered codebooks below its future intent. The diagram also allows future action or pose conditions to enter the decoder. Its bottom outputs remain continuous predictions after the discrete representation has been selected and decoded. e02e03e04e23

What it supports. Hydra combines forward-looking perception and control variables in one shared model, then quantizes their predicted intents into separate vocabularies. The codes are learned representations, not a hand-authored list of safe motor commands. This is the architectural basis for searching alternatives without rendering a full future image for every candidate.

Where the evidence stops. The comparison diagram summarizes interfaces and cannot establish which component causes a performance difference. Codebook membership constrains representation but does not certify physical feasibility, collision avoidance or cross-platform generalization on its own.

2. Motivation

2.1 The problem and the proposed response

2.2 What this reading follows

A world model can imagine what happens next, yet using it to evaluate many candidate actions may be too slow for navigation. Hydra puts a learned discrete vocabulary between prediction and execution. A shared model predicts visual, pose and action intents; a planner samples and scores alternatives in that representation; continuous heads decode the selected plan. The architecture and search diagrams explain where computation is saved. The physical planning table shows the reported operating point, while the uncertainty plot and cost ablation reveal the assumptions behind obstacle avoidance. Read those diagnostics together: representation mismatch can warn about unfamiliar futures, but it is neither a calibrated collision probability nor a guarantee that the model represents every hazard. e02e03e07e08e09e12e16e18e21

3. Research context

We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.

3.1 Evidence-based assessment

Conflicts with the recorded classification

This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.

4. Problem formulation

4.1 Inputs and outputs

4.2 Equations and their role

5. Method in detail

5.1 Learn discrete intent without making motor commands discrete

Source description

Hydra first aligns images, odometric poses and executed velocity commands in time. A frozen visual VAE supplies image features; Fourier-mapped pose and action features are broadcast and added before sequence modeling. The shared encoder summarizes history, and the decoder predicts future intent under action, pose or masked conditions. Separate codebooks quantize visual, pose and action representations into vocabularies of 2,048, 64 and 64 entries. The continuous heads then learn rectified flow from Gaussian noise to each target modality, conditioned on those codes. A deterministic anchoring objective trains concurrently to stabilize representation learning. The important distinction is that the planner’s search representation is discrete while the resulting pose and command trajectories remain continuous. Discretization limits the candidate representation; it does not replace the robot’s continuous control space with predefined symbolic actions. e02e03e04e05e06

↗ Enlarge figure

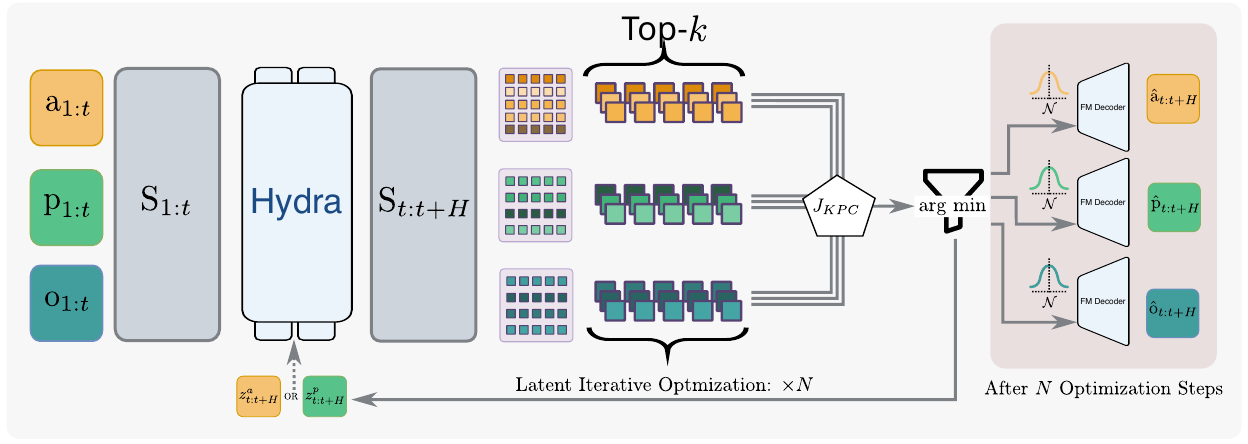

How to read it. Start at the left with aligned action, pose and image history compressed into S. The transformer predicts future intent, which is mapped into the three colored vocabularies. The top-k bracket marks candidate retrieval and sampling. Candidate sequences meet at the KPC cost, and the argmin selects the best one before the lower feedback arrow begins another optimization iteration. After the configured iterations, the right-hand flow-matching heads transform Gaussian samples into continuous predictions conditioned on the selected codes. The method caches the observation encoding across this loop. Its practical saving is avoiding repeated pixel-level generation during candidate evaluation, rather than eliminating every form of decoding. e07e08e09e12e24

What it supports. The planner can explore discrete candidates while retaining continuous action output. The reported physical configuration uses three search iterations, eighteen samples and a twelve-step horizon. Delaying visual generation until after selection reduces an expensive part of candidate evaluation, while cached history encoding avoids recomputing the same observation context each iteration.

Where the evidence stops. The geometric goal term still needs a pose trajectory, so literal claims that no candidate decoding occurs are too strong. The quality of the final action also depends on the continuous decoder and the search prior, not only the selected code indices.

5.4 Training and inference

During training

During inference

5.5 Implementation flow

1. Encode aligned observation history

   A frozen visual VAE supplies image latents. Fourier-mapped poses and actions are broadcast and added to visual features before sequence modeling. Learnable prediction tokens let the encoder compress history into future conditioning tokens. e02e03e06

2. Predict and quantize intents

   The shared transformer decoder combines cached context with future conditions or masks. Its outputs enter separate visual, pose, and action codebooks containing 2,048, 64, and 64 entries respectively. These are learned representation codes rather than a predefined grid of motor commands. e03

3. Explore alternative trajectories

   Masked future conditions initialize a scene-conditioned expert prior. Subsequent iterations perturb candidate queries with temporally smoothed Gaussian noise, then sample among nearby codes using independently smoothed, annealed Gumbel noise. Query perturbations diversify trajectory shape; code sampling diversifies its discretization. The algorithm retains the best candidate across iterations. e07

4. Score goal progress and predicted safety

   KPC combines geometric goal distance, visual-goal latent similarity, negative log-likelihood under the expert prior, visual-token entropy, and visual quantization error. The last two penalize uncertain or poorly represented futures. Geometric distance requires pose decoding, so the method avoids per-candidate pixel rendering rather than literally all decoding. e08e07

5. Decode and execute

   For DLP, the selected intent is decoded with flow matching; overlapping predictions are blended through temporal ensembling. Image generation is available for prediction but is unnecessary for candidate safety scoring. Appendix E.2 separately specifies deterministic pose decoding for both selection and execution in vocabulary-based local guidance. e09e10

6. Experiments & results

Hydra learns a shared representation of navigation images, poses, and motor commands, then searches over quantized intents before producing continuous motion. Its central contribution is the combination of learned candidate generation and visual-latent safety scoring, which avoids rendering every imagined future. The physical experiments support efficient short-range planning on the tested setups, while long-distance failures expose limited goal-directed search convergence. The reported comparison used workstation inference, so onboard performance remains unestablished.

6.1 Read the original evidence

↗ Enlarge figure

How to read it. Begin with the search-budget columns before comparing the success columns. NWM and Hydra each use three iterations, eighteen samples and a twelve-step horizon; VertiFormer uses one iteration with the same sample count and horizon. Planning time is therefore not a model-size comparison alone. The final three columns contain counts out of ten trials, not percentages. Hydra records ten unobstructed successes and eight each for obstructed and corner-turn cases. The source protocol uses physical navigation with a nearby geometric goal, a time limit and collision-free completion. Inference is offloaded to an A5000 workstation, so these times should be read as that reported system configuration. e12

What it supports. Hydra reports approximately 0.9 seconds per plan and 10/10, 8/10 and 8/10 successes across the three settings. VertiFormer is faster at approximately 0.7 seconds but succeeds only in four unobstructed trials; NWM exceeds 500 seconds and records no successes. This is a concrete operating-point comparison of complete planning systems.

Where the evidence stops. The rows change model, search method, costs and sometimes iteration count, so they do not isolate discretization as the sole cause. Ten trials per setting are limited, and workstation offloading does not demonstrate the same latency on an onboard robot computer.

6.2 Results and evaluation conditions

6.3 Ablations and diagnostic examples

Read component removals and qualitative examples within their stated evaluation conditions.

↗ Enlarge figure

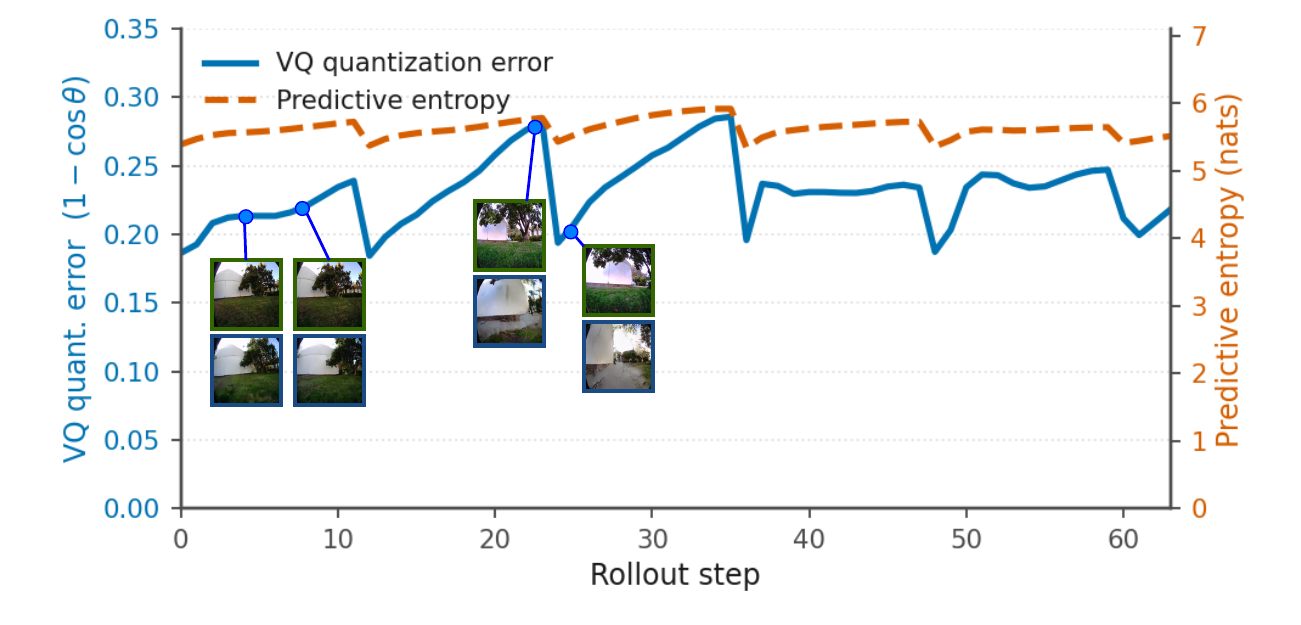

How to read it. The horizontal axis is rollout step. Read the solid blue curve against the left scale, which measures visual quantization error as one minus cosine similarity. Read the dashed orange curve against the right scale in nats; their heights cannot be compared numerically because the axes differ. The paired thumbnails juxtapose actual observations and imagined views at selected steps. The surrounding analysis identifies an early vegetation-related warning and a later obstacle encounter, followed by a drop after the model imagines free pavement. Thus the useful question is not simply whether a curve rises, but whether the represented scene still contains the relevant physical obstacle. e18e21e25

What it supports. The diagnostic illustrates both the appeal and weakness of latent safety costs. Unfamiliar futures can increase representation error or entropy, giving the planner a signal to avoid them. But a confident hallucination can reduce that signal while the real hazard remains. The plot therefore explains a failure mechanism rather than validating a reliable collision detector.

Where the evidence stops. This is one illustrative rollout with dual axes, not a detection benchmark or a calibrated probability curve. The paper also reports false positives from visual texture and semantic omissions such as pedestrians; low uncertainty must not be equated with safety.

↗ Enlarge figure

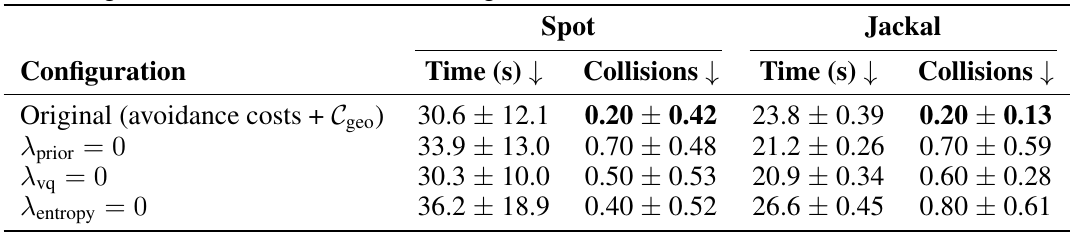

How to read it. Compare each ablated row with the Original row within the same robot. The first pair of columns belongs to Spot and the second to Jackal. Setting a lambda to zero removes that cost while retaining the other terms; all rows retain geometric goal progress. The original collision measure is 0.20 for both robots. Removing the expert-prior term raises it to 0.70 for each, while removing quantization error or entropy also increases it. Timing does not move uniformly: some ablations are faster despite more collisions. The experiment uses ten trials per configuration, with blind-corner and frontal-obstacle scenarios, and disables the visual-goal term. e16e18e21

What it supports. The reported ablation supports using several complementary avoidance terms rather than assuming one uncertainty measure is sufficient. Every single-term removal increases the collision measure in both robot settings. The table also shows that shorter completion time can accompany worse collision outcomes, making speed alone an inadequate objective for this comparison.

Where the evidence stops. The displayed collision quantities and plus/minus values should be retained as reported, not converted into percentages or confidence intervals without a defined denominator and uncertainty convention. These limited scenarios do not establish coverage of semantic hazards or dynamic people.

7. Analysis & limitations

7.1 What the evidence leaves open

7.2 Questions for discussion

1. Can quantization error distinguish unsafe geometry from harmless texture under controlled appearance changes? [e18]
2. Would mixed goal-conditioned and unbiased seeds recover early turns without collapsing search diversity? [e19]
3. How much of the planning advantage remains when candidate budgets, cost information, and wall-clock limits are matched? [e12]
4. Does flow decoding improve executed motion enough to justify its cost over the deterministic anchoring head? [e09, e10]

8. Reproducibility audit

8.1 Requirements and known gaps

8.2 Proposed reproduction checks

The following checks are proposals motivated by the paper. They have not been run as part of this reading.

8.3 Reading coverage

8.4 Traceable evidence
