Toward Unified Robot Learning: Bridging Representation, Vision-Language-Action, and World Models
1. Paper overview
In one sentence: The survey argues that reliable robot learning depends on useful feedback among representations, policies and predictive models, while its diagnostic shows how plausible video can lose hidden objects and physical constraints. identityintegrationevaluationdiagnostic-setupdiagnostic-objectdiagnostic-physics
| At a glance | What to know |
|---|---|
| Research problem | Author claim A robot may recognize an object and imitate an appropriate-looking movement while losing hidden state or predicting an impossible contact. The authors frame uncertainty quantification, out-of-distribution generalization, cross-embodiment transfer, long-context understanding and long-horizon planning as failures of coupling between perception, action and prediction. Their central question is what information must cross these interfaces for reliable decision-making under partial observability. identitystate-policyintegrationevaluation |
| Core mechanism | Source description A representative literature synthesis emphasizes approximately 2019–2026 while retaining foundations. It uses targeted searches and explicit topical inclusion criteria, rather than claiming exhaustive coverage. The organizing axes concern functional interfaces, not competing imitation-learning and reinforcement-learning training paradigms. survey-scopestate-policyintegration |
| A key reported result | Object permanence in CALVIN future prediction: Figure 8's upper pair shows the predicted sequence failing to account for the hidden object that becomes visible in ground truth. Qualitative GT–WM frame comparison; no numerical metric or uncertainty reported.. Authors' small diagnostic: Stable Video Diffusion fine-tuned on CALVIN following Guo et al. (2025b); an object starts occluded behind the robot. Dataset split and number of evaluation episodes are not reported. Ground-truth observations versus the fine-tuned world model; no competing model baseline. Evidence of a failure in the shown example. It does not quantify failure prevalence or establish that a memory-based or integrated alternative would solve it. diagnostic-setupdiagnostic-objectcalvin-benchmark |
| Reading caution | Reader analysis The broad claim that integration is necessary for general-purpose robotics is an organizing argument and research agenda. The diagnostic does not compare integrated and disconnected systems. Table 5 lists potential applications and probable limitations, not measured rankings under a common protocol. model-comparisondiagnostic-setupevaluation |
Core contributions
- Source description
A representative literature synthesis emphasizes approximately 2019–2026 while retaining foundations. It uses targeted searches and explicit topical inclusion criteria, rather than claiming exhaustive coverage. The organizing axes concern functional interfaces, not competing imitation-learning and reinforcement-learning training paradigms. survey-scopestate-policyintegration
- Source description
The integration taxonomy separates representation–policy, representation–world, policy–world and triadic coupling, alongside task/embodiment abstraction and uncertainty-aware integration. Its diagnostic map connects those forms to concrete system failures and candidate evaluation criteria. integrationevaluation
- Source description
An original, explicitly small diagnostic fine-tunes Stable Video Diffusion on CALVIN and visualizes object-permanence and physical-constraint failures. It motivates the survey's argument without serving as a comprehensive model comparison. diagnostic-setupdiagnostic-objectdiagnostic-physics
Table 2. Integration is defined by information and feedback crossing functional boundaries. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each row from the three checkmark columns into the Coupling Principle column. Representation–Policy makes perception answer to action requirements; Representation–World makes the state useful for predicting evolution. Policy–World requires predicted futures to influence generation, evaluation or refinement of actions. The Triadic row involves all three, through shared states or feedback. The last two rows add a purpose: separating task intent from embodiment-specific control, or connecting reliability estimates to action and prediction. The checkmarks identify participating functions, while the realization column names possible mechanisms. They do not count networks or specify which parameters must be shared. integrationevaluation
What it supports. The table gives a practical way to audit a system diagram: find the signal that changes another component's behavior. A modular controller can meet this definition when forecasts or beliefs affect its decisions. Simply placing perception, a VLA and a world model in the same pipeline does not demonstrate the coupling described here.
Where the evidence stops. The Enables column records intended capabilities, not measured gains or safety guarantees. Triadic integration is a functional category; it is insufficient evidence for assigning one shared neural backbone to a particular implementation.
2. Motivation
2.1 The problem and the proposed response
A robot may recognize an object and imitate an appropriate-looking movement while losing hidden state or predicting an impossible contact. The authors frame uncertainty quantification, out-of-distribution generalization, cross-embodiment transfer, long-context understanding and long-horizon planning as failures of coupling between perception, action and prediction. Their central question is what information must cross these interfaces for reliable decision-making under partial observability. identitystate-policyintegrationevaluation
2.2 What this reading follows
A robot's internal representation, action policy and prediction model answer different questions: what is present, what to do, and what will happen. This survey organizes recent robot learning around the interfaces between those questions. Its contribution is a framework for identifying missing information and feedback, rather than a single new control architecture. Read the conceptual diagrams as design choices, the tables as the authors' synthesis, and the CALVIN rollout as a limited original diagnostic. Together they motivate a demanding test for integration: do shared states, predictions or uncertainty estimates improve actual decisions when observations are incomplete or actions leave the training distribution? identityintegrationevaluationdiagnostic-setupdiagnostic-objectdiagnostic-physics
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Not assigned |
| Architecture | Not assigned |
| Prediction paradigm | Not assigned |
| Quadrant | Not assigned |
This table preserves the labels recorded at reading time. The current major category is Related resources. View the current classification.
3.1 Evidence-based assessment
Classification assessment not applicable
This resource surveys multiple architectures and prediction mechanisms; it is not a single system to place in a One Model/Multiple Models or joint-prediction/inverse-dynamics quadrant. The catalog's unassigned snapshot is preserved. Table 2 explicitly permits modular integration, and §6.3.1 spans joint streams and inverse-dynamics mechanisms, so joint training alone would not justify a One Model label. identityintegrationwamsmodel-comparison
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Start with the state the robot cannot directly see
The survey's starting point is partial observability. An image is an observation, while the relevant environment state may also include an object hidden behind the robot or the consequences of an earlier interaction. History, a learned representation and a belief distribution are therefore different ways of supplying information to a policy. Long-context understanding asks what the system must remember about the past; long-horizon prediction asks what it must anticipate about the future. Figure 3 organizes ways of representing that information, but its progression does not guarantee object permanence. The CALVIN diagnostic makes the distinction concrete: a scene can continue looking coherent while the model loses an initially invisible entity. A richer visual encoder is only one part of a solution if the state needed for interaction must persist across time. state-policycontext-horizonrepresentationsdiagnostic-object

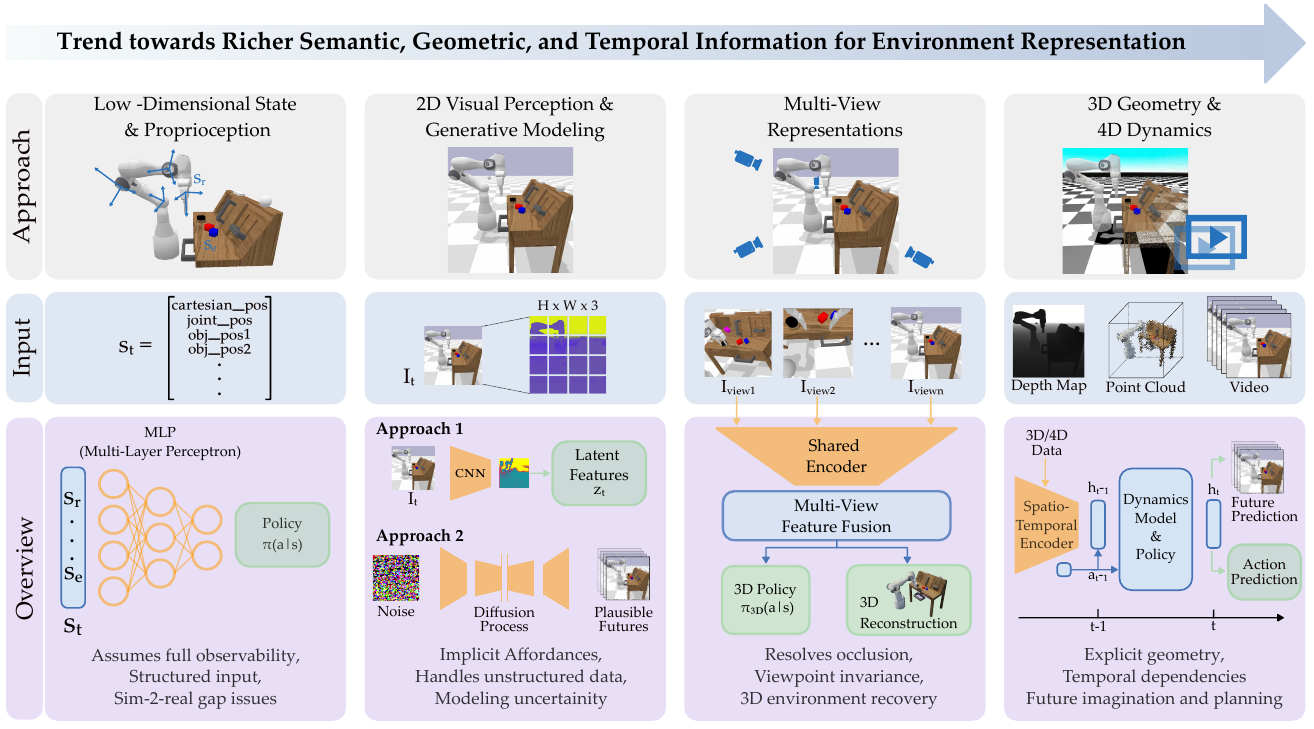

Figure 3. Choose representations by the state information that control and prediction need. Original paper, p. 14 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow each column vertically from the sensing or state description to its processing sketch. The first column supplies structured robot and object variables to a multilayer perceptron policy. The second illustrates image features and a separate generative route to plausible futures. The multi-view column sends images through a shared encoder, combines features and branches toward a policy or reconstruction. The final column adds geometry and temporal processing, with action and history information accompanying dynamics and policy prediction. The broad arrow across the top summarizes increasing semantic, geometric and temporal information, rather than a required sequence of upgrades for every robot. representationsstate-policy
What it supports. The useful progression is from describing the visible scene toward preserving variables needed for future interaction. Multiple views can reduce viewpoint ambiguity, while temporal representations address evolution over time. The survey's accompanying discussion makes task relevance the criterion: richer input only helps integration when its information is usable by control and prediction.
Where the evidence stops. This is a conceptual comparison, not a benchmark ranking. Figure 3's strong capability labels are qualified by Table 4: support depends on architecture, sensing and task assumptions. More geometry alone does not establish persistent beliefs about invisible objects.
5.2 Separate generating actions from predicting their consequences
A VLA policy produces controls from observations and context. Its generative action head can express several acceptable movements, yet that diversity alone does not say which movement is reliable. A language-conditioned world model instead produces a plausible task future; an inverse dynamics model or action decoder may then translate that future into commands. An action-conditioned world model reverses the question by taking proposed controls and forecasting their consequences. Those forecasts can support policy training, candidate evaluation or runtime planning. The WAM subsection reviews attempts to tighten this relationship, including autoregressive action/frame prediction and interacting dual streams. These are distinct mechanisms rather than interchangeable labels for one architecture. When reading a system, identify both the prediction target and the path by which that prediction can affect an action. vla-familiesaction-generationuncertaintyconditioningworld-model-interfacewamsworld-model-use

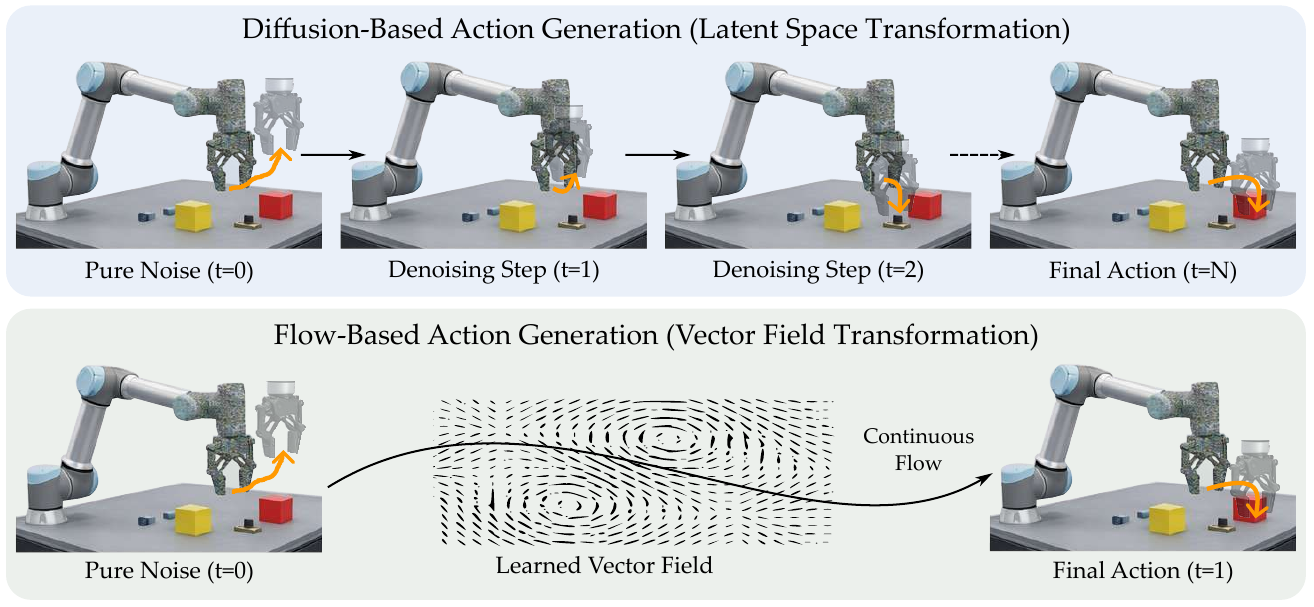

Figure 5. Diffusion and flow heads offer different sampling routes for multimodal actions. Original paper, p. 21 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the upper panel from Pure Noise through the two illustrated denoising stages to Final Action. The translucent gripper poses and orange arrows depict candidate actions being refined; this is not a measured execution trace. In the lower panel, the drawn vector field connects an initial sample to an action through Continuous Flow. The labels t=0, t=1 and t=N describe the illustration's generation process, not seconds of robot motion. Section 5.2 places these heads after task-conditioned vision-language representations, and §5.2.2 discusses adjusting integration effort to the complexity of the action distribution. vla-familiesaction-generationuncertainty
What it supports. The motivation is to retain distinct plausible behaviors instead of averaging demonstrations into an unsuitable movement. Diffusion emphasizes iterative refinement; flow matching offers a route to fewer function evaluations in the surveyed examples. Neither panel establishes real-time control speed, reliable collision avoidance or calibrated confidence for a deployed policy.
Where the evidence stops. The flow cartoon draws a curved path, while §5.2.2 describes straight-line paths; it is not a literal solver specification. Its t=1 endpoint does not establish one function evaluation. The text itself discusses adaptive numbers of integration steps.
5.3 Treat integration as a hypothesis to test
Reader analysis: the strongest use of the survey's framework is to turn a proposed connection into a falsifiable behavioral claim. Table 2 says what can be coupled; Table 6 says what should improve. A shared representation might preserve occluded objects, a rollout might reject an unsafe action, or calibrated uncertainty might trigger a useful intervention. However, Figure 8 supplies only failure examples from one diagnostic, without an integrated alternative that repairs them. It therefore motivates these hypotheses rather than confirming them. Evaluation should distinguish prediction accuracy, action ranking and executed task performance. It should also account for the extra processing cost of memory, sampling or planning. Otherwise a system may appear more integrated while its added information never changes decisions, or arrives too late to help. integrationdiagnostic-setupdiagnostic-objectdiagnostic-physicsevaluationuncertaintyfuture-directions

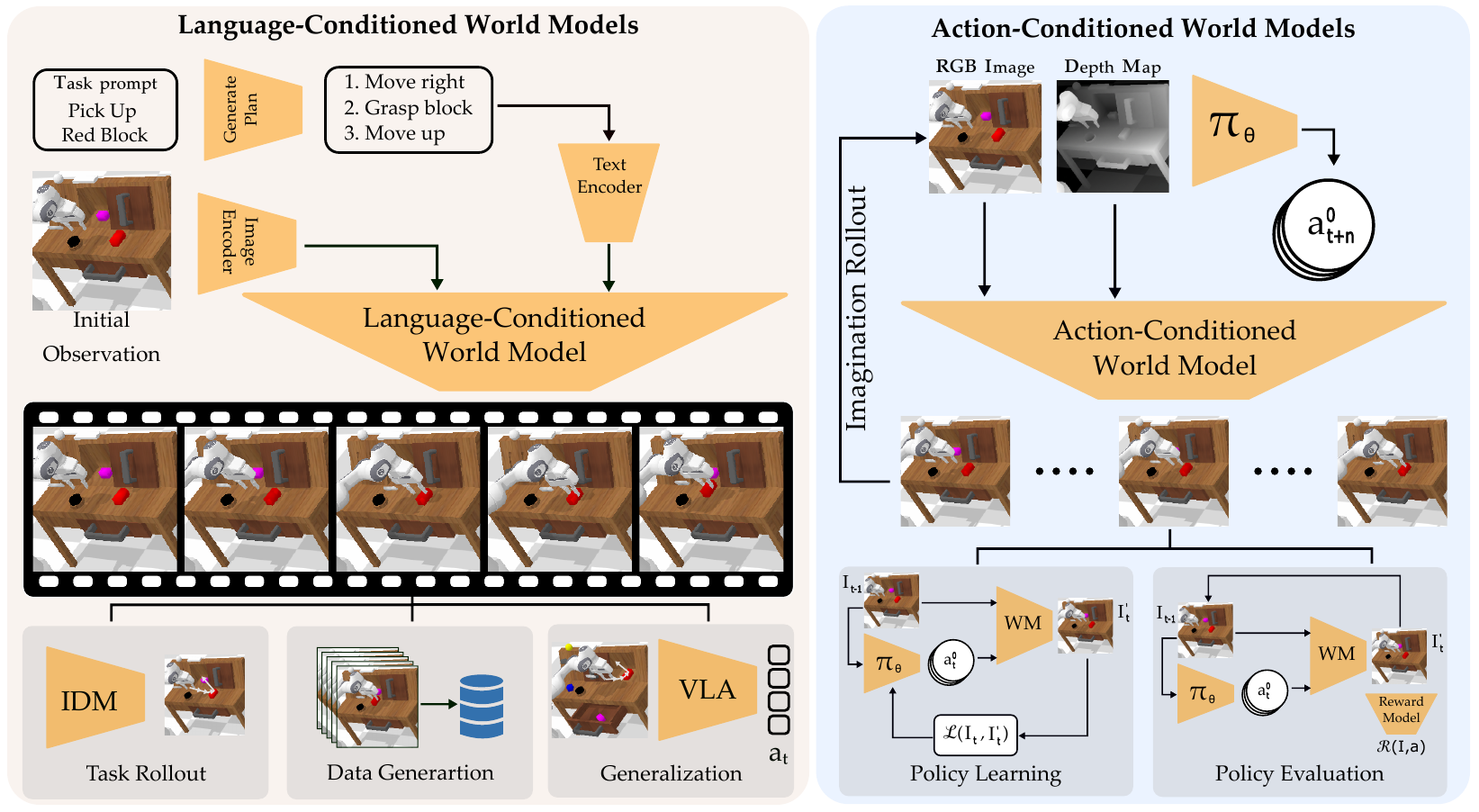

Figure 6. Trace the connection from an imagined future to a control decision. Original paper, p. 27 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Begin on the left with the red-block instruction and initial image. Text and image representations feed imagined video, whose downstream branches illustrate inverse dynamics, data generation and VLA guidance. On the right, read the lower insets closely: the policy produces actions that enter the world model with observations. One inset returns a prediction-comparison loss toward policy learning; the other supplies a reward-model evaluation. The larger rollout sketch illustrates feeding imagined observations forward. These are different uses of prediction, not one mandatory algorithm. Section 6 distinguishes task-oriented latent dynamics from visually grounded generation by their coupling to control, not simply by whether a latent space is used. conditioninggeneric-world-modelworld-model-interfaceworld-model-use
What it supports. Language conditioning proposes a future consistent with an instruction. Action conditioning asks what specific controls will cause, making it useful for comparing interventions. Both routes still need an explicit connection to action selection or learning. The graphic shows possible interfaces; it does not demonstrate that any generated movement is feasible.
Where the evidence stops. The upper-right action stack has no visible arrow into the large world-model block. The lower insets and §6.3 explicitly supply that dependency, so the overview is incomplete as a computation graph. No missing connection has been drawn into this faithful crop.
5.4 Training and inference
During training
The background describes imitation learning as maximizing demonstrated-action likelihood, while reinforcement learning optimizes cumulative reward. Offline learning uses a fixed behavior dataset; model-based learning can use imagined rollouts. These are surveyed alternatives, not stages of a newly proposed universal algorithm. state-policy
The generic world-model formulation combines observation reconstruction with a KL transition-alignment term. It is schematic: the text does not operationally specify access to the stated ground-truth latent transition distribution. It should not be treated as a complete implementable objective shared by all surveyed models. generic-world-model
For the original diagnostic, the stated recipe is Stable Video Diffusion fine-tuning on CALVIN following Guo et al. (2025b). The survey does not supply a diagnostic-specific split, checkpoint identifier, optimizer schedule, frozen-module list or compute configuration. diagnostic-setup
During inference
Language-conditioned generation can feed imagined video to an action decoder or inverse dynamics model. Action-conditioned rollouts can instead score or improve candidate policies. Figure 6 illustrates these routes; its upper action stack lacks a visible arrow into the large world-model block, although the lower insets and §6.3 explicitly establish that dependency. conditioningworld-model-interface
Training with future prediction does not by itself establish runtime planning. The survey separately discusses world models used for learning and those queried during execution, and warns that model errors can shape the selected behavior. Hierarchical planning likewise needs feasible low-level execution and timely feedback. world-model-usefuture-directions
5.5 Implementation flow
- Represent the information available to the robot
The survey distinguishes hidden environment state from observations, interaction history, learned latent representations and beliefs. Figure 3 progresses from structured state to visual, multi-view and spatiotemporal inputs. Geometry and temporal structure can support control, but Table 4 explicitly treats capabilities as typical usage rather than guarantees. state-policyrepresentations
- Translate representations into executable actions
End-to-end VLAs directly map multimodal inputs to controls. Generative-head architectures pass task-conditioned VLM embeddings to a specialized action model; hierarchical VLAs first produce subgoals or reasoning intermediates. Diffusion and flow heads represent multiple plausible behaviors, addressing the mode-averaging example without automatically calibrating action reliability. vla-familiesaction-generationuncertainty
- Distinguish desired futures from action consequences
A generic world model encodes history, predicts conditioned latent evolution and optionally decodes observations. Language-conditioned prediction imagines task-consistent futures; action-conditioned prediction evaluates specific proposed controls. Video-based execution still needs an inverse dynamics model, action decoder, policy conditioning or rollout evaluation. Prediction alone does not execute an action. generic-world-modelconditioningworld-model-interface
- Locate joint prediction precisely
The WAM subsection surveys autoregressive action/frame generation, dual streams with cross-attention, and jointly trained inverse-dynamics routes. These mechanisms are different. Its broad WAM grouping should not be read as proof that every listed system has one shared prediction backbone or the same inference-time control loop. wamsmodel-comparison
- Ask whether prediction changes decisions
Policy optimization in imagined experience, runtime planning, model predictive control and safety filtering are distinct uses. The authors recommend evaluating integration through calibration, intervention quality, occlusion recovery, transfer, rollout consistency and constraint satisfaction, instead of merely counting connected modules. world-model-useevaluation
6. Experiments & results
This survey organizes robot learning around representations that encode the environment, VLA policies that generate actions, and world models that predict consequences. Its useful contribution is a vocabulary for tracing how information and feedback cross those interfaces. Integration can remain modular; the authors argue that its value should be demonstrated through improved behavior under uncertainty, distribution shift and temporal dependencies. A small original CALVIN video-prediction diagnostic illustrates hidden-object and collision failures, but supplies no quantitative proof that a unified architecture resolves them.
The source is a representative survey with descriptive tables and one small qualitative CALVIN diagnostic. It contains no original quantitative robot-performance comparison table or controlled mechanism ablation. Figure 7 counts papers rather than experimental outcomes, and Table 5 summarizes potential uses and limitations rather than common-protocol scores. This edition therefore uses original conceptual figures, integration tables and Figure 8's genuine diagnostic. The diagnostic map appears in the ablation grouping solely as a guide to proposed comparisons; it is not an ablation result. survey-scopemodel-comparisonliterature-trenddiagnostic-setupevaluation
6.1 Read the original evidence

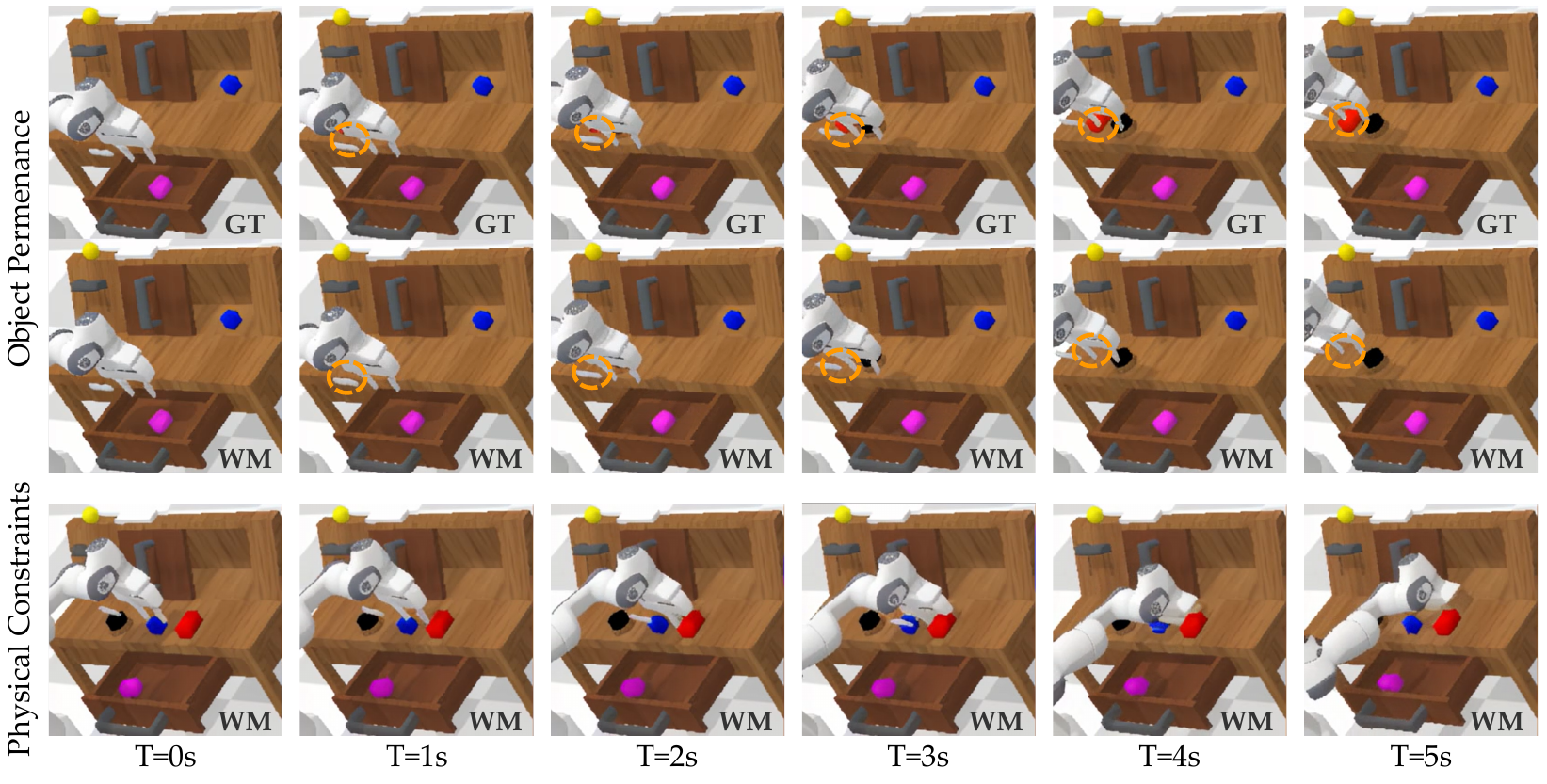

Figure 8. An original diagnostic separates attractive scene continuation from faithful hidden-state prediction. Original paper, p. 33 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Compare the top GT row with the WM row directly beneath it, moving left to right across the labeled times from zero to five seconds. The orange circles locate the object-permanence comparison: ground truth reveals the initially occluded object near the gripper, while the predicted sequence fails to account for it. Then inspect the bottom row separately. Every frame there is marked WM; there is no corresponding ground-truth row. The authors describe novel action conditions producing a robot arm that passes through the table. Their accompanying paragraph identifies the model as Stable Video Diffusion fine-tuned on CALVIN following Guo et al. (2025b). diagnostic-setupdiagnostic-objectdiagnostic-physicscalvin-benchmark
What it supports. The shown predictions fail in two control-relevant ways: a hidden entity is not preserved and a novel interaction violates a physical boundary. These examples motivate checking state and contact fidelity alongside image quality. They do not show a policy successfully executing generated actions, nor do they measure the prevalence of either failure.
Where the evidence stops. This is a small qualitative diagnostic, not an ablation or aggregate benchmark. The source omits episode counts, split, uncertainty, competing models and exact novel actions. Selected frames cannot establish continuous-video behavior or physical-robot execution.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Object permanence in CALVIN future prediction Authors' small diagnostic: Stable Video Diffusion fine-tuned on CALVIN following Guo et al. (2025b); an object starts occluded behind the robot. Dataset split and number of evaluation episodes are not reported. | Figure 8's upper pair shows the predicted sequence failing to account for the hidden object that becomes visible in ground truth. Qualitative GT–WM frame comparison; no numerical metric or uncertainty reported. | Ground-truth observations versus the fine-tuned world model; no competing model baseline. Evidence of a failure in the shown example. It does not quantify failure prevalence or establish that a memory-based or integrated alternative would solve it. diagnostic-setupdiagnostic-objectcalvin-benchmark |
| Physical constraints under novel CALVIN action conditions Same diagnostic model; action conditions not represented in its training dataset. Figure 8 shows selected rollout frames labeled T=0s through T=5s. | The authors identify the predicted robot arm passing through the table. Qualitative physical plausibility; no collision rate, task-success rate or confidence interval. | The bottom row contains only WM frames; no matched ground-truth collision rollout or ablated variant is shown. This is an imagined constraint violation, not an observed physical-robot execution. The example supports testing action-effect fidelity; it does not establish universal failure of generative world models. diagnostic-setupdiagnostic-physicscalvin-benchmark |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

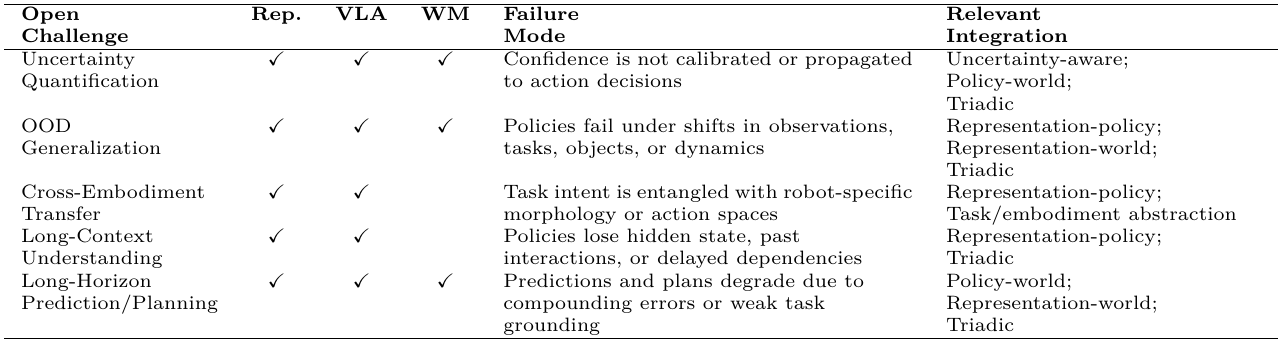

Table 6. Turn the taxonomy into falsifiable questions about system behavior. Original paper, p. 35 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read a challenge, then its Failure Mode, before considering the suggested integration types. Uncertainty concerns whether confidence is calibrated and reaches action decisions. Distribution shift concerns changes in observations, tasks, objects or dynamics. Cross-embodiment transfer asks whether intent remains entangled with robot-specific control. Long context concerns lost hidden state and delayed dependencies; long horizon concerns accumulated prediction or planning errors. The checkmarks identify the most directly implicated functions, not all functions that could help. For example, the long-context row marks representation and VLA but still lists triadic integration as a relevant option. This is compatible with world-model support being useful without defining that challenge. integrationcontext-horizonevaluation
What it supports. The table turns an architectural discussion into a set of evaluation targets. A proposed coupling should improve the associated failure mode: retained hidden state, feasible transfer, calibrated intervention or consistent long-horizon behavior. Section 7 supplies such criteria, giving readers a basis for designing controlled comparisons rather than rewarding a system merely for containing more modules.
Where the evidence stops. The table is a diagnostic map, not a performed ablation. Its suggested remedies are not causally isolated or validated in a shared experiment. Blank checkmark cells do not establish that the omitted component is irrelevant to the challenge.
7. Analysis & limitations
7.1 What the evidence leaves open
The broad claim that integration is necessary for general-purpose robotics is an organizing argument and research agenda. The diagnostic does not compare integrated and disconnected systems. Table 5 lists potential applications and probable limitations, not measured rankings under a common protocol. model-comparisondiagnostic-setupevaluation
The literature search is representative, with venues, keywords and topical criteria described, but no fully enumerated screening process. Figure 7 plots publication counts, not control quality. Its trend should not be mistaken for quantitative evidence that one architecture is superior. survey-scopeliterature-trend
Richer geometry and longer memory introduce processing costs; multimodal action samples are not automatically calibrated confidence estimates. General action abstractions must retain enough physical detail for embodiment-specific execution. These unresolved tradeoffs remain even when modules share information. representationsuncertaintywamsfuture-directions
7.2 Questions for discussion
- What control-relevant hidden state must survive an occlusion?
- Does a future-prediction loss improve execution when no rollout is queried at runtime?
- Which action abstraction transfers across embodiments without hiding contact constraints?
8. Reproducibility audit
8.1 Requirements and known gaps
Recreating the diagnostic requires the CALVIN data and the exact Stable Video Diffusion adaptation referenced in the paper, including observation history, action conditioning and rollout settings. The supplied survey leaves dataset partition, exact occlusion initializations, novel action values, training duration, seeds, hardware and checkpoint unspecified. A reconstruction would need to declare those choices rather than claim exact reproduction. diagnostic-setupdiagnostic-objectdiagnostic-physics
Proposed checks should separately test persistent hidden-state prediction and whether predictive feedback changes control. Hold data, initial conditions and inference budgets fixed; compare visual plausibility with object-state accuracy, constraint violations and task outcomes. This operationalizes the paper's evaluation criteria without treating attractive video or a shared architecture as sufficient evidence. context-horizondiagnostic-objectdiagnostic-physicsevaluation
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Proposed check: isolate memory from hidden-state ambiguity
Reconstruct the CALVIN occlusion scenario with paired histories in which an object is first visible and then occluded, plus an initially occluded condition matching the paper's description. Compare the same predictor with its informative history retained, masked or shuffled, holding training data, model size, action sequences and sampling budget fixed. Include matched no-object scenes and visible-object controls. Measure object presence/location after reveal and report errors separately for each condition across seeds. A selective benefit from correct history would support temporal-state use. Failure only when the object was never observable would expose an ambiguity that cannot be resolved from the initial image alone. This is a proposed diagnostic extension, not a reproduction already performed. state-policycontext-horizondiagnostic-setupdiagnostic-objectcalvin-benchmark
Check 2: Proposed check: test whether action-conditioned feedback helps control
In CALVIN simulation, generate one fixed candidate-action set for each initial state, including ordinary actions and actions directed toward the table boundary. Compare the same policy with world-model ranking enabled, ranking disconnected, and action inputs to the ranking model shuffled. Keep candidate count, rollout horizon and inference budget matched. Evaluate selected actions in the simulator and record constraint violations, task success and prediction-to-outcome ranking agreement; report video quality separately. Useful policy–world coupling should improve constraint-aware selection, and shuffled actions should degrade it. Unchanged rankings or persistently unsafe choices would challenge the claim that the predictions carry actionable consequences. The survey's exact novel actions and checkpoint would first need to be resolved for an exact replication. conditioningworld-model-interfaceworld-model-usediagnostic-setupdiagnostic-physicsevaluationcalvin-benchmark
8.3 Reading coverage
Visual audit: The title/author page and all pages cited for retained method, training, evaluation, result and reproduction details were visually inspected. The pass included Figures 3–8, Tables 1–6, and the six final original crops. Figure 6's missing overview action arrow and Figure 5's schematic flow path are explicitly discussed. Full source text, including references, was read; Figures 1–2 and Table 7 were not visually inspected. There is no appendix in the supplied PDF. Separate supplement availability is unverified, and no cited external study or continuous video was inspected.
PDF pages inspected for this edition: 1, 4, 6, 7, 9, 12, 13, 14, 17, 18, 19, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 38, 39. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Title, author affiliations and abstract (p. 1)
- §1 Introduction and literature-selection scope (pp. 2–5)
- §2 Background and integration taxonomy (pp. 5–9)
- §3.1–3.5 Uncertainty, OOD, embodiment transfer, long context and long-horizon prediction (pp. 8–13)
- §4.1–4.4 Environment representations and discussion (pp. 14–18)
- §5.1–5.3 VLA architectures, generative action heads, hierarchy and discussion (pp. 18–25)
- §6.1–6.4 World models, WAMs, simulation engines and diagnostic experiment (pp. 25–34)
- §7–7.1 Integration, evaluation criteria and future directions (pp. 34–38)
- §8 Conclusion (p. 39)
- References (pp. 39–57)
Outside the original text pass
- Verified edition: arXiv:2609.03927v1 [cs.RO], 3 September 2026. The observed title and all eight authors match the supplied catalog. The catalog's Transactions on Machine Learning Research (2026) venue label is not established by the inspected title page; no separate venue edition or revision comparison was supplied.
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- The extraction limitation was addressed by separate inspection of original PDF pages, including the figures and tables listed below, and all six final crops. Figures 1–2 and Table 7 were read through their supplied text but not visually inspected.
- Separate supplemental material availability has not been fully verified.
- No external cited paper, code, dataset, checkpoint, or supplementary material was inspected; experiments were not reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
identityPDF p. 1, title, author/affiliation block, arXiv margin and Abstract
The exact title and eight-author byline match the supplied identity. The page marks arXiv:2609.03927v1, 3 Sep 2026, and describes a survey of representation, VLA and world-model integration.
Go to primary source ↓survey-scopePDF p. 4, §1, paragraphs below Table 1
The authors specify representative rather than exhaustive coverage, targeted venue/keyword searches, emphasis on approximately 2019–2026, and inclusion/exclusion criteria tied to robot learning.
Go to primary source ↓state-policyPDF p. 6, §2, first four paragraphs
Defines hidden state, observations, actions, rewards, interaction history, representations, beliefs and context-conditioned policies; distinguishes imitation, online/offline RL and model-based RL.
Go to primary source ↓integrationPDF p. 7, Table 2, all rows, and final discussion paragraph
Defines six coupling forms and explicitly allows modular architectures to count as integrated when task-relevant information, training signals, predictions or feedback influence other components.
Go to primary source ↓conditioningPDF p. 7, §2, paragraph immediately below Table 2
Contrasts a language-conditioned future-observation distribution with an action-conditioned observation/reward distribution under candidate actions.
Go to primary source ↓context-horizonPDF pp. 12–13, §3.4 and §3.5
Long-context understanding concerns retained past information and beliefs; long-horizon prediction concerns future consequences, feasibility and computationally tractable plans.
Go to primary source ↓representationsPDF p. 14, Figure 3; p. 17, §4.4 and Discussion; p. 18, Table 4 and following paragraph
Connects structured, visual, multi-view and spatiotemporal representations to control and prediction. Table labels describe typical support, not guarantees; object permanence and processing cost remain limitations.
Go to primary source ↓vla-familiesPDF p. 19, Figure 4 and §5.1; p. 21, §5.2; p. 23, §5.3
Defines end-to-end VLAs, generative action heads and hierarchical/subgoal approaches; the obstacle-avoidance cartoon motivates multimodal rather than averaged actions.
Go to primary source ↓action-generationPDF p. 21, Figure 5 and §5.2.1; p. 22, §5.2.2
Diffusion iteratively denoises action samples; flow matching learns a vector field. The schematic ends at normalized flow time one, while the text discusses adaptive integration counts and straight-line paths.
Go to primary source ↓uncertaintyPDF pp. 24–25, §5 Discussion and Challenges
Generative action diversity does not ensure calibrated reliability. Discusses data dependence, processing overhead, confidence-triggered intervention and the cost/overconfidence tradeoff.
Go to primary source ↓generic-world-modelPDF p. 26, §6.1, General Formulation of World Models and unnumbered objective
Gives encoder, conditioned latent predictor and optional decoder, plus a reconstruction/KL objective referring to ground-truth latent transitions. No operational estimator for that distribution is specified.
Go to primary source ↓world-model-interfacePDF p. 27, Figure 6 and paragraph below; p. 28, §6.2 final paragraph and §6.3 opening
Language-guided futures require a control interface; action-conditioned models evaluate candidate controls. The top action stack is not visibly connected to the main WM block, but the lower insets contain action-to-WM arrows.
Go to primary source ↓wamsPDF pp. 29–30, §6.3.1 World Action Models
Reviews joint action/future prediction, autoregressive sequences, dual diffusion streams with cross-attention and joint inverse-dynamics training; notes action-label and embodiment limitations.
Go to primary source ↓world-model-usePDF pp. 30–31, §6.4 World Models as Simulation Engines
Separates imagined policy training and conservative updates from runtime planning, MPC, forecasting, adaptation and safety/feasibility filtering.
Go to primary source ↓model-comparisonPDF p. 32, Table 5, caption and all category blocks
A descriptive comparison records prediction target, policy coupling, potential downstream uses and probable limitations. It contains no common-protocol numerical performance comparison.
Go to primary source ↓diagnostic-setupPDF p. 33, §6 Discussion, paragraph beginning with unobserved entities and ending at the page break
The authors report a small diagnostic using Stable Video Diffusion fine-tuned on CALVIN following Guo et al. (2025b), explicitly not a comprehensive evaluation. Detailed split, hyperparameters and compute are absent.
Go to primary source ↓diagnostic-objectPDF p. 33, Figure 8, upper GT/WM pair and caption; diagnostic paragraph
Ground-truth frames reveal an initially occluded object while model frames fail to account for it. The source does not report aggregate object-permanence accuracy.
Go to primary source ↓diagnostic-physicsPDF p. 33, Figure 8, bottom WM row, time labels and caption; diagnostic paragraph
Novel-action predictions violate physical constraints, exemplified by an arm passing through the table. The bottom row has no GT counterpart; selected timestamps run from zero to five seconds.
Go to primary source ↓evaluationPDF p. 34, §7 final paragraph; p. 35, Table 6 and following paragraphs
Maps five challenges to failures and coupling forms; recommends system-level calibration, risk, robustness, transfer, memory, recovery, rollout and constraint evaluations.
Go to primary source ↓future-directionsPDF p. 36, §7 discussion and §7.1 opening; p. 38, §7.1
Hierarchy alone does not establish grounded policy-world integration. Proposed directions include shared states, task/embodiment abstractions, uncertainty-aware control, physical structure and stable continual adaptation.
Go to primary source ↓literature-trendPDF p. 31, Figure 7, title, axes, legend and caption
The bar chart counts papers by year and model family; it illustrates literature activity, not quantitative robot performance.
Go to primary source ↓calvin-benchmarkPDF p. 9, Table 3, CALVIN row
CALVIN is listed as simulated language manipulation, supporting long-horizon policies, action-conditioned prediction and world-model diagnostics.
Go to primary source ↓8.5 Primary sources
Toward Unified Robot Learning: Bridging Representation, Vision-Language-Action, and World Models ↗
PDF · 33,240 extracted words
Source fingerprint
ed41fe6bc2125c708886e5740435d3da791a192f856590d7e1c86971f18dd934
