EnerVerse: Envisioning Embodied Future Space for Robotics Manipulation
1. Paper overview
In one sentence: EnerVerse transfers a sparse-memory, multi-view video prior into fast action-chunk prediction, while leaving the causal contribution of its geometry and data-refinement components incompletely isolated. e01e02e03e04e05e10e15e16e22
| At a glance | What to know |
|---|---|
| Research problem | Source description Ordinary video pretraining does not explicitly supply the geometric and temporal structure needed for manipulation. EnerVerse seeks a reusable embodied-space representation without requiring several physical cameras at deployment. The authors explicitly reject a direct monotonic relationship between pixel-level video quality and control success. e01e03 |
| Core mechanism | |
| A key reported result | LIBERO four-suite manipulation: S-RGB: 84.1 average; RGB-D with two rendered views: 88.5, with Spatial/Object/Goal/Long = 91.2/97.7/85.0/80.0. Mean task success (%). Separate policy per suite; ten tasks per suite, fifty demonstrations per task; fifty evaluation rollouts per task averaged over three seeds. OpenVLA S-RGB: 76.5 average; MAIL with two static RGB inputs: 81.5. Strong average performance among listed methods. Depth-rendered and RGB-only inputs are different protocols; single-RGB EnerVerse is not best on every suite. No uncertainty intervals are tabulated. e09e10 |
| Reading caution | Reader analysis The authors acknowledge artifacts, heuristic camera poses and incomplete understanding of video-to-action transfer. Attention maps are descriptive, not causal proof. Texture robustness tests cover changed surfaces on LIBERO-Object; train-all/test-all adds training exposure rather than demonstrating held-out-task transfer. e17e19e20 |
Core contributions
Figure 2. Sparse history carries information between chunks; ray maps supply camera context within each chunk. Original paper, p. 3 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start at the dashed training/inference divider on the left. Training combines selected clean history with noisy targets. Below it, brown observation latents and green noise latents enter the generator; orange predictions emerge. Follow the blue feedback path from P4 into the next chunk alongside O2: generated content can become subsequent context. The black EOS token marks video termination. On the right, each camera or rendered view supplies latents and a ray-direction map, combined at the circled C. Spatial and temporal attention then process them. Section 2.2 and Appendix G assign cross-view processing to spatial attention and time processing to temporal attention. e02e03e14
What it supports. The design separates temporal extension from camera-aware representation learning. Chunk reuse enables continued generation, while sparse context changes what history the model must use. Ray conditioning allows the backbone to distinguish viewpoints; its learned multi-view prior can subsequently serve a policy receiving only one RGB camera.
Where the evidence stops. The diagram labels predicted noise, but Section 2.1 specifies implemented v-prediction. Its sketch is not a full training specification. The introduction's temporal camera-fusion wording is also less precise than Section 2.2 and Appendix G.
2. Motivation
2.1 The problem and the proposed response
Ordinary video pretraining does not explicitly supply the geometric and temporal structure needed for manipulation. EnerVerse seeks a reusable embodied-space representation without requiring several physical cameras at deployment. The authors explicitly reject a direct monotonic relationship between pixel-level video quality and control success. e01e03
2.2 What this reading follows
A robot can benefit from learning how a scene evolves without rendering an entire imagined movie before every movement. EnerVerse develops that idea through three connected components: a camera-aware video generator, an offline data-refinement loop using 4D Gaussian Splatting, and a diffusion policy conditioned on video-backbone features. Read the diagrams as different information flows, then use the tables to separate visual prediction from executed manipulation. The strongest LIBERO configuration uses depth-rendered auxiliary views, and the physical experiment uses a graded placement score. This reading concerns the supplied November 2025 v3 paper, including its unresolved architecture inconsistencies. e01e02e03e04e05e10e15e16e22
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Not assigned |
| Architecture | Not assigned |
| Prediction paradigm | Not assigned |
| Quadrant | Not assigned |
This table preserves the labels recorded at reading time. The current major category is WAMs. View the current classification.
3.1 Evidence-based assessment
Insufficient evidence to decide
The snapshot assigns no category or quadrant. Architecture evidence supports a shared video feature backbone with a distinct action diffusion head and an offline reconstruction pipeline. It does not establish joint future/action denoising in one unified prediction space, nor an explicit inverse-dynamics map from completed future images. A One Model label cannot follow from co-training alone. e04e05e13e22
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Separate temporal memory from geometric conditioning
EnerVerse addresses two different ambiguities. A single image can hide which stage of a manipulation has already occurred; sparse history provides temporal evidence. A single viewpoint can hide geometry; camera-aware multi-view pretraining supplies another source of structure. Figure 2 combines these mechanisms, but its branches should not be read as one undifferentiated improvement. The sparse-memory comparison concerns LIBERO-Long, whereas Table 6 compares a DynamiCrafter policy with the multi-view-pretrained variant on LIBERO-Spatial, reporting 79.0 and 92.1 with the same S-RGB input label. Reader interpretation: these results motivate separate temporal and geometric hypotheses. They do not completely isolate those hypotheses because the models and pretraining differ. The strongest test would hold the remaining architecture, data exposure and optimization fixed while varying one mechanism. e02e03e12e14

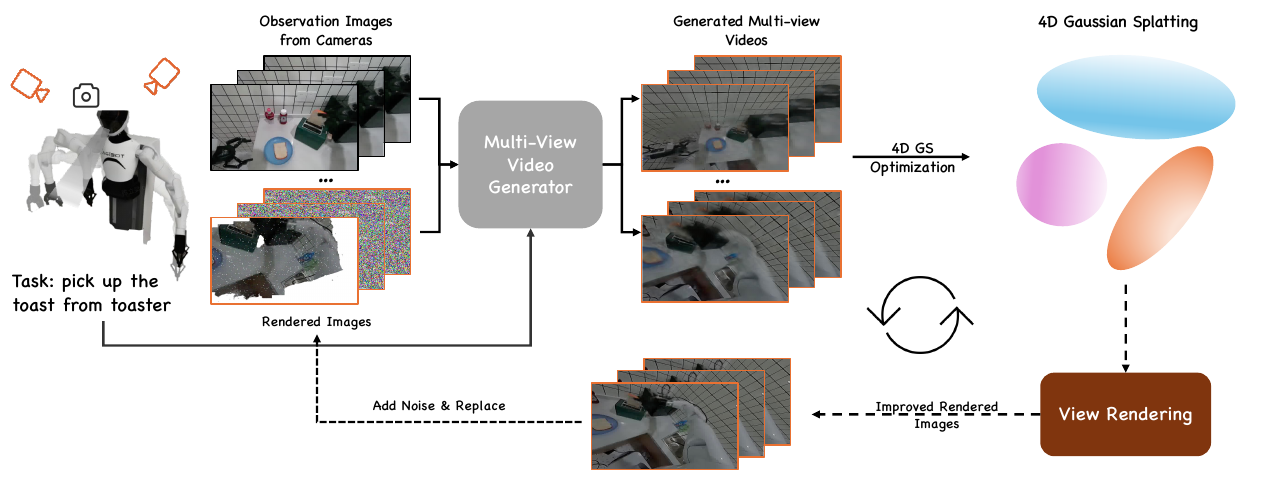

Figure 3. EnerVerse-D alternates generative completion with an explicit reconstruction-and-rendering loop. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow the upper path from camera observations and rendered inputs into the multi-view generator, then across generated videos to 4DGS optimization. The lower dashed path runs from view rendering back toward the generator inputs through Add Noise and Replace. Section 2.2 clarifies what the arrows compress: complete observed-view sequences remain clean, missing target views undergo diffusion, and their union with camera poses supports reconstruction. The renders then become inputs for another refinement round. As episodes accumulate, they can fine-tune the generator. This is an offline process for building multi-view data, separate from the action-head computation used during robot control. e04e24
What it supports. Reconstruction provides a shared geometric representation across views, while diffusion supplies missing appearance and motion content. Appendix I reports 40% fewer assessed hallucinations with 4DGS refinement over 50 generated arrange-workpieces episodes. That finding concerns generated-view quality; it does not measure a corresponding improvement in robot task success.
Where the evidence stops. The two-expert assessment lacks raw counts, a detailed rubric and uncertainty. Figure 14 contrasts Only 4DGS with EnerVerse-D, whereas the quantitative text contrasts generation with and without 4DGS refinement; these baselines must remain distinct.
5.2 Trace what is transferred from video learning into action inference
First learn video dynamics from heterogeneous embodied data, then adapt generation to the target domain, and finally optimize the policy with action trajectories. This sequence matters: Table 8 reports 93.2 on LIBERO-Object with generation adaptation and 85 without it, while Table 5 favors two-stage fine-tuning over one-stage co-training on LIBERO-Spatial. At deployment, the transferred capability enters through cached features E. The action head denoises its own chunk while E stays fixed across those denoising iterations; it does not need to decode the full future video. Reader interpretation: the policy can exploit features trained to predict futures without executing an explicit search through rendered futures. Attention maps over memory and future-space feature positions are consistent with information use, but they cannot establish that a particular imagined trajectory caused a successful action. e05e06e13e18e19

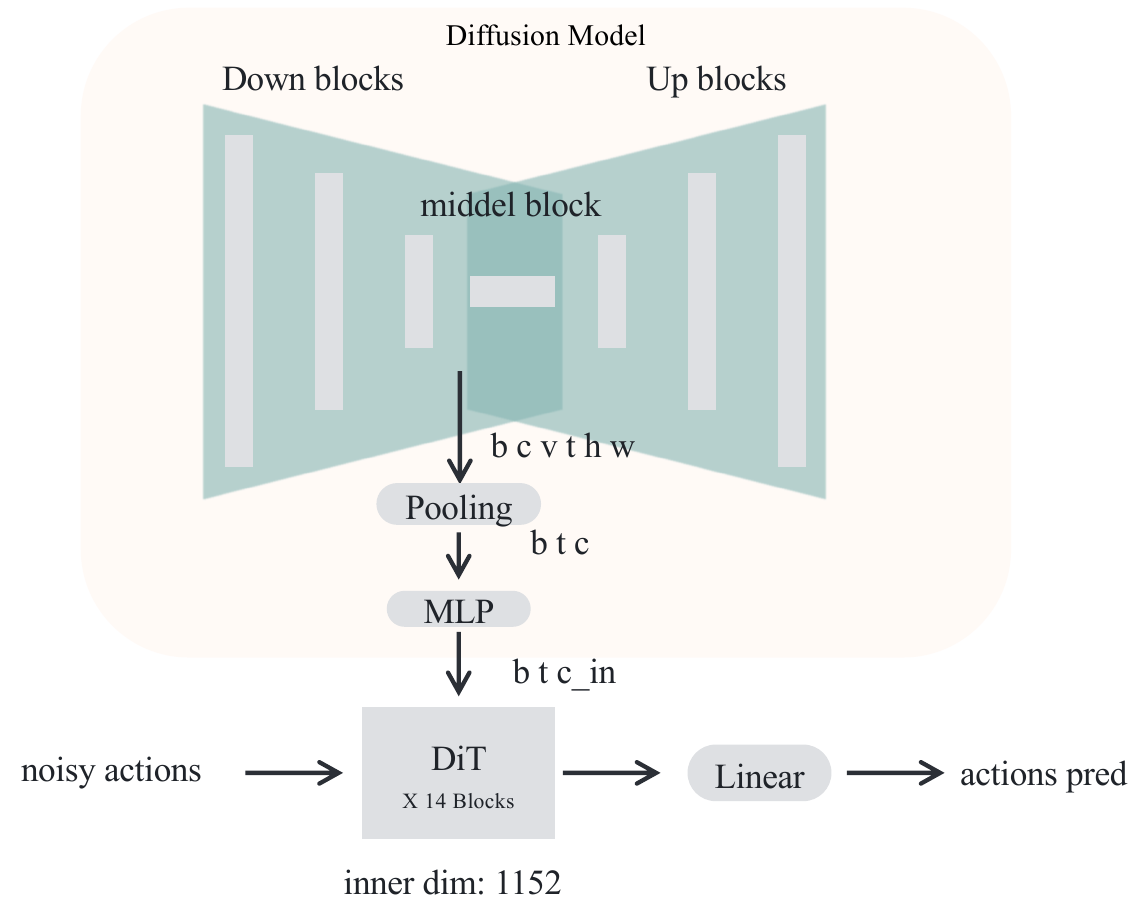

Figure 12. The action branch consumes pooled video features and denoises actions through its own head. Original paper, p. 19 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the vertical arrow before the horizontal one. The video diffusion model provides a tensor indexed by batch, channel, view, time, height and width; pooling produces a temporal conditioning sequence, and an MLP projects it for the action head. Noisy actions enter the DiT from the left, then a linear layer maps the head output into action space. Section 2.3 adds the crucial scheduling detail absent from this static drawing: visual conditioning E is computed at the first video-denoising step and cached for the action-denoising iterations. The deployed policy therefore uses internal features without requiring a fully decoded future movie. e05e21e22
What it supports. The architecture explains how video representation learning can support a comparatively short control path. The paper reports approximately 280 ms per eight-action chunk on an RTX 4090 in the abstract, and approximately 300 ms in Appendix F. These are author-reported timings, with incompletely aligned measurement descriptions.
Where the evidence stops. Preserve the visible 14-block label: Appendix G prose instead says 18 blocks. Main-text features come from the middle block, while Appendix G says before it. Neither the exact tap nor head depth is resolved by this diagram.
5.3 Keep each performance claim attached to its measurement
The experimental narrative contains several distinct endpoints. RT-1 PSNR and FVD measure generated-video quality, and expert ratings include a consistency score that is lower for EnerVerse. LIBERO measures simulated manipulation under separate suite-specific policies and several camera-input configurations. CALVIN measures sequential completion after training on other scenes, retaining memory across task transitions; its average sequence length of 3.00 is competitive but below the highest listed value. Physical block placement uses a product with partial placement credit, so its 0.67 score should not be relabeled as a binary success rate. Finally, the data-engine assessment reports a relative hallucination reduction in generated views. Reader interpretation: evidence of better rendering can motivate a control experiment, but it does not fill in an unreported control result. Each endpoint answers a narrower question than the phrase embodied future space might suggest. e08e09e10e11e15e16e24
5.4 Training and inference
During training
Video pretraining uses heterogeneous robot videos and Isaac Sim multi-view data; dataset-specific embeddings join timestep embeddings. Target-domain video adaptation precedes action-loss fine-tuning. Memory corruption depends on temporal distance. Table 5 favors two-stage fine-tuning over co-training; Appendix C shows that skipping video adaptation degrades LIBERO-Object performance. e06e13e18
Table 10 specifies a frozen VAE, video v-prediction, policy sample prediction, Adam at 5×10⁻⁵, and a 190M-parameter policy head. Section 2.1 specifies frozen T5, but Appendix A mentions CLIP; the text-encoder discrepancy is unresolved. The policy-stage backbone freeze/update scope is not stated consistently. e07e23e13e06
During inference
For each action chunk, compute visual conditioning E at the first, noisiest video-denoising step and cache it throughout action denoising. Full future-video rendering is unnecessary for this policy path. The default chunk is eight actions; the CALVIN protocol retains memory across subtask transitions. Execution scheduling and feedback within a chunk are not fully specified. e05e11e21
5.5 Implementation flow
- Predict the next visual chunk
A VAE encodes observations and target frames. The diffusion UNet conditions on clean history and language, predicts a future latent chunk, and reuses generated frames as subsequent context. Sparse training samples discard approximately 80% of context frames. Video generation stops when latent L1 distance to a predefined EOS frame falls below an unspecified threshold. e02
- Encode camera geometry
Ray-direction maps concatenate with image latents. Appendix G reshapes spatial-attention tokens across views and pixels, with temporal attention across time. When depth exists, point-cloud warping supplies auxiliary views; Figure 4 uses camera rotations of ±30 degrees about Z. Section 2.2 is more specific than the introduction's attribution of camera fusion to temporal attention. e03e05
- Refine missing views offline
Observed views remain clean while target views are denoised. Observed and generated videos plus camera poses drive 4DGS reconstruction. Rendered frames are re-noised and regenerated, followed by further reconstruction and eventual generator fine-tuning. This loop constructs data, rather than selecting robot actions online. e04
- Condition a policy head
EnerVerse-A pools UNet features into a temporal conditioning sequence. Its DiT head denoises seven-dimensional action vectors. The exact feature tap and block count remain inconsistent between the main text, Appendix G and Figure 12. e05e22
6. Experiments & results
EnerVerse learns instruction-conditioned, multi-view future-video representations, then conditions a separate action diffusion head on their backbone features. Sparse history supports long tasks; an offline 4D Gaussian Splatting loop refines training videos. Its strongest benchmark average uses depth-rendered auxiliary views, while physical block placement exposes an instruction-following weakness.
6.1 Read the original evidence

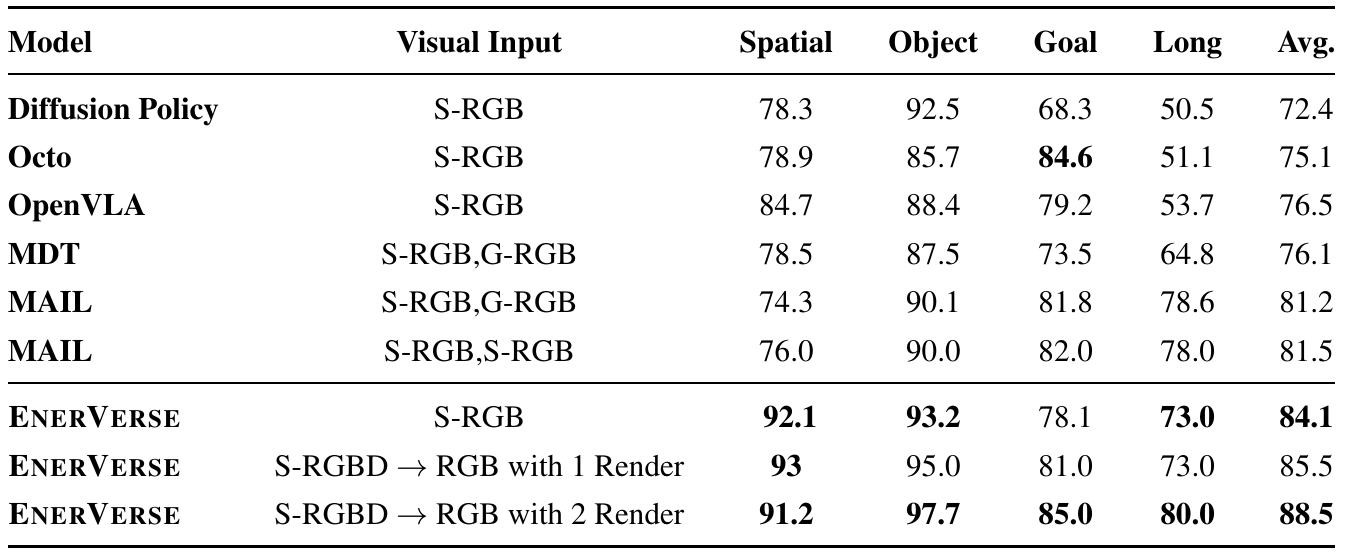

Table 2. Read the visual-input column before comparing success scores. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. The four suite columns report distinct manipulation settings; the final column averages them. S-RGB means a static RGB camera and G-RGB a gripper camera. The lower two EnerVerse rows start from static RGB-D and render auxiliary RGB views, so they have depth information unavailable to the single-RGB row. The surrounding protocol fine-tunes a separate policy per suite and evaluates fifty rollouts per task over three seeds. First compare the single-RGB EnerVerse row against RGB-only baselines. Then compare its own three configurations to see how the reported benefit of additional rendered views varies across suites rather than treating the average as universal. e09e10
What it supports. Single-RGB EnerVerse averages 84.1 versus OpenVLA's 76.5. Adding two rendered views raises the reported average to 88.5 and Long to 80.0. However, Spatial is 91.2 in that configuration versus 92.1 for single RGB and 93.0 with one render: additional views do not improve every column monotonically.
Where the evidence stops. These rows mix sensing modalities and pretrained systems; they do not isolate geometry alone. Single-RGB EnerVerse trails Octo on Goal and MAIL on Long. The table reports seed averages without standard deviations or confidence intervals.

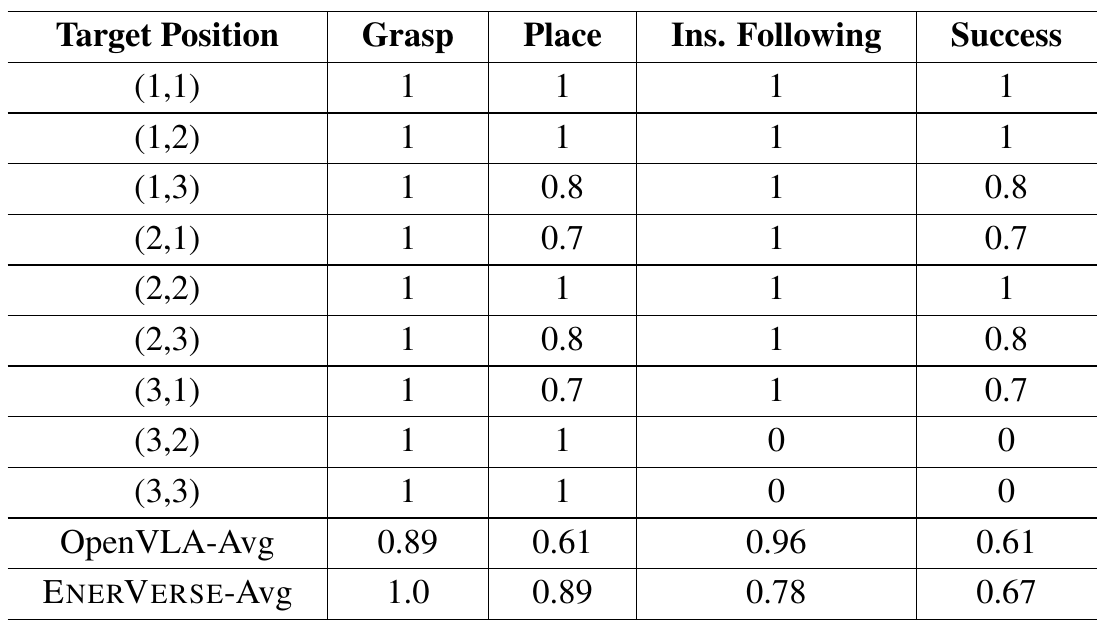

Table 7. Physical placement separates successful handling from reaching the instructed compartment. Original paper, p. 16 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Each numbered row is an instructed row-and-column compartment, with five executions per target. Appendix A defines Grasp and Instruction Following as binary factors, while Place can receive half credit when the block collides with foam. Success is the product of these factors, averaged over trials; it is not necessarily binary. Inspect the last two target rows before the averages: positions (3,2) and (3,3) retain perfect grasp and placement scores but receive zero instruction-following and success scores. The bottom two rows compare overall averages. Do not multiply their already-averaged factors to reconstruct the mean trial-level product. e15e16
What it supports. EnerVerse improves the reported mean grasp and placement scores to 1.0 and 0.89, versus OpenVLA's 0.89 and 0.61. Its composite success is 0.67 versus 0.61, despite lower instruction following, 0.78 versus 0.96. The result shows a concrete tradeoff between handling precision and selecting the instructed destination.
Where the evidence stops. The authors hypothesize workspace-boundary difficulty for the failed destinations; the table alone does not establish that cause. This is a small, graded physical evaluation without uncertainty estimates or enough training/setup detail to guarantee a matched reproduction.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| LIBERO four-suite manipulation Separate policy per suite; ten tasks per suite, fifty demonstrations per task; fifty evaluation rollouts per task averaged over three seeds. | S-RGB: 84.1 average; RGB-D with two rendered views: 88.5, with Spatial/Object/Goal/Long = 91.2/97.7/85.0/80.0. Mean task success (%) | OpenVLA S-RGB: 76.5 average; MAIL with two static RGB inputs: 81.5. Strong average performance among listed methods. Depth-rendered and RGB-only inputs are different protocols; single-RGB EnerVerse is not best on every suite. No uncertainty intervals are tabulated. e09e10 |
| Sparse-memory ablation on LIBERO-Long Single visual input; sparse-memory component comparison. | 73.0 with sparse memory; 30.8 without. Task success (%) | A 42.2-percentage-point difference, calculated from Table 4. Supports the component under this setup; retained-frame count, time span and corruption are not separately isolated. e12 |
| CALVIN sequential manipulation Train ABC, test D; static RGB; memory retained across transitions. | 3.00; 35.6%. Average completed sequence length; five-task completion (%) | SUSIE S-RGB: 2.69; GR-1: 3.06 and 3D Diffuser: 3.27 with additional inputs. Competitive cross-scene performance, not the table's best average. e11 |
| RT-1 future-video generation 200 generated videos conditioned on initial frame and instruction, compared with ground truth. | 26.1; 404.65. PSNR (higher better); FVD (lower better) | DynamiCrafter with FreeNoise: 25.42; 445.94. Video-quality evidence. Expert consistency scores actually fall from 92 to 89, while semantic scores tie at 97; these are not executed-action success rates. e08 |
| Physical block placement into instructed compartments Nine compartment targets; five executions per compartment; success multiplies grasp, placement and instruction factors, with partial placement credit. | 0.67. Mean composite success score (0–1) | OpenVLA: 0.61. EnerVerse grasp/place/instruction = 1.0/0.89/0.78 versus 0.89/0.61/0.96. Better manipulation scores coexist with weaker instruction following. Targets (3,2) and (3,3) score zero through the instruction factor. This graded score is not a binary success percentage. e15e16 |
| Video adaptation on LIBERO-Object Action fine-tuning with versus without preceding target-domain generation adaptation. | 93.2 with adaptation; 85 without. Task success (%) | An 8.2-percentage-point difference, calculated from Table 8. Target-domain visual adaptation matters; generic pretraining alone does not supply the reported policy performance. e18 |
| Data-engine hallucination assessment Arrange-workpieces task; fifty generated episodes; full head-camera video and prompt condition target-view synthesis; two blinded experts. | 40% with the 4DGS refinement loop. Relative reduction in assessed hallucinations | Generation without 4DGS refinement. A generation diagnostic, not a measured control gain. Raw counts, rating rubric and uncertainty are absent; Figure 14's Only 4DGS comparison differs from this text experiment's baseline. e24 |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

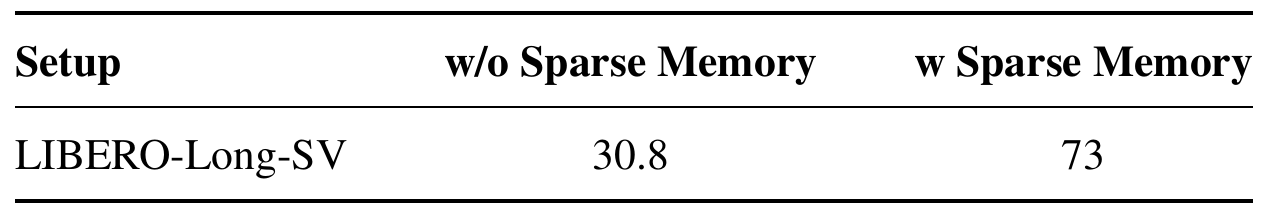

Table 4. The largest component-level gap concerns sparse memory on long tasks. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. This compact table fixes the task label to LIBERO-Long-SV, the single-view long-task setting, and changes the sparse-memory condition across two columns. Read w/o Sparse Memory literally; it does not by itself mean a policy with no history. Section 2.1 describes sparsely sampled clean context rather than consecutive frames, and Figure 7 separately contrasts consecutive and sparse context for video generation. That video example helps explain the intended robustness mechanism, while this table supplies executed-policy evidence. Keep the two outcomes separate: generation collapse in selected frames and aggregate manipulation performance are related observations, not interchangeable measurements of the same quantity. e02e12
What it supports. Success increases from 30.8 to 73.0, a calculated gain of 42.2 percentage points. The result makes sparse context a high-priority component to reproduce before pursuing the entire data engine. It supports the authors' implementation on LIBERO-Long, rather than proving a general optimal memory-sampling strategy.
Where the evidence stops. The comparison does not separately match retained-frame count, temporal coverage and corruption, and it supplies no uncertainty interval. It cannot distinguish useful long-range information from the regularization effects of dropping or corrupting frames.
7. Analysis & limitations
7.1 What the evidence leaves open
The authors acknowledge artifacts, heuristic camera poses and incomplete understanding of video-to-action transfer. Attention maps are descriptive, not causal proof. Texture robustness tests cover changed surfaces on LIBERO-Object; train-all/test-all adds training exposure rather than demonstrating held-out-task transfer. e17e19e20
Architecture and reporting conflicts remain: Figure 12 says 14 DiT blocks, Appendix G says 18; features are described both within and before the middle block. T5 versus CLIP is unresolved. Appendix H omits Taco-Play statistics despite its inclusion in Section 3.1, and its LIBERO trajectory statement conflicts with the per-suite demonstration counts. e22e23e06e09
7.2 Questions for discussion
- Would sparse memory retain its advantage with matched context length, temporal span and corruption?
- Does 4DGS-refined training data improve executed control when data volume and adaptation compute are held fixed?
8. Reproducibility audit
8.1 Requirements and known gaps
Requirements include calibrated simulator multi-view data, target demonstrations and video adaptation. Appendix H reports roughly 40K Isaac Sim episodes over eight tasks. Appendix F reports eight A100s for about 20 hours of LIBERO-Spatial video adaptation plus 12 hours of action learning; this excludes base pretraining cost. e06e21
Record the unresolved encoder, feature tap, block count, backbone update scope, EOS threshold, real-robot training setup and sampler separately. Table 10 lists DDIM with 500 sampling steps without clearly separating video and policy settings. The abstract's approximately 280 ms per eight-action chunk on RTX 4090 and Appendix F's approximately 300 ms cannot establish a fully specified latency protocol. e02e07e15e21e22e23e13
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Test whether temporal coverage explains the sparse-memory gain
Reader-proposed experiment, not performed: on single-RGB LIBERO-Long, use one common initialization, target-video adaptation recipe, action head, chunk horizon and training budget. Compare recent consecutive context against uniformly spaced and randomly sparse context with the same retained-frame count; separately vary temporal span and corruption so these factors are not conflated. Evaluate matched initial states using the paper's fifty rollouts per task and three seeds, and report paired success differences with uncertainty. If the gain disappears when frame count and corruption are matched, the claim that long-range temporal coverage explains Table 4 would weaken; a persistent advantage under those controls would support it. Resolve and report the source's head-depth and feature-tap ambiguities before this comparison. e02e09e12e22
Check 2: Connect 4DGS refinement to an independently measured control benefit
Reader-proposed experiment, not performed: start from the same observed arrange-workpieces episodes, prompts and target camera poses. Compare direct missing-view generation with generation plus the 4DGS/render/re-noise loop; add a generation-only control matched for refinement compute. Use the same initial noise where applicable, blind the reviewers, define hallucination events in advance and publish counts, disagreement and uncertainty. Then adapt otherwise identical policies using equal numbers of episodes from each condition and evaluate held-out executed tasks with fixed sensing and demonstrations. Fewer hallucinations without improved task success would confirm a visual benefit while weakening an assumed control benefit. Gains in both outcomes, beyond the compute-matched control, would support the proposed role of geometric refinement. e04e06e24
8.3 Reading coverage
Visual audit: Visually inspected the title/byline/version page, all fourteen figures, all ten tables, and all method, training, evaluation and appendix pages supporting retained claims and proposed checks. Six original crops were individually viewed; the data-flywheel crop was extended and viewed again to retain its complete lower rendered frames. Figure 2 arrows, legends and attention order were checked against Sections 2.1–2.2 and Appendix G; Figure 3's return path was checked against its pipeline description. Figure 12's 14-versus-18 block discrepancy and feature-tap ambiguity remain explicit. Reference pages 11–14 were read in the complete text chunks but not rendered. Separate supplemental videos and external code were not inspected; static paper panels do not establish full-video viewing.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20, 21. Appendix coverage: reviewed.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract
- 1 Introduction
- 2 EnerVerse
- 2.1 Next Chunk Diffusion
- 2.2 4D Embodied Space Generation
- 2.3 From 4D Embodied Space to Physical Action
- 3.1 Experiment Settings
- 3.2 Comparison Results
- 3.3 Further Studies
- 4 Related Works
- 5 Conclusions and Limitations
- References
- Appendix A Real-World Robotic Experiments
- Appendix B Task Types and Video Quality
- Appendix C Pretrained Model Performance
- Appendix D Attention Map Analysis
- Appendix E Robustness against OOD Samples
- Appendix F Computational Overhead
- Appendix G Model Architecture
- Appendix H Training Data
- Appendix I Data Engine
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- Identity/version: the supplied title page identifies arXiv:2501.01895v3, 16 November 2025, and NeurIPS 2025. The title matches the catalog. All eleven catalog authors appear, but the observed order places Yue Liao before Zhengkai Jiang and Yue Hu. This review concerns v3; the catalog submission date is 3 January 2025, and earlier revisions were not supplied for comparison.
- All six supplied text chunks, covering the 21-page PDF including references and Appendices A–I, were read individually. Text extraction does not reconstruct figure images; the retained PDF was rendered and visually inspected for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified. Referenced demonstration videos and additional dataset/video samples were not supplied or viewed.
- Code, external project resources and dataset releases were not inspected; no experiments were reproduced. Reference-list pages 11–14 were read as text but not visually inspected.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e01PDF p. 1, title/byline, revision margin, Abstract and Introduction
Matching title and eleven authors; v3 dated 16 November 2025; NeurIPS 2025 footer. Introduction distinguishes representation alignment from monotonic video-quality/control correspondence.
Go to primary source ↓e02PDF pp. 3–4, Figure 2 and Section 2.1, displayed loss, v-prediction and EOS paragraphs
VAE latent chunk generation, sparse random history, approximately 80% dropping, iterative reuse, thresholded latent L1 EOS detection, frozen T5 and implemented v-prediction.
Go to primary source ↓e03PDF pp. 2–4, Figure 2(b), Section 2.2; pp. 18–19, Appendix G attention reshapes
Camera ray maps concatenate with image latents. Spatial attention groups view/spatial tokens; temporal attention groups time. Introduction's camera-fusion wording is less precise than the method and appendix.
Go to primary source ↓e04PDF pp. 4–5, Figure 3 and Section 2.2 Real-World Data Flywheels
Clean observed views condition missing-view diffusion, followed by 4DGS reconstruction, view rendering, re-noising and iterative refinement; collected episodes fine-tune the generator offline.
Go to primary source ↓e05PDF pp. 5–6, Section 2.3 equation and inference paragraphs, Figure 4, Section 3.1 Model Details
Cache first-denoising-step UNet features E; pooled visual features condition iterative action denoising. Seven-dimensional delta-pose/gripper actions; depth-warped views rotate ±30 degrees around Z.
Go to primary source ↓e06PDF pp. 5–6, Section 3.1; p. 20, Appendix H dataset statistics and task list
Heterogeneous video pretraining, domain embeddings, memory noise and target-video adaptation. Isaac Sim supplies 3.0M frames and 40K episodes over eight tasks, with egocentric plus eight third-person views. Taco-Play is listed in the main text but lacks appendix statistics; Appendix H says LIBERO has fewer than 500 trajectories.
Go to primary source ↓e07PDF p. 19, Table 10, all configuration rows
1000 diffusion steps; linear noise schedule; DDIM 500 sampling steps; 320×512 video, chunk size 8; Adam 5×10⁻⁵, 100000 maximum steps, gradient clip 0.5. Base model 1.4B, policy 190M, frozen VAE 83.7M; video v-prediction and policy sample prediction.
Go to primary source ↓e08PDF p. 6, Section 3.2 Embodied Future Space Generation and Table 1, both rows
200 RT-1-conditioned videos. EnerVerse/DC-FN PSNR 26.1/25.42, FVD 404.65/445.94, quality 59/54, semantics 97/97, consistency 89/92, continuity 90/80. Expert-study protocol details are limited.
Go to primary source ↓e09PDF pp. 6–7, LIBERO evaluation paragraphs before Table 2
Four suites, ten tasks each, fifty demonstrations per task; separate policy fine-tuning per suite; fifty rollouts per task averaged over three seeds. S-RGB and depth-rendered variants are distinguished.
Go to primary source ↓e10PDF p. 7, Table 2, all rows and modality columns
EnerVerse S-RGB suite scores 92.1/93.2/78.1/73.0, average 84.1; one-render average 85.5; two-render 91.2/97.7/85.0/80.0, average 88.5. OpenVLA average 76.5; two-static-RGB MAIL average 81.5.
Go to primary source ↓e11PDF p. 8, CALVIN evaluation paragraph and Table 3
ABC→D with memory not reset between tasks. EnerVerse S-RGB reaches average length 3.00 and five-task completion 35.6; SUSIE 2.69, GR-1 3.06, 3D Diffuser 3.27, with different modalities for the latter two.
Go to primary source ↓e12PDF p. 8, Section 3.3 sparse-memory paragraph and Figure 7; p. 9, Table 4
Single-view LIBERO-Long scores 30.8 without sparse memory and 73 with it. Figure 7 contrasts consecutive and sparse context on a stove-turning video example.
Go to primary source ↓e13PDF pp. 8–9, Training Strategy Analysis and Table 5
LIBERO-Spatial: all-scratch fails to converge, DynamiCrafter initialization 79, one-stage co-training 86.3, two-stage fine-tuning 92.1. Descriptions alternate between whole-model and head fine-tuning without a complete freeze specification.
Go to primary source ↓e14PDF p. 9, 3D Video vs. 4D Space for Robotics and Table 6
DynamiCrafter plus DP scores 79.0 on LIBERO-Spatial with S-RGB; multi-view-pretrained EnerVerse-A scores 92.1 with S-RGB and 93.0 with one rendered view. Geometric-prior explanation is an author hypothesis.
Go to primary source ↓e15PDF p. 15, Appendix A metric definitions, trial protocol and Figure 8
Tight-fit magnetic-block placement follows row/column instructions. Grasp and instruction factors are binary; placement permits 0.5 for collisions. Success is their product; five trials per compartment. Additional sorting demonstrations are referred to supplements, without quantitative tables here.
Go to primary source ↓e16PDF p. 16, Table 7, nine target rows and two average rows
EnerVerse average grasp/place/instruction/success 1.0/0.89/0.78/0.67; OpenVLA 0.89/0.61/0.96/0.61. Positions (3,2) and (3,3) have grasp/place 1 but instruction/success 0.
Go to primary source ↓e17PDF p. 10, Limitations; p. 16, Appendix B and Figure 9
Authors acknowledge generation artifacts, preliminary mechanistic understanding and heuristic camera selection. Cloth folding is illustrated as generated video; statements about artifact tolerance do not isolate its causal effect on control.
Go to primary source ↓e18PDF p. 17, Appendix C, Figure 10 and Table 8
Generic pretrained generation collapses on LIBERO examples. Skipping target-video adaptation reduces LIBERO-Object policy score from 93.2 to 85.
Go to primary source ↓e19PDF pp. 17–18, Appendix D and Figure 11 caption/heatmaps
Selected policy cross-attention heads distribute weights over four memory columns and eight future-space columns for eight action queries. These visualizations are observational mechanism evidence.
Go to primary source ↓e20PDF p. 18, Appendix E and Table 9
Without retraining, LIBERO-Object texture variants yield S-RGB EnerVerse seen/scene/container scores 93.2/93.1/93.0. Separately, train-all/test-all averages 87.63 versus 84.1 with individual-suite training.
Go to primary source ↓e21PDF p. 1, Abstract latency sentence; p. 18, Appendix F
Abstract: approximately 280 ms per eight-action chunk on RTX 4090. Appendix F: approximately 300 ms single-RGB action chunk, 10.6 GB; video generation about 20 seconds per view/chunk. LIBERO-Spatial adaptation uses eight A100s for about 20 hours video adaptation plus 12 hours action learning.
Go to primary source ↓e22PDF pp. 5–6, policy feature descriptions; pp. 18–19, Appendix G and Figure 12
Figure 12 shows pooling/MLP from the UNet to a DiT action head labelled 14 blocks, inner dimension 1152; Appendix G prose says 18 blocks. Main text describes middle-block features, while Appendix G says before the middle block.
Go to primary source ↓e23PDF p. 3, Section 2.1 language encoder; p. 15, Appendix A OpenVLA comparison; p. 19, Table 10 Input row
Section 2.1 specifies a frozen T5 encoder and Table 10 says T5 tokenization, whereas Appendix A refers to the model's CLIP text encoder. No configuration distinction resolves this.
Go to primary source ↓e24PDF pp. 20–21, Appendix I experimental paragraphs and Figure 14
Fifty arrange-workpieces target-view episodes, conditioned on a complete head-camera video and prompt, assessed by two blinded experts: 4DGS refinement reduces hallucinations 40% relative to generation without 4DGS. Raw ratings, counts and uncertainty are absent. Figure 14 instead labels its rows Only 4DGS and EnerVerse-D.
Go to primary source ↓8.5 Primary sources
EnerVerse: Envisioning Embodied Future Space for Robotics Manipulation ↗
PDF · 9,891 extracted words
Source fingerprint
5e4fc79197ea60b1401fe2cc4734dcdbad39cf7a6fbc207fbff10888f40604bf
