Learning Robot Manipulation from Audio World Models
1. Paper overview
In one sentence: Predicting audio continuations gives a separate robot policy future context, but sparse comparisons leave the causal benefit and generalization uncertain. e02e03e09e12e14e15
| At a glance | What to know |
|---|---|
| Research problem | Source description Water filling can leave visual observations almost unchanged while pitch evolves with the activity. The authors therefore ask whether anticipating audio, beyond observing it, can inform robot control. Piano playing provides a second setting in which forthcoming notes can guide preparation before a required key press. e02e14 |
| Core mechanism | |
| A key reported result | Real-world water filling: 100% over 30 trials Reported task success rate. Kinova Gen3 presses/releases a dispenser button; closed-loop evaluation over 30 trials. Training/test separation and the operational success criterion are not specified. No numerical water-filling baseline is reported. This is physical task execution evidence for the reported setup. It does not quantify the added value of future prediction over an otherwise matched audio-visual policy or establish performance across containers. e10e11e12 |
| Reading caution |
Core contributions
- Reader analysis
The modules can change with the task: AudioMAE and an imitation policy for water filling; MusicVAE and Soft Actor-Critic (SAC) for simulated piano playing. The claimed benefit is anticipatory control from audio dynamics, although the paper does not isolate that mechanism quantitatively. e09e14e15
Figure 1. Audio prediction supplies future context to a separate action policy. Original paper, p. 2 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Follow the top row from Current Spectrogram through Audio Encoder, Latent Flow Matching and Audio Decoder to Future Spectrogram. The downward arrow carries the future representation toward the policy input, while a separate camera image enters from the left. The caption and method text specify current audio as an additional policy input. In the water inset, the arrows identify pressing, rising pitch and releasing; these annotations motivate which temporal features the model should preserve. The two task pictures indicate applications, not competing branches of one trained controller: the piano experiment substitutes MusicVAE and SAC for the water task's representation and policy modules. e02e03e04e05e06e08e09e11e14
What it supports. The source supports a modular information flow: future sensory prediction is an input to action generation, rather than a robot command itself. Separately trained modules also make the policy's dependence on prediction quality testable. The water inset illustrates why a continuation may reveal an approaching release event that a still image alone does not show.
Where the evidence stops. Figure 1's caption describes policy training with predicted futures, but Learning Details on p. 3 explicitly specifies ground-truth futures for training and generated futures for evaluation. The detailed paragraph governs this reading. The diagram also omits the temporal-loss and inference-conditioning details.
2. Motivation
2.1 The problem and the proposed response
Water filling can leave visual observations almost unchanged while pitch evolves with the activity. The authors therefore ask whether anticipating audio, beyond observing it, can inform robot control. Piano playing provides a second setting in which forthcoming notes can guide preparation before a required key press. e02e14
2.2 What this reading follows
A bottle can sound different while looking almost unchanged. This paper uses that asymmetry to predict future audio and feed it to a robot controller. The same modular idea also supplies forthcoming MIDI notes to a simulated piano player. Read the architecture as two distinct jobs: generating a sensory continuation and turning that continuation into actions. Then read the results with care: the water experiment reports physical success, while the music comparison supplies qualitative examples without numerical F1 scores. The most consequential training detail is that the policy learns with ground-truth future audio but receives generated audio during evaluation. e02e03e09e12e14e15
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | Dual-system |
| Prediction paradigm | IDM |
| Quadrant | Q4 · Dual-system × IDM |
3.1 Evidence-based assessment
Insufficient evidence to decide
Separate world-model and policy training directly supports Dual-system; audio sensing is central. The water policy maps current observations plus future audio to actions, making IDM a plausible functional interpretation. However, the paper specifies a future-conditioned imitation policy and a goal-conditioned SAC policy, not an explicit inverse-dynamics formulation. Thus the full Q4/IDM label remains interpretive. Predicted outputs are audio/MIDI rather than visual plans; no tactile modality is used. The supplied classification is preserved unchanged. e03e08e09e14
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Separate predicting a sound from selecting an action
The water task begins with a short observed audio window. AudioMAE compresses its spectrogram, and the latent flow model predicts a continuation that the decoder returns to spectrogram space. The action policy receives that future together with current audio and an image. This distinction matters because the paper's world model does not simulate outcomes for alternative candidate actions: its described conditioning is audio-based. The policy makes the action choice downstream. For music, the same separation becomes even clearer: predicted MIDI is converted into key and finger goals, while SAC produces joint actions. As reader analysis, the common mechanism is a controller supplied with predicted future sensory or goal information; an explicit inverse-dynamics formulation is not established for both implementations. e03e04e05e08e11e14
5.2 Understand which time axis the velocity loss regularizes
Flow matching moves a noisy sample toward audio latents as the interpolation variable t advances from zero to one. Audio also has its own frame sequence, so there are two distinct notions of time. The additional velocity loss compares differences between adjacent audio-frame vector-field predictions and the corresponding target differences. It is intended to encourage temporal consistency, not to supervise robot speed. Robot end-effector velocities enter a separate policy-training loss. Preceding audio latents connect successive generation windows, with dropout applied to that history during training. The equations motivate a testable temporal-consistency hypothesis, but no loss-removal experiment is reported. The printed conditioning definition includes future target latents without an explicit evaluation-time construction, so a reproduction must resolve that ambiguity rather than silently supply ground truth. e05e06e07e08e17
5.3 Follow the future-audio input across training and deployment
Learning Details makes an easily missed distinction: the robot policy is trained using ground-truth future audio, then evaluated using audio generated by the world model. Separate training therefore gives the controller a clean future during learning and a potentially imperfect one at deployment. My interpretation is that this creates a specific distribution-shift question, not evidence that the method fails. The reported closed-loop water success shows that the full system can work in its stated setup, but there is no matched no-lookahead water baseline. The piano section names such a baseline yet omits its numerical F1 comparison. A useful reproduction should therefore distinguish the value of future information, the accuracy of its generator, and the controller's tolerance to prediction error. Those are different questions that the qualitative examples alone cannot settle. e03e09e11e12e15
5.4 Training and inference
During training
Training is staged: reconstruction for the autoencoder, vector-field and temporal-difference losses for the world model, then a separately trained policy. The water policy uses supervised flow-prediction MSE on 16 future end-effector velocity steps. Learning Details explicitly uses ground-truth future audio for policy training and generated audio during evaluation; Figure 1's caption instead describes training with predicted futures. This report follows the explicit training paragraph and preserves the discrepancy. e03e04e06e08e09
Reported settings are batch size 256, AdamW learning rate 1.5 × 10⁻⁴, 500 warmup steps followed by cosine decay, 3,000 epochs, and weight decay 10⁻⁶. The entire pipeline on 20,000 spectrograms reportedly takes about one day on one NVIDIA H100. The preceding audio latents receive dropout with probability 0.5. e06e09
During inference
Noise is advanced from flow time zero to one through the learned vector field and then decoded. Water control repeatedly incorporates new observations in a closed loop; the paper reports approximately 50 ms for a complete prediction. It does not specify the integration step count or how many actions of each chunk are executed before replanning. e07e11
In piano simulation, generated MIDI replaces a complete predefined song as future goal input. SAC predicts joint actions at 20 Hz. The world model is trained on MIDI from the cited piano environment and PIG; policy training and testing cover two named songs, without a stated held-out-song protocol. e14
5.5 Implementation flow
- Encode the observation history
AudioMAE is trained to reconstruct spectrograms, providing a latent space for generation. For water filling, 128 Mel bins and a 10 ms frame shift yield a 128 × 128 observed window, approximately 1.28 seconds. Features are normalized to [−1, 1]. e04e10e11
- Predict a latent continuation
A transformer vector-field predictor, adapted from a DiT-based model, separates frame-wise conditioning from temporal attention. Training interpolates Gaussian noise toward target audio latents; preceding-window latents support continuity. The predictor does not receive an explicit proposed robot action in the described formulation. e05
- Decode and supply the future to control
For water filling, the generated 256 × 128 spectrogram spans approximately 2.56 seconds. It joins the observed spectrogram and a 224 × 224 image as policy input. The robot policy predicts an action chunk; the generated spectrogram itself does not execute an action. e03e08e11
- Replace the representation for music
MusicVAE encodes 64 MIDI time steps, approximately eight seconds, and the world model generates the next 64. Repeated generation extends the sequence autoregressively. MIDI becomes a piano-roll goal trajectory with key goals and finger assignments for the SAC controller. e09e14
6. Experiments & results
An audio world model predicts future spectrograms or MIDI segments, then supplies them to a separately trained robot policy. The paper reports successful physical water filling and qualitative improvement in simulated piano playing, but supplies little comparative numerical evidence. Its key distinction is future audio as an inference-time policy input, with ground-truth futures used during policy training.
The complete supplied five-page paper contains exactly two figures: one method overview with a water-sound inset and one qualitative prediction comparison. Both are included as faithful full-figure crops. It contains no quantitative table and no ablation or separate diagnostic experiment, so this edition has two visuals instead of four to six. Water success is reported in prose; the piano section names F1 but gives no scores. Splitting or duplicating panels would not supply the missing experimental evidence. e03e12e13e15e17
6.1 Read the original evidence

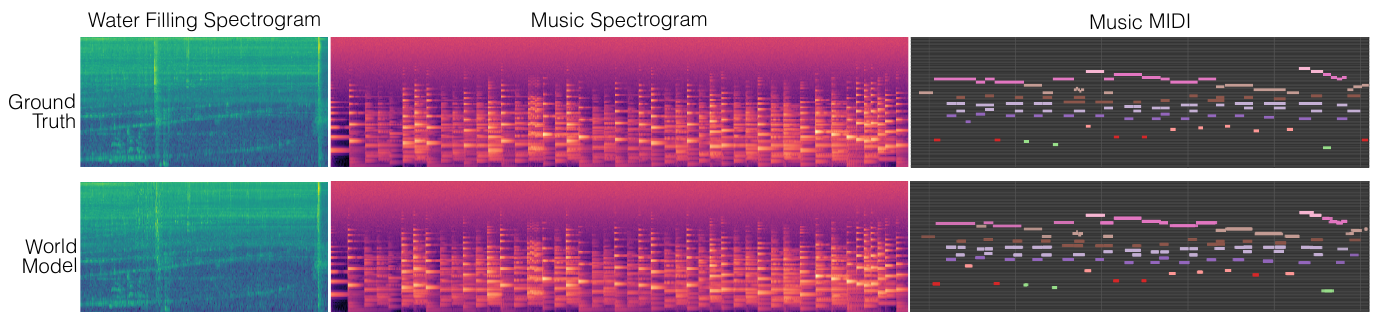

Figure 2. Qualitative continuations for water sounds and music, under different generation protocols. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read vertically within each column: Ground Truth is above World Model. The left column compares water spectrograms; the center shows music spectrograms; the right shows MIDI note patterns for the Nocturne example. The caption distinguishes closed-loop water predictions from autoregressive music generation, so the three columns are not a shared quantitative benchmark. Look for broad temporal and spectral organization, then inspect local mismatches rather than assuming similar color patterns imply identical signals. Use Section 3.1 on p. 3 for the water task outcome and Section 3.2 on this page for the piano evaluation description; neither measurement is plotted here. e11e12e13e14e15
What it supports. The examples visually support the limited claim that generated audio representations retain recognizable temporal structure. Separately, the text reports 100% water-filling success over 30 trials and qualitative piano improvement against RL without lookahead. The figure does not supply a prediction-error statistic or a numerical measure of the piano controller's executed notes.
Where the evidence stops. There are no calibrated axes, numerical F1 scores, uncertainty estimates, or ablation conditions in this figure. The paper's interpretation of the water release event is not a measured timing-error curve. Visual resemblance alone cannot establish a learned causal model of filling or successful piano execution.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Real-world water filling Kinova Gen3 presses/releases a dispenser button; closed-loop evaluation over 30 trials. Training/test separation and the operational success criterion are not specified. | 100% over 30 trials Reported task success rate | No numerical water-filling baseline is reported. This is physical task execution evidence for the reported setup. It does not quantify the added value of future prediction over an otherwise matched audio-visual policy or establish performance across containers. e10e11e12 |
| Piano playing in simulation SAC with generated future MIDI goals; policy training and testing on Twinkle Twinkle Little Star and Chopin Nocturne in E Flat Major Op.9. | Qualitative improvement claimed; no numerical F1 values reported. F1 score | Basic RL without future lookahead; baseline scores and uncertainty are absent. The source reports a favorable direction, not a measurable effect size. Figure 2 shows generated music representations, not an executed-note F1 measurement. e13e14e15 |
6.3 Ablations and diagnostic examples
No ablation or diagnostic visual is included in this edition. The source-specific visual limitations are recorded above.
7. Analysis & limitations
7.1 What the evidence leaves open
Figure 2 is qualitative and has no calibrated time/frequency axes or error scale. There are no quantitative tables, ablations, or uncertainty estimates. Similar-looking spectrograms cannot establish accurate physical dynamics or identify the contribution of the temporal loss. e13e17
Ground-truth futures during policy training create a potential deployment mismatch when generated futures are imperfect. Equation (1)'s inclusion of target-future latents in the stated conditioning requires clarification; the text does not establish how those terms are handled at evaluation. e05e09
Two songs and one reported water-filling setup provide limited generalization evidence. More complex fine-grained and dexterous manipulation is explicitly left to future work. e12e14e16
7.2 Questions for discussion
- Does generated future audio improve control over equally sized policies with the same observation history but no lookahead?
- How much performance survives replacing ground-truth policy-training futures with the world model's own predictions?
8. Reproducibility audit
8.1 Requirements and known gaps
Water replication requires the specified Kinova arm, on-robot Intel RealSense D410, MAONO omnidirectional USB lapel microphone, and Haption Virtuose 6D teleoperation setup. The paper reports 24-bit/192 kHz acquisition but 44.1 kHz preprocessing; the resampling procedure is unspecified. Kaldi log-Mel preprocessing uses a Hanning window, but its duration is not given. e10
Unresolved implementation details include latent/model dimensions, loss coefficients, ODE steps, module freezing, action execution cadence, dataset splits, and random seeds. Clarify these before interpreting a replication discrepancy. The reported optimizer settings do not specify every module's separate training schedule. e04e05e06e07e09e11e14
Proposed checks: compare real, generated, shuffled, and absent future inputs under matched water conditions; then remove only the temporal-difference loss while fixing music data and generation settings. Measure executed-task outcomes as well as prediction quality. These are reader proposals, not experiments reported by the authors. e06e09e12e14e15
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Is the future audio causally useful to water-filling control?
Reader-proposed experiment: hold demonstrations, observed audio history, image input, policy capacity and evaluation containers fixed. Compare a matched policy without future input against policies given generated futures, time-shuffled futures and recorded true futures under a valid offline or repeatable replay protocol. Treat true futures only as an oracle diagnostic. Predefine fill-level tolerance, spill rate and release timing, and report outcomes across seeds and held-out trials. The anticipatory-control hypothesis predicts an advantage for correctly aligned generated futures over absent or shuffled futures. If shuffled futures perform equally well, or the oracle helps while generated futures do not, the interpretation changes. No such controlled experiment is reported here. e03e09e10e11e12
Check 2: Does temporal-difference supervision improve music control?
Reader-proposed experiment: after resolving the source's evaluation-conditioning ambiguity, train otherwise matched MIDI world models with the full objective and with only the temporal-difference term removed. Keep splits, latent representation, optimization budget, inference steps and the downstream SAC policy fixed. Evaluate generation from identical 64-step prefixes; measure held-out continuation note F1, boundary timing discontinuities and executed-note F1 after conversion to goals. Repeat with declared random seeds. A benefit limited to smoother-looking music would not establish better control; the mechanism is supported more strongly if temporal regularization also improves executed-note F1. This proposal extends the source's qualitative music comparison and is not a reported ablation. e05e06e07e09e13e14e15
8.3 Reading coverage
Visual audit: All five original PDF pages were rendered and visually inspected. Page 1 establishes title, authors, affiliation and arXiv v1 date; page 2 supplies Figure 1 and the latent objectives; page 3 supplies inference, policy training, hardware, preprocessing, latency and water success; page 4 supplies Figure 2, piano protocol and conclusions; page 5 contains references. Both final figure crops were viewed and retain all diagram labels and result row/column labels while excluding captions and body text. Figure 1's training-caption discrepancy is disclosed above. There are no quantitative-table, ablation or appendix pages in the supplied PDF. No external supplements or cited resources were inspected.
PDF pages inspected for this edition: 1, 2, 3, 4, 5. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- PDF p. 1: title, authors, abstract, Section 1 Introduction
- PDF pp. 2–3: Section 2 Methods, Figure 1, Equations (1)–(4), Robot Policy, Learning Details
- PDF p. 3: Section 3 Experiments and Section 3.1 Filling Water
- PDF p. 4: Figure 2, Section 3.2 Piano Playing in Simulation, Section 4 Conclusions
- PDF p. 5: References
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Identity verified against PDF p. 1: Learning Robot Manipulation from Audio World Models; Fan Zhang and Michael Gienger; Honda Research Institute EU; arXiv:2512.08405v1 [cs.RO], 9 December 2025. Title and authors match the supplied catalog. Its BibTeX labels ICRA Workshop 2026, whereas the inspected artifact establishes a December 2025 arXiv v1; that venue/year attribution and any later edition are not verified.
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout. This extraction limitation was addressed by visually inspecting all five PDF pages and both original figures.
- Separate supplemental material availability has not been fully verified.
- No appendix is present in the supplied five-page PDF. No separate supplements were supplied.
- Code and external cited resources were not inspected; experiments were not reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e01PDF p. 1, title/author block and arXiv margin stamp
Title: Learning Robot Manipulation from Audio World Models. Authors: Fan Zhang and Michael Gienger. Affiliation: Honda Research Institute EU. Stamp: arXiv:2512.08405v1 [cs.RO], 9 Dec 2025.
Go to primary source ↓e02PDF p. 1, Abstract and Section 1 Introduction
Audio pitch and rhythmic evolution motivate future prediction when visual cues are ambiguous; the proposed method generates future audio to inform robot policies.
Go to primary source ↓e03PDF p. 2, Figure 1 and caption
The figure connects current spectrogram, audio encoder, latent flow matching, decoder, future spectrogram, image input and robot policy. The inset labels button pressing, rising pitch and button releasing. The caption describes policy training with current and predicted future spectrograms.
Go to primary source ↓e04PDF p. 2, Section 2 opening and Audio Latent Autoencoder
The method has autoencoder, latent generation and policy phases. AudioMAE encodes/decodes spectrograms using reconstruction loss.
Go to primary source ↓e05PDF p. 2, Flow Matching in Latent Space, interpolation and Equation (1) with following definitions
The DiT-derived predictor separates frame-wise conditioning and time-axis attention. Gaussian-noise interpolation targets future audio latents, with preceding latents for continuity. The printed xₜ and cₜ constructions include future latents; no evaluation-time masking recipe is given here.
Go to primary source ↓e06PDF p. 2, Equations (2)–(3) and following dropout sentence
The velocity loss matches frame-wise temporal differences in predicted and target fields. The total loss weights flow matching and velocity terms with unspecified λ coefficients. Preceding-latent dropout probability is 0.5.
Go to primary source ↓e07PDF p. 2 final paragraph and PDF p. 3, Equation (4)
Inference transports random samples from flow time zero to one. Equation (4) gives an explicit vector-field update and refers to 1/Δt steps without selecting the step count.
Go to primary source ↓e08PDF p. 3, Robot Policy
The flow-matching policy uses current audio, image representations and future audio, with supervised flow-prediction MSE on 16 steps of end-effector velocity.
Go to primary source ↓e09PDF p. 3, Learning Details
World model and policy training are decoupled. Ground-truth future audio trains the policy; generated audio is used at evaluation. Batch 256, AdamW 1.5e-4, 500 warmup steps, cosine decay, 3000 epochs and weight decay 1e-6 are reported. About one day on one NVIDIA H100 is reported for the full pipeline on 20,000 spectrograms. MusicVAE/SAC are interchangeable modules for piano.
Go to primary source ↓e10PDF p. 3, Section 3.1, hardware paragraph and preprocessing paragraph
Water experiments use Kinova Gen3, Intel RealSense D410, MAONO USB lapel microphone and Haption Virtuose 6D. Acquisition is described as 24-bit/192 kHz; waveform preprocessing as 44.1 kHz, Kaldi log-Mel, Hanning window, 128 Mel bins, 10 ms frame shift and normalization to [−1,1]. Resampling and window duration are unstated.
Go to primary source ↓e11PDF p. 3, Section 3.1, spectrogram dimensions through closed-loop timing
Observed spectrograms are 128 × 128 (~1.28 s), predicted spectrograms 256 × 128 (~2.56 s), and synchronized images 224 × 224. Output is 16 timesteps of 6-DoF Cartesian velocity; a prediction takes about 50 ms, with closed-loop operation.
Go to primary source ↓e12PDF p. 3, Section 3.1 final paragraph
The authors report onset, offset and pitch structure in generated spectrograms, a predicted release event before filling completion, and 100% success over 30 trials. This paragraph provides no numerical baseline or formal success threshold.
Go to primary source ↓e13PDF p. 4, Figure 2 and caption
Ground Truth and World Model rows compare water spectrograms, music spectrograms and MIDI. Water predictions are closed-loop during robot evaluation; music is autoregressive. The graphic supplies no numerical axes, F1 scores or error bars.
Go to primary source ↓e14PDF p. 4, Section 3.2 first three paragraphs
MIDI is converted to piano-roll goals including keys and finger assignments; SAC acts at 20 Hz. MusicVAE encodes 64 steps (~8 s) and generation supplies the next 64 autoregressively. World-model data come from the cited piano environment and PIG. Policy training/testing uses Twinkle Twinkle Little Star and Chopin Nocturne in E Flat Major Op.9.
Go to primary source ↓e15PDF p. 4, Section 3.2 final paragraph
F1 is the evaluation metric; improved performance over RL without future lookahead is asserted without numerical scores. Pre-positioning the wrist is offered as an explanation. Figure 2's music is identified as the Nocturne piece.
Go to primary source ↓e16PDF p. 4, Section 4 Conclusions
The authors emphasize pitch/rhythmic dynamics and identify extension to more complex fine-grained, dexterous manipulation as future work.
Go to primary source ↓e17PDF pp. 1–5, complete supplied paper; especially Figures 1–2 and Sections 3.1–3.2
The five-page source contains two figures, no quantitative table or ablation, and no appendix. Its physical success rate is stated in prose; the music comparison is qualitative. References occupy p. 5.
Go to primary source ↓8.5 Primary sources
