What Matters for Latent Actions in Robot Learning
1. Paper overview
In one sentence: Video-derived latent actions can strengthen a robot policy's VLM initialization, but the best representation and integration strategy depend on the control task and training protocol. motivationpipelinemodelingaction-headsreal-protocolreal-results
| At a glance | What to know |
|---|---|
| Research problem | Source description Robot action labels are scarce, while videos reveal state transitions without specifying motor commands. Latent actions compress those transitions into surrogate labels. The paper addresses fragmented evaluations by comparing 41 unique configurations and testing whether inexpensive representation metrics predict downstream task success. motivationpipeline |
| Core mechanism | Source description A common autoencoding comparison separates motion representation, regularization strength, and downstream integration. It evaluates LIBERO, LIBERO-Plus, RoboTwin2.0, and four physical manipulation tasks. motivationevaluationreal-protocol |
| A key reported result | Franka tabletop manipulation after latent-action VLM tuning: LA-Tuned: 317/400 = 79.25%. Executed task success, pooled across tasks and checkpoints. Four tasks, 50 demonstrations each; matched Stage III training with DAP, one front RGB view, and randomized evaluation scenes. Twenty trials per task at each of 6k, 8k, 10k, 20k, and 40k steps. Original-backbone OpenVLA-OFT: 259/400 = 64.75%; improvement 14.5 percentage points. LA-Tuned at 10k reaches 85.0%, versus baseline 76.25% at 40k. Supports improved initialization and earlier policy learning on these tasks. The pooled rate is not a single final-checkpoint score; uncertainty intervals are not reported. real-protocolreal-results |
| Reading caution | Reader analysis Figure 4 contradicts a universal LAP-over-DAP or JAP advantage: LAOF gives 0.656 LAP versus 0.687 DAP, and delta-DINO gives 0.709 JAP versus 0.752 LAP. Section V-D's stronger wording should be treated as a recommendation, not a configuration-wise result. head-comparison |
Core contributions
- Source description
A common autoencoding comparison separates motion representation, regularization strength, and downstream integration. It evaluates LIBERO, LIBERO-Plus, RoboTwin2.0, and four physical manipulation tasks. motivationevaluationreal-protocol
- Reader analysis
The authors recommend weakly regularized latent learning and scalable VLM tuning. Their recommendations are useful starting points, but the reported tables do not establish a universally best regularizer, head, or latent dimension. regularization-resultshead-comparisondimension
Figure 2. Change the signal entering the bottleneck, the target leaving it, or both. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each column from top to bottom. In LAPO, the current observation o_t and future observation o_{t+1} enter the inverse dynamics model; its code z_t reaches the forward dynamics model together with a separate current-frame connection. LAOF keeps that route and branches z_t into a flow decoder. CoMo feeds the current frame and a computed difference into the IDM; its left-hand connection still supplies the current frame to the FDM. CFD-AE instead routes the difference through an encoder and decoder. The bottom supervision labels identify what is reconstructed. These arrows agree with Equations (1)–(7); the code is learned from observed transitions, not sampled as a motor command here. modelingpipelineaction-heads
What it supports. The comparison isolates useful alternatives to raw-frame transition learning: auxiliary flow supervision, semantic differences as encoder inputs, and explicit difference reconstruction. CFD-AE can yield a latent action without generating a future frame. Therefore, success in the later policy does not by itself show that future-frame synthesis is essential.
Where the evidence stops. All columns describe representation training. The IDM's future-frame input is unavailable to a deployed policy; Stage II learns to predict its code from a current image and instruction. No action execution or inference-time planning appears in this graphic.
2. Motivation
2.1 The problem and the proposed response
Robot action labels are scarce, while videos reveal state transitions without specifying motor commands. Latent actions compress those transitions into surrogate labels. The paper addresses fragmented evaluations by comparing 41 unique configurations and testing whether inexpensive representation metrics predict downstream task success. motivationpipeline
2.2 What this reading follows
A video shows that the world changed, but does not directly label the command that caused the change. This paper studies how to turn such transitions into supervision for robot policies. Its contribution is an empirical comparison: which motion representation to compress, how tightly to regularize it, and where to place the learned code in the policy. The figures below connect that information flow to actual manipulation success. Read the results with their training settings attached: future-frame reconstruction is a representation-learning objective, action-head comparisons can differ in access to physical labels, and the real-world headline pools several checkpoints rather than describing one deployed final model. motivationpipelinemodelingaction-headsreal-protocolreal-results
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Not assigned |
| Architecture | Not assigned |
| Prediction paradigm | Not assigned |
| Quadrant | Not assigned |
This table preserves the labels recorded at reading time. The current major category is VLA. View the current classification.
3.1 Evidence-based assessment
Insufficient evidence to decide
The supplied classification is unassigned. Architecture evidence supports inverse-dynamics latent supervision followed by VLA policy learning, with a separate FDM during representation training. JAP jointly predicts codes and physical actions, not future video and actions. This does not establish a single inference-time world-action model or a One Model quadrant. pipelinemodelingaction-heads
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Learn a transition code before asking it to control a robot
Start with two observed frames. LAPO's IDM sees both and compresses their change into z_t; its FDM then combines z_t with the current frame to reconstruct the future. The current-frame connection matters: static appearance need not pass entirely through the action bottleneck. However, seeing the target allows the IDM to encode future appearance directly, so reconstruction alone does not guarantee a controllable representation. The paper tests Gaussian, discrete, sparse, and isotropic regularization as alternative constraints. Figure 2 also changes what the bottleneck receives or predicts: CoMo supplies semantic differences to the IDM, LAOF adds a flow target, and CFD-AE reconstructs differences directly. These are training objectives for extracting surrogate labels. Actual control appears only after a policy learns to predict suitable outputs from the current observation and instruction. motivationmodelingregularizationpipeline
5.2 Separate representation transfer from the path to the action
Stage II turns observed transitions into latent labels and tunes the VLM to predict them from an image and instruction. DAP then removes that latent head and learns a physical head, testing whether the backbone itself improved. LAP retains the latent prediction as the input to a physical-action decoder, making the code an inference-time bottleneck. JAP differs in both architecture and supervision: it predicts latent and physical actions together from shared features, with physical labels available during backbone training, and skips separate latent-only mid-training. Its physical output does not depend on its predicted latent output. The JAP-DAP and JAP-LAP hybrids retain the jointly tuned backbone but replace the trained head. This distinction explains why averaging all five heads cannot isolate a single architectural effect. The real-world DAP comparison is particularly informative about transferred initialization. pipelineaction-headsreal-protocol
5.3 Choose checkpoints using control evidence, not a universal proxy
The reader's practical lesson is to keep representation quality and policy usefulness separate. A probe asks whether an additional decoder can recover physical labels; reconstruction gain asks how much the inferred code improves prediction over copying the current frame. Neither asks whether a deployed policy chooses the right command in a new scene. Figure 5 shows why this matters: correlation depends on the head and control benchmark, and adding dimensions can weaken rank agreement. Figure 7 then tests capacity using downstream success, revealing different single-arm and bimanual preferences. Finally, Figure 9 changes the Stage II corpus while holding Stage III fixed, and Figure 10 evaluates actual execution after backbone transfer. Together these motivate coarse proxy screening followed by matched policy evaluations, with dimensionality, label access, corpus composition, and checkpoint aggregation recorded explicitly. proxy-metricsdimensionscaleaction-headsreal-protocolreal-results
5.4 Training and inference
During training
The approximately 59M-frame corpus combines OXE robot datasets with Robotwin and Liberoplus; Design I–III ablations use the latter two. Action-supervised LIBERO data train the LIBERO/Plus policies. RoboTwin training uses all 50 tasks, each with 50 clean and 500 randomized demonstrations. data
Stage I uses a 700M spatiotemporal Transformer: 24 IDM encoder and 24 FDM decoder blocks, center-cropped 224×224 frames, random temporal downsampling from {1,2,3,4,5}, and AdamW. Stages II/III use OpenVLA-OFT through StarVLA with Qwen3-VL-4B. Experiments use eight NVIDIA H200 GPUs. Policy inputs exclude wrist views, joint states, and augmentation. implementation
Table III specifies 150k steps and batch 256 for each of Stages I/II. Stage III uses batch/steps/action-chunk size 128/80k/8 for LIBERO, and 32/150k/50 for RoboTwin and real-world training. Base LR is 2.5×10^{-5}; later stages list head/backbone LRs 10^{-4}/10^{-5}. Weight decay is 10^{-2} then 10^{-8}; scheduling changes from constant to cosine with a minimum LR. The paper does not give that minimum. training-config
During inference
DAP discards the latent head and maps VLM features directly to physical actions. LAP predicts a latent code and decodes it into actions. JAP jointly outputs both from shared features; its physical prediction is not conditioned on its predicted code. Backbone and heads are optimized during policy learning; no frozen policy backbone is specified. action-heads
Real-world deployment is closed-loop, using new camera observations after execution. The paper does not describe FDM rollouts, reward search, or planning at deployment. Action chunks are specified, but execution frequency, reobservation cadence, and the numerical real-world success horizon are not. action-headsreal-protocoltraining-config
5.5 Implementation flow
- Infer transition codes
LAPO jointly trains an inverse dynamics model (IDM) to encode current/future frames and a forward dynamics model (FDM) to reconstruct the future using the current frame and code. LAOF adds flow reconstruction; CoMo replaces the IDM's future-frame input with DINOv2 feature differences. CFD-AE instead compresses and reconstructs explicit differences, without future-frame synthesis. modeling
- Constrain information capacity
AE has no explicit latent regularizer. VAE uses a Gaussian KL penalty, VQ-VAE a discrete codebook and commitment objective, Sparsity combines sparse activation with variance/covariance/mean regularization, and SIGReg matches random one-dimensional projections to a Gaussian. These target shortcut encoding of the future frame, not a proved identification of physical actions. motivationregularization
- Transfer representations into control
The pretrained annotator labels videos with latent actions. Stage II trains the VLM and latent head from image/instruction to code; Stage III learns from physical actions. JAP instead skips separate latent-only VLM mid-training and jointly predicts latent and physical actions. JAP-DAP/LAP transfer that jointly trained backbone into newly trained heads. pipelineaction-heads
6. Experiments & results
This empirical study asks which video-derived latent actions improve robot policies. It compares modeling paradigms, regularization, and action integration under a shared training framework. Raw-frame LAPO remains competitive, but preferred dimensionality and action heads depend on the evaluation. Its strongest deployment evidence is improved Franka manipulation after latent-action tuning of a VLM backbone; the forward predictor supplies training supervision rather than an inference-time planner.
6.1 Read the original evidence

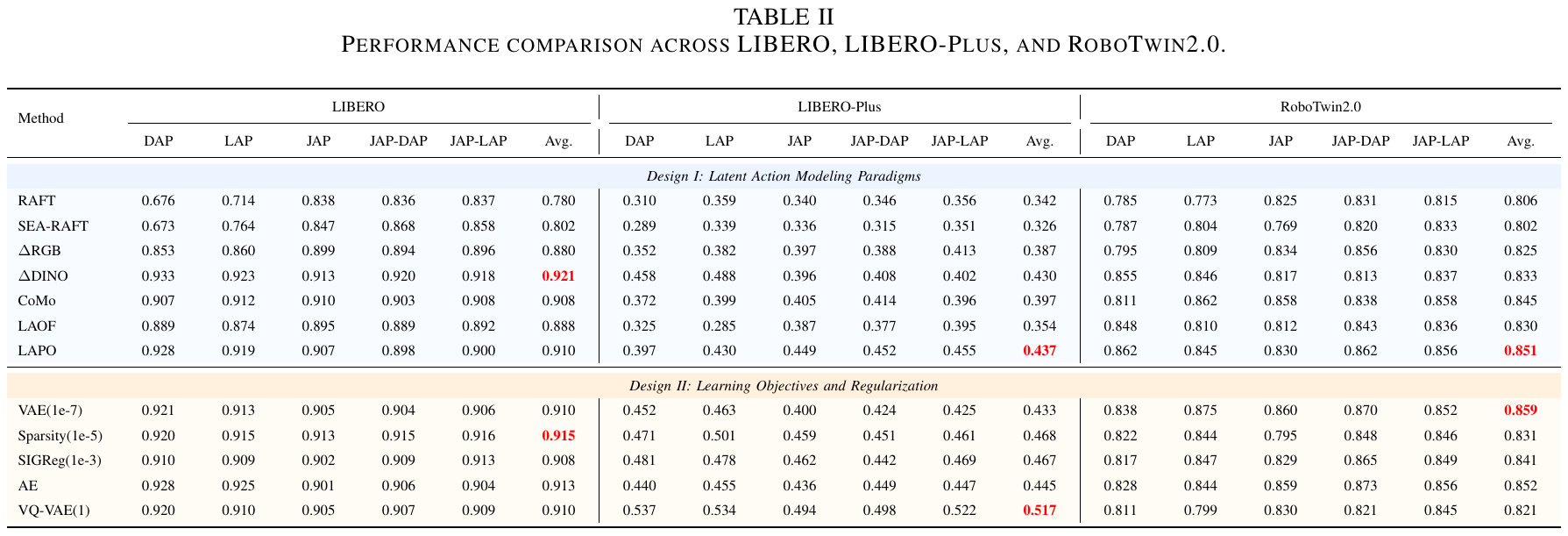

Table II. A shared comparison exposes both strong simple baselines and benchmark-dependent regularization. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. First choose a benchmark group, then compare methods within the same action-head column. The Avg. column averages five heads; it combines settings that differ in whether physical actions participate in backbone tuning. The blue block compares motion-modeling choices at dimension 64 and regularization strength 10^{-6}. The lower block uses LAPO at dimension 64 while changing regularization and its selected strength. LIBERO averages four suites; LIBERO-Plus evaluates their RobotInit perturbations; RoboTwin averages twelve selected tasks in easy and hard modes. Reported ablation scores average three seeds. These details matter because a row average is not a single deployable policy and LIBERO-Plus here is not an average over every perturbation. modeling-resultsregularization-resultsevaluationdataaction-heads
What it supports. LAPO reaches 0.437 on LIBERO-Plus and 0.851 on RoboTwin in the upper block, while delta-DINO leads LIBERO at 0.921. In the lower block, VQ-VAE leads LIBERO-Plus at 0.517 but trails VAE on RoboTwin, 0.821 versus 0.859. There is no common winner across those columns.
Where the evidence stops. No uncertainty intervals accompany the cells. Optical flow is computed from unfiltered raw video, including noisy estimates. LIBERO-Plus is zero-shot with respect to physical policy training, while Liberoplus video already participates in representation learning; it is not a wholly unseen visual domain.

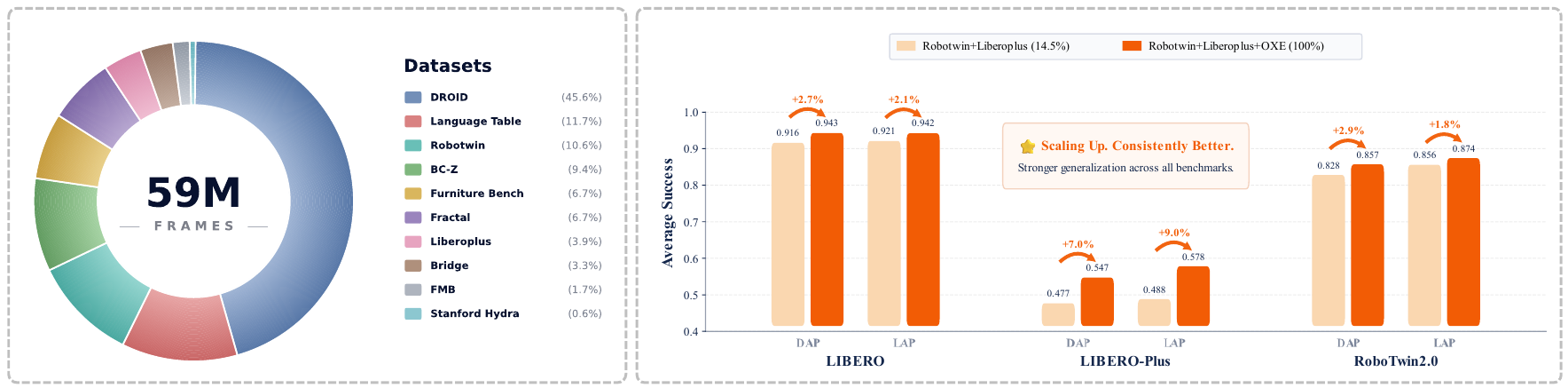

Figure 9. Adding the OXE video mixture improves both tested policy heads, with the largest gain on RobotInit. Original paper, p. 13 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. The left panel describes the full corpus in frames, not demonstrations or physical action labels. Robotwin and Liberoplus together account for 14.5%; the remaining components are grouped as OXE in the comparison. On the right, pale bars use the smaller mixture and orange bars add OXE. Within each benchmark, read DAP and LAP separately. Section V-G keeps the Stage III data, architecture, algorithm, and optimization settings unchanged. For LIBERO-Plus LAP, the printed rates are 0.488 and 0.578. Their difference is 0.090, or 9.0 percentage points. Although the figure's arrow uses a percent sign, it should not be interpreted as a 9% relative improvement. scaledataevaluation
What it supports. All six paired comparisons improve. LIBERO-Plus gains 7.0 points with DAP and 9.0 with LAP; LIBERO gains 2.7 and 2.1 points, and RoboTwin gains 2.9 and 1.8. The gain survives a change in integration head, consistent with useful backbone adaptation through latent supervision.
Where the evidence stops. The larger corpus changes both size and composition. Two data settings establish an observed benefit, not a fitted scaling law or an isolated data-volume effect. The figure reports average success without confidence intervals; pretraining overlap with evaluation trajectories is not documented.

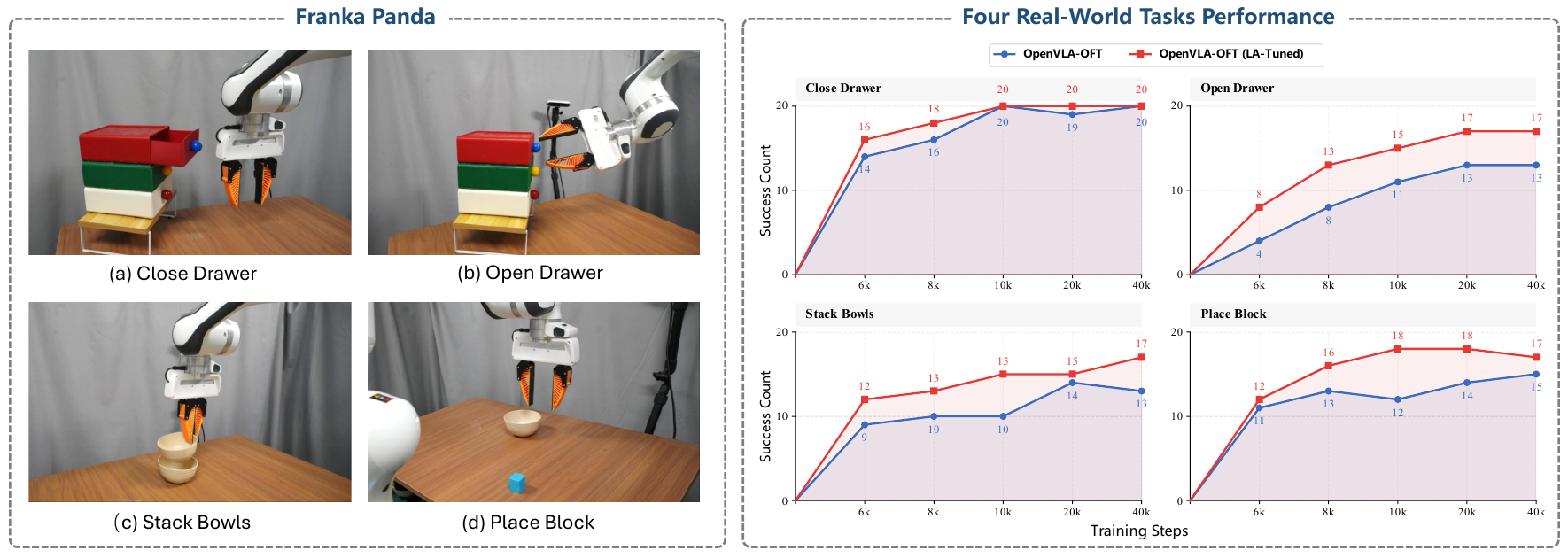

Figure 10. Latent-action backbone tuning improves physical manipulation and early training performance. Original paper, p. 14 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Use the photos to identify the four tasks, then read the matching chart title. Blue circles denote the original OpenVLA-OFT backbone; red squares denote the backbone tuned with latent actions. The vertical axis is a success count out of twenty trials per task per checkpoint, not a percentage. Evaluated checkpoints are 6k, 8k, 10k, 20k, and 40k Stage III steps. Each policy learns from the same combined 200-demonstration dataset and uses DAP, so latent codes are not required during deployment. Add the counts over all four tasks and five checkpoints to recover 400 trials per method. At 10k, the four red counts sum to 68/80. real-protocolreal-resultstraining-config
What it supports. The pooled counts are 317/400 for LA-Tuned versus 259/400 for the baseline, corresponding to 79.25% versus 64.75%. At 10k, LA-Tuned reaches 85.0%, exceeding the baseline's 76.25% at 40k. These are executed, closed-loop task results rather than reconstruction or video-quality scores.
Where the evidence stops. The aggregate pools different checkpoints; it is not the final policy's success rate. The curves connect only the declared evaluation checkpoints, and their origin is not a reported zero-step trial. No confidence intervals or numerical deployment horizon are supplied, and Table III lists a longer 150k-step real-world schedule.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Franka tabletop manipulation after latent-action VLM tuning Four tasks, 50 demonstrations each; matched Stage III training with DAP, one front RGB view, and randomized evaluation scenes. Twenty trials per task at each of 6k, 8k, 10k, 20k, and 40k steps. | LA-Tuned: 317/400 = 79.25%. Executed task success, pooled across tasks and checkpoints | Original-backbone OpenVLA-OFT: 259/400 = 64.75%; improvement 14.5 percentage points. LA-Tuned at 10k reaches 85.0%, versus baseline 76.25% at 40k. Supports improved initialization and earlier policy learning on these tasks. The pooled rate is not a single final-checkpoint score; uncertainty intervals are not reported. real-protocolreal-results |
| Latent modeling paradigm comparison Design I: latent dimension 64 and regularization strength 10^{-6}; three-seed benchmark scores, averaged over five heads. LIBERO-Plus uses RobotInit; RoboTwin evaluates 12 selected tasks in easy/hard modes. | LAPO: 0.910 LIBERO, 0.437 LIBERO-Plus, 0.851 RoboTwin2.0. Mean success rate by benchmark | Delta-DINO: 0.921/0.430/0.833; RAFT: 0.780/0.342/0.806. Simple raw-frame learning is competitive; semantic differencing leads on LIBERO. These averages mix physical-action-accessible and inaccessible backbone-training settings. evaluationmodeling-results |
| Regularization and zero-shot RobotInit robustness Design II: LAPO, dimension 64, five-head averages on LIBERO-Plus after LIBERO action training. | VQ-VAE (strength 1): 0.517. Mean success rate | AE 0.445; VAE (10^{-7}) 0.433; Sparsity (10^{-5}) 0.468; SIGReg (10^{-3}) 0.467. Discrete latents help this robustness setting, but VQ-VAE scores 0.821 on RoboTwin versus VAE's 0.859. Regularizer preference is benchmark-dependent. evaluationregularization-results |
| Latent dimension as a control bottleneck LAPO with VAE strength 10^{-6}; mean of DAP and LAP under the standard three-seed evaluation. | Dimension 32: 0.922 LIBERO, 0.516 LIBERO-Plus, 0.856 RoboTwin2.0. Mean task success | Benchmark bests are dimension 16 (0.926), 8 (0.526), and 32 (0.856), respectively; RoboTwin dimension 8 gives 0.802. 32 is a shared compromise, not each benchmark's optimum. The source reports rounded means without uncertainty for these small differences. evaluationdimension |
| Scaling Stage II video supervision Robotwin+Liberoplus (14.5% of the corpus) versus adding OXE (100%, about 59M frames); Stage III held fixed; LIBERO-Plus RobotInit evaluation. | LAP: 0.488 to 0.578; DAP: 0.477 to 0.547. Task success rate | Absolute improvements are 9.0 and 7.0 percentage points. Figure 9 labels the changes with percent signs, but the displayed rates imply percentage points. Two corpus mixtures show a gain; they do not establish a fitted scaling law or isolate size from diversity. evaluationscale |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

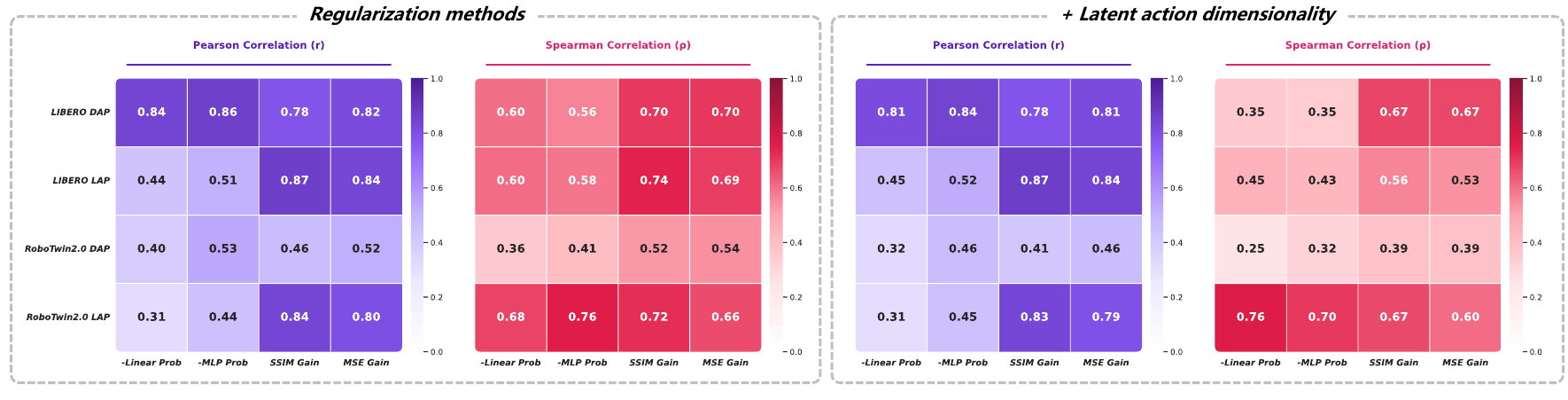

Figure 5. Use cheap representation metrics for screening, with the benchmark and policy head attached. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the left pair: each row fixes a benchmark and DAP or LAP head, while columns distinguish negative linear-probe loss, negative MLP-probe loss, SSIM Gain, and MSE Gain. Negative losses make higher values desirable, like the two reconstruction gains. Purple heatmaps show Pearson correlation, a measure of linear association; pink heatmaps show Spearman rank correlation. The left group uses 21 regularization configurations. The right group adds eight dimensionality configurations, giving 29. Compare corresponding cells across groups before comparing colors across metrics. For example, LIBERO-LAP SSIM rank correlation decreases from 0.74 to 0.56 when dimensions are added, even though its Pearson correlation stays at 0.87. proxy-metrics
What it supports. For LIBERO-LAP, SSIM Gain correlates more strongly with success than the MLP probe in Pearson terms, 0.87 versus 0.51. Yet LIBERO-DAP favors the MLP probe, 0.86 versus 0.78. The useful finding is conditional association and imperfect ranking, not universal superiority of reconstruction metrics.
Where the evidence stops. Section V-E says Pearson correlation is consistently high and Spearman lower, but the graphic contains exceptions: RoboTwin-LAP's linear probe has Pearson 0.31 and Spearman 0.68 in the left group. Correlations do not establish accurate best-model selection, and no uncertainty intervals are shown.

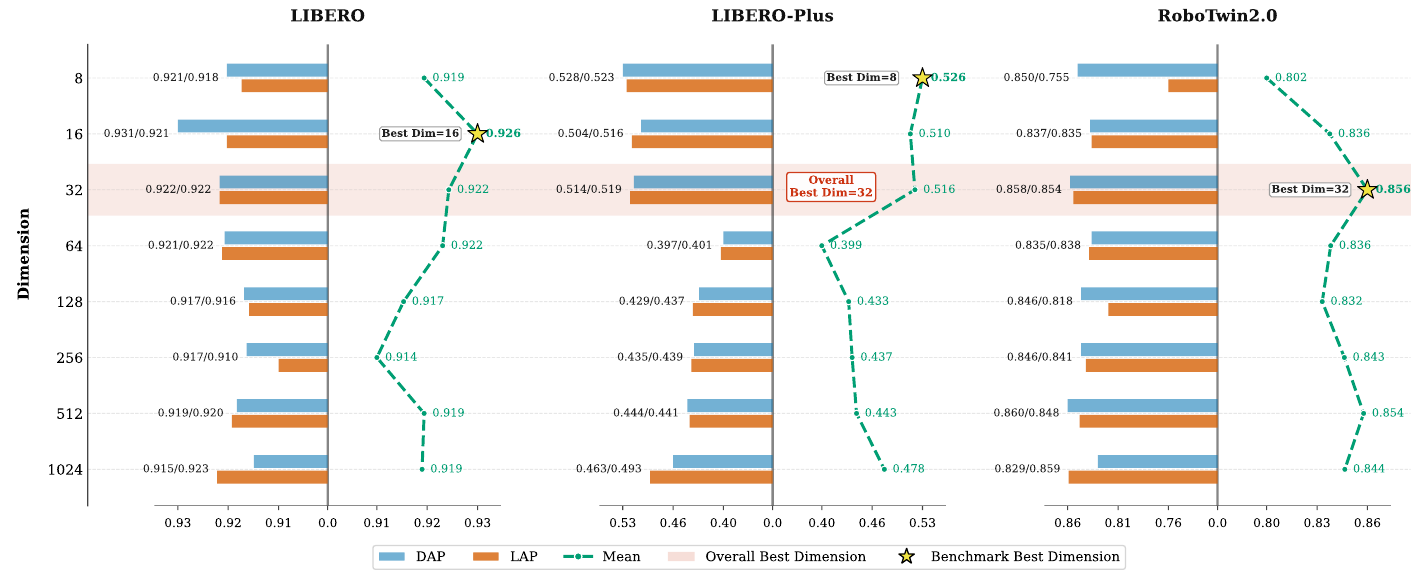

Figure 7. The capacity that helps bimanual control need not be the single-arm optimum. Original paper, p. 11 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Each horizontal row fixes the latent dimension. In each benchmark group, blue and orange bars show DAP and LAP, and the adjacent green dashed line shows their mean. The bars extend left from their central boundary and use benchmark-specific horizontal scales; compare printed rates rather than apparent bar lengths across panels. Gold stars mark each benchmark's best mean, whereas the pale horizontal band marks the authors' overall dimension-32 recommendation. The experiment uses LAPO with VAE regularization strength 10^{-6}. Separate that setting from the tuned strength 10^{-7} used in other experiments. The plotted dimensions range from 8 to 1024, while the physical action spaces are 7-DoF and 14-DoF. dimensionevaluationproxy-metrics
What it supports. RoboTwin improves from 0.802 at dimension 8 to 0.856 at 32. LIBERO instead peaks at 16 with 0.926, and LIBERO-Plus peaks at 8 with 0.526. Dimension 32 remains competitive at 0.922 and 0.516 on those single-arm benchmarks. This supports a shared compromise rather than a universal optimum.
Where the evidence stops. The source does not show uncertainty for the small differences near the maxima. A latent dimension is representation capacity, not an identified count of physical action primitives. Larger dimensions can help reconstruction without improving control, as the proxy study cautions.
7. Analysis & limitations
7.1 What the evidence leaves open
Figure 4 contradicts a universal LAP-over-DAP or JAP advantage: LAOF gives 0.656 LAP versus 0.687 DAP, and delta-DINO gives 0.709 JAP versus 0.752 LAP. Section V-D's stronger wording should be treated as a recommendation, not a configuration-wise result. head-comparison
Proxy quality depends on the setting. In Figure 5, LIBERO-LAP SSIM Pearson correlation is 0.87 versus 0.51 for the MLP probe, but LIBERO-DAP favors the probe (0.86 versus 0.78). Adding dimensions reduces LIBERO-LAP SSIM Spearman correlation from 0.74 to 0.56. Correlation is neither universal dominance nor reliable best-model selection. proxy-metrics
Unnormalized latents improve 28 of 33 comparisons, with reported mean gain 0.0115; five exceptions preclude a universal rule. Optical-flow comparisons retain unfiltered noisy estimates. Zero-shot LIBERO-Plus refers to physical policy training: Liberoplus video is already used in representation learning. normalizationdataevaluationmodeling-results
The authors limit conclusions to existing robot datasets and arm manipulation; general web video, foundation-model pretraining from scratch, dexterous hands, quadrupeds, and humanoids remain future work. limits
7.2 Questions for discussion
- Would action-head rankings persist if backbone training used identical physical-action access and matched update budgets?
- Would the Stage II gain persist after matching dataset diversity and strictly separating pretraining trajectories from evaluation scenes?
8. Reproducibility audit
8.1 Requirements and known gaps
A faithful run needs the specified data mixture, annotator checkpoints, policy backbones, control conventions, and benchmark perturbations. Exact trajectory splits/deduplication, normalization formula, probe held-out split, VQ codebook size/commitment weight, and software versions are not specified in this PDF. dataimplementationevaluationregularizationproxy-metrics
Report per-seed and per-checkpoint results. Table III's real-world 150k-step schedule coexists with Figure 10 evaluations ending at 40k; later deployment results are not supplied. Hardware count alone does not provide GPU-hours or wall-clock reproduction cost. training-configreal-resultsimplementation
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Test whether a proxy-selected bottleneck survives policy evaluation
Reader-proposed check, not performed: train LAPO/VAE with strength 10^{-6} at dimensions 8, 16, 32, and 64 using identical video splits, update budgets, and seeds. Hold out trajectories before fitting probes; compare the paper's 50-step probe fit with a longer 500-step fit as an optimization control. Rank checkpoints by reconstruction gains and negative probe errors before running matched DAP and LAP training. Evaluate LIBERO, RobotInit, and the specified twelve RoboTwin tasks. Report rank correlations and the task-success gap between the proxy-selected and task-best checkpoint, separately within each dimension and across dimensions. If extra probe training changes rankings substantially, probe optimization is a confound; if high proxy scores select inferior policies, the proposed screening rule fails as a final selector. modelingproxy-metricsdimensionevaluationaction-heads
Check 2: Separate useful latent supervision from more video exposure
Reader-proposed check, not performed: compare the original backbone with Stage II backbones trained using correctly aligned latent labels or labels shuffled within each dataset. Match frame counts, instructions, update budgets, optimization, and the subsequent DAP policy training. Cross that comparison with equal-sized video subsets that either preserve the smaller mixture or add OXE diversity, using disclosed trajectory-level separation from evaluation. Evaluate the same Franka tasks and checkpoints with paired randomized scenes, reporting each checkpoint separately and seed-level uncertainty. Correct labels outperforming shuffled labels would support transition-specific supervision; equal-sized diverse subsets outperforming the smaller mixture would implicate diversity. A gain explained entirely by exposure or composition would weaken attribution to latent-action quality itself. pipelinedataaction-headsscalereal-protocolreal-resultstraining-config
8.3 Reading coverage
Visual audit: All sixteen PDF pages were visually inspected after complete reading of all eight text chunks, including the title/author block, Figures 1–10, Tables I–III, limitations, and references. All six final original crops were inspected for labels, legends, boundaries, and numerical legibility. Figure 2's arrows were checked against Equations (1)–(7). Figure 9's percent-marked annotations are interpreted using the printed rates. Figure 10 counts were checked against its checkpoint protocol and pooled totals. The source has no appendix; separate supplements, code, linked sites, and external works were outside this reading.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- Abstract and I. Introduction (pp. 1–2)
- II. Related Work (pp. 2–3)
- III. Problem Formulation (pp. 3–4)
- IV. Methodology, A–C (pp. 4–6)
- V. Experiments, A–H (pp. 7–14)
- VI. Limitation and Future Work (pp. 14–15)
- Table III and References (pp. 15–16)
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- Edition scope: the inspected title page identifies arXiv:2608.19613v1 [cs.RO], 20 August 2026. Title and all 16 authors match the supplied catalog. No different revision was supplied or compared; the journal-template running header does not establish a publication venue.
- Separate supplemental material availability has not been fully verified; no separate supplements were supplied.
- The text extraction did not reconstruct figure images; this limitation was addressed by inspecting all original PDF pages and the final crops.
- Code, the linked project page, and external references were not inspected. No experiments were reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
identityPDF p. 1, title, complete byline, affiliation block, and arXiv margin stamp
The title and 16-author byline match the catalog. The artifact visibly states arXiv:2608.19613v1 [cs.RO], 20 Aug 2026; equal contribution marks the first three authors, and correspondence marks Wei Li and Xiaoshuai Hao.
Go to primary source ↓motivationPDF pp. 1–3, Abstract, I. Introduction, II-B, and Figure 1
The study compares 41 unique designs across modeling, regularization, and integration. It motivates latent actions through scarce robot labels, fragmented evaluations, and shortcut encoding when the IDM sees the target future frame.
Go to primary source ↓pipelinePDF pp. 3–4, Figure 1 and III-A/B
Defines observations, physical and latent actions, and language instructions. Stage I learns representations from video; Stage II uses inferred latent labels to tune a VLM; Stage III uses robot action labels. Physical-action-accessible variants are explicitly distinguished.
Go to primary source ↓modelingPDF pp. 4–5, Figure 2, IV-A, Equations (1)–(7)
LAPO reconstructs future frames using IDM/FDM; LAOF adds a flow decoder; CoMo uses current frames and delta-DINO inputs; CFD-AE encodes/decodes explicit differences. RGB, DINOv2, RAFT, and SEA-RAFT instantiate the differences.
Go to primary source ↓regularizationPDF p. 5, IV-B, Equations (8)–(14)
Defines a method-specific loss plus weighted regularization, the unregularized AE, VQ codebook/commitment terms with stop-gradients, Gaussian KL, sparse/VCM penalties, and projected Gaussian matching. Numerical codebook size and commitment coefficient are not supplied.
Go to primary source ↓action-headsPDF p. 6, IV-C, Equations (15)–(18) and final comparison paragraphs
DAP replaces the latent head; LAP passes predicted latents to a physical head; JAP jointly predicts both from shared features and skips separate latent-only mid-training. Hybrids replace the jointly trained head. The VLM and relevant heads are jointly optimized.
Go to primary source ↓dataPDF pp. 7–8, V-A Datasets
Approximately 59M frames combine OXE subsets with Robotwin and Liberoplus. Design ablations use Robotwin/Liberoplus. Robot action training uses the full RoboTwin dataset and LIBERO suites; real-world data comprise 50 demonstrations for each of four tasks. No explicit trajectory-level split or deduplication recipe is given.
Go to primary source ↓implementationPDF p. 8, V-A Implementation Details
Specifies the 700M Transformer, 24 encoder/24 decoder blocks, temporal factors 1–5, 224×224 crops, AdamW, OpenVLA-OFT/StarVLA/Qwen3-VL-4B, front-view-only inputs, no state/augmentation, and eight H200 GPUs. Software versions and runtime costs are not listed.
Go to primary source ↓evaluationPDF p. 8, V-A Benchmark and benchmark-specific paragraphs
Ablations average three seeds; LIBERO averages four suites, LIBERO-Plus their RobotInit variants, and RoboTwin 12 named tasks with easy/hard evaluation and a 400-step horizon. Controls are 7-DoF end-effector deltas and 14-DoF joint positions. Noisy optical flow is retained without filtering.
Go to primary source ↓modeling-resultsPDF p. 7, Table II Design I, all benchmark Avg. columns; pp. 9–10, V-B
LAPO averages 0.910/0.437/0.851, delta-DINO 0.921/0.430/0.833, and RAFT 0.780/0.342/0.806. Dimension 64 and strength 10^-6 are stated. Flow estimation errors and lost transition cues are the authors' proposed explanations, not isolated causal tests.
Go to primary source ↓regularization-resultsPDF p. 7, Table II Design II and Figure 3; pp. 10–11, V-C
Lists selected strengths VAE 10^-7, Sparsity 10^-5, SIGReg 10^-3, VQ-VAE 1. LIBERO-Plus five-head averages are 0.433, 0.468, 0.467, 0.517, versus AE 0.445. RoboTwin VAE/VQ averages are 0.859/0.821. Figure 3 selects strengths using SSIM Gain+MSE Gain−MLP−Linear.
Go to primary source ↓head-comparisonPDF p. 8, Figure 4, LAOF and delta-DINO columns; pp. 11–12, V-D
LAOF has DAP/LAP 0.687/0.656; delta-DINO has LAP/JAP 0.752/0.709. Each cell averages three benchmarks. The prose recommends LAP without physical actions and JAP-LAP with them, but its configuration-wise superiority wording has visible counterexamples.
Go to primary source ↓proxy-metricsPDF p. 9, Figure 5 and V-A Proxy Metrics; p. 12, V-E
Defines negative linear/MLP probe losses and SSIM/MSE gains over copying the current frame. Probes use LR 10^-3, 50 steps, batch 256, and linear [d_z,d_a] or MLP [d_z,128,128,d_a] heads. Figure 5 compares 21 regularization configurations and 29 after adding dimensions; correlations vary by metric, head, and benchmark.
Go to primary source ↓dimensionPDF p. 11, Figure 7 and caption; pp. 12–13, V-F
Tests eight dimensions 8–1024 with LAPO/VAE 10^-6. At 32, means are 0.922/0.516/0.856; per-benchmark maxima occur at 16/8/32. RoboTwin at dimension 8 gives 0.802. The graphic distinguishes benchmark bests from the overall 32-dimensional recommendation.
Go to primary source ↓normalizationPDF p. 12, Figure 8 and caption; p. 13, V-F
Figure 8 plots unnormalized minus normalized success, averaged over DAP/LAP. Section V-F reports 28/33 improvements, mean +0.0115, and LIBERO-Plus mean +0.0160; a precise normalization transformation is not provided.
Go to primary source ↓scalePDF p. 13, Figure 9 and V-G
Compares Robotwin+Liberoplus (14.5%) against adding OXE (100%) with fixed Stage III. LIBERO DAP/LAP increase 0.916→0.943/0.921→0.942; LIBERO-Plus 0.477→0.547/0.488→0.578; RoboTwin 0.828→0.857/0.856→0.874. Percent-marked annotations equal absolute percentage-point differences.
Go to primary source ↓real-protocolPDF pp. 13–14, V-H and Figure 10 caption
Franka Panda with UMI gripper performs Close Drawer, Open Drawer, Stack Bowls, and Place Block under joint-position control and front RGB. Each task contributes 50 demonstrations and 20 evaluations per checkpoint at 6k/8k/10k/20k/40k. LA-Tuned uses LAPO/VAE 10^-7, dimension 32, unnormalized latents, 59M-frame tuning, and DAP. Evaluation resets/randomizes scenes and executes closed-loop.
Go to primary source ↓real-resultsPDF p. 14, Figure 10 all four task panels and V-H aggregate-results paragraph
Reported pooled successes are 317/400 versus 259/400: 79.25% versus 64.75%, +14.5 points. LA-Tuned reaches 85.0% at 10k versus baseline 76.25% at 40k. Plot values reproduce the pooled totals; no confidence intervals are supplied.
Go to primary source ↓training-configPDF p. 15, Table III, all rows and benchmark-symbol footnote
Stages I/II use 150k steps and batch 256; Stage II action chunk is 1. Stage III batch/steps/chunk are LIBERO 128/80k/8 and RoboTwin/real 32/150k/50. Base LR is 2.5e-5; later head/backbone LRs are 1e-4/1e-5; weight decay is 1e-2 then 1e-8. A cosine minimum LR is named but not quantified.
Go to primary source ↓limitsPDF pp. 14–15, VI. Limitation and Future Work
The authors leave foundation-level action representations, in-the-wild online video, and generalization beyond robot arms to future work. Current experiments use existing robotic datasets and manipulation platforms.
Go to primary source ↓8.5 Primary sources
What Matters for Latent Actions in Robot Learning ↗
PDF · 13,317 extracted words
Source fingerprint
5c26bc60a224dfaf3224dc95bfe7a9e5c84050c9bc51cf1b60ec58f32202e708
