Towards Surgical World-Action Modeling: A Preliminary Joint Visual-Trajectory Forecasting for Surgical Motion Planning
1. Paper overview
In one sentence: A shared latent predictor improves surgical scene and tool-path forecasts by rolling forward in short chunks, while accumulated error limits its planning relevance. e-formulatione-predictore-rolloute-protocole-tablee-conclusion
| At a glance | What to know |
|---|---|
| Research problem | Source description Surgical motion changes tissue appearance and visibility, while a visually plausible future can still place the instrument incorrectly. The authors therefore seek a shared forecast of scene evolution and explicit tool motion. The practical question is whether decomposing a long forecast into local transitions improves both outputs under a strict history-only protocol. e-probleme-formulatione-protocol |
| Core mechanism | Source description A common temporal-spatial representation feeds visual-state and trajectory heads, making both appearance and geometric motion measurable within one predictor. e-fusione-predictor |
| A key reported result | Joint visual–trajectory forecasting, future frames t+1:3: Chunked rollout: 23.105; 0.7971; 0.1783; 22.22; 31.64. PSNR ↑ (dB); SSIM ↑; LPIPS ↓; ADE ↓ (pixels); segment FDE ↓ (pixels). SurgWMBench, derived from SAR-RARP50 RARP suturing videos: 1,637 segments and 32,740 annotated frames overall. Five observed frames/points predict fifteen future frames/points. Strict history-only evaluation; split membership and sizes are not specified. Direct one-shot: 18.859; 0.4713; 0.6045; 45.77; 49.47. Chunked prediction improves appearance and trajectory accuracy in the first three-frame segment. These are offline prediction metrics, with no reported confidence intervals. e-datae-protocole-firste-evaluation-gaps |
| Reading caution | Author claim The authors observe declining visual fidelity and growing trajectory drift, including visible late-horizon errors in Figure 2. They leave action conditioning, uncertainty modeling and stronger visual-motion consistency to future work. e-qualitativee-conclusion |
Core contributions
- Source description
A common temporal-spatial representation feeds visual-state and trajectory heads, making both appearance and geometric motion measurable within one predictor. e-fusione-predictor
- Author claim
A fifteen-step forecast is assembled from five three-step chunks. The authors present the comparison with direct prediction as initial feasibility evidence and identify accumulating rollout error as an unresolved challenge. e-rolloute-firste-laste-conclusion
Figure 1(a). The visual history enters through a frozen encoder before future prediction begins. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the five observed RGB frames across the top, labeled I₀ through I₄ in this diagram. Follow the downward arrows through the SurgMotion ViT-L block; the snowflake marks the frozen encoder. The resulting grids z₀ through z₄ preserve spatial organization, and the size label gives five grids of 1024 × 16 × 16. The legend distinguishes observed images, causal token grids and future outputs. This panel supplies the visual history used by the next panel. Section 2.2 adds a detail compressed by the drawing: the method draws on intermediate and final encoder tokens, projecting each stream before fusion with historical tool coordinates. e-encodinge-fusione-protocole-backbone
What it supports. The forecast begins in a pretrained visual representation. Freezing the encoder fixes this observation interface while the downstream predictor learns future transitions. The panel also establishes that initial conditioning comes from five observed frames, which matters when interpreting the paper's strict history-only evaluation.
Where the evidence stops. The frozen block is labeled SurgMotion ViT-L, but its cited reference 19 is titled UniSurg. The PDF does not explain the naming relationship or identify the exact checkpoint; this crop cannot resolve that reproduction ambiguity.
2. Motivation
2.1 The problem and the proposed response
Surgical motion changes tissue appearance and visibility, while a visually plausible future can still place the instrument incorrectly. The authors therefore seek a shared forecast of scene evolution and explicit tool motion. The practical question is whether decomposing a long forecast into local transitions improves both outputs under a strict history-only protocol. e-probleme-formulatione-protocol
2.2 What this reading follows
This paper asks a focused question: can a predictor anticipate both the appearance of a surgical scene and the motion of its instrument from the same observed history? Five frames and five tool locations seed a shared representation, which produces visual latents and two-dimensional trajectory points. The central comparison is how that representation forecasts fifteen future steps: all at once, or through repeated three-step updates. Read the architecture first to understand what is fed back, then use the table and qualitative example to separate relative improvement from remaining forecast error. The experiments evaluate recorded-video prediction; action conditioning and stronger visual-motion consistency remain future work. e-formulatione-predictore-rolloute-protocole-tablee-conclusion
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | Foundational work |
| Architecture | Not applicable |
| Prediction paradigm | Not applicable |
| Quadrant | Not applicable |
This table preserves the labels recorded at reading time. The current major category is WAMs. View the current classification.
3.1 Evidence-based assessment
Insufficient evidence to decide
The foundational framing fits a preliminary baseline. Architecture evidence supports One Model at the predictor level: a shared temporal-spatial context drives both heads, with no inverse-dynamics stage. Joint visual/trajectory prediction is explicit. Whether it belongs in a future/action quadrant depends on counting image-plane trajectory forecasts as actions; the model does not evaluate action-conditioned intervention or command execution. The recorded Not applicable axes therefore merit review rather than automatic replacement. e-formulatione-predictore-residualse-conclusion
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Understand what the shared state predicts
Begin with the two outputs rather than the world-action label. The model receives observed surgical frames and their annotated two-dimensional tool locations. Its frozen encoder provides visual features, while an MLP embeds the tool position and broadcasts it over the spatial grid. Adding these representations lets temporal-spatial processing produce a common context for both heads. The visual head predicts changes in latent appearance; the trajectory head predicts corrections to extrapolated motion. A frozen decoder subsequently turns visual latents into images for supervision and evaluation. Interpretation: this architecture makes joint forecasting concrete, because both outputs depend on the same encoded history. It does not by itself prove that a predicted tool point matches the tool inside the predicted image. The paper leaves stronger visual-motion consistency to future work. e-formulatione-fusione-predictore-residualse-conclusion

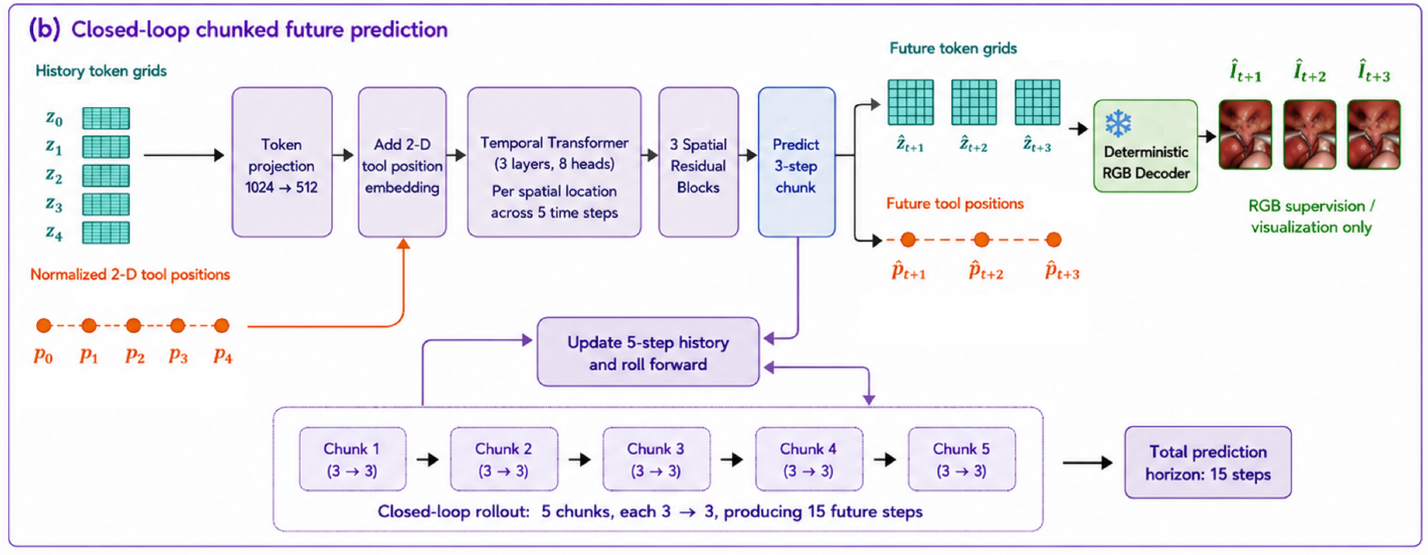

Figure 1(b). Both predicted modalities update the same rolling history; RGB decoding is a separate output branch. Original paper, p. 4 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read left to right from the token grids and orange historical tool points. The projection block changes the depicted channel width from 1024 to 512, and position embeddings enter before temporal attention. The temporal transformer has three layers and eight heads and operates across five time steps at each spatial location; three spatial residual blocks follow. The prediction block branches into future token grids and tool positions. Trace the purple feedback arrow downward: it updates the five-step history and repeats prediction over five chunks. Follow the separate rightward branch to the frozen deterministic RGB decoder, whose output is labeled for RGB supervision and visualization rather than as the history-update signal. e-predictore-fusione-residualse-rolloute-formulatione-reproduction-gapse-evaluation-gaps
What it supports. A common predictor supplies two future modalities and recursively conditions on them. The body text clarifies the two priors hidden inside the prediction block: visual residuals start from the latest latent, while trajectory residuals correct constant velocity. These choices support short local transitions, but their individual contributions are not isolated experimentally.
Where the evidence stops. The loop describes forecast feedback, with no executed robot command or fresh observation between chunks. The compact diagram also leaves unspecified how subsequent predicted visual states supply the two feature streams described in Section 2.2.
5.2 Follow the feedback after the first chunk
With five history entries, the first predictor call emits three future latent states and three positions. The history update removes the oldest three entries and appends that predicted chunk, again leaving five. Repeating the operation means later calls increasingly depend on earlier model outputs. The RGB decoder sits outside this feedback path: the predictor rolls forward latent states and positions. During training, scheduled sampling selects either ground-truth or predicted states through a Bernoulli mask. Its predicted-state probability starts increasing at epoch 8 and reaches 0.75 at epoch 45; validation and test use fully autoregressive updates. Interpretation: scheduled sampling targets the mismatch between clean training histories and imperfect inference histories. It can expose the predictor to its own errors, but the direct/chunked comparison does not isolate how much improvement this training choice contributes. e-predictore-rolloute-samplinge-traininge-evaluation-gaps
5.3 Separate a better forecast from demonstrated planning
Read the table along two directions. Matching an upper row to its lower counterpart asks whether chunking beats direct prediction at the same horizon; every reported metric favors chunking. Moving downward within the upper block asks whether chunking maintains accuracy over time; it does not. ADE rises from 22.22 pixels in the first interval to 158.52 pixels in the last, while PSNR falls from 23.105 to 17.982 dB. Figure 2 supplies a qualitative view of appearance and path drift, but no additional statistical estimate. Interpretation: these results support the feasibility of forecasting two modalities from historical observations and the usefulness of short prediction chunks in this setup. They leave open the intervention question: whether conditioning on a proposed surgical action would correctly anticipate its consequences and improve executed planning. e-protocole-firste-laste-tablee-qualitativee-formulatione-conclusion
5.4 Training and inference
During training
The encoder and RGB decoder are frozen. Loss weights are token MSE 1, token cosine 0.05, RGB 0.25, Sobel edge 0.10, temporal difference 0.10, trajectory position 5, velocity 2 and endpoint 2. Future-step weights increase from 1.0 to 1.8. Scheduled sampling starts at epoch 8 and reaches predicted-state probability 0.75 at epoch 45. e-encodinge-formulatione-training
AdamW uses learning rate 7 × 10⁻⁵, weight decay 10⁻⁴, five warm-up epochs and cosine decay to 5% of the initial rate. Batch size is one; early-stopping patience is 14, with a 70-epoch maximum. Training uses one NVIDIA RTX 5090. Validation and test rollouts use model predictions for subsequent states. e-training
During inference
Begin with observed history and then update using predicted latents and positions. The paper's 'closed-loop' terminology means feedback inside the forecast: no new surgical observations, action execution, goal optimization or robot feedback is demonstrated during the fifteen-step rollout. e-rolloute-protocole-formulation
The direct baseline produces all fifteen steps in one forward pass; the chunked setting uses five predictor calls. The paper reports no inference latency or matched-compute comparison. e-protocole-evaluation-gaps
5.5 Implementation flow
- Encode the observed scene
A frozen SurgMotion encoder provides intermediate and final visual tokens. Figure 1 labels it ViT-L and depicts five 1024 × 16 × 16 token grids. Intermediate features retain local detail; final features provide higher-level context. The text specifies separate projections for these streams. e-encodinge-fusion
- Fuse motion and summarize history
An MLP embeds each historical position, broadcasts it spatially and adds it to projected visual features. Figure 1 shows projection from 1024 to 512, a temporal transformer with three layers and eight heads, then three spatial residual blocks. The latest encoded state supplies shared context C; learned future-step embeddings specialize it for prediction. e-fusione-predictor
- Predict residual changes
The visual head adds a learned latent change to the latest visual state. The trajectory head spatially pools the shared context and corrects a constant-velocity extrapolation from the latest two positions. Thus the model retains explicit appearance and motion priors instead of predicting both outputs without a reference state. e-residuals
- Roll the latent history forward
Each chunk predicts three visual states and three tool points. The oldest three history entries are dropped and predictions appended, retaining five entries. Repeating this update produces fifteen future steps; a frozen deterministic decoder maps predicted latents to RGB without feeding rendered images through the history encoder. e-formulatione-predictore-rollout
6. Experiments & results
This preliminary surgical predictor uses historical video and tool locations to forecast both visual latents and image-plane trajectories. Repeated three-step prediction improves every reported metric over direct fifteen-step prediction, but error grows with horizon. The evidence establishes joint forecasting on recorded surgical sequences; it does not establish action-conditioned planning or successful robot execution.
The supplied paper contains one two-panel architecture figure, one quantitative table and one qualitative comparison. The four crops present the architecture panels separately, the complete table and the qualitative figure. Figure 2 supplies a rollout diagnostic for the ablation section; the paper reports no separate component ablation isolating scheduled sampling, the constant-velocity prior, joint training or individual losses, and no robot-execution experiment. e-encodinge-predictore-tablee-qualitativee-evaluation-gaps
6.1 Read the original evidence

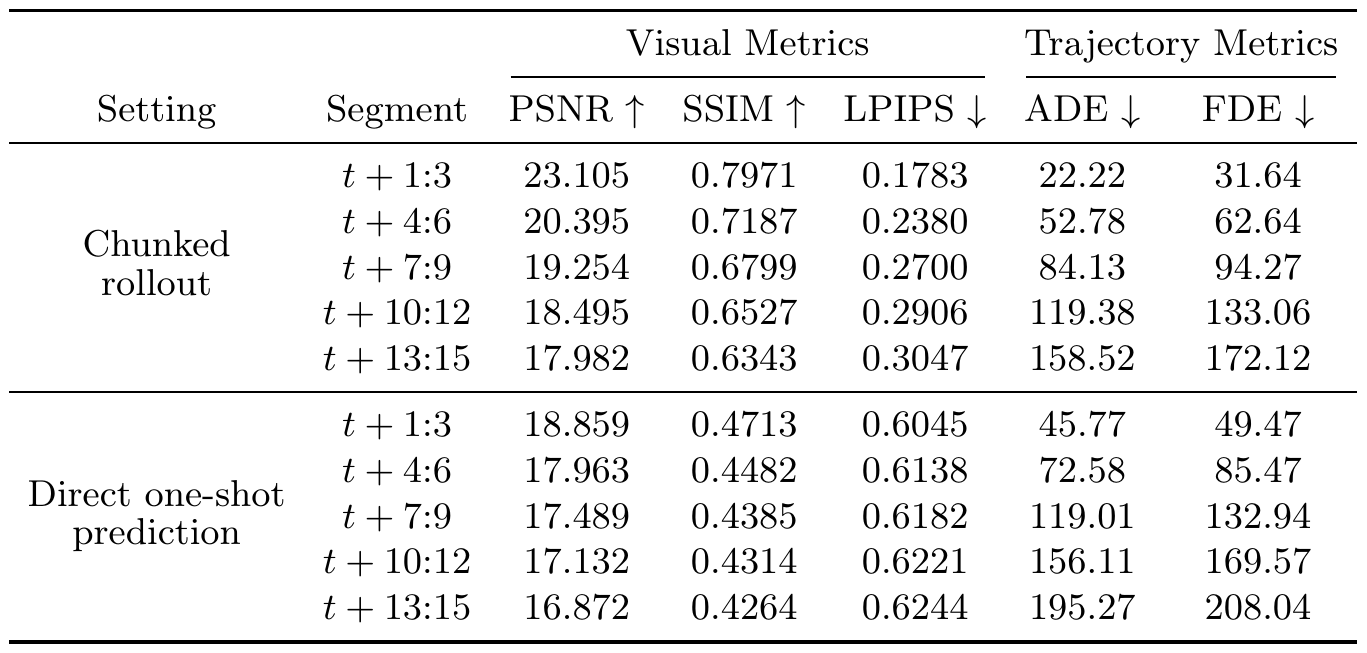

Table 1. Chunking improves every reported segment, while accuracy deteriorates within both settings. Original paper, p. 8 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Compare rows with the same Segment label across the upper chunked block and lower direct block. Each row evaluates a distinct three-frame future interval, so the last row is the final interval rather than an average over all fifteen steps. Read the column arrows before comparing: larger PSNR and SSIM are better, whereas smaller LPIPS, ADE and FDE are better. PSNR is reported in dB; both trajectory errors use original-image pixels. ADE averages point errors within the interval, and FDE concerns its last point. First compare settings at a fixed interval, then scan downward within one setting to see how performance changes with forecast distance. e-datae-protocole-firste-laste-tablee-evaluation-gaps
What it supports. For t+1:3, chunking raises PSNR from 18.859 to 23.105 dB and lowers ADE from 45.77 to 22.22 pixels. At t+13:15, chunked ADE is 158.52 versus 195.27 pixels for direct prediction. The improvement persists, but the rising errors reveal a substantial remaining long-horizon problem.
Where the evidence stops. No split membership, repeated-run uncertainty or inference timing accompanies these rows. The comparison evaluates two prediction strategies; it cannot attribute gains separately to scheduled sampling, the residual motion prior or joint visual/trajectory supervision.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Joint visual–trajectory forecasting, future frames t+1:3 SurgWMBench, derived from SAR-RARP50 RARP suturing videos: 1,637 segments and 32,740 annotated frames overall. Five observed frames/points predict fifteen future frames/points. Strict history-only evaluation; split membership and sizes are not specified. | Chunked rollout: 23.105; 0.7971; 0.1783; 22.22; 31.64. PSNR ↑ (dB); SSIM ↑; LPIPS ↓; ADE ↓ (pixels); segment FDE ↓ (pixels) | Direct one-shot: 18.859; 0.4713; 0.6045; 45.77; 49.47. Chunked prediction improves appearance and trajectory accuracy in the first three-frame segment. These are offline prediction metrics, with no reported confidence intervals. e-datae-protocole-firste-evaluation-gaps |
| Joint visual–trajectory forecasting, future frames t+13:15 Same SurgWMBench history-only protocol; final non-overlapping three-frame segment of the fifteen-step forecast. Offsets are frames, not seconds. ADE is segment-average point error; FDE is the segment endpoint error. | Chunked rollout: 17.982; 0.6343; 0.3047; 158.52; 172.12. PSNR ↑ (dB); SSIM ↑; LPIPS ↓; ADE ↓ (pixels); segment FDE ↓ (pixels) | Direct one-shot: 16.872; 0.4264; 0.6244; 195.27; 208.04. The chunked advantage persists, but its own accuracy is much worse than at the first segment. All five table segments favor chunking across all metrics; neither setting avoids degradation. e-protocole-firste-laste-table |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

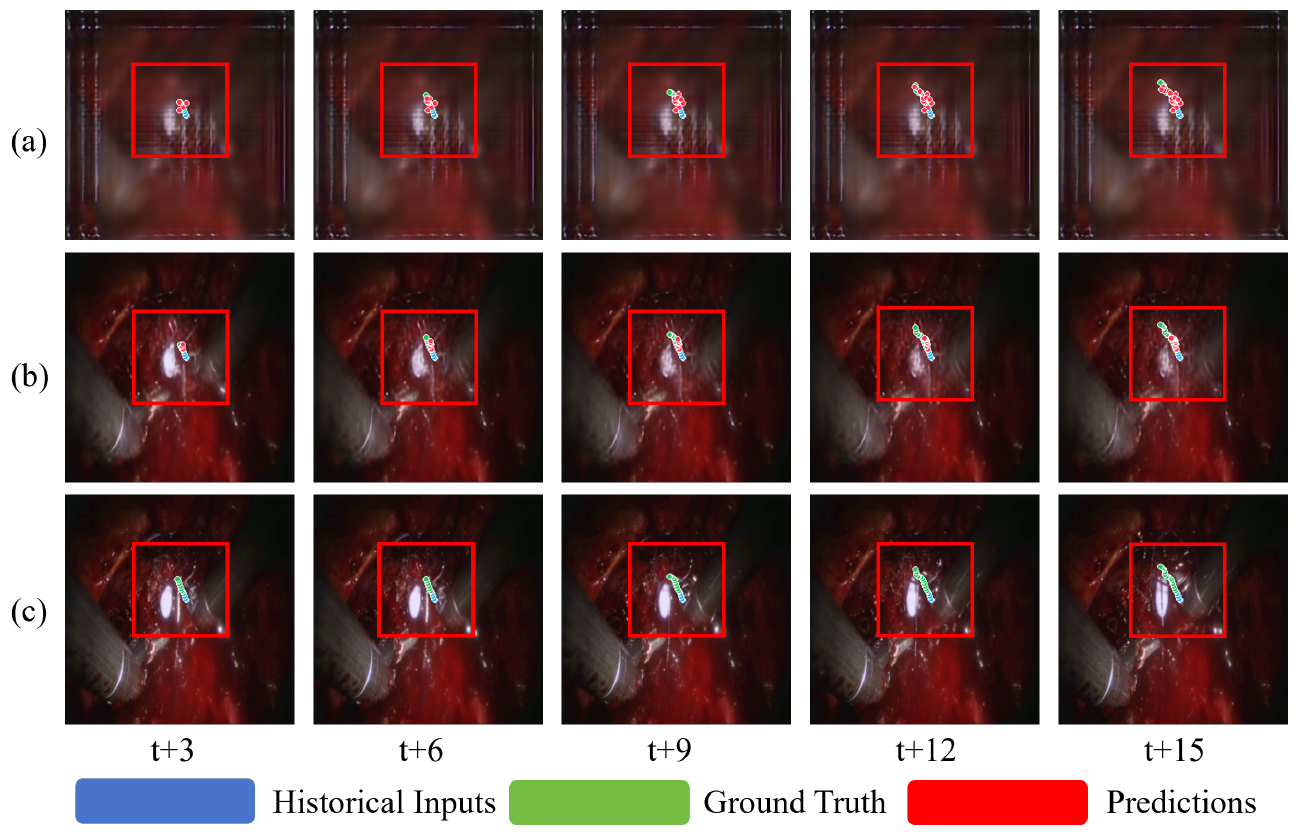

Figure 2. The rollout diagnostic shows stronger chunked image structure alongside persistent path drift. Original paper, p. 9 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Use the row letters together with the source caption: (a) is direct one-shot prediction, (b) is chunked rollout and (c) is ground truth. Columns move through the forecast at t+3, t+6, t+9, t+12 and t+15. Compare each generated image with the ground-truth image in its column before following the small trajectory overlays. The retained legend marks historical inputs blue, ground truth green and predictions red. The authors display cropped regions of interest, so these panels show a selected part of the operative field. Look separately at the tissue/instrument appearance and the path endpoints; agreement in one does not automatically establish agreement in the other. e-qualitativee-protocole-tablee-evaluation-gaps
What it supports. The displayed chunked row retains more of the scene structure than the direct row, consistent with the authors' qualitative assessment. Later columns still show trajectory separation and reduced fidelity. This is a useful diagnostic companion to Table 1 because it illustrates the distinction between relative visual improvement and an accurate future tool path.
Where the evidence stops. This selected example has no calibrated displacement axis and cannot supply new numerical errors or failure frequencies. It compares rollout settings, not an isolated component ablation, and it does not verify physical safety or prospective robot execution.
7. Analysis & limitations
7.1 What the evidence leaves open
The authors observe declining visual fidelity and growing trajectory drift, including visible late-horizon errors in Figure 2. They leave action conditioning, uncertainty modeling and stronger visual-motion consistency to future work. e-qualitativee-conclusion
The comparison changes prediction strategy as a package. No separate ablations isolate scheduled sampling, residual priors, individual losses or the benefit of joint versus single-output training. Shared context alone does not measure agreement between the predicted image and its predicted anchor. e-predictore-residualse-traininge-evaluation-gaps
Evaluation concerns one annotated two-dimensional anchor in RARP suturing segments. No intervention, tissue-safety outcome, 3-D control performance or prospective clinical planning success is reported; generalization beyond this setting remains untested. e-formulatione-datae-evaluation-gaps
7.2 Questions for discussion
- Does scheduled sampling improve later segments when chunk size and optimization are held fixed?
- How much trajectory accuracy comes from the learned correction beyond constant velocity?
- Do predicted anchors agree with tool locations inside predicted RGB frames?
8. Reproducibility audit
8.1 Requirements and known gaps
Required artifacts include SurgWMBench sequences/annotations and compatible frozen encoder/decoder checkpoints. Exact split membership, frame sampling interval, input resolution, coordinate normalization/inversion and checkpoint identifiers are not specified in this PDF. Figure 1 supplies token dimensions and transformer depth, so these should not be described as wholly undocumented. e-datae-predictore-reproduction-gaps
Resolve the backbone naming discrepancy before choosing weights: Section 2.2 says SurgMotion [19], while reference 19 is titled UniSurg. The PDF also leaves the decoder architecture, intermediate-layer choice, subsequent-rollout handling of the two visual streams, exact loss reductions and software versions unspecified. e-backbonee-reproduction-gaps
Reader-proposed priorities are a controlled scheduled-sampling comparison and a constant-velocity-only trajectory control. Keep data partitions and metric implementation fixed, evaluate all forecast segments, and report variation across repeated runs. These checks would test exposure robustness and learned motion correction, respectively. e-residualse-samplinge-traininge-table
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Isolate scheduled sampling at a fixed chunk length
Reader-proposed experiment, not performed here: after resolving the data split and checkpoints, train two otherwise matched three-step predictors, one with the reported epoch-8-to-45 scheduled-sampling schedule and one using ground-truth history throughout training. Hold initial weights, losses, data order and optimization budget fixed within each paired run, and repeat across seeds. Evaluate both with fully autoregressive fifteen-step forecasts and report all five segment metrics. A consistent late-segment advantage would support the exposure-robustness rationale; no advantage would weaken the claimed role of scheduled sampling without disproving chunking itself. e-samplinge-traininge-protocole-evaluation-gapse-reproduction-gaps
Check 2: Measure the learned correction beyond constant velocity
Reader-proposed experiment, not performed here: compare the full trajectory predictor with a constant-velocity baseline initialized from the same final two observed anchor points, using identical segments and original-pixel ADE/FDE. Additionally, evaluate the learned trajectory head with its residual set to zero on the same saved history contexts, so immediate correction value can be distinguished from changes caused by recursive feedback. Report results by future segment and repeated-run variation for the learned model. If corrections fail to improve matched-context errors or long-horizon forecasts, the learned motion benefit beyond the explicit prior remains unsupported. e-residualse-rolloute-protocole-tablee-evaluation-gaps
8.3 Reading coverage
Visual audit: All ten supplied PDF pages were rendered and visually inspected. Page 1 verifies title, eight authors, affiliations and v1/date; pages 2–3 establish motivation and formulation; pages 4–6 verify architecture, equations, latent feedback and training-state selection; pages 6–8 establish data, metrics, optimizer/GPU settings and the complete numerical comparison; pages 8–9 establish limitations and the qualitative diagnostic; pages 9–10 contain acknowledgments/disclosure/references, including the backbone naming discrepancy on page 10. Every final crop was separately viewed with legends, labels and table rows retained. No appendix is present. External qualitative material and code remain outside this review.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- PDF p. 1: title, authors, affiliations and arXiv version; pp. 1–2: Abstract and Keywords
- PDF pp. 2–3: Section 1, Introduction and contributions
- PDF pp. 3–4: Section 2.1, Problem Formulation
- PDF pp. 4–5: Section 2.2, Joint Visual-Motion Representation; Figure 1
- PDF pp. 5–6: Section 2.3, Chunked Autoregressive Rollout
- PDF pp. 6–7: Section 3.1, Dataset and Evaluation Protocol
- PDF p. 7: Section 3.2, Implementation Details
- PDF pp. 7–8: Section 3.3, Quantitative Results; Table 1
- PDF pp. 8–9: Section 3.4, Qualitative Results; Figure 2
- PDF pp. 8–10: Section 4, Conclusion; Acknowledgments; Disclosure of Interests; References
Outside the original text pass
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- The extraction-only visual gap above was resolved by inspecting all ten supplied PDF pages, both figures, Table 1 and all four final crops. All three supplied text chunks were read completely.
- Separate supplemental material availability has not been fully verified.
- Only the supplied arXiv:2608.20284v1, dated 20 August 2026, was reviewed. Its title and all eight authors match the catalog; no different revision or edition was supplied for comparison. Metadata uses the complete observed affiliations, resolving truncated line fragments in the catalog snapshot.
- No appendix is present in the supplied ten-page PDF. The linked additional qualitative repository and separate benchmark/backbone papers were not opened; code was not inspected and experiments were not reproduced.
The visual audit above records the subsequent illustrated pass.
