ForeTime-VLA: Causal Future-Token Distillation from a World Action Model for Conveyor-Belt Manipulation
1. Paper overview
In one sentence: ForeTime-VLA compresses privileged future-video supervision into causal history predictions that condition a flow-matching policy, improving reported conveyor grasping with a small measured latency cost. e-identitye-overviewe-teachere-studente-conditioninge-ablatione-robote-speed
| At a glance | What to know |
|---|---|
| Research problem | Source description Conveyor interception requires anticipating contact timing and gripper orientation. Current-observation action imitation provides no explicit future-structure target, while video generation inside the control loop adds cost. The paper asks whether future-conditioned supervision can be compressed into a causal policy. e-overview |
| Core mechanism | Source description An action-constrained, whitened 64-D teacher code supervises a lightweight history encoder while demonstrated actions remain the flow-matching target. e-teachere-objective |
| A key reported result | Stationary and slow-moving real-robot grasping: Stationary 73/90 (81.11%); slow-moving 53/90 (58.89%). Grasp success; higher is better.. First robot campaign: five policies, 90 trials per method per task; exclusive moving outcomes. Next-best stationary StarVLA 68.89%; moving π0.5 36.67% (33/90). Advantages: 12.2 and 22.2 percentage points. Executed robot outcomes. Moving contact-pose error falls from π0.5's 15.56% to 6.67%; robot confidence intervals are unreported. e-robot |
| Reading caution | Source description The authors restrict generality to one conveyor-belt embodiment and one offline video backbone; longer horizons, changing viewpoints and broader action spaces remain untested. e-limits |
Core contributions
- Source description
An action-constrained, whitened 64-D teacher code supervises a lightweight history encoder while demonstrated actions remain the flow-matching target. e-teachere-objective
- Reader analysis
The authors connect orientation gains, component masking and fewer robot contact-pose failures to temporal foresight. These observations agree, but do not fully isolate privileged-future supervision as the cause. e-groupse-ablatione-robot
Figure 1. Privileged future supervision reaches a deployable policy through a compact causal interface. Original paper, p. 2 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start at the dashed orange teacher box: present and future frames produce a compressed target used for distillation. Move into panel A, where eight available observations provide state and visual statistics to the temporal predictor. Its outputs are a future code, a phase prediction and a transition horizon. Panel B sends the future code to both policy paths: four future tokens join a phase token in the VLM prefix, while a residual conditions the action expert. Panel C retains action-flow training from demonstrations. The loss stack belongs to training; at deployment, the student predicts its own conditions and the offline teacher branch is absent. e-overviewe-studente-conditioninge-flowe-flow-discrepancye-efficiency
What it supports. The architecture transfers predictive supervision without synthesizing future video in the control loop. The body specifies 1.251M added parameters and five extra prefix tokens; the measured latency overhead is 2.46–2.93%. This establishes a small reported policy-time cost for the additional conditioning, without determining complete robot-loop timing.
Where the evidence stops. Figure 1(C) repeats the noisy-action interpolation in its target-flow label, conflicting with Equation (1), which defines the target as noise minus action. The crop preserves the original discrepancy; use the numbered equation for the report's mathematical account.
2. Motivation
2.1 The problem and the proposed response
Conveyor interception requires anticipating contact timing and gripper orientation. Current-observation action imitation provides no explicit future-structure target, while video generation inside the control loop adds cost. The paper asks whether future-conditioned supervision can be compressed into a causal policy. e-overview
2.2 What this reading follows
A moving object creates a deadline: the robot must prepare its pose and close the gripper before the contact opportunity disappears. ForeTime-VLA uses future observations during training to teach that preparation, while its deployed policy only sees available observations and history. The key object is a compact, action-constrained code, accompanied by phase and transition-time predictions. Follow the teacher construction first, then the two routes by which the causal student influences actions. Finally, compare reconstruction, checkpoint masking and executed grasps as distinct kinds of evidence. This edition reads the supplied arXiv v2, dated 24 August 2026, and preserves both its promising results and its unresolved mechanism and protocol questions. e-identitye-overviewe-teachere-studente-conditioninge-ablatione-robote-speed
3. Research context
We place the paper in the collection through its world–action interface. The catalog labels and the reading’s assessment are shown separately.
| Catalog dimension | Recorded classification |
|---|---|
| Major category | WAMs |
| Architecture | Dual-system |
| Prediction paradigm | IDM |
| Quadrant | Q4 · Dual-system × IDM |
3.1 Evidence-based assessment
Conflicts with the recorded classification
The recorded Dual-system × IDM quadrant fits aspects of offline teacher–student supervision: a current/future code supports an auxiliary action decoder. It mischaracterizes deployment, where the teacher is removed and an integrated VLM/action-expert policy uses causal predicted codes and conditional flow matching, without an explicit generated-future-to-action inverse-dynamics stage. WAM-derived distillation is supported; deployment-based Q4/IDM placement needs editorial reconsideration, not automatic replacement by One Model or a joint-prediction quadrant. e-teachere-conditioninge-flowe-objective
This is the collection’s architectural analysis, not a new related-work survey. Benchmark comparisons and their protocols appear in Section 6.
4. Problem formulation
4.1 Inputs and outputs
| Inputs | Outputs |
|---|---|
|
|
4.2 Equations and their role
5. Method in detail
5.1 Turn privileged futures into a target that retains action information
The teacher does not simply hand the policy a generated video. It first extracts current and future features with a frozen video VAE, then learns a compact adapter around those features. Future access is privileged: only the teacher encoder receives the future feature, while a causal auxiliary encoder receives current feature and state. Sharing an action decoder gives both codes a common task, reconstructing the demonstrated action chunk. The teacher additionally reconstructs the future-feature difference; alignment, variance, covariance and action-geometry constraints shape the bottleneck. Its whitened output becomes a cached target. This sequence matters because the paper reports insufficient variation in initially exported codes. The later history student learns to predict this target, while the recorded demonstration remains the policy's action-training target. e-teachere-studente-objective

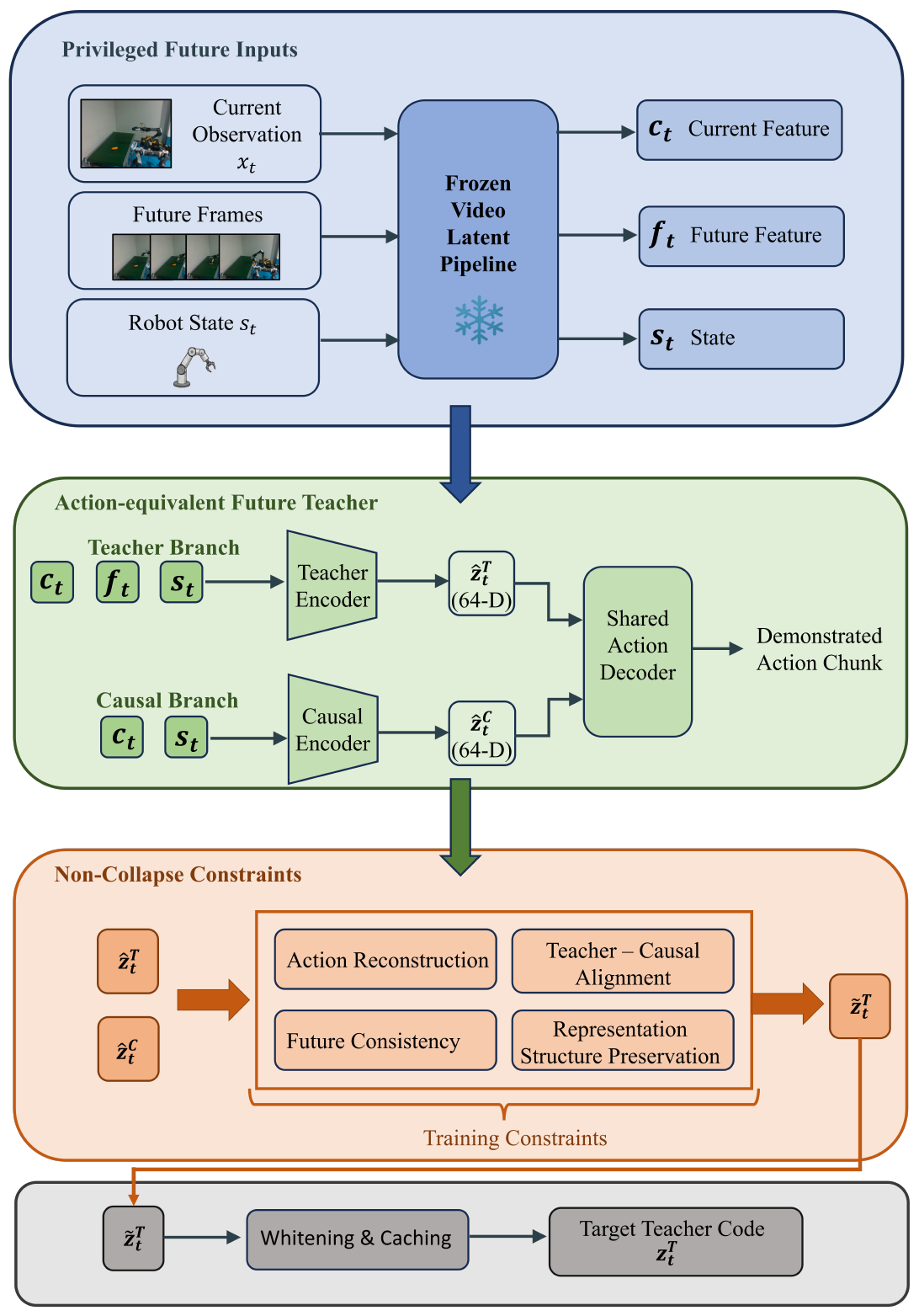

Figure 2. The offline target is shaped by demonstrated actions and future-feature structure. Original paper, p. 3 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read downward from current feature c_t, future feature f_t and robot state s_t. The privileged encoder receives all three; the causal auxiliary encoder receives current feature and state. Both produce 64-D codes that pass through a shared decoder of demonstrated actions. The lower constraints combine action reconstruction, teacher–causal alignment, future consistency and representation structure before whitening and caching the teacher target. Section III.B makes the schematic concrete: the video features remain frozen, and the teacher also reconstructs the future-minus-current feature. This adapter's causal branch is part of offline target construction; the deployed eight-frame history student is a separate module shown in Figure 1. e-teachere-studente-conditioning
What it supports. Future access alone does not define the target: the shared action decoder ties it to demonstrated control, while non-collapse constraints address the initially low-variation codes. Whitening supplies the cached representation that the online student learns to predict. The design offers an explicit route from privileged visual information to an action-relevant training signal.
Where the evidence stops. The figure explains the intended constraints but provides no standalone quantitative adapter ablation or latent-rank measurement. Its causal auxiliary encoder should not be mistaken for the deployed history student, and action reconstruction here does not establish an inference-time inverse-dynamics controller.
5.2 Predict event structure, then inject it where actions are formed
Deployment begins with information available through the present: eight robot states and compact statistics from two cameras, together with current full-resolution images in the ordinary vision backbone. The temporal MLP predicts a future code, a manipulation phase and normalized time to the next gripper transition. These variables serve different interfaces. Future and expected phase embeddings extend the VLM prefix, while future code and transition horizon directly condition the action expert through a residual and adaptive normalization. The slow/fast terminology identifies the two policy paths; the paper does not specify a complete controller scheduling protocol. During training, cosine and relational losses align the predicted code, while phase, transition and auxiliary action losses add task structure. At inference, action chunks come from the conditioned flow-matching policy without the offline teacher. e-studente-conditioninge-objectivee-flowe-protocol
5.3 Use three evidence levels without collapsing them into one claim
Reader analysis: reconstruction, masking and robot execution answer different questions. Table I asks whether predicted actions more closely match held-out demonstrations under matched inputs. Table III asks whether one trained checkpoint depends on its future and event conditions when those inputs are removed. Table IV and Figure 4 ask whether policies actually grasp objects successfully in two robot campaigns. Their agreement strengthens the practical case: orientation improves offline, transition errors rise under masking, and executed grasps improve under motion. It does not uniquely identify the source of the gain, because temporal history, extra parameters and several auxiliary objectives are introduced together. The strongest justified conclusion is useful causal temporal conditioning with small measured model overhead in this setting. A retrained matched control would be more discriminating about privileged-future distillation itself. e-offlinee-groupse-ablatione-robote-speede-protocole-efficiency
5.4 Training and inference
During training
The conveyor corpus covers boxes, corn and watermelons across belt speeds, viewpoints and layouts. Auditing removes one unreadable file and 28 exact duplicates from 487 files, leaving 458 episodes with 96,512 frames (1.79 hours at 15 Hz). Train/validation/test contain 77,125/6,075/4,610 valid action windows. Blank instructions receive a common moving-object pick-and-place instruction. e-dataset
Adapter training freezes video features and weights teacher/causal action MSE, future smooth-L1, cosine alignment, variance, covariance and action-geometry terms by 1.0/0.5/0.25/0.10/0.20/0.01/0.05. This addresses initially low-variation codes. Policy training then jointly optimizes all π0.5 and student parameters using cached targets; demonstrations are never replaced by teacher actions. e-teachere-objective
During inference
Available history predicts conditioning variables, and the flow-matching action expert predicts a chunk. Future video, video VAE and offline adapter are absent. Closed-loop robot evaluation is reported, but executed chunk length, replanning cadence and the π0.5 integration-step count are unspecified. e-studente-conditioninge-protocole-robot
5.5 Implementation flow
- Construct privileged targets
A frozen Wan2.2 video VAE encodes the present and future offsets {2,4,7,9,12,14,17,19}. Spatial-temporal means and standard deviations yield separate 96-D current/future features. The teacher adapter consumes both plus state; a causal auxiliary branch omits future features. Their 64-D codes share an action decoder; another decoder reconstructs the future-minus-current feature. Whitened teacher codes are cached. e-teacher
- Predict futures and events from history
Eight normalized states and camera statistics receive separate layer-normalized projections and temporal embeddings. Flattening and a residual MLP feed future, phase and transition heads. Four phase targets derive from gripper transitions; transition distance is clipped and horizon-normalized. Full-resolution current images separately enter the usual vision backbone. e-student
- Condition both policy paths
Four 2048-D future tokens and one expected phase-embedding token extend the VLM prefix. A 1024-D future/time residual enters every action-expert suffix token and its adaptive normalization. Gates initialize at 0.05; added modules total 1.251M parameters. e-conditioning
6. Experiments & results
ForeTime-VLA teaches a π0.5 policy to predict a compact future code from causal history, then feeds that code into its vision-language and action paths. Privileged video supervises training; deployment produces action chunks without the teacher or future frames. Modest reconstruction improvements accompany larger real-robot grasp gains. The experiments support useful temporal conditioning, but do not isolate future distillation from added history, capacity and event supervision (e-overview, e-conditioning, e-offline, e-robot, e-speed, e-ablation).
6.1 Read the original evidence

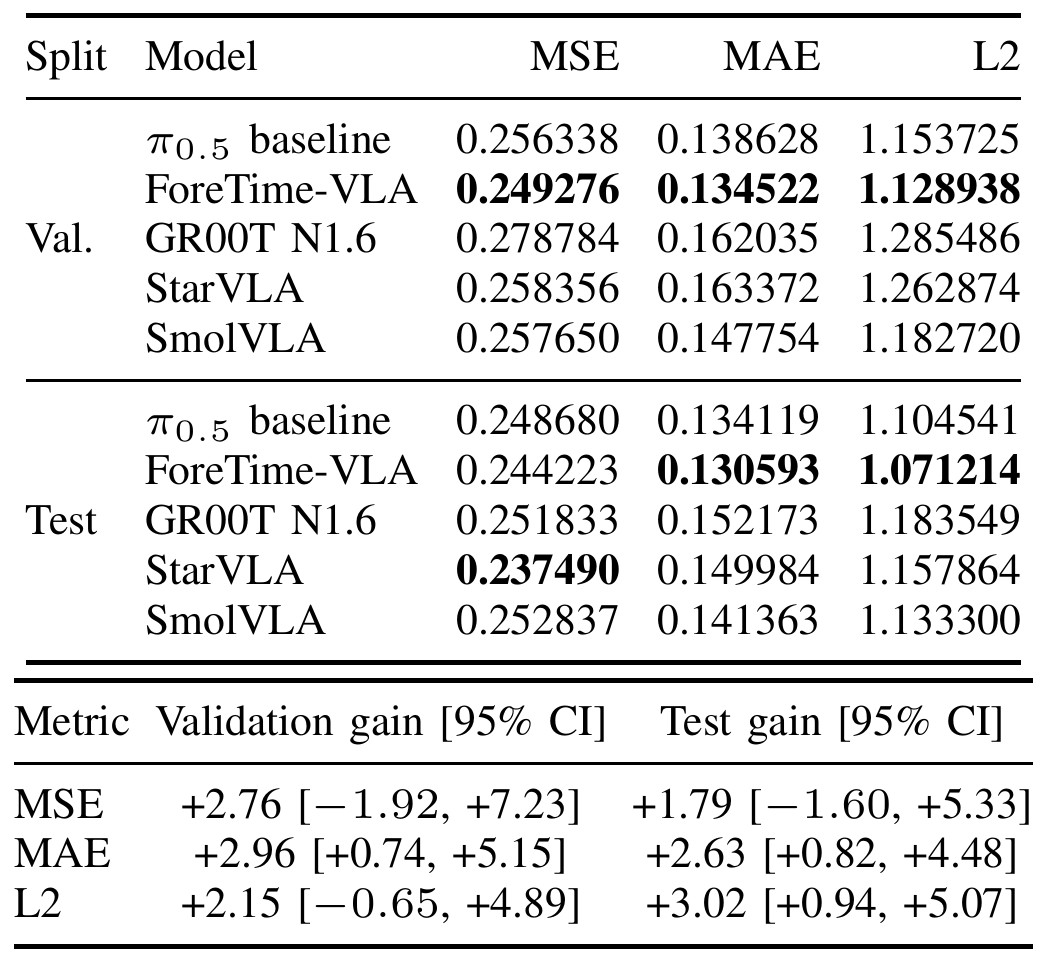

Table I. Matched offline windows support MAE and test-L2 improvements, with a different conclusion for MSE. Original paper, p. 5 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read each split separately and compare the π0.5 baseline with ForeTime-VLA before examining the other families. The upper panel gives errors in the unnormalized 16-D action space; every column is lower-is-better. The lower panel instead reports relative improvement, where positive numbers favor ForeTime-VLA. Its 95% intervals come from 20,000 paired bootstrap resamples of matched windows. Section IV.B specifies 768 windows per evaluated split, common episode/start indices and identical raw targets across models. Pairing reduces ambiguity from different test samples, but cross-family architectures are not parameter-matched. MAE, squared error and action-vector L2 summarize different aspects of reconstruction and should not be substituted for each other. e-offlinee-protocole-dataset
What it supports. Test MAE decreases from 0.134119 to 0.130593, a 2.63% relative gain with a positive 0.82–4.48% interval. Test L2 improves 3.02%, also with a positive interval. ForeTime-VLA has the lowest MAE and L2 in both splits, while StarVLA achieves the lowest test MSE.
Where the evidence stops. Validation L2 and both MSE improvement intervals cross zero. These measurements concern held-out action reconstruction, not robot success or demonstrated generalization to new embodiments. Window-based uncertainty also leaves variation across episodes and independently trained checkpoints unresolved.

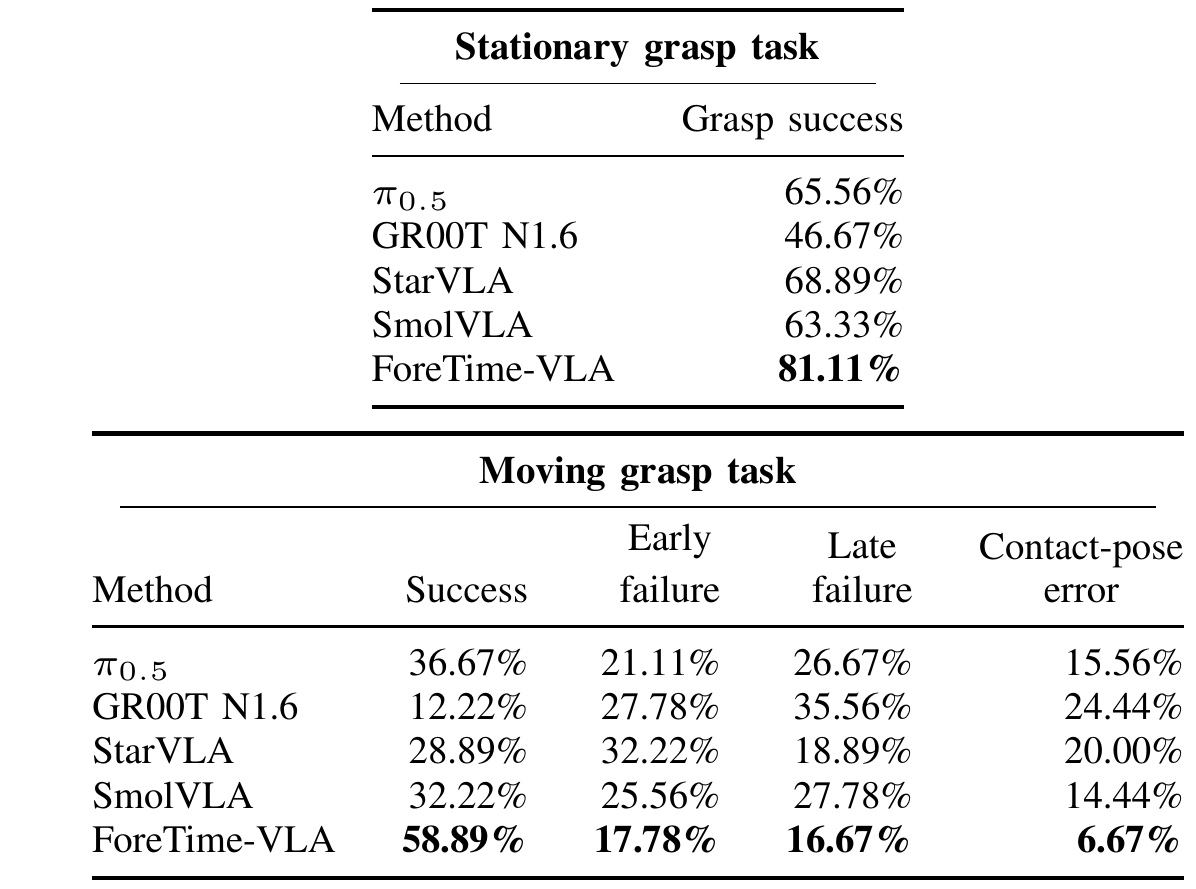

Table IV. Closed-loop grasp gains accompany fewer late and contact-pose failures. Original paper, p. 6 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. The upper panel measures stationary grasp success; the lower panel measures a slow-moving task. Section IV.C specifies 90 trials per policy in each task. For moving trials, success, early failure, late failure and contact-pose error are mutually exclusive outcomes, so compare an entire row as one outcome distribution. Higher success is better, while lower failure rates are better. Compare ForeTime-VLA with StarVLA for the strongest stationary reference and with π0.5 for the strongest moving reference. Keep percentage-point differences distinct from relative percentage reductions. These trials form the first robot campaign and use a different sample size from the speed sweep in Figure 4. e-robote-groupse-protocol
What it supports. ForeTime-VLA reports 81.11% stationary success and 58.89% moving success, leading the next-best references by about 12.2 and 22.2 percentage points. Relative to π0.5, moving late failures fall from 26.67% to 16.67%, and contact-pose errors from 15.56% to 6.67%. The pattern is consistent with improved contact preparation, alongside the offline orientation gains.
Where the evidence stops. The PDF does not provide robot confidence intervals, trial-order randomization or detailed numerical boundaries between failure categories. Outcome agreement with offline orientation is suggestive evidence for the proposed mechanism, but does not isolate future distillation from history and event supervision.

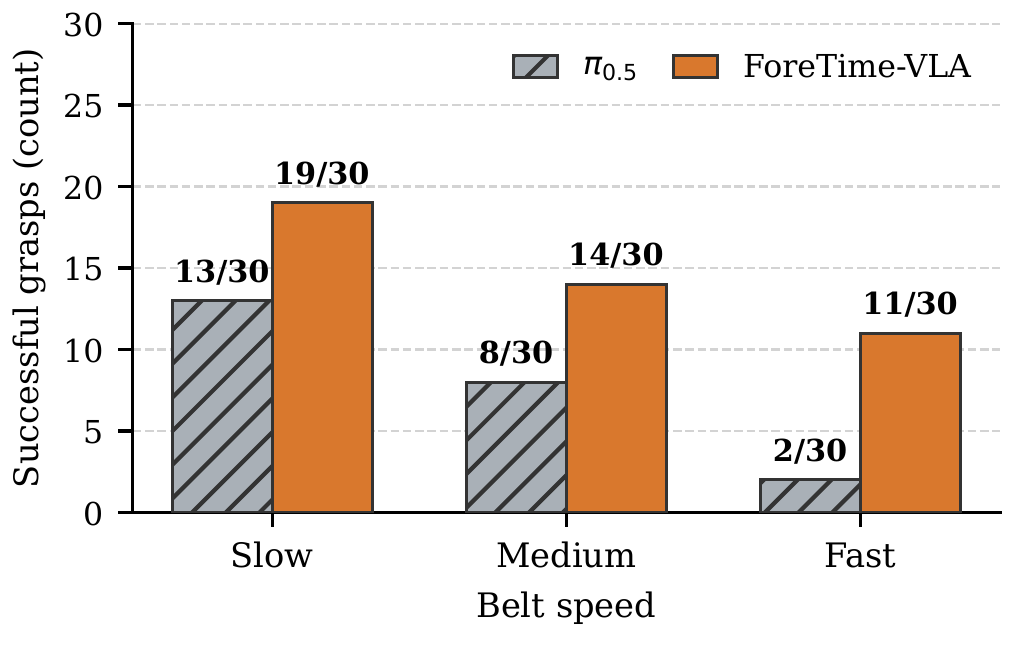

Figure 4. A separate speed sweep reports a wider absolute advantage in the fastest setting. Original paper, p. 7 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Read the vertical axis as a count of completed grasps, not a percentage. Each bar represents 30 trials; gray hatched bars show π0.5 and orange bars show ForeTime-VLA. The labels provide exact numerators and denominators, allowing comparisons within each named speed. Moving from left to right makes the interception setting harder in the authors' protocol, and success decreases for both policies. Sum across the three groups only within this campaign: ForeTime-VLA totals 44 successful grasps and π0.5 totals 23, each out of 90 trials. The first campaign's 90-trial slow-moving result in Table IV is a separate evaluation. e-speede-robote-limits
What it supports. The margin is six successes at slow speed, six at medium speed and nine at fast speed. At the fastest setting, 11/30 successes exceed the baseline's 2/30, supporting a dynamic-manipulation advantage in this experiment. However, 19 of ForeTime-VLA's 30 fast trials still fail, so the result also exposes substantial remaining difficulty.
Where the evidence stops. Slow, medium and fast are not accompanied by physical belt velocities, and the chart provides no uncertainty bars. Thirty trials per setting cannot establish a general speed-response curve or a guaranteed operating envelope for other robots, objects or sensing delays.
6.2 Results and evaluation conditions
| Task & protocol | Reported result | Comparison & interpretation |
|---|---|---|
| Held-out action reconstruction Duplicate-free 402/31/25 episode train/validation/test split; 768 matched windows per evaluated split; raw 16-D errors and 20,000 paired bootstrap resamples. | Test MAE 0.130593; L2 1.071214. Relative gains: 2.63% [95% CI 0.82, 4.48] and 3.02% [0.94, 5.07]. MAE and mean per-timestep action-vector L2; lower is better. | π0.5: 0.134119 MAE, 1.104541 L2. Validation MAE improves 2.96% [0.74, 5.15]. Best MAE/L2 among five policies on both splits. Validation L2 and both MSE intervals cross zero; StarVLA has lower test MSE (0.237490 versus 0.244223). e-datasete-protocole-offline |
| End-effector orientation reconstruction Pooled action groups, matched offline test evaluation. | 0.457734, a 3.78% relative improvement. End-effector RPY MAE; lower is better. | π0.5: 0.475728; test base-XY MAE instead worsens 2.71%. Gains concentrate in orientation. Group-specific uncertainty is unreported. e-groups |
| Inference-time component masking Same checkpoint; 96 matched test windows, including 48 phase-1 windows; identical initial action noise. | Full 0.145320; future removed 0.159982; phase/time removed 0.160672. Transition MAE; lower is better. | π0.5 0.150140; slow-only 0.156587; fast-only 0.161749. Masking shows reliance on trained conditions, not superiority over retrained alternatives. Fast-only has lower transition RPY MAE: 0.479751 versus full 0.482656. e-ablation |
| Stationary and slow-moving real-robot grasping First robot campaign: five policies, 90 trials per method per task; exclusive moving outcomes. | Stationary 73/90 (81.11%); slow-moving 53/90 (58.89%). Grasp success; higher is better. | Next-best stationary StarVLA 68.89%; moving π0.5 36.67% (33/90). Advantages: 12.2 and 22.2 percentage points. Executed robot outcomes. Moving contact-pose error falls from π0.5's 15.56% to 6.67%; robot confidence intervals are unreported. e-robot |
| Real-robot belt-speed stress test Separate second campaign: two policies, 30 trials per named speed. | Slow/medium/fast: 19/30, 14/30, 11/30; total 44/90. Successful grasps per 30 trials; higher is better. | π0.5: 13/30, 8/30, 2/30; total 23/90. The fast-setting margin is nine grasps, but most fast trials still fail. Physical speeds and uncertainty are absent; do not pool campaigns. e-speede-robot |
| Policy deployment latency Pooled validation/test timing on the same A100. | 68.65/68.62 ms. Milliseconds; lower is better. | π0.5: 66.69/66.97 ms; overhead 2.93%/2.46%. Model timing does not establish end-to-end sensing-to-actuation latency or compute-matched cross-family superiority. e-efficiencye-protocol |
6.3 Ablations and diagnostic examples
Read component removals and qualitative examples within their stated evaluation conditions.

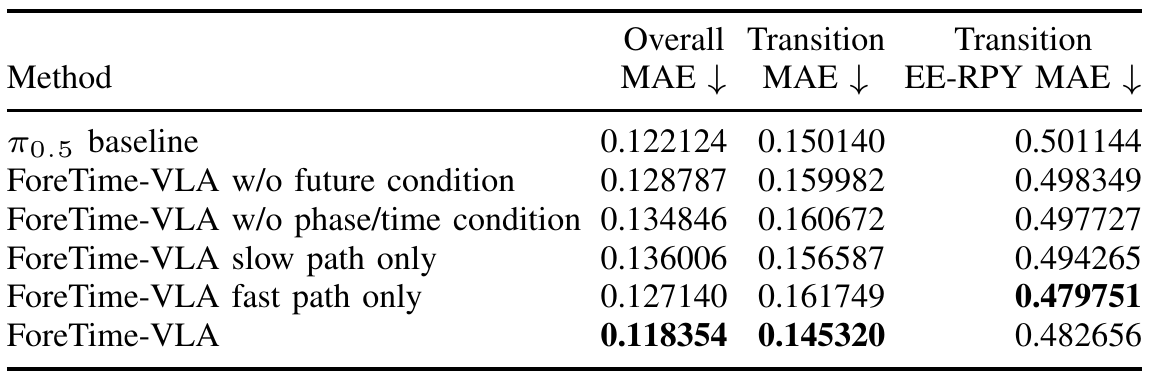

Table III. Removing learned conditions degrades transition action accuracy at the same checkpoint. Original paper, p. 6 ↗
Excerpt from the authors’ paper; cropped without altering the figure or table.
How to read it. Start with the final row as the full-model reference, then move upward through the four ForeTime-VLA interventions. The weights stay fixed: a condition is zeroed or an injection path is removed only at inference. Overall MAE uses 96 matched test windows; the transition columns use 48 matched phase-1 grasp/release windows, with the same initial action noise across rows. The future-removal and phase/time-removal rows test reliance on those conditions. Slow-only and fast-only rows probe the two injection routes. Read the orientation column separately: the best transition action-vector coordinate average does not require the best end-effector roll/pitch/yaw average. e-ablatione-studente-conditioning
What it supports. Full transition MAE is 0.145320, compared with 0.159982 without future conditioning and 0.160672 without phase/time conditioning. The full model also has the lowest overall MAE. Both single-path variants worsen transition MAE, supporting active use of both routes in this trained checkpoint, rather than demonstrating that either route alone is sufficient.
Where the evidence stops. These are inference masks, not separately retrained models, so distribution shift can contribute to degradation. Fast-only actually has lower transition RPY MAE than the full model, 0.479751 versus 0.482656; the architecture does not win every ablation metric.
7. Analysis & limitations
7.1 What the evidence leaves open
The authors restrict generality to one conveyor-belt embodiment and one offline video backbone; longer horizons, changing viewpoints and broader action spaces remain untested. e-limits
History, parameters, temporal labels and distillation change together relative to π0.5. Inference masking can induce distribution shift and cannot establish that privileged futures alone cause the robot gains. e-protocole-ablation
Held-out windows come from a small, episode-split corpus. Window-level bootstrap intervals do not establish robustness across training seeds or independent collections. Cross-family references share the data/action contract but are not parameter-matched. e-datasete-protocol
7.2 Questions for discussion
- Would history- and capacity-matched event supervision recover the gains? (e-protocol, e-ablation)
- Do gains survive episode-level uncertainty and repeated measured-speed trials? (e-protocol, e-speed)
8. Reproducibility audit
8.1 Requirements and known gaps
Reproduction needs the 458 canonical episodes, deterministic split, matched indices, normalization, frozen features and adapter targets. The PDF specifies offsets, dimensions, losses and bootstrap count, but omits optimizer, learning rate, batch size, training duration, seeds and exact gripper-transition thresholds. e-datasete-teachere-studente-objectivee-protocol
Reader-proposed checks: retrain a history- and capacity-matched student without privileged-future supervision; separately repeat measured-speed robot trials with randomized method order and fixed outcome definitions. These test mechanism and deployment beyond checkpoint masking. e-ablatione-protocole-speed
8.2 Proposed reproduction checks
The following checks are proposals motivated by the paper. They have not been run as part of this reading.
Check 1: Retrain a matched causal-history control
Reader-proposed experiment, not performed here: compare the full model with a policy retaining the same eight-frame history encoder, code size, two injection paths, phase/time heads and added parameter budget, but using a teacher target constructed without privileged future inputs or future-reconstruction supervision. Include an event-supervision-only control to expose benefits from the added history and labels. Hold demonstrations, splits, initialization, optimization budget and evaluation windows fixed, and train multiple seeds. Report transition MAE, orientation MAE and robot success, with uncertainty accounting for episodes and seeds. If the full method's advantage disappears against the matched causal control, the evidence would favor history/event conditioning over a specific contribution from privileged-future distillation. e-teachere-studente-objectivee-protocole-ablation
Check 2: Repeat the speed sweep with measured timing and balanced trials
Reader-proposed experiment, not performed here: record physical belt velocity and repeat the stationary and moving comparisons for π0.5, ForeTime-VLA and the matched causal control. Balance object types and starting poses, randomize policy order, and define early, late and contact-pose failure before collecting outcomes. Log sensing-to-actuation delay, actual contact time and phase predictions before contact; compare under both natural and equalized delays. Report exact counts with binomial intervals separately by speed and campaign. A persistent success advantage accompanied by fewer late/pose failures would strengthen the temporal-preparation account. A gap explained by delay differences, or absent against the matched control, would weaken that account. e-robote-speede-efficiencye-rolloute-ablation
8.3 Reading coverage
Visual audit: Visually inspected the title/author/version page; Figure 1 and numbered flow equations; the teacher diagram and student equations; training losses and evaluation protocols; dataset Figure 3 and Table I; Tables II–IV and efficiency text; speed Figure 4, qualitative Figure 5 and limitations. All six final crops were separately viewed with complete relevant labels and table headers. The figures' long captions were excluded from crops and their protocol details are explained in the accompanying text. Page 8 references were read as text. No supplementary figures, raw rollout video or spreadsheet were supplied for this visual pass. Figure 1(C)'s target-flow label conflicts with Equation (1); both were inspected, and the discrepancy is preserved.
PDF pages inspected for this edition: 1, 2, 3, 4, 5, 6, 7. Appendix coverage: not present.
Original figures and tables remain the work of the source’s authors. Extractions preserve their scientific content; any HTML wrapper layout is disclosed with each figure. The surrounding reading notes are our own.
Text reading scope & known omissions
- PDF p. 1: title, authors, affiliations, arXiv version, abstract and I. Introduction
- PDF p. 2: II. Related Work, A–C; III.A Problem Formulation
- PDF pp. 3–4: III.B–F, teacher, student, conditioning, objectives and design rationale
- PDF pp. 4–5: IV.A–C, dataset, offline evaluation and robot protocols
- PDF pp. 5–7: V.A–J, all results, ablation, efficiency and qualitative rollout
- PDF p. 7: VI. Conclusion and limitations
- PDF p. 8: References [1]–[37]
Outside the original text pass
- Identity/edition note: the inspected PDF is arXiv:2608.20735v2 [cs.AI], dated 24 August 2026. Title and all seven authors match the catalog. The catalog submission date is 23 August 2026. No earlier PDF or revision history was supplied; scientific equivalence across versions is not established.
- The catalog abstract mentions 40k-step checkpoints; the supplied v2 text does not specify a training-step count. This report does not retain that unverified detail.
- Text extraction does not reconstruct figure images; inspect the retained PDF for figures and equation/table layout.
- Separate supplemental material availability has not been fully verified.
- The extraction's image limitation was addressed by visually inspecting PDF pages 1–7, all five figures and four tables, and six final original crops. Page 8 references were read as text.
- No separate appendix is present. Code, checkpoints, raw demonstrations and the referenced results spreadsheet were not inspected; no experiments were reproduced.
The visual audit above records the subsequent illustrated pass.
8.4 Traceable evidence
e-identityPDF p. 1, title/author block and arXiv margin
The exact catalog title and seven authors appear: Siyuan Ma, Yutian Zhang, Boshi Zhang, Qinglian Wu, Jiaqi Zhai, Dong Wei and Xiaojin Huang. Four affiliations are printed. The margin identifies arXiv:2608.20735v2 [cs.AI], 24 August 2026.
Go to primary source ↓e-overviewPDF p. 1, Abstract and I. Introduction; p. 2, Figure 1/caption
Future-aware action-equivalent supervision trains a causal history predictor that conditions both π0.5 paths. Future frames and the teacher are absent at inference.
Go to primary source ↓e-flowPDF p. 2, III.A, Equations (1)–(2)
Horizon H=20 and dimension D=16 define the action chunk. Noisy actions interpolate demonstrations and Gaussian noise; the numbered target flow is ε−a, trained with squared error.
Go to primary source ↓e-flow-discrepancyPDF p. 2, Figure 1(C), Target Flow label, versus Equation (1)
The graphic prints uτ=(1−τ)a*+τε, repeating the interpolation form, whereas Equation (1) defines uτ=ε−a. This internal notation discrepancy is unresolved; the original image is retained.
Go to primary source ↓e-teacherPDF p. 3, III.B and Figure 2
Frozen Wan2.2 features use future offsets 2,4,7,9,12,14,17,19. Current/future features are each 96-D, state 26-D, codes 64-D. Adapter losses cover action/future reconstruction, alignment and non-collapse constraints with listed weights. Teacher codes are whitened and cached.
Go to primary source ↓e-studentPDF p. 3, III.C, Equations (3)–(4) and phase-target paragraph
Eight 26-D states and 12-D camera statistics feed 256-D embeddings and a residual MLP. Heads predict future code, four phases and normalized transition time. Labels derive from gripper transitions; numerical detection thresholds are unspecified.
Go to primary source ↓e-conditioningPDF pp. 3–4, III.D and III.F; p. 2, Figure 1(A–B)
Four 2048-D future tokens plus one phase token extend the VLM prefix. A 1024-D future/time residual enters the action suffix and adaptive normalization. Gates start at 0.05; added parameters total 1.251M. Teacher, VAE and adapter are absent at deployment.
Go to primary source ↓e-objectivePDF p. 4, III.E, Equations (5)–(7)
Cosine/Gram alignment, phase cross-entropy, transition Huber loss (δ=0.1) and linear action reconstruction supplement flow loss with coefficients 0.20/0.02/0.04/0.04/0.05. All policy/student parameters train jointly, retaining recorded action targets.
Go to primary source ↓e-datasetPDF pp. 4–5, IV.A and Figure 3
487 files minus one unreadable and 28 duplicates leave 458 episodes, 96,512 frames and 1.79 hours at 15 Hz. Train/validation/test episodes are 402/31/25, with 77,125/6,075/4,610 windows. Figure 3 shows realized scene/object/modality coverage.
Go to primary source ↓e-protocolPDF p. 4, IV.B Models and Protocol
Five models share episode/start indices, 768 windows per evaluated split and the camera/state/action contract. Raw 16-D MSE, MAE and per-timestep L2 are evaluated; direct π0.5 intervals use 20,000 paired bootstrap resamples. Cross-family models are not parameter-matched. Timing uses an A100; training schedule and π0.5 solver details are unspecified.
Go to primary source ↓e-offlinePDF p. 5, Table I, validation/test rows and lower paired-improvement panel; V.A–B
ForeTime-VLA has best MAE/L2 on both splits. Test MAE/L2 are 0.130593/1.071214 versus 0.134119/1.104541. Gains are 2.63% [0.82,4.48] and 3.02% [0.94,5.07]. Validation MAE gain is 2.96% [0.74,5.15]; validation L2 and both MSE intervals cross zero. StarVLA has best test MSE 0.237490.
Go to primary source ↓e-groupsPDF p. 6, Table II, EE-RPY and test base-XY rows; V.C
Validation/test RPY improves 4.12%/3.78%; test RPY changes 0.475728 to 0.457734. Test base XY changes 0.015229 to 0.015642, worsening 2.71%. Group-specific intervals are absent.
Go to primary source ↓e-ablationPDF p. 6, V.D and Table III, all rows/columns
Masking uses the same checkpoint, 96 test windows, 48 phase-1 windows and identical initial noise. Full transition MAE 0.145320 rises to 0.159982 without future and 0.160672 without phase/time. Slow-only/fast-only are 0.156587/0.161749. Fast-only RPY 0.479751 beats full 0.482656. No retraining is performed.
Go to primary source ↓e-efficiencyPDF p. 6, V.E Deployment Efficiency
Validation latency changes 66.69 to 68.65 ms (+2.93%); test changes 66.97 to 68.62 ms (+2.46%). GR00T and StarVLA use four denoising steps. End-to-end control latency is not reported.
Go to primary source ↓e-robotPDF p. 4, IV.C; p. 6, Table IV and V.F; p. 7, V.F continuation
First campaign: 90 trials per method/task; ForeTime-VLA succeeds 73/90 stationary and 53/90 moving, or 81.11%/58.89%. Next best: StarVLA 68.89% stationary, π0.5 36.67% moving. Exclusive moving early/late/pose failures are π0.5 21.11/26.67/15.56% versus ForeTime 17.78/16.67/6.67%.
Go to primary source ↓e-speedPDF p. 4, IV.C second campaign; p. 7, V.G and Figure 4
Separate campaign: 30 trials per speed. π0.5 gets 13/8/2 and ForeTime-VLA 19/14/11 slow/medium/fast successes, totaling 23/90 and 44/90. Physical velocities and robot confidence intervals are absent.
Go to primary source ↓e-rolloutPDF p. 7, V.I and Figure 5/caption
One successful rollout illustrates a grasp-phase probability of 87.3% at 9.8 seconds, followed by increasing transport probability; it is qualitative evidence.
Go to primary source ↓e-limitsPDF p. 7, VI. Conclusion, final paragraph
Demonstrated scope is one conveyor-belt embodiment and a fixed offline video backbone. Longer horizons, changing viewpoints and broader action spaces are proposed generality tests.
Go to primary source ↓8.5 Primary sources
ForeTime-VLA: Causal Future-Token Distillation from a World Action Model for Conveyor-Belt Manipulation ↗
PDF · 5,604 extracted words
Source fingerprint
8eb696cd96a41a0824e69cef447f5d9dfa73957519cddd50a134ada2d7978d4e
